Quantum Scalar 50 Manuale utente

Document 81-81769-01 B01, September 2007 1

Quantum Scalar 50

Tape Drive

Installation Instructions

Introduction 3

Tape Drive Numbering................................................................................ 3

Scalar 50 Tape Drive Upgrade Kits ............................................................ 4

Required Tools .............................................................................................. 6

Unpacking the Tape Drive 6

Installing the Tape Drives 6

Cabling the Tape Drives 7

Setting the Tape Drive SCSI ID 11

Setting the SCSI ID Using the OCP .......................................................... 11

Setting the SCSI ID from the Remote Management Pages ................... 12

Completing the Native Fibre Channel Installation 14

Determining the WWNs World Wide Names........................................ 15

Verifying Library Connectivity................................................................. 18

Fibre Channel Connectivity Troubleshooting 20

Fibre Channel Connectivity Troubleshooting ........................................ 20

SCSI ID Assignment with Native Fibre Channel Tape Drives............. 21

Quantum Scalar 50 Tape Drive Installation Instructions

Document 81-81769-01 B01

September 2007

Made in the USA.

Quantum Corporation provides this publication “as is” without warranty of any kind, either express or implied, including but not limited to

the implied warranties of merchantability or fitness for a particular purpose. Quantum Corporation may revise this publication from time to

time without notice.

Your right to copy this document is limited by copyright law. Making copies or adaptations without prior written authorization of Quantum

Corporation is prohibited by law and constitutes a punishable violation of the law.

TRADEMARK STATEMENT

Capacity on Demand (CoD), Crosslink Mechanism, DLT, DLTSage, DLTtape, Super DLTtape, Performance on Demand, (PoD), PRISM,

PRISM Storage Architecture logo, SiteCare, StackLink, StorageCare, SuperLoader, and ValueLoader are all trademarks of Quantum

Corporation. Quantum, the Quantum logo, and the DLTtape logo are all registered trademarks of Quantum Corporation.

Other trademarks may be mentioned herein which belong to other companies.

Quantum Scalar 50 Tape Drive Installation Instructions

Document 81-81769-01 B01

September 2007

Introduction 3

Introduction 0

This document provides instructions for adding a tape drive to an Scalar 50

tape library. The tape drive upgrade procedure consists of the following

steps:

•Unpacking the Tape Drive

•Installing the Tape Drives

•Cabling the Tape Drives

•Setting the Tape Drive SCSI ID

•Completing the Native Fibre Channel Installation

•Fibre Channel Connectivity Troubleshooting

Tape Drive Numbering 0The Scalar 50 tape library may contain up to 4 tape drives depending on the

tape drive type. Refer to the following figures:

•Figure 1 Full height drives (up to two per library)

•Figure 2 Half-height drives (up to four per library)

Figure 1 Scalar 50 Cable

Configuration (Full Height

Drives)

Note: Half-height tape drive canisters are ONLY available in Scalar 50

tape libraries.

Back of Library

Tape drive 1Tape drive 2

Quantum Scalar 50 Tape Drive Installation Instructions

Document 81-81769-01 B01

September 2007

4 Introduction

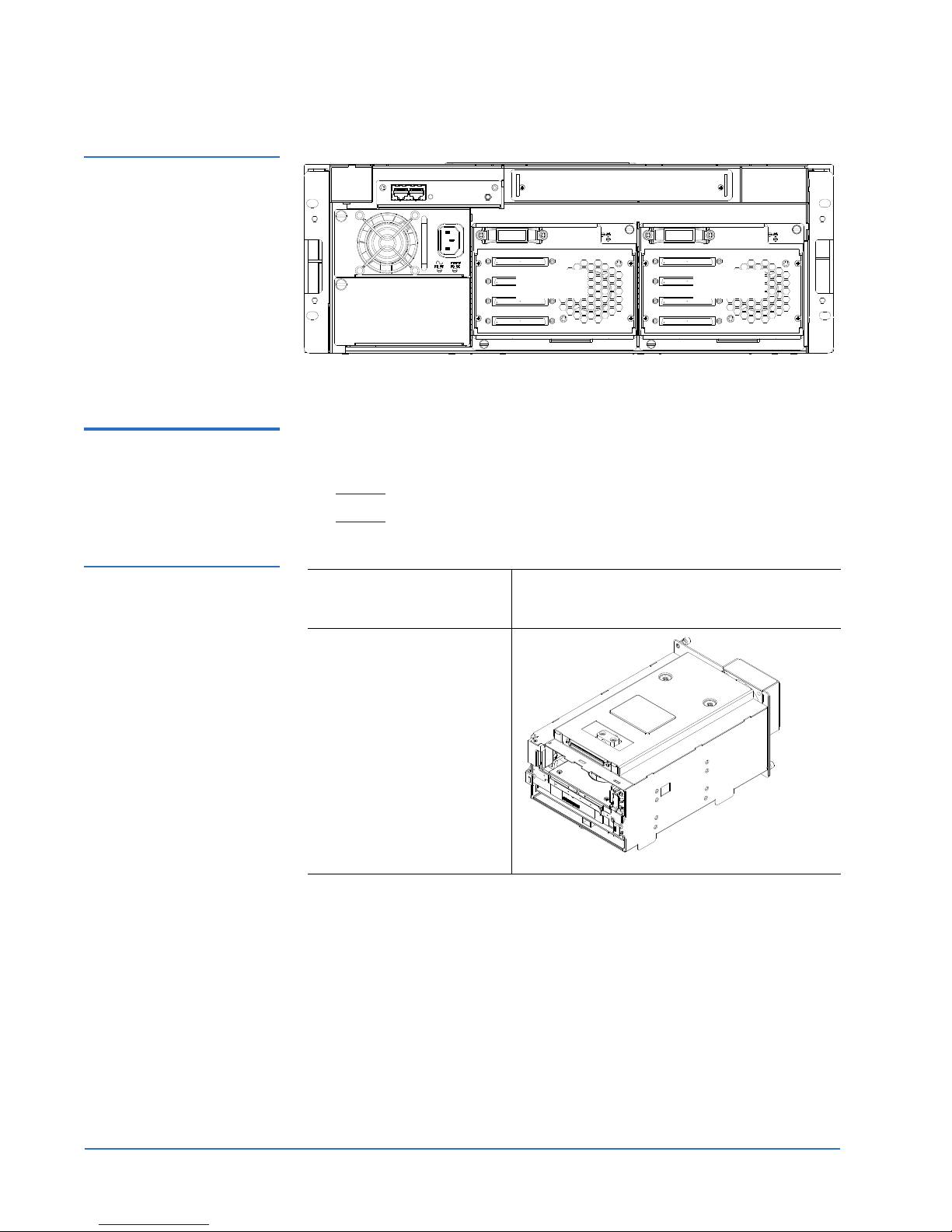

Figure 2 Scalar 50 Cable

Configuration (Half-Height

Drives)

Scalar 50 Tape Drive

Upgrade Kits 0

The tape drive upgrade kit differs depending on the tape drive type needed

for the library. Refer to the following tables:

•Table 1 for SDLT tape drives kits

•Table 2 for LTO tape drive kits

Table 1 Tape Drive

Upgrade Kits (SDLT) SDLT Part Number PC-UUAQA-YF (DLT-S4, SCSI)

PC-UU8QC-YF (DLT-S4, Native Fibre)

DLT-S4 Tape Drive

Module

Tape drives

3 and 4

Back of Library

Tape drives

1 and 2

Quantum Scalar 50 Tape Drive Installation Instructions

Document 81-81769-01 B01

September 2007

Introduction 5

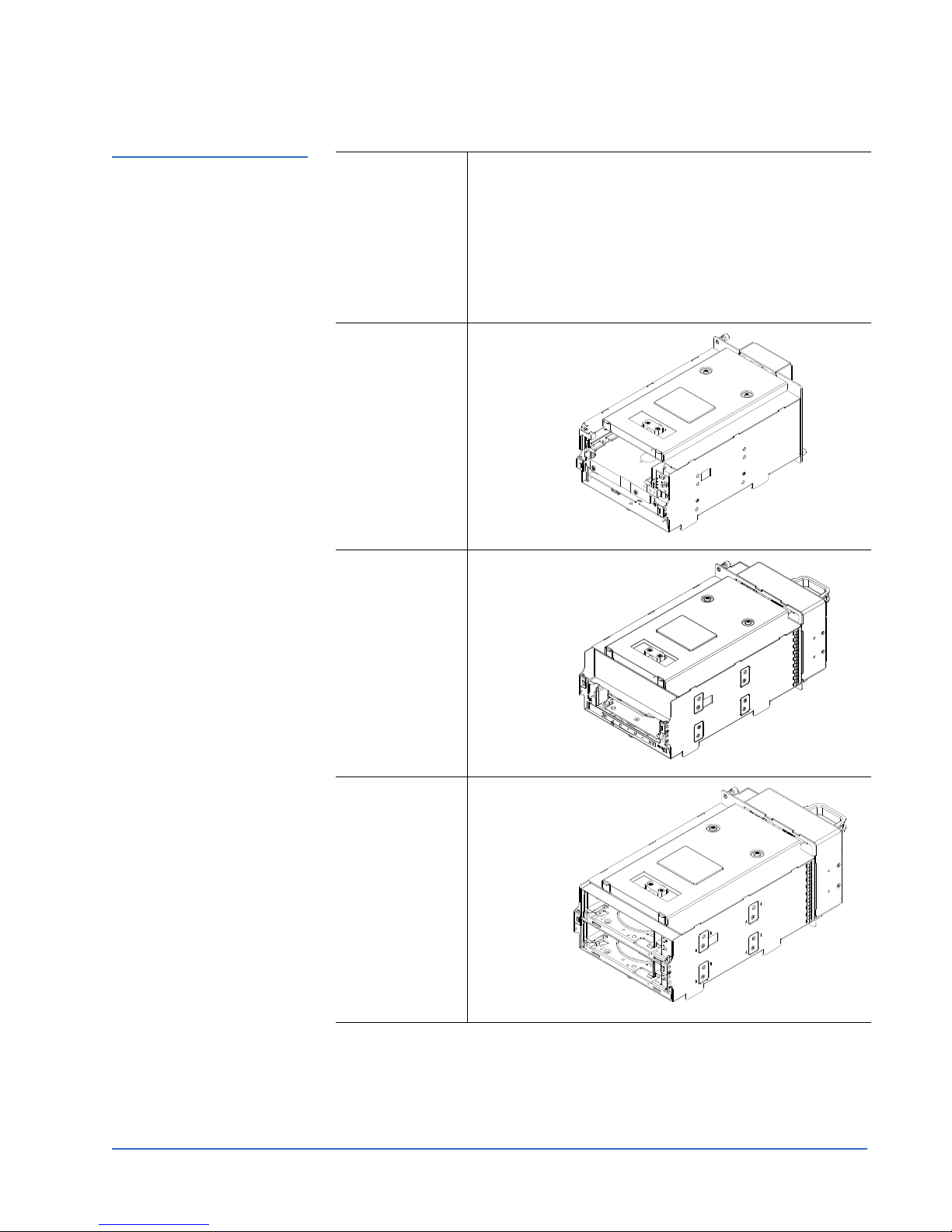

Table 2 Tape Drive

Upgrade Kits (LTO) LTO Part

Number

PC-KUCQA-YF (LTO-3 HH SCSI, single drive)

PC-KUC1A-YF (LTO-3 HH SCSI, dual drive)

PC-KUKQC-YF (LTO-3 HH Native Fibre, single drive)

PC-KUKQ1-YF (LTO-3 HH Native Fibre, dual drive)

PR-UU3QA-YF (HP LTO3, SCSI)

PR-UU5QC-YF (HP LTO3, Native Fibre)

PC-KUMQA-YF (HP LTO4, SCSI)

PC-KUGQC-YF (HP LTO4, Native Fibre

HP-LTO2/3/4

Tape Drive

Module

LTO-3 Half-

Height Tape

Drive Module

(Single Drive)

LTO-3 Half-

Height Tape

Drive Module

(Dual Drive)

Quantum Scalar 50 Tape Drive Installation Instructions

Document 81-81769-01 B01

September 2007

6 Unpacking the Tape Drive

Required Tools 0The following tools are required to perform the tape drive upgrade

procedure:

• Flat blade screwdriver

Unpacking the Tape Drive 0

To unpack the tape drive:

1Open the shipping carton.

2Remove the tape drive from the carton.

The tape drive is protected by two pieces of foam and an antistatic bag.

3Remove the foam from the wrapped tape drive. Remove the tape drive

from the antistatic bag.

Installing the Tape Drives 0

To install tape drives in a Scalar 50 Series library:

1At the back of the library, use a flat blade screwdriver to loosen the

captive screws that secure the cover plate to the empty drive bay.

2Set the cover plate aside.

Caution: Use appropriate electrostatic discharge (ESD) precautions

when installing the tape drive.

Note: If this is an initial library installation, it is recommended to turn

the library off prior to installing tape drives. If this is an existing

library that is receiving a tape drive upgrade, the library can

remain powered on.

Note: Each tape drive ships from Quantum with a version of library

firmware as well as drive firmware on the tape drive interface

PWA. When you install the tape drive, the library will check the

version of library firmware on the tape drive and verify if the

firmware is newer than the version currently running. If the

library firmware on the tape drive is newer than the version

currently running on the library, the OCP will prompt you with

the option to upgrade the library firmware.

Quantum Scalar 50 Tape Drive Installation Instructions

Document 81-81769-01 B01

September 2007

Cabling the Tape Drives 7

3Insert the tape drive into the drive bay slowly until the connectors are

seated (see figure 3).

4Tighten the tape drive captive screws using a flat blade screwdriver.

5Repeat steps 1through 4to install another tape drive in a different

location, if desired.

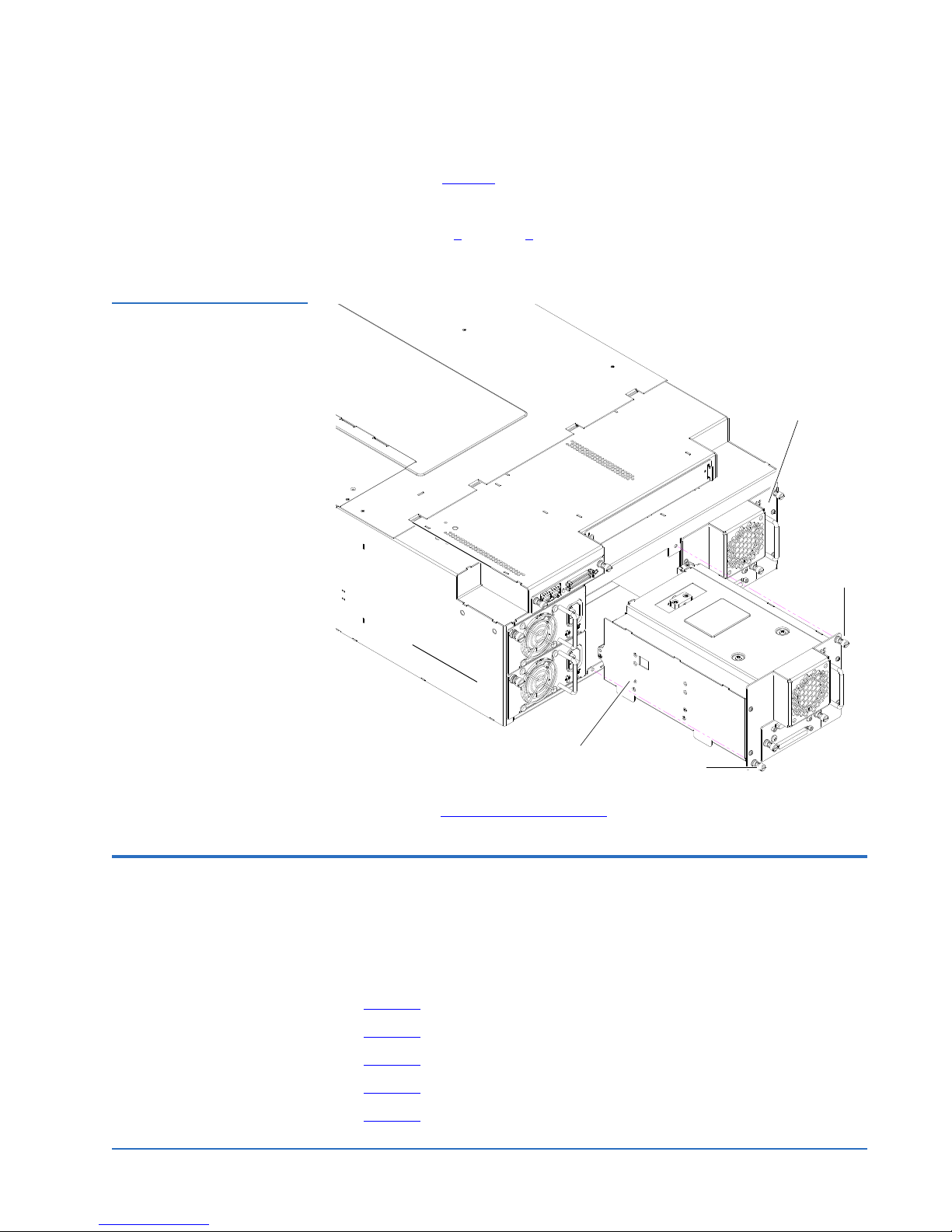

Figure 3 Installing a Tape

Drive

Proceed to Cabling the Tape Drives.

Cabling the Tape Drives 0

After the tape drive(s) have been installed, you must connect SCSI or Fibre

Channel cables to each drive.

Refer to the following figures to cable the tape drives:

•Figure 4 SCSI full height drives

•Figure 5 Native Fibre Channel full height drives

•Figure 6 SCSI half-height drives

•Figure 7 Native Fibre Channel half- height drives

•Figure 8 Stacked Library Configuration

Tape drive 1

Captive screw

Tape drive 2

Captive screw

Quantum Scalar 50 Tape Drive Installation Instructions

Document 81-81769-01 B01

September 2007

8 Cabling the Tape Drives

Figure 4 Scalar 50 Cable

Configuration (SCSI Full

Height Drives)

Figure 5 Scalar 50 Cable

Configuration (Native Fibre

Channel Full Height Drives)

Figure 6 Scalar 50 Cable

Configuration (SCSI Half-

Height Drives)

Back of Library

SCSI host

Ethernet

Power

System Controller Board

Tape drive 1Tape drive 2

Back of Library

Ethernet

Power

Tape drive 2 Tape drive 1

LTO Tape drives

shown. SDLT drives

have a single FC port

Fibre Channel

host/SAN

Fibre Channel

host/SAN

Tape drives

3 and 4

Ethernet

Power

Back of Library

SCSI host

Terminator

Tape drives

1 and 2

Quantum Scalar 50 Tape Drive Installation Instructions

Document 81-81769-01 B01

September 2007

Cabling the Tape Drives 9

Figure 7 Scalar 50 Cable

Configuration (Native Fibre

Channel Half-Height Drives)

Back of Library

Ethernet

Power Fibre Channel

host/SAN

Fibre Channel

host/SAN

Tape drives

1 and 2

Tape drives

3 and 4

Quantum Scalar 50 Tape Drive Installation Instructions

Document 81-81769-01 B01

September 2007

10 Cabling the Tape Drives

Figure 8 Scalar 50 Cable

Configuration (Stacked)

Scalar 50 (master library)

Scalar 50 (slave library)

Host computer

Tape

drive 1

Tape

drive 2

Ta p e

drive 2

Tape

drive 1

Tape

drive 1

Ta p e

drive 2

Host computer

Ethernet

The library

host and

Ethernet

network are

connected only

to the Master

library.
