Quantum PX500 Series
TC2201 Upgrade Instructions
Introduction 3
TC2201 Bridge Operation ............................................................................ 3
Preparing for the TC2201 Installation 3
Required Upgrade Kits ................................................................................ 3
Required Equipment (Customer Supplied) .............................................. 3
Required Tools .............................................................................................. 3
TC2201 Upgrade Procedure 4
Preparing the Quantum PX500 Series Library ......................................... 4
Removing Tape Drive SCSI Cables ............................................................ 5
Installing the TC2201 Bridge ....................................................................... 8
Installing the Ethernet Cables ................................................................... 12
Installing SCSI Cables ................................................................................ 16
Configuring the TC2201 Bridge Software ............................................... 18
Saving the Configuration File ................................................................... 23
Zoning the Ethernet Switch 25
Quantum PX500 Series TC2201 Upgrade Instructions
81-81538-01 A01
December 2005
Made in the USA.
Quantum Corporation provides this publication “as is” without warranty of any kind, either express or implied, including but not limited to
the implied warranties of merchantability or fitness for a particular purpose. Quantum Corporation may revise this publication from time to
time without notice.
COPYRIGHT STATEMENT
© Copyright 2005 by Quantum Corporation. All rights reserved.
Your right to copy this document is limited by copyright law. Making copies or adaptations without prior written authorization of Quantum
Corporation is prohibited by law and constitutes a punishable violation of the law.
TRADEMARK STATEMENT
Capacity on Demand (CoD), Crosslink Mechanism, DLT, DLTSage, DLTtape, Super DLTtape, Performance on Demand, (PoD), PRISM,
PRISM Storage Architecture logo, SiteCare, StackLink, StorageCare, SuperLoader, and ValueLoader are all trademarks of Quantum
Corporation. Quantum, the Quantum logo, and the DLTtape logo are all registered trademarks of Quantum Corporation.
Other trademarks may be mentioned herein which belong to other companies.
2
Quantum PX500 Series TC2201 Upgrade Instructions
81-81538-01 A01
December 2005
Introduction 3
Introduction 0
The Quantum PX500 Series automated tape libraries are controlled by a host
computer via a SCSI LVD bus using the SCSI-3 medium changer command
set.
The Quantum PX500 Series allows for easy conversion from the SCSI host
interface to an iSCSI host interface. This document describes upgrading a
standard PX500 library equipped with a SCSI host interface to an iSCSI host
interface using a TC2201 Upgrade kit.
TC2201 Bridge
Operation 0Once a TC2201 bridge option is installed and tested, the library operates
exactly as a PX500 Series with a SCSI host interface. Operation of the library
via the operator control panel (OCP) is unchanged.
Preparing for the TC2201 Installation 0
Before beginning the installation procedure, make sure that you have the
required upgrade kit and tools.
Required Upgrade Kits 0The TC2201 installation requires the following upgrade kit for every two tape
drives in a PX500 Series library (see table 1):
Table 1 TC2201 Upgrade
Kit PN PR-UU9WG-YF
Required Equipment
(Customer Supplied) 0A zonable Ethernet switch is required if multiple TC2201 iSCSI bridges are
installed in either a PX506 or PX510 library. If a single TC2201 iSCSI bridge is
installed, an Ethernet switch is not required.
Required Tools 0The following tools are required to install the TC2201 bridge upgrade:
• #2 PHILLIPS® screwdriver
Note: All part numbers are subject to change without notice.
Qty Description
1 TC2201-LVD PWA
2 SCSI Cables
1Ethernetcable
1 Quantum PX500 Series TC2201 Upgrade Instructions
Quantum PX500 Series TC2201 Upgrade Instructions
81-81538-01 A01
December 2005
4 TC2201 Upgrade Procedure
TC2201 Upgrade Procedure 0
The upgrade procedure is identical regardless of the number of TC2201s
installed except where noted. The upgrade procedure consists of the
following major steps:
•Preparing the Quantum PX500 Series Library
•Removing Tape Drive SCSI Cables
•Installing the TC2201 Bridge
•Installing the Ethernet Cables
•Installing SCSI Cables
•Configuring the TC2201 Bridge Software
Preparing the
QuantumPX500Series
Library 0
To prepare the PX500 Series library:
1With the library turned on, press the Ops button on the OCP to access the
Operations screen (see figure 1).
Figure 1 Operations
Screen
2Select Library operations and press Enter.
3From the library operations menu, select Library on/offline and press Enter
to turn the library offline.
4Verify that the OCP display indicates “Offline” from the OCP screen.
5Turn off the power button located on the front of the library (see figure 2).
Caution: Use appropriate ESD procedures when assembling and
installing the TC2201 option.
Enter
Quantum PX500 Series TC2201 Upgrade Instructions
81-81538-01 A01
December 2005
TC2201 Upgrade Procedure 5
Figure 2 Turning On the
Library
Removing Tape Drive
SCSI Cables 0Each pair of tape drives within the library are connected via a SCSI cable.
These cables must be removed prior to cabling the TC2201.
1Locate the SCSI cables connecting each pair of tape drives in the library
and the host systems (see figure 3 for PX502, figure 4 for PX506, and
figure 5 for PX510). The tape drives are numbered 1 through 10
(depending on library model) starting in the top-right drive bay. Tape
drive 1 is in the upper right-hand drive bay, tape drive 2 is in the upper
left-hand drive bay, and so forth. Refer to the following illustrations for
exact tape drive numbering.
Power button
OCP
Quantum PX500 Series TC2201 Upgrade Instructions
81-81538-01 A01
December 2005
6 TC2201 Upgrade Procedure

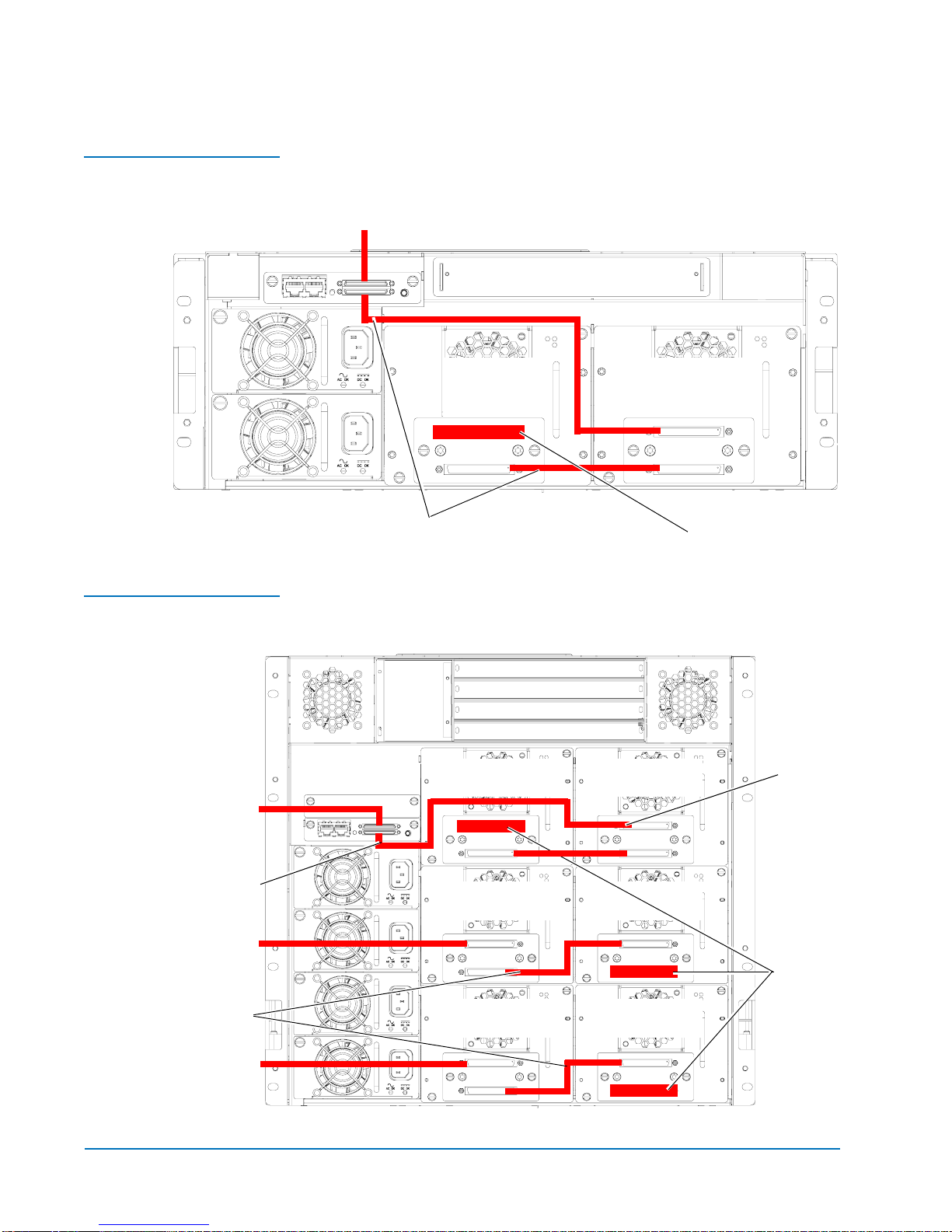

Figure 3 PX502 Cabling
Configuration
Figure 4 PX506 Cabling
Configuration
Tape drive 2 Tape drive 1
SCSI
terminator
SCSI
cables
Host computer
Host computer
Host computer
Host computer
SCSI
cable
SCSI cable
SCSI
terminators
SCSI cable
Tape drive 2 Tape drive 1
Tape drive 4
Tape drive 6 Tape drive 5
Tape drive 3
Quantum PX500 Series TC2201 Upgrade Instructions
81-81538-01 A01
December 2005
TC2201 Upgrade Procedure 7
Figure 5 PX510 Cabling
Configuration
2Remove all SCSI cables connecting each pair of tape drives and the host
systems and also all terminators.
Host computer
Host computer
Host computer
SCSI cable
SCSI
terminators
SCSI
cable
Host computer
Host computer
SCSI
terminators
SCSI
cable
SCSI
cable
Tape drive 2 Tape drive 1
Tape drive 4
Tape drive 6 Tape drive 5
Tape drive 3
Tape drive 8 Tape drive 7
Tape drive 10 Tape drive 9
SCSI
cable
Quantum PX500 Series TC2201 Upgrade Instructions
81-81538-01 A01
December 2005
8 TC2201 Upgrade Procedure
Installing the TC2201
Bridge 0The number of TC2201 bridges required depends on the number of tape
drives installed in the library.
• 1 to 2 tape drives requires 1 TC2201
• 3 to 4 tape drives requires 2 TC2201 bridges (PX506 and PX510 only)
• 5 to 6 tape drives requires 3 TC2201 bridges (PX506 and PX510 only)
• 7 to 8 tape drives requires 4 TC2201 bridges (PX510 only)
• 9 to 10 tape drives requires 5 TC2201 bridges (PX510 only)
To install the TC2201 bridge:
1Loosen the two PHILLIPS screws securing the blank off plate(s) to the
CPCI card cage and expose the number of slots needed for the TC2201
installation (one blank off plate per TC2201).
2With the SCSI ports located to your right as you face the back of the
library, slide the first TC2201 into the slot of the card cage (see figure 6 for
PX502, figure 7 for PX506, and figure 8 for PX510).
Figure 6 Installing a
TC2201 Bridge (PX502)
Note: Start the TC2201 installation in slot 1 of the CPCI card cage
(PX506 and PX510 only).
Blank off plate
Screws
Card cage
TC2201
Quantum PX500 Series TC2201 Upgrade Instructions
81-81538-01 A01
December 2005
TC2201 Upgrade Procedure 9

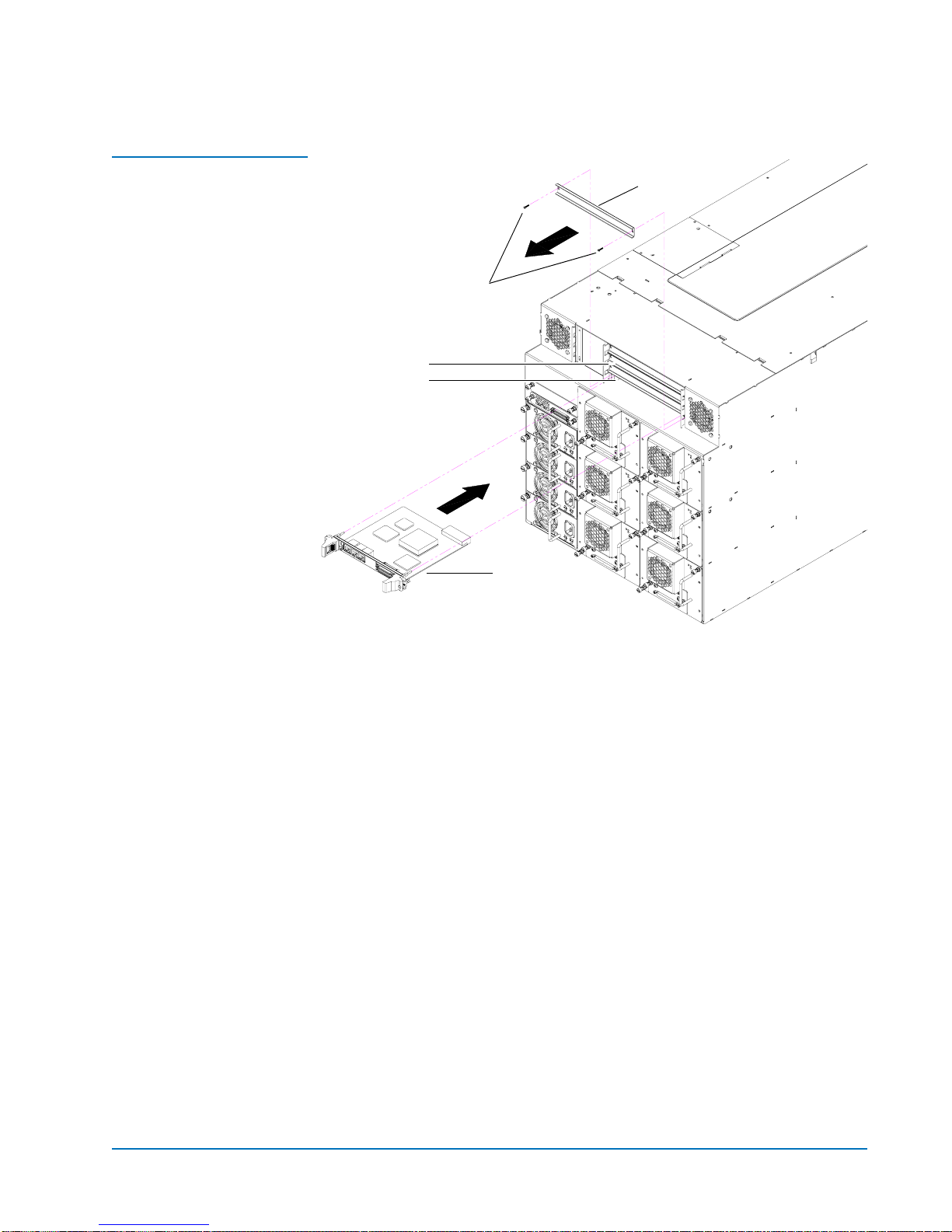

Figure 7 Installing a
TC2201 Bridge (PX506) Blank off plate
Screws
Card cage
TC2201
Slot 1
Quantum PX500 Series TC2201 Upgrade Instructions
81-81538-01 A01
December 2005
10 TC2201 Upgrade Procedure

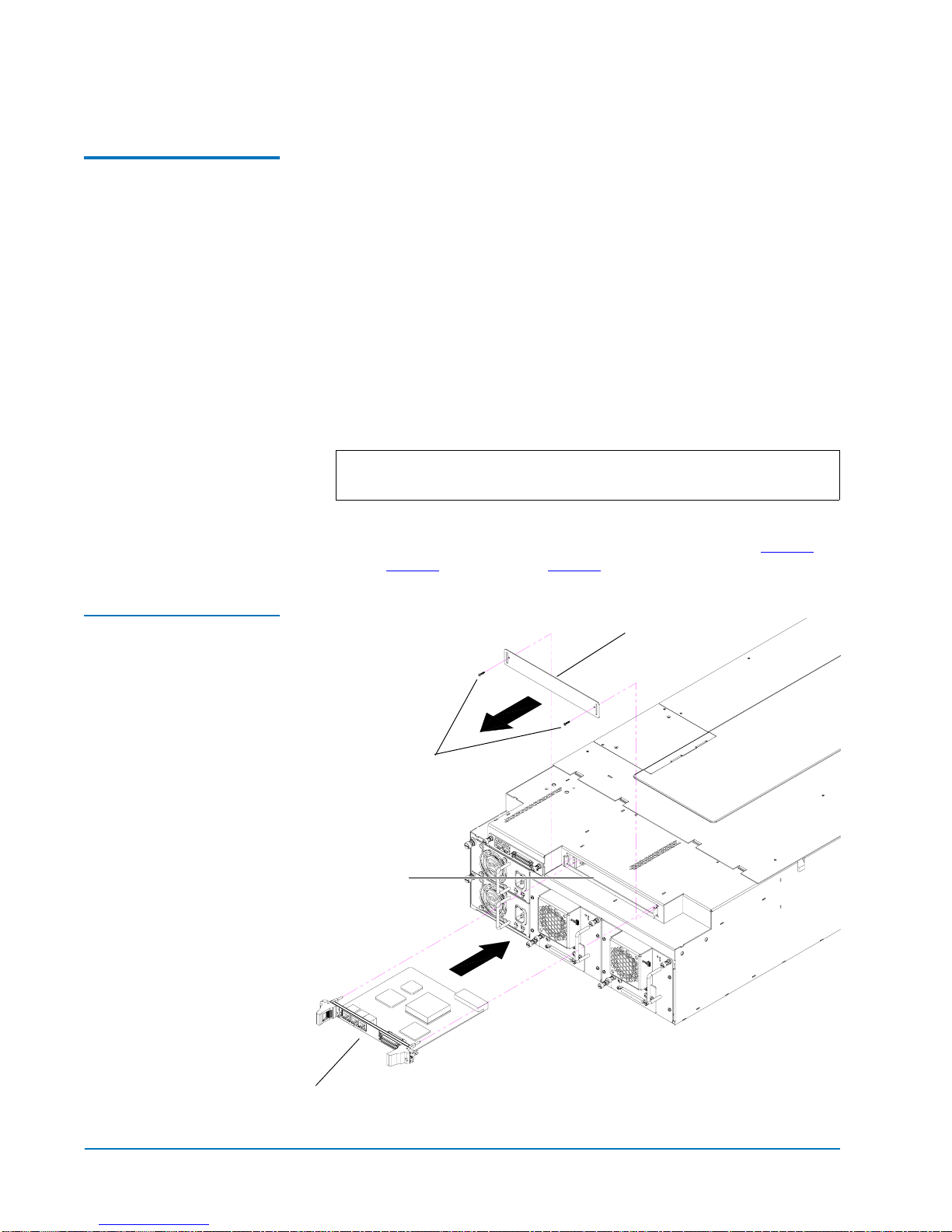

Figure 8 Installing a
TC2201 Bridge (PX510)
3Gently press down on the TC2201 until the board is seated in the card
cage and the ejector latches lock in place (see figure 9).
Blank off plate
Card cage
TC2201
Slot 1
