Quantum Scalar LTFS

Appliance:

Power Supply Replacement

The Scalar Linear Tape File System (LTFS) Appliance is powered by two

redundant, “hot-swappable” power supplies located in the back of the unit.

Once the failed power supply is identified, the power supply can be easily

replaced and the Scalar LTFS Appliance returned to normal operation. Always

replace faulty power supplies to ensure redundant operation.

To replace the power supply, refer to the following sections:

•Preparing to Replace a Power Supply on page 2

•Removing a Failed Power Supply on page 3

•Replacing a Failed Power Supply on page 3

Quantum Scalar LTFS Appliance: Power Supply Replacement

6-68095-01 Rev A

December 2013

2 Preparing to Replace a Power Supply

Preparing to Replace a Power Supply

Before beginning the replacement procedure, make sure that you have the

required replacement kit(s). Refer to the following table for the replacement kit

contents (see Table 1)

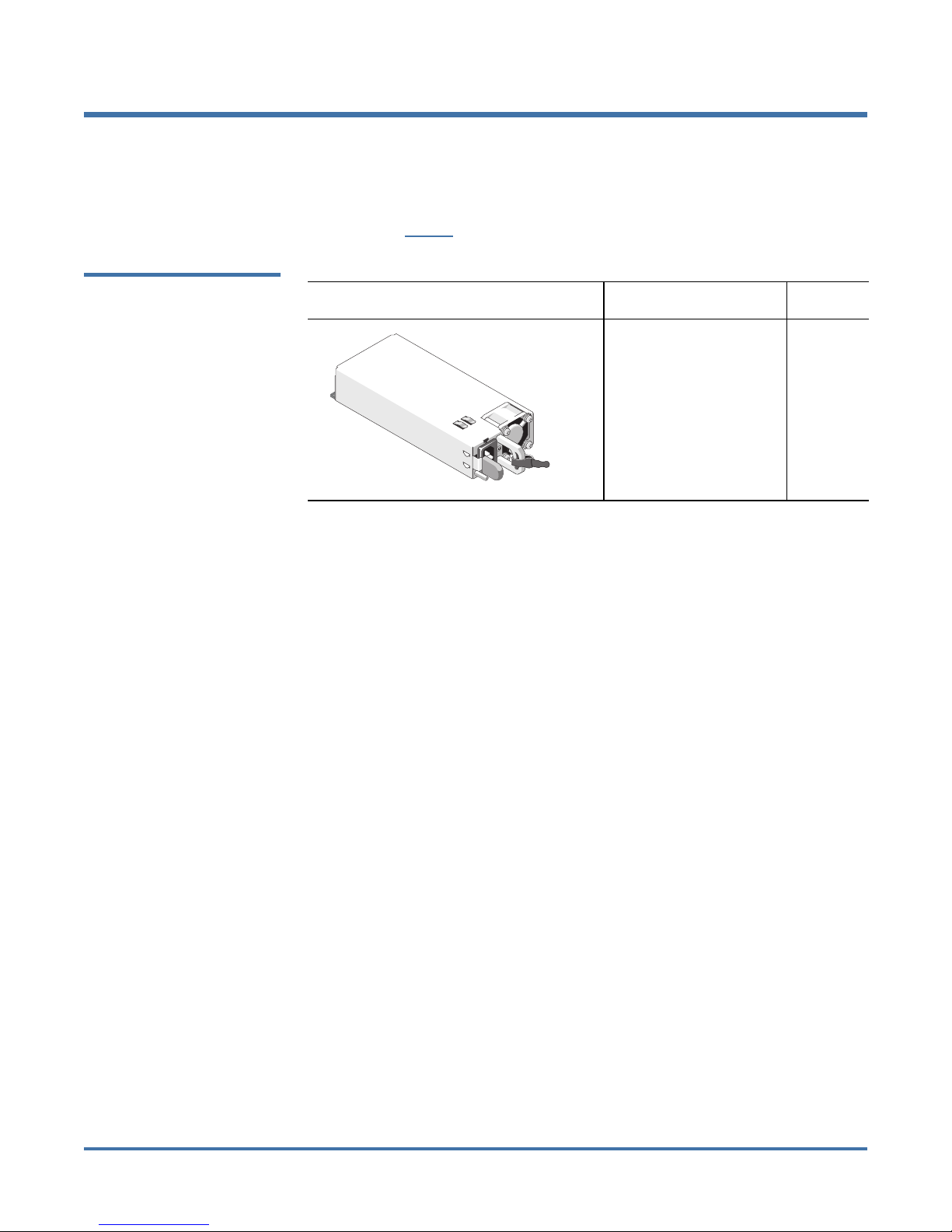

Table 1 Scalar LTFS Appliance

Power Supply Kit Illustration Description Qty

Replacement power

supply (570 watt)

Required Tools: None

Quantum Scalar LTFS Appliance: Power Supply Replacement

6-68095-01 Rev A

December 2013

Removing a Failed Power Supply 3

Removing a Failed Power Supply

To remove the failed power supply, complete the following steps:

1Look at the LED indicators on the power supply: when an amber LED is

displayed or the LED is OFF, that power supply has failed (see Figure 1).

2When disconnecting the power cable, remove the cable from the strap.

3Remove the power supply cable from the failed power supply.

4Press the release latch and use the power supply handle to help remove the

power supply from the Scalar LTFS Appliance.

Caution: The power supply may be hot. Use caution when removing the

failed power supply.

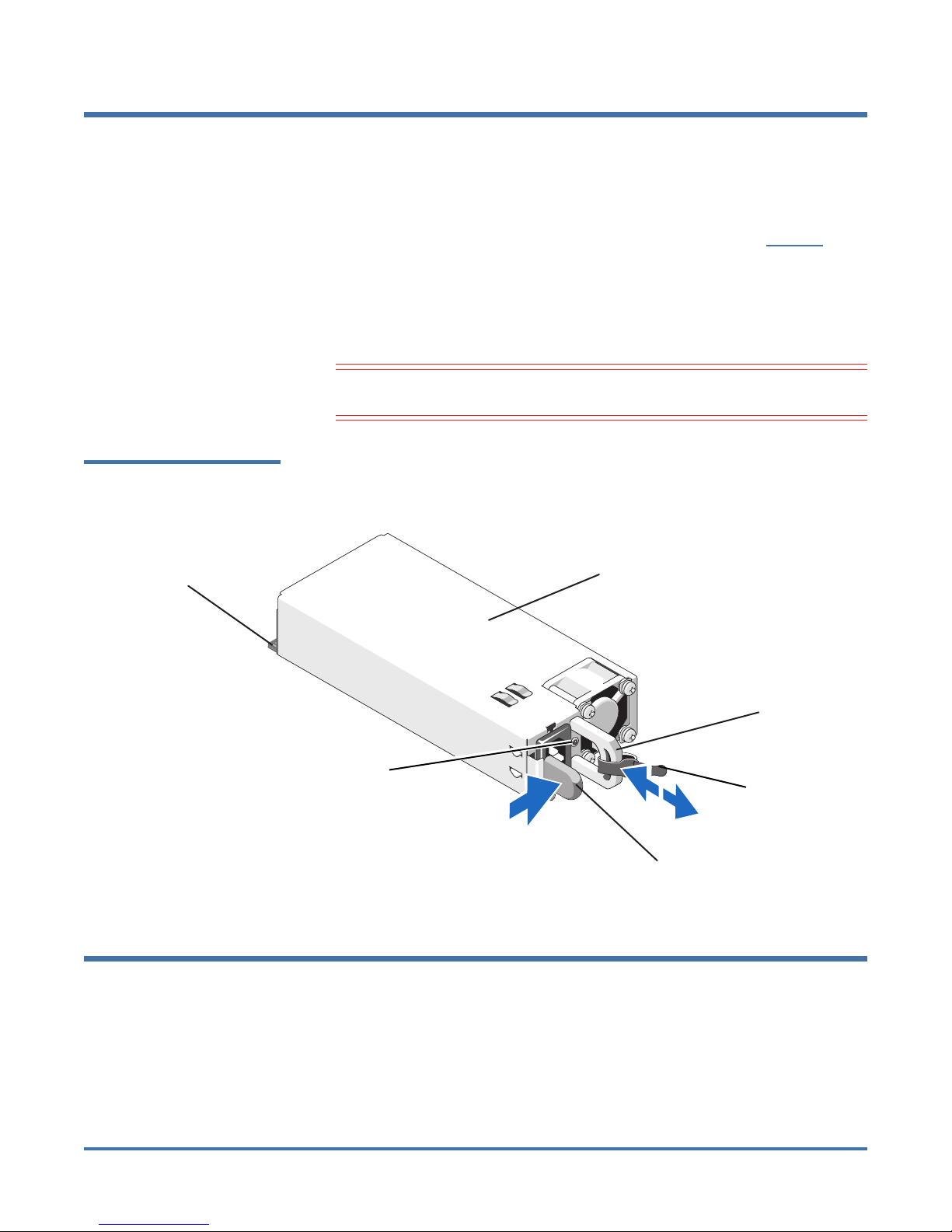

Figure 1 Remove the Scalar

LTFS Appliance Power Supply

Connector Power

Supply

Release

Latch

Power

Supply

Handle

Status LED

(Step 1) Velcro strap

(Step2)

(Step 4)

Replacing a Failed Power Supply

To replace the power supply, complete the following steps:

1In the empty bay of the Scalar LTFS Appliance, insert the replacement power

supply until the release latch snaps into place.

2Reattach the power cable to the power supply.

Quantum Scalar LTFS Appliance: Power Supply Replacement

6-68095-01 Rev A

December 2013

4Replacing a Failed Power Supply

3To ensure that the power supply is working properly, check the power

supply’s LED indicators.

A green light indicates that a valid AC source is connected to the power

supply, and that the power supply is operational. When Scalar LTFS

Appliance is on, a green light also indicates that the power supply is

providing DC power to the appliance.

4When connecting the power cable, secure the cable with the strap.
