Quoizel HC8407IB Istruzioni per il montaggio

Package Contents

Warnings and Cautions

1of2

Assembly Instruction Sheet #IS-HC8407IB_R1

For Style HC8407IB

2016 QuoizelInc.

Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.

These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly

recommend that a licensed, professional electrician perform the installation.

Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal.

ACrossbar Assembly

Pleasegoto forproductcleaningtips.Gotothe selection.

(1)A21MediumBasebulb150WMaximum.

20-30minutes

Identifyandinspectallpartsbeforebeginninginstallation.Checkpackagecontentlistanddiagramsbelowtoensureallpartsare

present.Ifanypartsaremissingordamaged,donotattempttoassemble,install,oroperatethefixture.Contactcustomerserviceforreplacement

parts.

www.quoizel.com Care + Maintenance

LightSource:

EstimatedAssembly Time:

Preparation:

Fixturecanonlybemountedinthedirectionindicatedonpage2.

ToolsRequired:Flatheadscrewdriver,Phillipsscrewdriver,pliers,wirecutters,wirestrippers,electricaltape,safetyglasses.

Fixture

Body

ReleasedDate:2016-12-08

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184

or visit us on-line at www.quoizel.com

Alternate

Mounting

screw

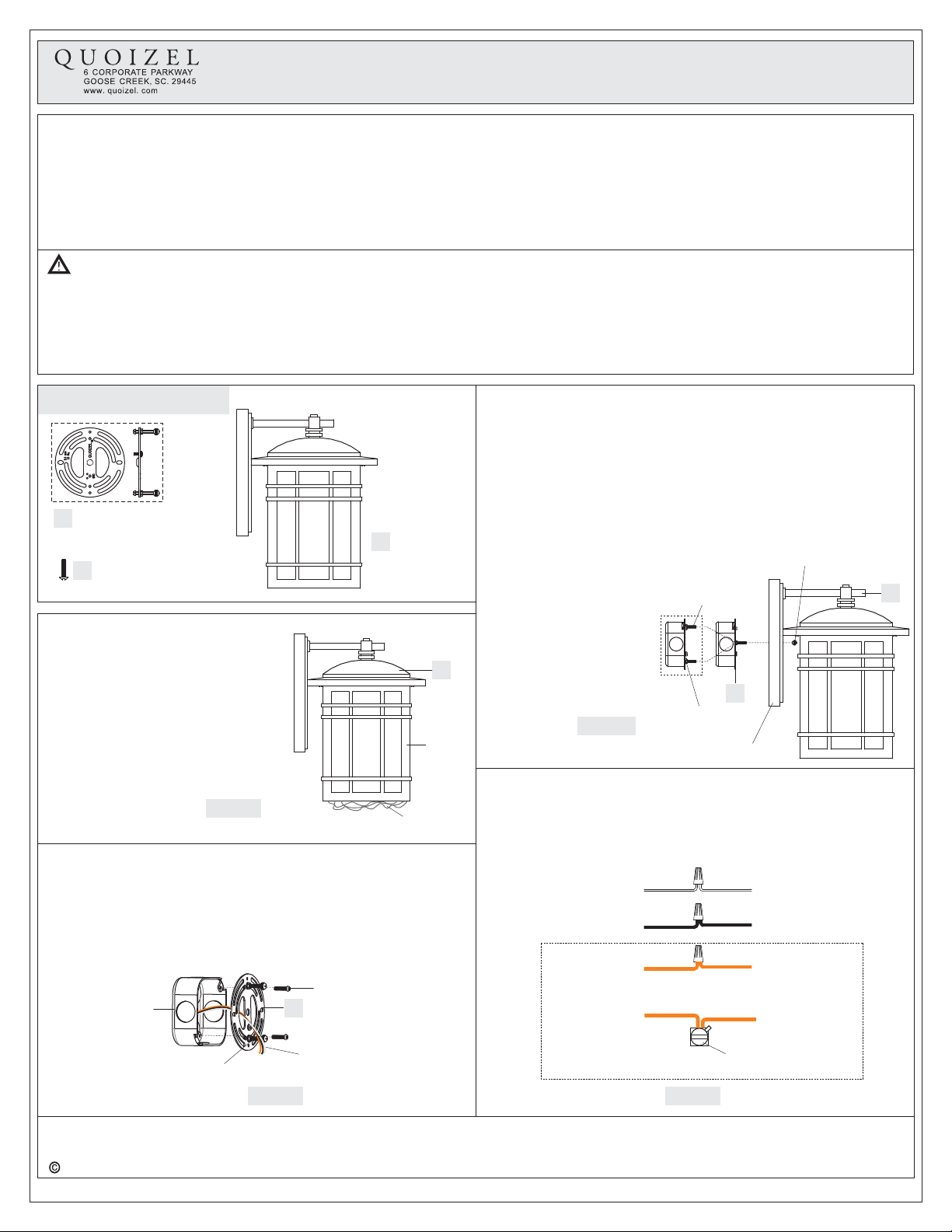

STEP 1 Remove Paper-

A. Remove paper inside of the cage

and Fixture Body (C).

STEP 2 Installing the Crossbar Assembly-

A. Pass the supply wires through the Crossbar Assembly (A). Attach

the Crossbar Assembly (A) to the Outlet Box with the head of the

Green Ground Screw facing you. Secure the Crossbar Assembly (A)

with Outlet Box Screws (not included). Tighten until snug

Note: Use the Alternate Shorter Mounting Screw (B) if your

installation requires a shorter mounting screw.

Supply Wires

with Ground Wire

Outlet Box Screws

(not included)

Outlet

Box A

Figure 2

Mounting Screw

or Alternate Short

Mounting Screw

STEP 3 Test Fit the Backplate to the Crossbar Assembly-

A. Remove the mounting balls from the Crossbar Assembly (A). Place

the backplate and Fixture Body (C) onto the Crossbar Assembly (A)

and secure with mounting balls. Note: The backplate and Fixture

Body (C) should be snug against the wall and held tight with the

mounting balls. If it is not, adjust the length of the mounting screw

or alternate short mounting screw on the Crossbar Assembly (A) by

unscrewing the preassembled hex nut and lock washer and then

screwing the mounting screws or alternate short mounting screws

Mounting Ball

Backplate

Hex Nut and

Lock Washer

Figure 3

Mounting Screw

or Alternate Short

Mounting Screw

Cage

Figure 1 Paper

STEP 4 - Wire Connections

A. Use standard wire connectors (not included) to make all wire

connections. Twist connectors until wires are tightly joined together.

Wrap each connection with approved electrical tape and carefully

stuff all the connected wires into the Outlet Box.

Figure 4

White wire

from outlet box White wire

from fixture

Black wire from

outlet box (or Red)

Black wire

from fixture

Bare, or Green

Ground wire

from outlet box

Ground wire

from fixture

Bare, or Green

Ground wire

from outlet box

Ground wire

from fixture

Green Ground Screw

on the Crossbar

in or out of the

crossbar until the

correct length is

achieved. Once the

backplate and Fixture

Body (C) is secure,

remove the mounting

ball and Fixture Body

Step 4.

2of2

2016 QuoizelInc.

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184

or visit us on-line at www.quoizel.com

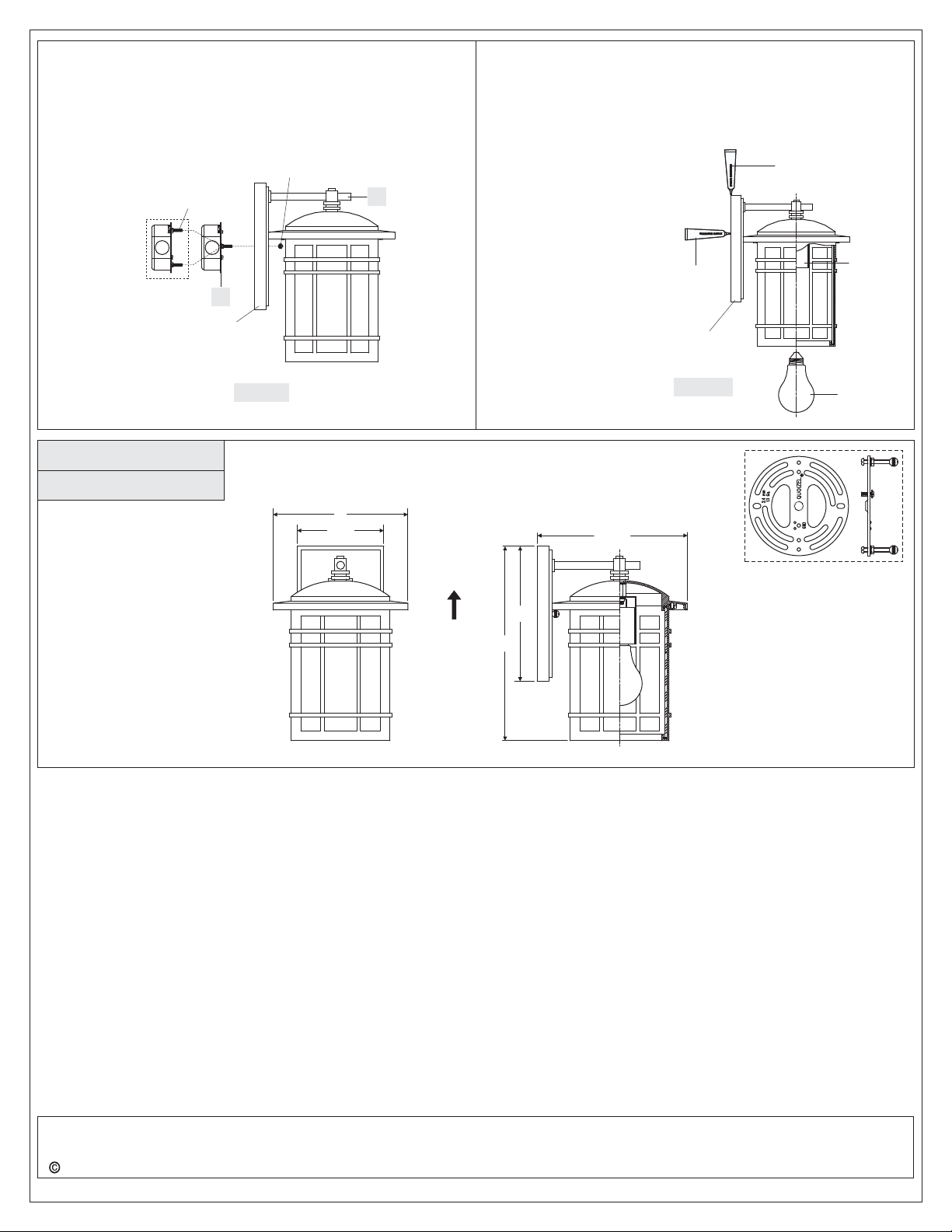

STEP 5 Install the Fixture Body-

A. Position the backplate and Fixture Body (C) onto the Crossbar

Assembly (A). Place the holes in the backplate over the mounting

screws or alternate short mounting screws. Secure the Fixture Body

by using the mounting balls and hand tighten the mounting balls

until snug.

Figure 6

STEP 6 -Install the Bulb and Apply Silicone Sealer

A. Insert the bulb onto socket and screw snugly into place.

B. Make sure the exterior wall surface and fixture backplate are free of

dirt before applying caulk. Using exterior grade caulk, caulk over

top of backplate and down both sides. Do not caulk the bottom of

Socket

Bulb (not

Supplied)

Exterior

Grade

Caulk

Backplate

Exterior

Grade

Caulk

the fixture backplate to

ensure proper moisture

drainage.

Your fixture is now

assembled and ready to

use. Enjoy!

HC8407IB

FINISH: IMPERIAL BRONZE

10"

7.75”

4.5"

NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/4"

Fixture can

only be

mounted in

the direction

indicated

ReleasedDate:2016-12-08

Figure 5

Mounting Ball

Backplate

Mounting Screw

or Alternate Short

Mounting Screw
