Quoizel RAV8410WT Istruzioni per il montaggio

1of2

Assembly Instruction Sheet #IS-RAV8410WT

For Style RAV8410WT

2016 QuoizelInc.

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184

or visit us on-line at www.quoizel.com

Package Contents

Fixture Body

Crossbar

Assembly

Alternate

Mounting screw

Pleasegoto forproductcleaningtips.Gotothe selection.

(1)A21MediumBaseBulb150WMaximumor

(1)S21VintageMediumBase60WBulbisrecommendedbutnotsupplied.

30-45minutes

Identifyandinspectallpartsbeforebeginninginstallation.Checkpackagecontentlistanddiagramsbelowtobesureallpartsare

present.Ifanypartsaremissingordamaged,donotattempttoassemble,install,oroperatethefixture.Contactcustomerserviceforreplacement

parts.

www.quoizel.com Care+Maintenance

LightSource:

EstimatedAssembly Time:

Preparation:

ToolsRequired:Flatheadscrewdriver, Phillips screwdriver,pliers,wirecutters,wirestrippers,electricaltape,safetyglasses.

Warnings and Cautions

Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.

These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly

recommend that a licensed, professional electrician perform the installation.

Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal.

STEP 3 -Test Fit the Backplate to the Crossbar Assembly

A. Remove the mounting balls from the Crossbar Assembly (A). Place

the backplate and Fixture Body (D) onto the Crossbar Assembly (A)

and secure with mounting balls. Note: The backplate and Fixture

Body (D) should be snug against the wall and held tight with the

mounting balls. If it is not, adjust the length of the mounting screw

or alternate short mounting screw on the Crossbar Assembly (A) by

unscrewing the preassembled hex nut and lock washer and then

screwing the mounting screws or alternate short mounting screws

in or out of the crossbar until the correct length is achieved. Once

the backplate and Fixture Body (D) is secure, remove the mounting

ball and Fixture Body (D) and proceed to Step 4.

ReleasedDate:2016-09-26

CFixture Loop

STEP 1 Thread Fixture Loop to

Fixture Body

A. Thread the Fixture Loop (C) onto the

Fixture Body (D) and hand tighten

until snug.

STEP 2 -Installing the Crossbar Assembly

A. Pass the supply wires through the Crossbar Assembly (A). Attach

the Crossbar Assembly (A) to the Outlet Box with the head of the

Green Ground Screw facing you. Secure the Crossbar Assembly (A)

with Outlet Box Screws (not included). Tighten until snug

Note: Use the Alternate Shorter Mounting Screw (B) if your

installation requires a shorter mounting screw.

Figure 2

Supply Wires with

Ground Wire

Outlet Box Screws

(not included)

Outlet Box

Mounting Screw

or Alternate Short

Mounting Screw

Mounting

Ball

Backplate

Hex Nut and

Lock Washer

Figure 3

Mounting Screw

or Alternate Short

Mounting Screw

STEP 4 - Wire Connections

A. Use standard wire connectors (not included) to make all the wire

connections. Twist the connectors until the wires are tightly joined

together. Wrap each connection with approved electrical tape and

carefully stuff all the connected wires into the Outlet Box.

White wire

from supply White wire

from fixture

Black wire from

supply (or Red)

Black wire

from fixture

Ground wire

from supply

Ground wire

from fixture

Figure 4

2of2

2016 QuoizelInc. ReleasedDate:2016-09-26

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184

or visit us on-line at www.quoizel.com

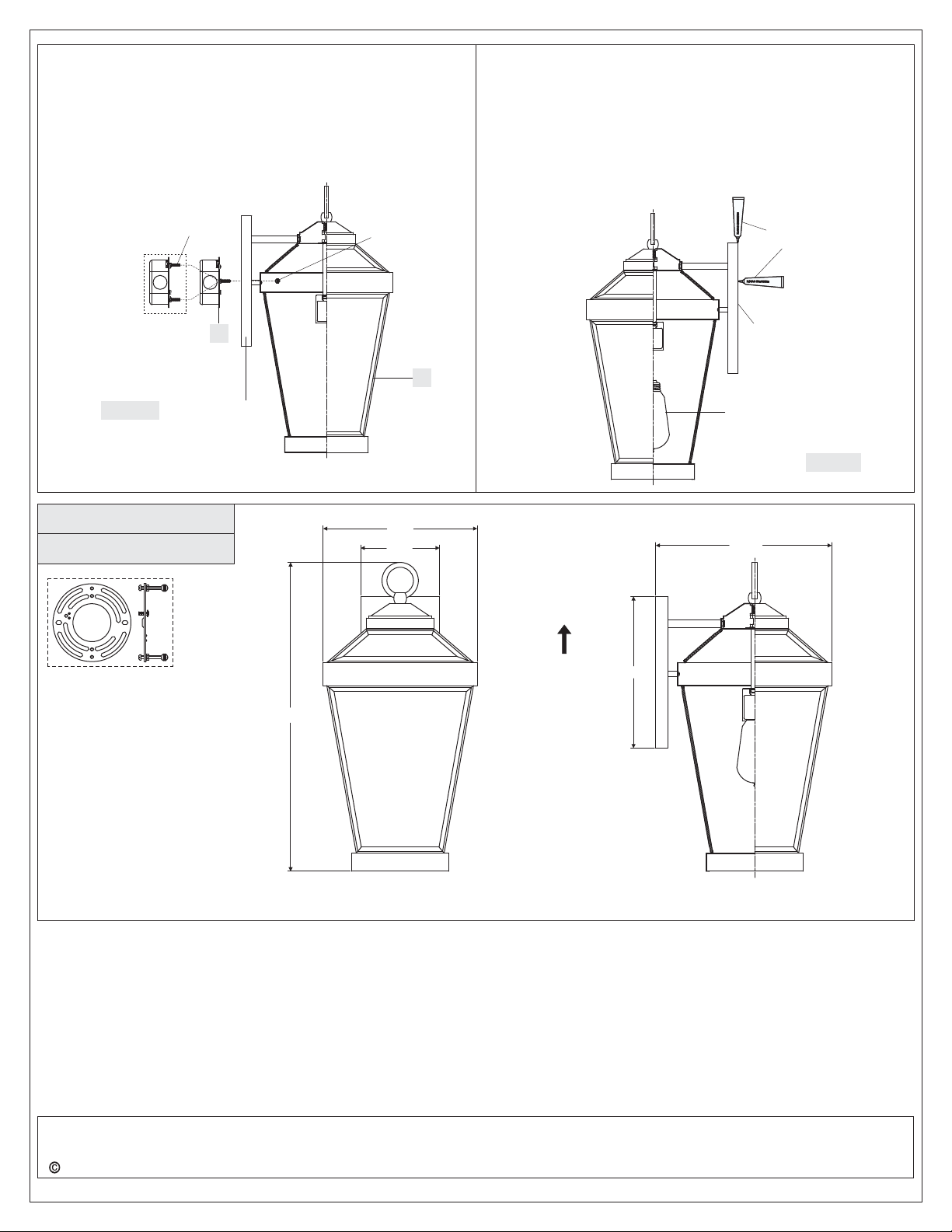

STEP 5 -Install the Fixture Body

A. Position the backplate and Fixture Body (D) onto the Crossbar

Assembly (A). Place the holes in the backplate over the mounting

screws or alternate short mounting screws. Secure the Fixture Body

by using the mounting balls and hand tighten the mounting balls

until snug.

Figure 5

Mounting

Ball

Backplate

Mounting Screw

or Alternate Short

Mounting Screw

STEP 6 Install Bulb and Apply Silicone Sealer-

A. Install bulb onto socket and screw snugly into place.

Your fixture is now assembled and ready to use. Enjoy!

Make sure the exterior wall surface and fixture backplate are free of

dirt before applying caulk. Using exterior grade caulk, caulk over top

of backplate and down both sides. Do not caulk the bottom of the

fixture backplate to ensure proper moisture drainage.

Figure 6

Exterior

Grade

Caulk

Backplate

S21 Vintage Bulb

(recommended

but not supplied)

RAV8410WT

NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/4"

FINISH: WESTERN BRONZE

20”

10”

4.5”

10”

11.5”

Fixture can only

be mounted in

the direction

indicated
