KTM 790 ADV windshield installation manual
Thank you for purchasing the KTM 790 windshield from RADE/GARAGE. The installation is quite
simple, but may take up to 1 hour including all preparation.
0/ See your bike before and after the 790 windshield is installed

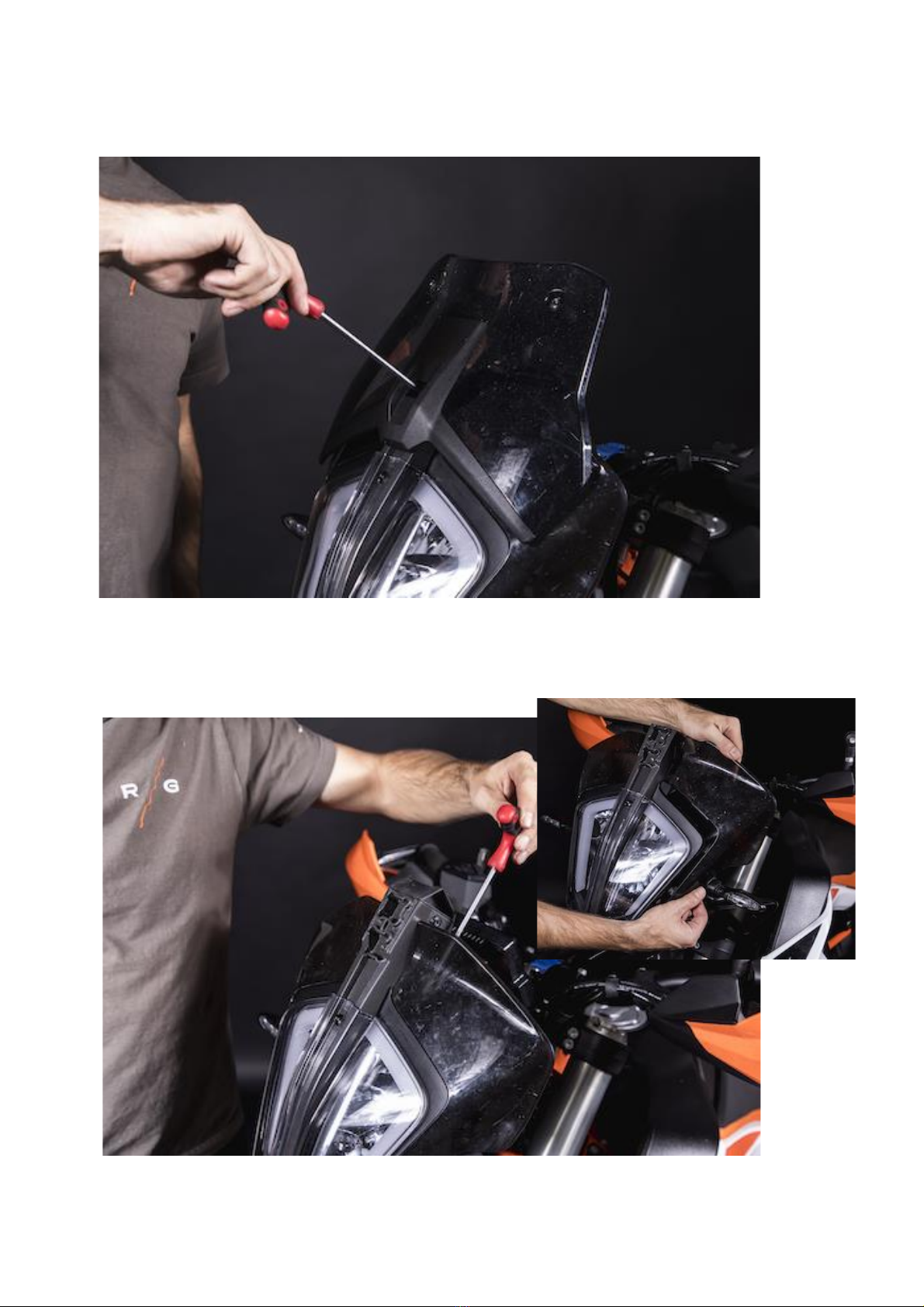

1/ Remove the OEM screen and its spoilers
a/ Remove the bolt holding the OEM screen and pull the screen out
b/ Behind the spoilers are bolts. One on each side. Remove them. Than carefully lift each spoiler up.
The have plastic hooks locked in the plastic tower –don’t use force!
2/ Mount the holders

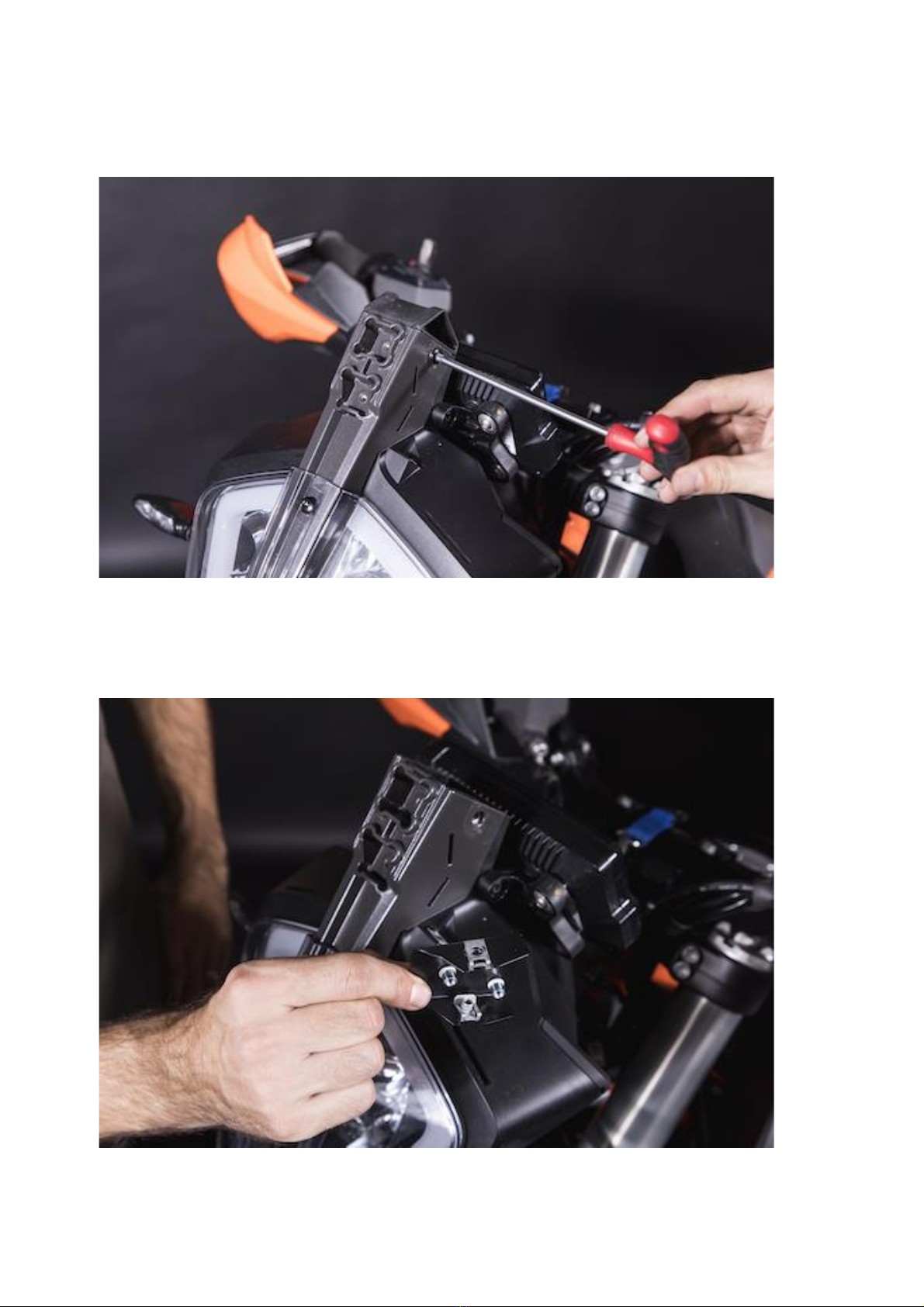

a/ Remove the original plastic cap. There is one bolt from each side and then pull up the cap.
b/ Take the supplied metal plate with three rivet nuts. Then remove the threat inserts form the
original cap and put them on the metal plate. When you have it. Place this part instead of the plastic
cap.

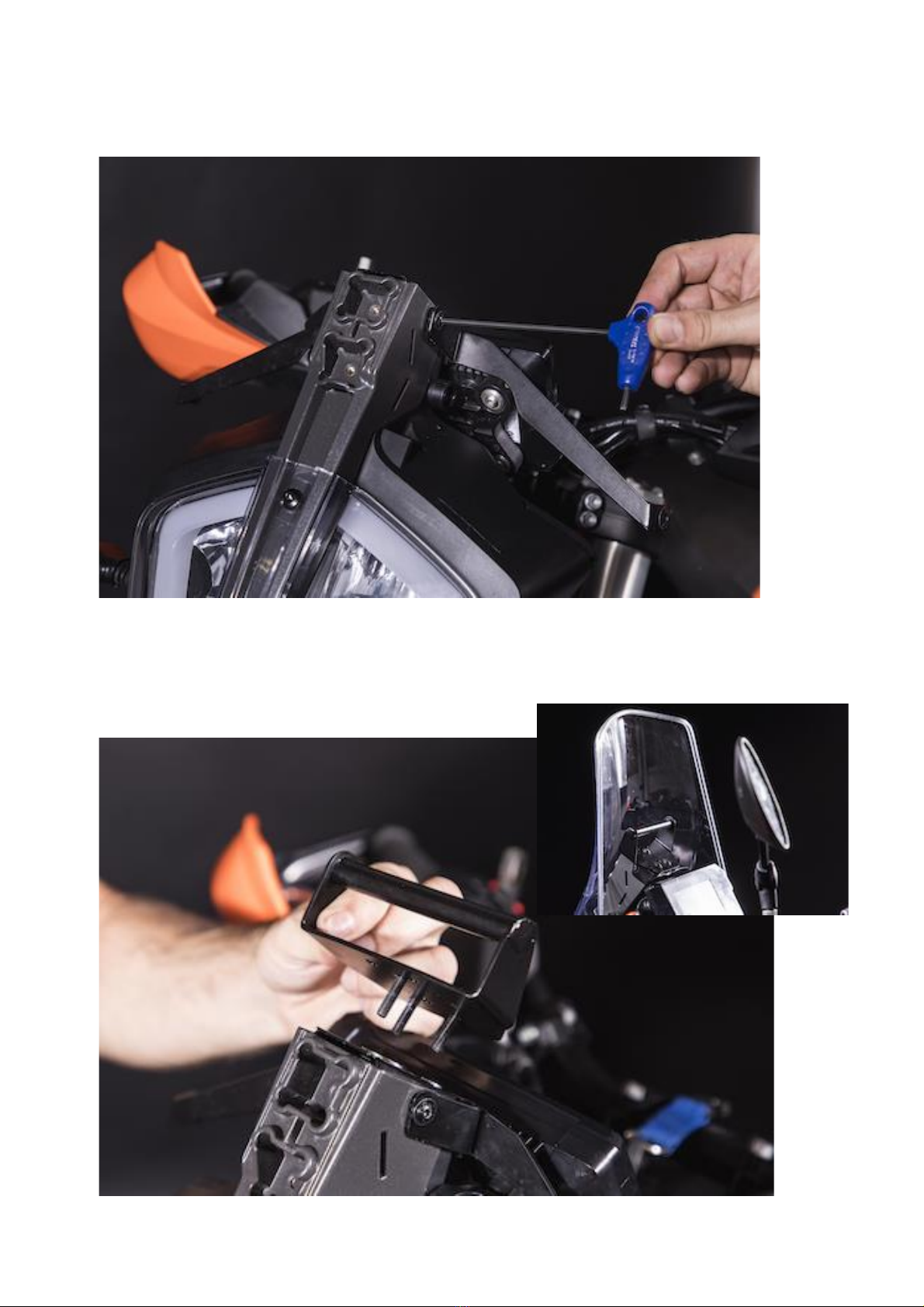

c/ Bolt on the main bracket with supplier M5x16 bolts. Also insert the rubber nuts into both sides of
the main bracket.
d/ Use three longer M5 bolts to fix the GPS bracket. It can be situated closer or further from the
windshield. We recommend the orientation CLOSER to the windshield.

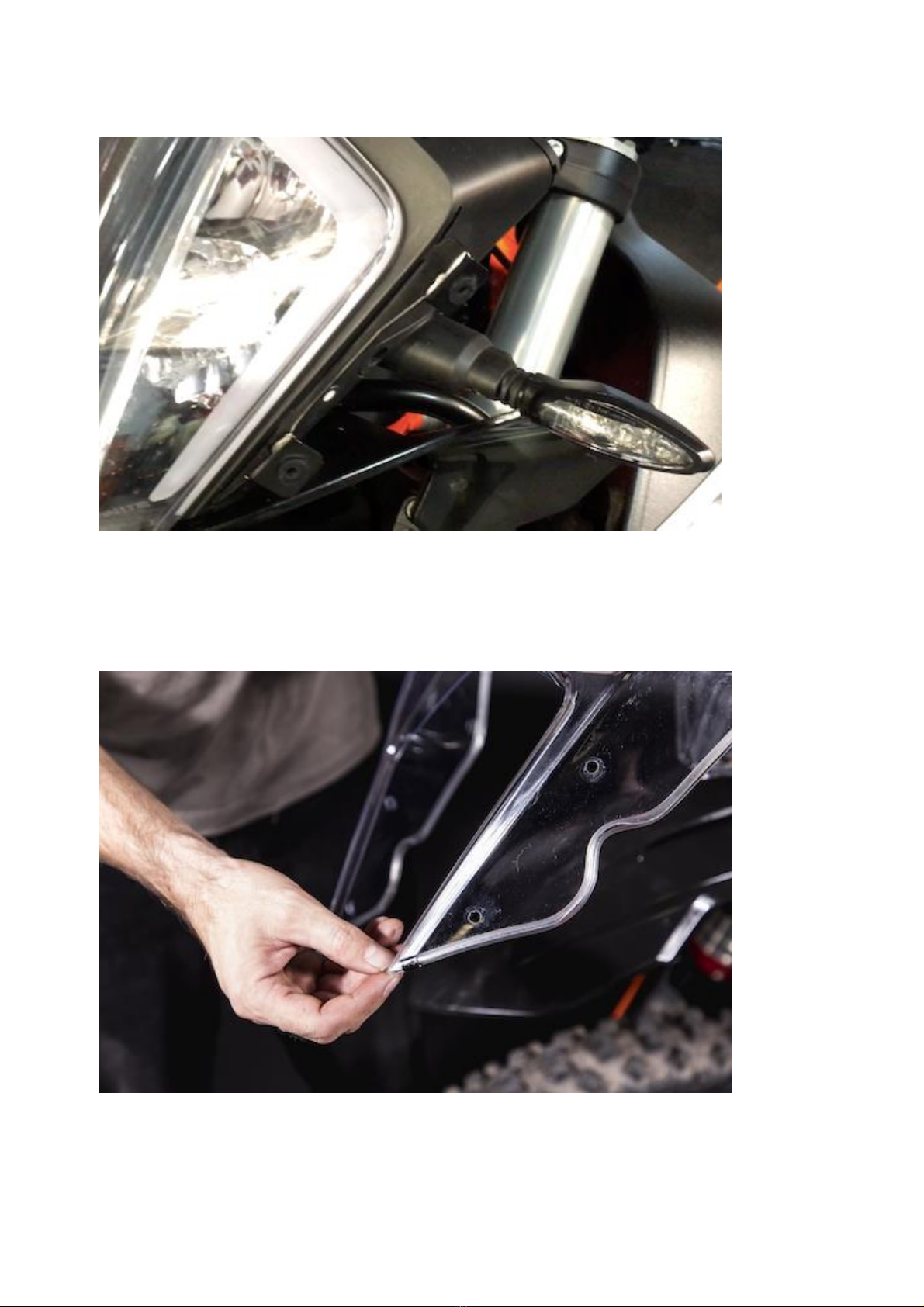

e/ Take the supplied metal hooks. First put in the rubber nuts and then insert one metal hook on each
side instead of the OEM spoilers.
3/ Prepare and mount the windscreen
a/ Insert the transparent rim on the edge of the windscreen and secure with the black staple

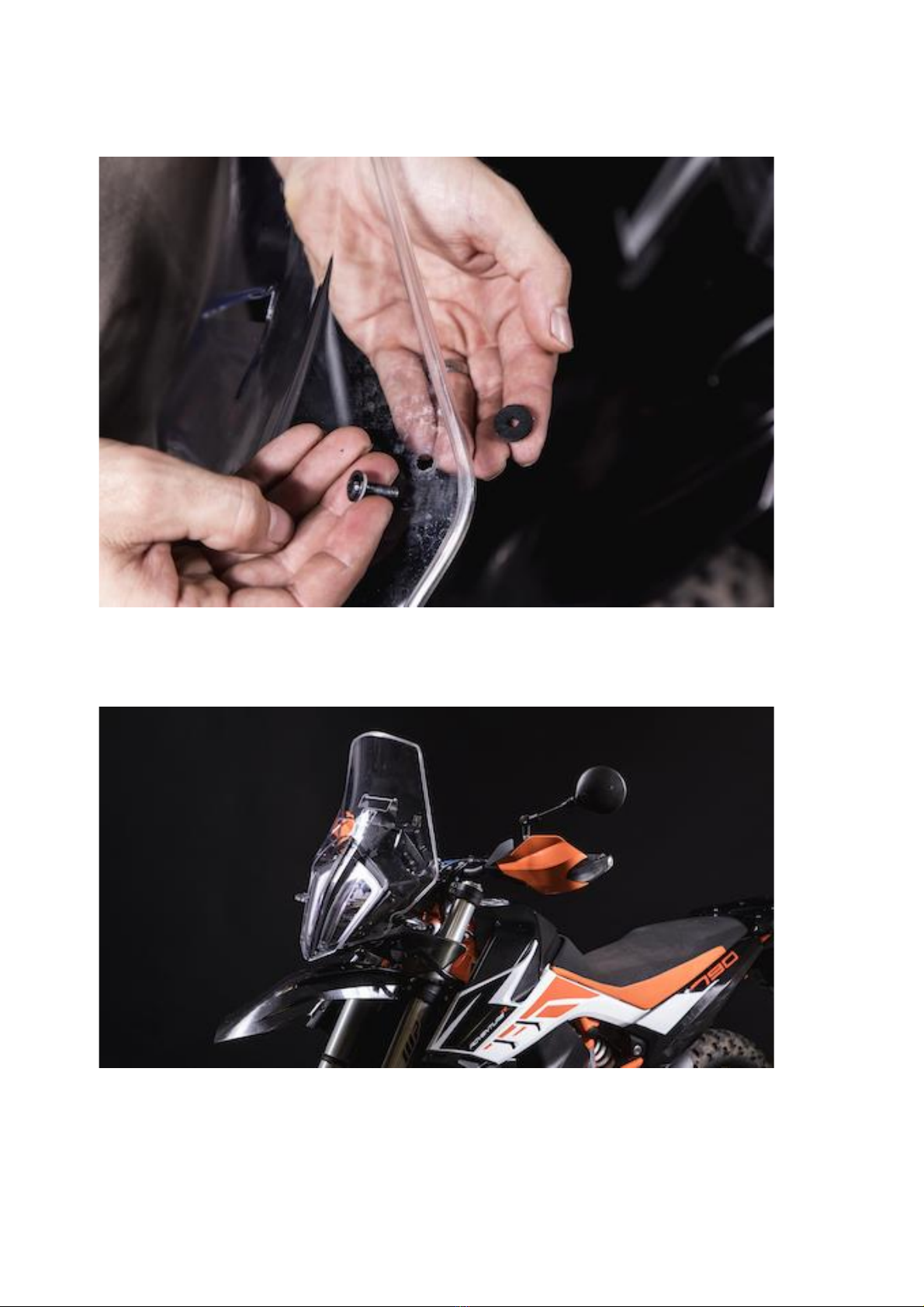

b/ Mount the windscreen with the M5x16 bolts. To avoid the metal holders scratch the windshield put
in between the windscreen and the metal holder the supplier rubber washer. It means the rubber
washer goes under the windscreen.
Congratulation! The installation is finished and you can start enjoying your upgraded bike ☺
Thanks again.
RADE/GARAGE team
