Radio Shack PRO-84 Manuale utente

Read this user’s guide completely

before using your scanner.

www.radioshack.com

20-516

PRO-84 200 channel

racing scanner

with headphones

what’s included

scanner

antenna

user’s guide

quick start guide

•headphones

• belt clip w/two screws

•racefrequencylist

The Basic

Contents

The Basics

The FCC wants you to know . . . . . . . . . . . . . . . . 4

powering your scanner . . . . . . . . . . . . . . . . . . . . 5

using rechargeable batteries . . . . . . . . . . . . . . . . 7

using AC power . . . . . . . . . . . . . . . . . . . . . . . . . 10

using vehicle battery power. . . . . . . . . . . . . . . . 11

setting up your scanner . . . . . . . . . . . . . . . . . . . 13

connecting the antenna . . . . . . . . . . . . . . . . . . . 13

connecting an optional antenna . . . . . . . . . . . . 13

connecting an earphone/headphone . . . . . . . . 14

listening safely . . . . . . . . . . . . . . . . . . . . . . . . . . 14

traffic safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

connecting an extension speaker . . . . . . . . . . . 15

attaching the belt clip . . . . . . . . . . . . . . . . . . . . . 16

about your scanner . . . . . . . . . . . . . . . . . . . . . . 17

a look at the keypad . . . . . . . . . . . . . . . . . . . . . . 18

a look at the display . . . . . . . . . . . . . . . . . . . . . . 22

understanding banks . . . . . . . . . . . . . . . . . . . . . 24

service banks . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

channel storage banks . . . . . . . . . . . . . . . . . . . . 24

Beyond the Basics

operating your scanner . . . . . . . . . . . . . . . . . . . 25

turning on the scanner and setting squelch . . . 25

storing known frequencies into channels . . . . . 25

race scanning tips. . . . . . . . . . . . . . . . . . . . . . . . 27

NASCAR is a registered trademark of the National Association for Stock Car

Auto Racing, Inc.

RadioShack and RadioShack.com are trademarks used by

RadioShack Corporation.

3 The Basic

searching for and temporarily storing

active frequencies . . . . . . . . . . . . . . . . . . . . . . 28

service search . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

storing frequencies into channels during

service search. . . . . . . . . . . . . . . . . . . . . . . . . . 29

scanning the stored channels. . . . . . . . . . . . . . . 30

manually selecting a channel . . . . . . . . . . . . . . . 31

signal stalker . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

setting the signal stalker options . . . . . . . . . . . . 33

using signal stalker . . . . . . . . . . . . . . . . . . . . . . . 35

Skywarn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

about skywarn . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

WX alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

turning on the weather alert feature. . . . . . . . . . 38

chain search. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

chain search mode . . . . . . . . . . . . . . . . . . . . . . . 39

chain search hold mode . . . . . . . . . . . . . . . . . . . 40

storing frequencies found during chain

search into channel memory . . . . . . . . . . . . . . 41

program band select mode . . . . . . . . . . . . . . . . 42

direct entry search . . . . . . . . . . . . . . . . . . . . . . . 43

direct entry search hold mode . . . . . . . . . . . . . . 44

storing direct entry search frequencies

into channel memory . . . . . . . . . . . . . . . . . . . 44

search skip memory . . . . . . . . . . . . . . . . . . . . . . 45

delay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

turning channel-storage banks on and off . . . . . 48

locking out channels . . . . . . . . . . . . . . . . . . . . . . 48

locking out frequencies . . . . . . . . . . . . . . . . . . . 49

priority . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

The Basic

using keylock . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

wired programming . . . . . . . . . . . . . . . . . . . . . . 52

using the display/key backlight . . . . . . . . . . . . . 53

resetting the scanner . . . . . . . . . . . . . . . . . . . . . 54

frequently asked questions . . . . . . . . . . . . . . . . 55

specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

glossary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

The FCC Wants You to Know

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio

communications.

However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Consult your local RadioShack store or an experienced radio/TV

technician for help.

• If you cannot eliminate the interference, the FCC requires that you

stop using your scanner.

Changes or modifications not expressly approved by RadioShack may

cause interference and void the user’s authority to operate the equipment.

You must use shielded interface cables with this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to

the following two conditions: (1) this device may not cause harmful

interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

5 The Basic

powering your scanner

You can power your scanner from any of three

sources:

• internal batteries (not supplied)

• standard AC power (using an optional

AC adapter)

• vehicle battery power (using an optional

DC adapter)

Before installing batteries, set the switch in the

battery compartment to match the type of batteries

you will use. Select ALKALINE for non-rechargeable

battery types and RECHARGEABLE for rechargeable

battery types, including Ni-Cd and Ni-MH. See also

“using rechargeable batteries” on Page 7 when you

use rechargeable batteries.

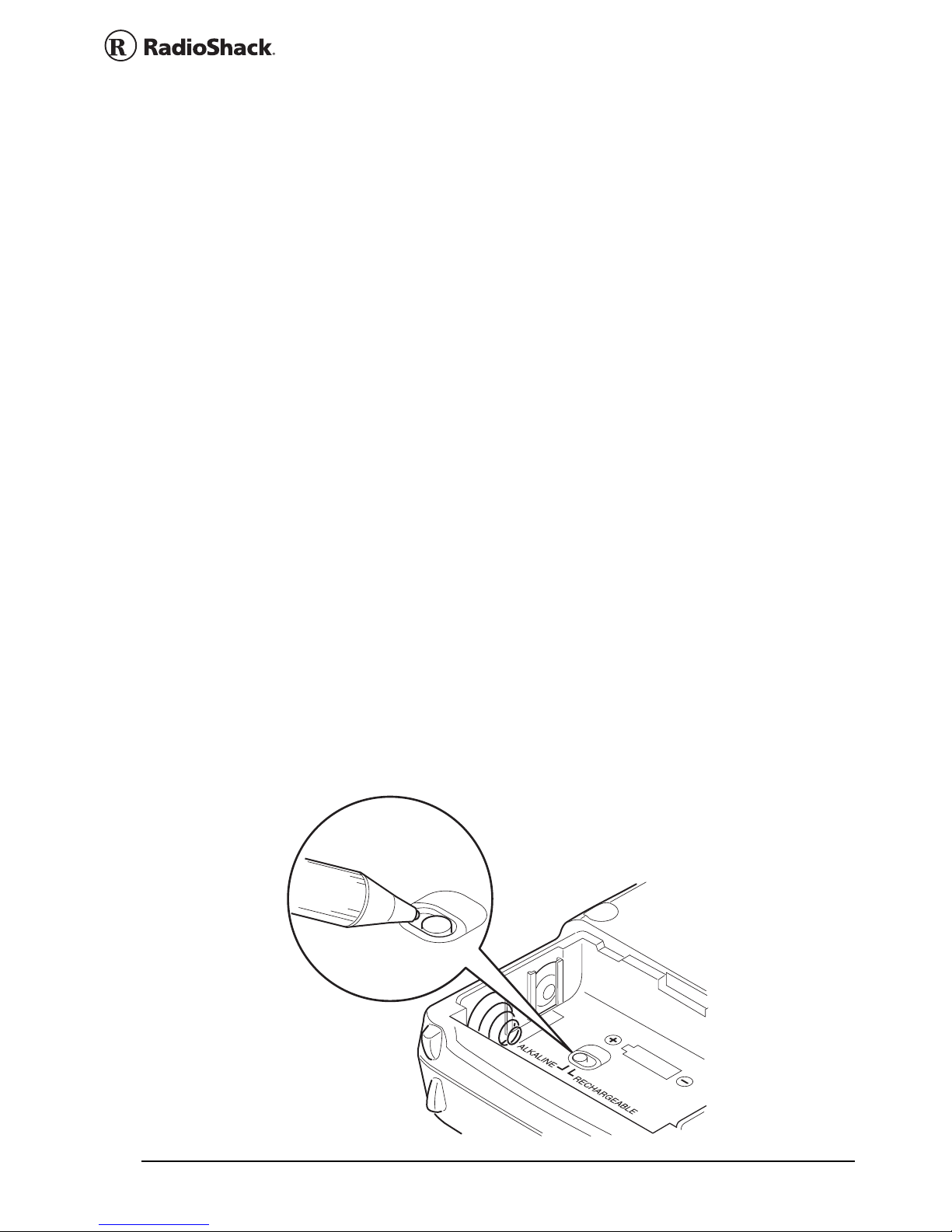

XRemove battery cover and set battery switch.

The Basic

YInstall 2 AA batteries, matching the polarity

symbols (+ -).

ZReplace the cover.

7 The Basic

Warning: Set the ALKALINE/RECHARGEABLE

switch to RECHARGEABLE only when using nickel

cadmium (Ni-Cd) or nickel metal hydride (Ni-MH)

rechargeable batteries. Never attempt to recharge

non-rechargeable batteries. Non-rechargeable

batteries can get hot or explode if you try to

recharge them.

Cautions:

• Use only fresh batteries of the required size and

recommended type.

• Always remove old or weak batteries. Batteries

can leak chemicals that destroy electronic

circuits.

• Do not mix old and new batteries, different

types of batteries (standard, alkaline, or

rechargeable), or rechargeable batteries of

different capacities.

When flashes and the scanner beeps every

15 seconds, replace both batteries.

Warning: Always dispose of old batteries promptly

and properly. Do not bury or burn them.

using rechargeable batteries

You can also use two rechargeable batteries to

power your scanner. Before you use Ni-Cd or Ni-MH

batteries, you must charge them.

The Basic

The scanner has a built-in circuit that lets you

recharge Ni-Cd or Ni-MH batteries while they are in

the scanner. To charge the batteries, set ALKALINE/

RECHARGEABLE inside the battery compartment to

RECHARGEABLE, install the batteries in the scanner,

and connect an external AC or DC adapter to the

scanner’s DC 6V jack (see “using AC power” on

Page 10 or “using vehicle battery power” on

Page 11). CHArg appears while the scanner is

charging the batteries.

Warning: Do not connect either adapter to the

scanner if non-rechargeable batteries (such as

alkaline batteries) are installed in the scanner and

ALKALINE/RECHARGEABLE is set to

RECHARGEABLE, or if you are unsure of the

switch’s position. Non-rechargeable batteries will

get hot and can even explode if you try to recharge

them.

Before you use Ni-Cd or Ni-MH batteries for the first

time, charge them for 14 hours to bring them to a

full charge.

Discharged batteries take about 14 hours to fully

recharge.

Notes:

• Ni-Cd batteries last longer and deliver more

power if you occasionally let them fully

discharge. To do this, simply use the scanner

9 The Basic

until it beeps every 15 seconds and

flashes.

• To prevent damage to Ni-Cd and Ni-MH

batteries, never charge them in an area where

the temperature is above 113°F (40°C) or below

40°F (4°C).

• If you connect an external power source to the

scanner with ALKALINE/RECHARGEABLE set to

ALKALINE, CHArg appears but the scanner

does NOT charge the batteries. The scanner’s

microprocessor unit does not recognize the

switch position when you incorrectly connect an

external power source. Make sure that you use

the correct batteries and set ALKALINE/

RECHARGEABLE to the correct position when

you connect an external power source.

•IfCHArg does not appear, the rechargeable

batteries might be completely discharged.

Connect the scanner to an AC or DC adapter and

wait about 1 minute. Then, unplug the adapter

from the scanner for a few seconds then plug it

back in.

Important: The EPA certified RBRC

Battery Recycling Seal on the

rechargeable battery indicates

RadioShack is voluntarily

participating in an industry program

to collect and recycle these batteries

The Basic

at the end of their useful life, when taken out of

service in the United States or Canada. The RBRC

program provides a convenient alternative to

placing used rechargeable batteries into the trash or

the municipal waste stream, which may be illegal in

your area. Please call 1-800-THE-SHACK

(1-800-843-7422) for information on rechargeable

battery recycling and disposal bans/restrictions in

your area. RadioShack’s involvement in this

program is part of the company's commitment to

preserving our environment and conserving our

natural resources.

using AC power

You can power the scanner using a 6V, 300 mA AC

adapter and a size B Adaptaplug™ adapter (neither

supplied). Both are available at your local

RadioShack store.

Cautions:

• You must use a Class 2 power source that

supplies 6V DC and delivers at least 300 mA.

Its center tip must be set to positive and its plug

must fit the scanner's DC 6V jack. Using an

adapter that does not meet these specifications

could damage the scanner or the adapter.

• Always connect the AC adapter to the scanner

before you connect it to AC power. When you

finish, disconnect the adapter from AC power

before you disconnect it from the scanner.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Radio Shack Radio

Radio Shack

Radio Shack iSCAN PRO-18 Manuale utente

Radio Shack

Radio Shack 12-262 Manuale utente

Radio Shack

Radio Shack 12-749 Manuale utente

Radio Shack

Radio Shack 120-0201A Manuale utente

Radio Shack

Radio Shack 21-1679 A Manuale utente

Radio Shack

Radio Shack Mobile/Marine 14-Channel FRS Radio Manuale utente

Radio Shack

Radio Shack 21-1703 A Manuale utente

Radio Shack

Radio Shack STEREO MATE 12-791 Manuale utente

Radio Shack

Radio Shack 120-0737 Manuale utente

Radio Shack

Radio Shack 21-1805 Manuale utente

Radio Shack

Radio Shack TRC521 CB Manuale utente

Radio Shack

Radio Shack PRO-668 Manuale utente

Radio Shack

Radio Shack PRO-2041 Manuale di manutenzione

Radio Shack

Radio Shack NWR-SAME Weatheradio Manuale utente

Radio Shack

Radio Shack 120-0615 Manuale utente

Radio Shack

Radio Shack Crystal Radio Kit Manuale utente

Radio Shack

Radio Shack 2000649 / PRO-649 Manuale utente

Radio Shack

Radio Shack TRC-503 Manuale utente

Radio Shack

Radio Shack TRC-447 Manuale utente

Radio Shack

Radio Shack 1201519 Manuale utente

Radio Shack

Radio Shack 12-827 Manuale utente

Radio Shack

Radio Shack TRC-502 Manuale utente

Radio Shack

Radio Shack TRC-504 Manuale utente

Radio Shack

Radio Shack TRC-501 Manuale utente

Manuali Radio popolari di altre marche

EisSound

EisSound KBSound iSelect Manuale utente

Midland

Midland 1001LWX Manuale utente

Konig

Konig HAV-SR41 Manuale utente

Roberts

Roberts exprssion Manuale utente

VDigi

VDigi DD3.0 Manuale utente

Roberts

Roberts Stream 207 Manuale utente

Sony

Sony Walkman SRF-M97 Manuale utente

Stanley

Stanley FatMax FMC770 Manuale utente

auna

auna DAB-Radio 10026947 Manuale utente

SOUNDMASTER

SOUNDMASTER UR190 Manuale utente

HYT

HYT TC-320 Manuale utente

auna multimedia

auna multimedia Yellowstone 10026851 Manuale utente

B-Tech

B-Tech GMRS-V2 Manuale utente

Weierwei

Weierwei VEV-V8 Manuale utente

SOUNDMASTER

SOUNDMASTER DAB750 Manuale utente

Telefunken

Telefunken TF-1505 Manuale utente

Makita

Makita LXRM03 Manuale utente

PRESIDENT

PRESIDENT TEDDY R. Manuale utente
