RA1001 Series Barcode Scanner

User Manual

Version: MD_UM_EN_V3.1.5R

Warning: Ensure that the optional DC adapter works at +5V,

especially for the RS-232 interface cable.

NOTICE:

1. All software, including firmware, furnished to the user is on a licensed basis.

2. The right is reserved to make changes to any software or product to improve reliability, function, or

design.

3. The material in this manual is subject to change without notice.

4. A standard packing includes a scanner, a PS2 cable and a CD (or a user manual). Accessories

include a stand, a RS-232 cable, a 5V adaptor and a USB cable.

Contents

Technical specifications ................................................................................................................................1

Default setting for each barcode.................................................................................................................. 2

Decode zone................................................................................................................................................... 3

Dimensions ..................................................................................................................................................... 4

Parts of the scanner ......................................................................................................................................5

Introduction to installation............................................................................................................................. 6

Scanning modes ............................................................................................................................................7

Programming instruction............................................................................................................................... 8

Interface selection.......................................................................................................................................... 9

Keyboard wedge ..........................................................................................................................................10

RS-232 interface ..........................................................................................................................................12

Hand-held scan & some global settings ................................................................................................... 14

Indication ....................................................................................................................................................... 16

Auto-detection scan.....................................................................................................................................17

UPC-A............................................................................................................................................................ 18

UPC-E............................................................................................................................................................ 19

EAN-13 .......................................................................................................................................................... 20

EAN-8 ............................................................................................................................................................ 21

Code 39 ......................................................................................................................................................... 22

Interleaved 2 of 5 ......................................................................................................................................... 24

Industrial 2 of 5............................................................................................................................................. 25

Matrix 2 of 5 .................................................................................................................................................. 26

Codabar......................................................................................................................................................... 27

Code 128....................................................................................................................................................... 28

Code 93 ......................................................................................................................................................... 29

Code 11 ......................................................................................................................................................... 30

MSI/Plessey.................................................................................................................................................. 31

UK/Plessey....................................................................................................................................................32

UCC/EAN 128 ..............................................................................................................................................33

China Post..................................................................................................................................................... 34

GS1 DataBar (GS1 DataBar Truncated) .................................................................................................. 35

GS1 DataBar Limited................................................................................................................................... 36

GS1 DataBar Expanded ............................................................................................................................. 37

PDF417 ......................................................................................................................................................... 38

MicroPDF417................................................................................................................................................ 39

China Finance ..............................................................................................................................................40

G1-G6 & FN1 substitution string setting................................................................................................... 42

G1-G4 string position & Code ID position ................................................................................................ 45

String transmission ...................................................................................................................................... 46

iii

Test Chart...................................................................................................................................................... 48

Test Chart (Continued)................................................................................................................................49

Troubleshooting............................................................................................................................................ 50

Maintenance ................................................................................................................................................. 51

Assembling the stand .................................................................................................................................. 52

Return default parameters & others .......................................................................................................... 54

Configuration alphanumeric entry barcode .............................................................................................. 55

Technical specifications

Table 1 Technical specifications

Input voltage 5 VDC ± 0.25V

Power 500 mW (Operating); 950 mW (Max.)

Current 100 mA (Operating); 190 mA (Max.)

Standby current <250μA

Laser 650nm laser diode

Laser safety EN60825-1, Class 1

Decoding rate 200 times/sec

Scanning angle ±60°, ±65°, ±42° (Skew, Pitch, Roll)

Min. element width 0.127mm (5mil) for Long-Range series; 0.076mm (3mil) for High-Density series

Decode capability

UPC-A, UPC-E, EAN-13, EAN-8, ISBN/ISSN, Code 39, Code 39 full ASCII, Code

32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5,

Codabar(NW7), Code 128, Code 93, Code 11(USD-8), MSI/Plessey, UK/Plessey,

UCC/EAN 128, China Post, China Finance, GS1 DataBar (formerly RSS) variants

Indicator Beeper, LED

Interface supported Keyboard wedge, RS-232, USB

Operating mode Hand-held, Auto-detection (Optional)

Dimensions Height × Width × Depth：9.5cm × 6.7cm × 15.4cm

Weight 148g, without cable

Cable Straight 2.0m

Connector type RJ-45 phone jack connector

Case material ABS + PC

Temperature 0° to 50°C (32° to 120°F), Operating; -40° to 60°C (-40° to 140°F), Storage

Humidity 5% to 95% (non-condensing)

Durability Multiple 4.0m (13.1 ft) drops to concrete

Programming method Manual (reading special barcode)

Program upgrade Online

Default setting for each barcode

Table 2 Default setting for each barcode

Code type Read

enable

Check digit

verification

Check digit

transmission

Min. code

length

Proprietary

code ID

AIM

code ID

UPC-A √√√(12)2A ]Em

UPC-E √√√(8)2D ]Em

EAN-13 √√√(13)2A ]Em

EAN-8 √√√(8)2C ]Em

ISBN/ISSN1√√√(13)2A ]Em

Code 39 √- - 1 M ]Am

Interleaved 2 of 5 √- - 6 I ]Im

Industrial 2 of 5 √- - 4 H ]Im

Matrix 2 of 5 √- - 6 X ]Im

Codabar √- - 4 N ]Fm

Code 128 √√- 1 K ]Cm

Code 93 √√- 1 L ]Gm

Code 11 - √- 4 V -

MSI/Plessey √- - 4 O ]Mm

UK/Plessey √√- 1 U ]Mm

UCC/EAN 128 √√- 1 K ]Cm

China Post √- - (11)2T ]Im

China Finance √- - (10)2Y -

GS1 DataBar - - - (16)2R ]em

GS1 DataBar Truncated3- - - (16)2R ]em

GS1 DataBar Limited - - - (16)2R ]em

GS1 DataBar Expanded - - - 1 R ]em

PDF417 - - - 1 P ]Lm

MicroPDF417 - - - 1 P ]Lm

Note: 1The settings for ISBN/ISSN and EAN-13 must be the same.

2Fixed-length barcodes.

3The settings for GS1 DataBar Truncated and GS1 DataBar must be the same.

Decode zone

High-Density series

Long-Range series

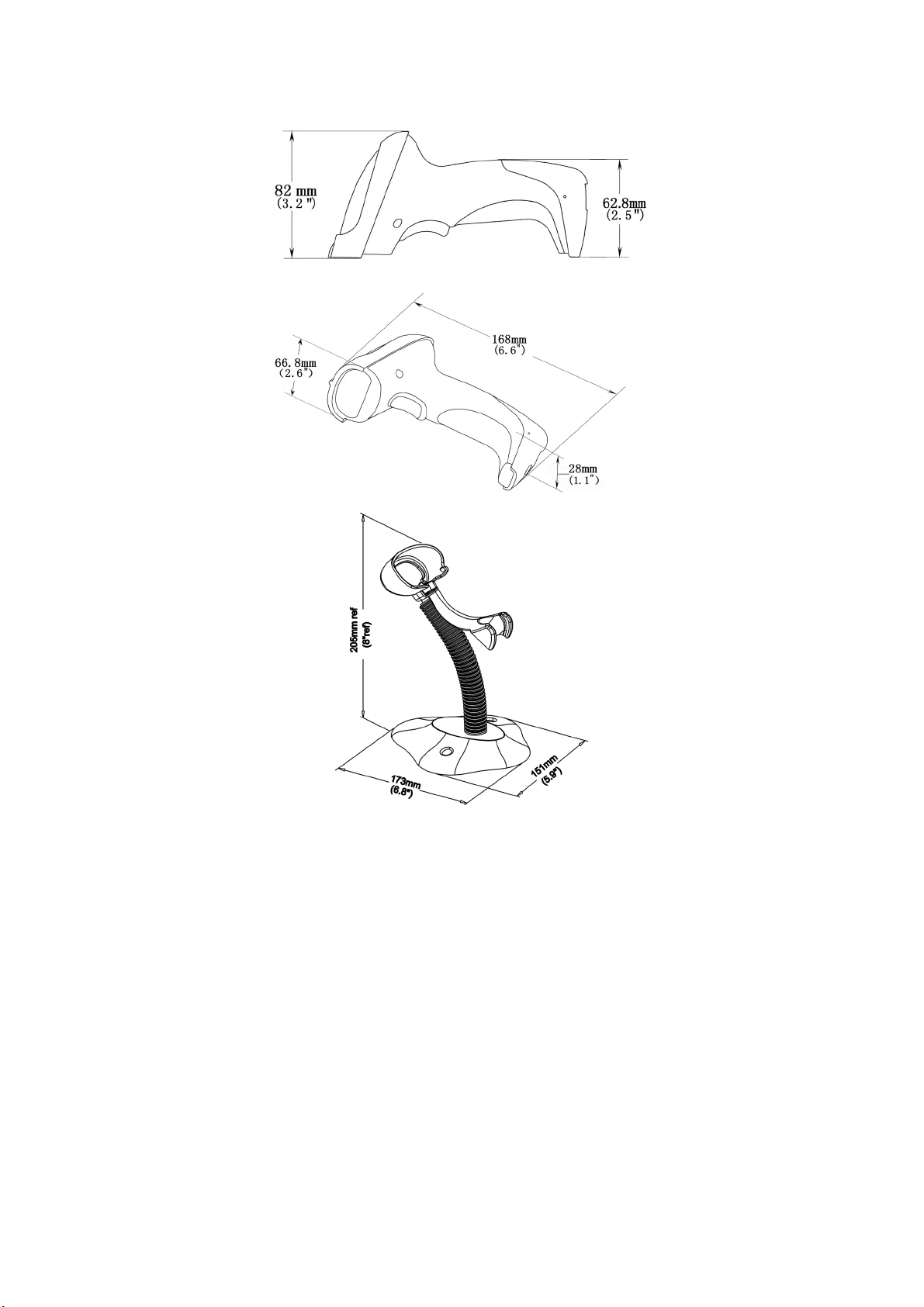

Dimensions

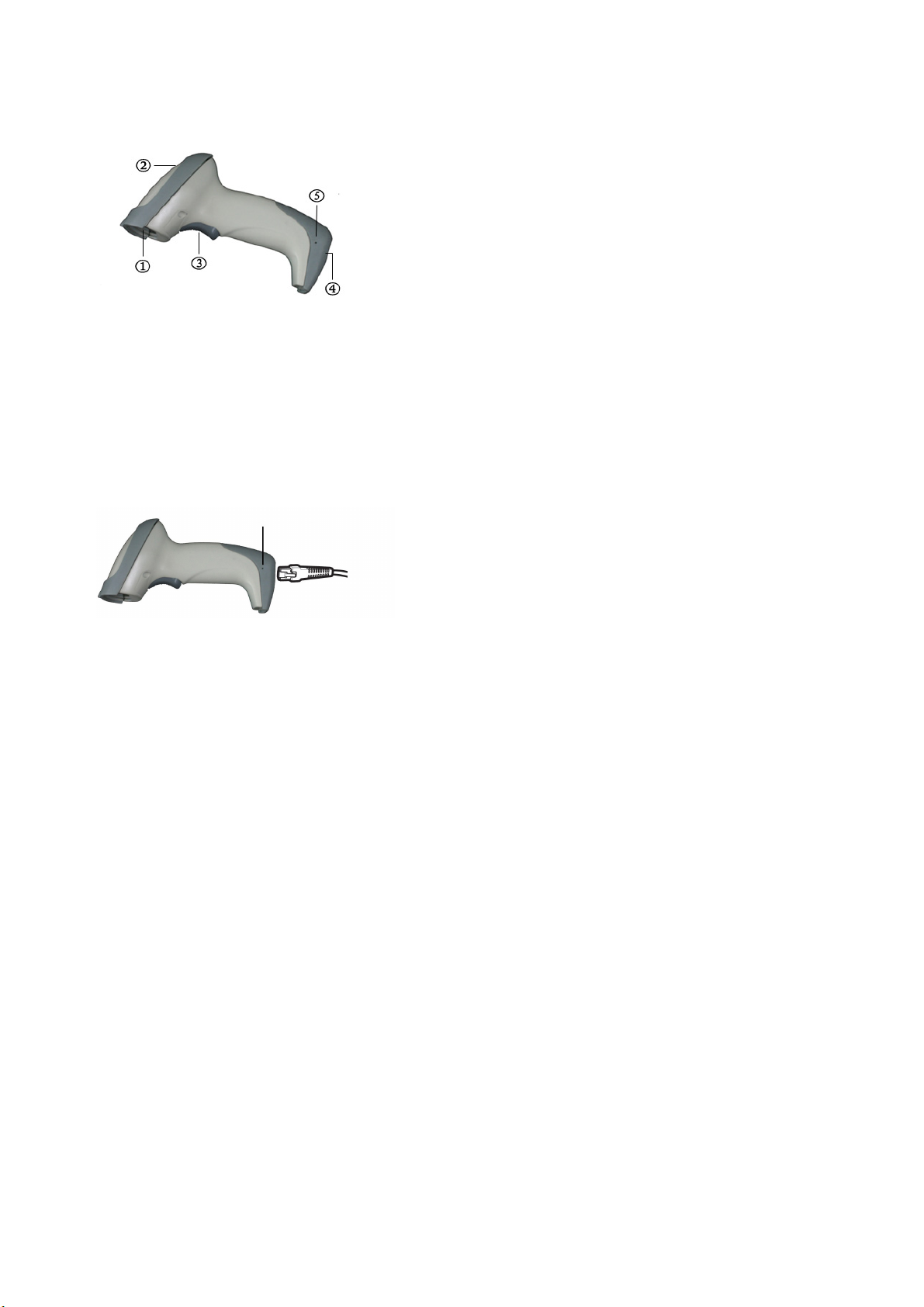

Parts of the scanner

Figure 1

① Exit window

② LED

③ Trigger

④ Cable interface port

⑤ Release-hole of the cable

Figure 2

Remove the interface cable:

1. Find the release-hole.

2. Insert a thin wire into the hole and pull out the cable gently.

Introduction to installation

Note: If any of the below operation is incorrect, turn off the power immediately and check the scanner for

any improper connections. Go through all steps again.

Installation - keyboard wedge

1. Switch off the host and unplug the keyboard connector.

2. Attach the modular connector of the Y-cable to the cable interface port on the scanner.

3. Connect the round male DIN host connector of the Y-cable to the keyboard port on the host device.

4. Connect the round female DIN keyboard connector of the Y-cable to the keyboard.

5. Ensure that all connections are secure.

6. Switch on the host system.

Figure 3

Installation - RS-232

1. Connect the RS-232 interface cable to the bottom of the scanner.

2. Connect the other end of the interface cable to the serial port on the host. Tighten the two screws

to secure the connector to the port.

3. If the host does not have power supply (on PIN 9), connect the external power supply (DC adapter)

to the RS-232 cable.

Figure 4

Installation - USB

The scanner attaches directly to a USB host, and is powered by it. No additional power supply is

required.

1. Refer to Figure 4, connect the USB interface cable to the bottom of the scanner.

2. Plug the series A connector in the USB host, or an available port of the terminal.

3. Windows will automatically detect the USB device.
