INSTALLATION GUIDE

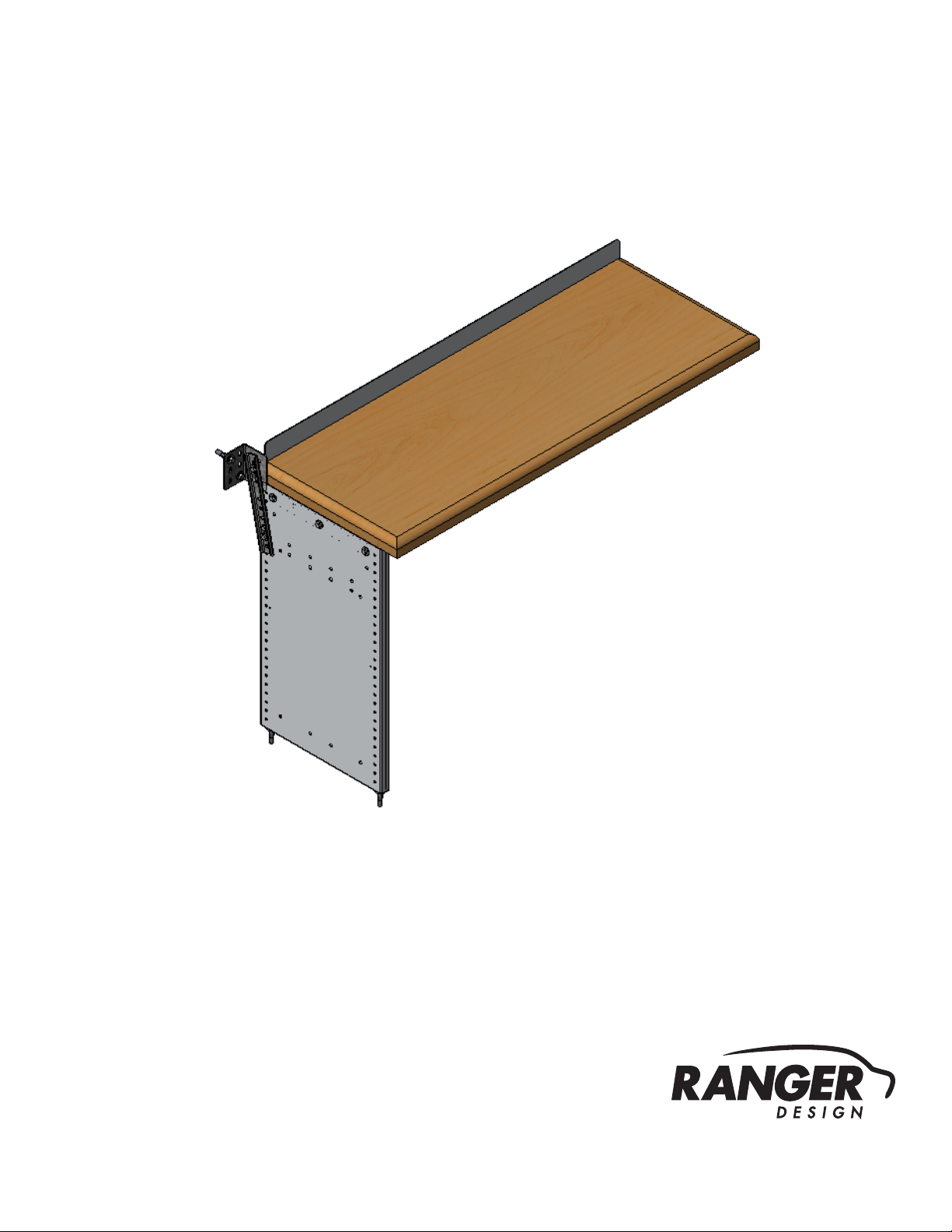

S2-WA48-0 Workbench
Assembled On 5067-6
w/ Hardwood Top ( Aluminum )
QUICK START GUIDE
REQUIRED ITEMS
2
PERSONS
q1.1 Setup...............................................................................................................................................
q1.2 Workbench Assembly......................................................................................................................
3 - 5
5 - 7
Phase 1 - Assembly
Phase 2 - Installation
8 - 9
10
11
12 - 13
14 - 15
16 - 17
q2.1 Attaching Workbench To Drawer Unit............................................................................................
q2.2 Attach Wall Brackets To The End Panels........................................................................................
q2.3 Mark Holes For Plus Nuts...............................................................................................................
q2.4 Attach Plus Nut...............................................................................................................................
q2.5 Attach Partskeeper Cabinet To the Floor........................................................................................
q2.6 Attach Wall Brackets......................................................................................................................
qCordless Impact
qCordless Drill
qTape Measure
qMarker
q1/2" Socket
q1/2" Drill Bit w/ Drill Collar ( Set at 1/2" )
q3/16" Drill Bit
q3/8" Driver Bit
qKnife
qPlusnut Tool / Plusnut Gun ( 5/16" )
For technical support, contact us at 1-800-565-5321 S2-WA48-0 Installation Guide |REV. B1 | Page 3
PHASE 1 – ASSEMBLY
1.1 SETUP
1.1.1 Unpack components; compare with the bill of materials.
1.1.2 Verify all parts are present.

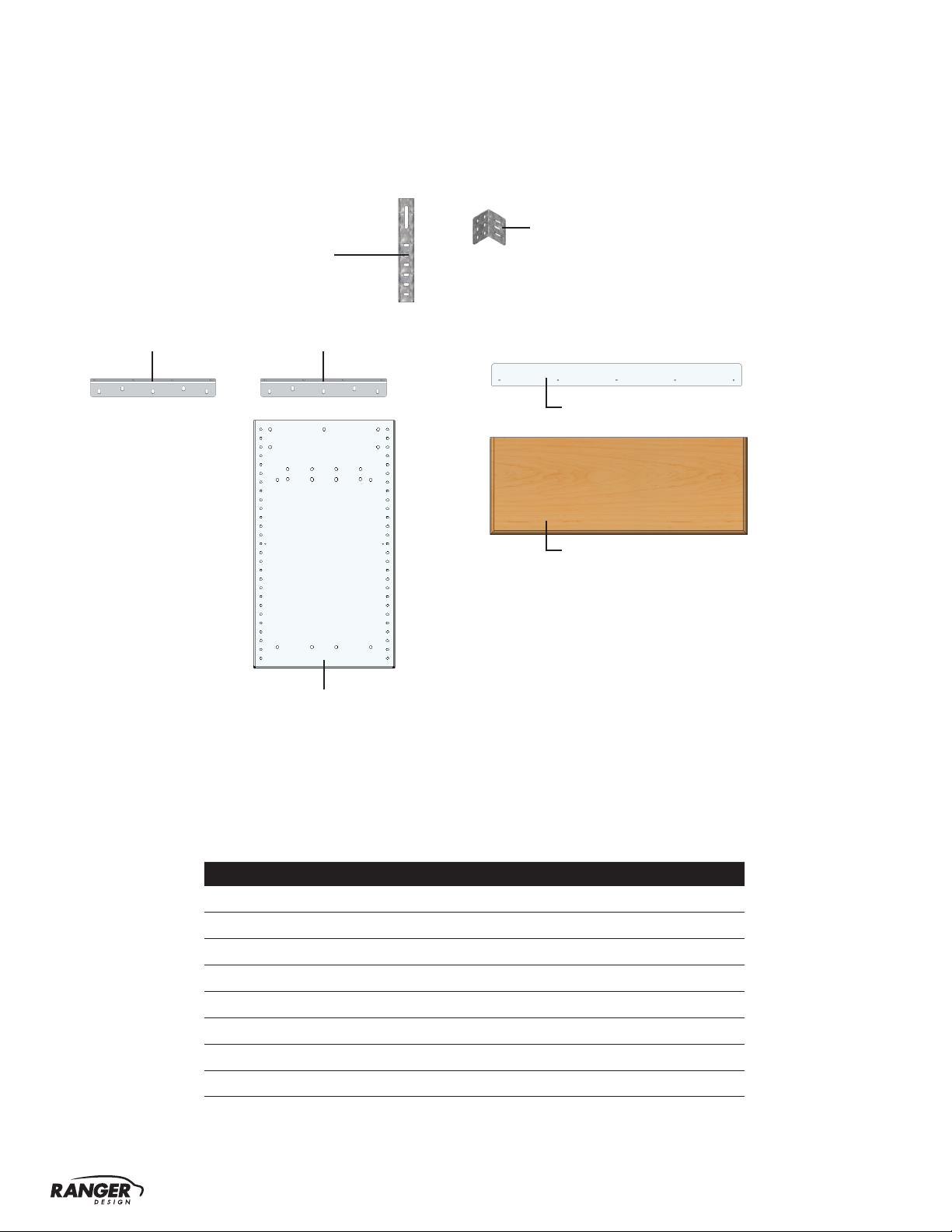

Item No. Description Qty.
40-715 Bracket - Shelving 1
40-716 Bracket - Shelving 1
40-736 End - Panel 1
70-810 Hardwood Top 1
70-816 Side Panel Bracket 2
70-818 Straight Backsplash 1
96-4803 Install Fastener Kit 1
94-4803 Assembly Fastener Kit 1
BILL OF MATERIALS
70 - 818
70 - 810
70 - 81670 - 816
40 - 736
40 - 716
40 - 715
For technical support, contact us at 1-800-565-5321 S2-WA48-0 Installation Guide |REV. B1 | Page 4

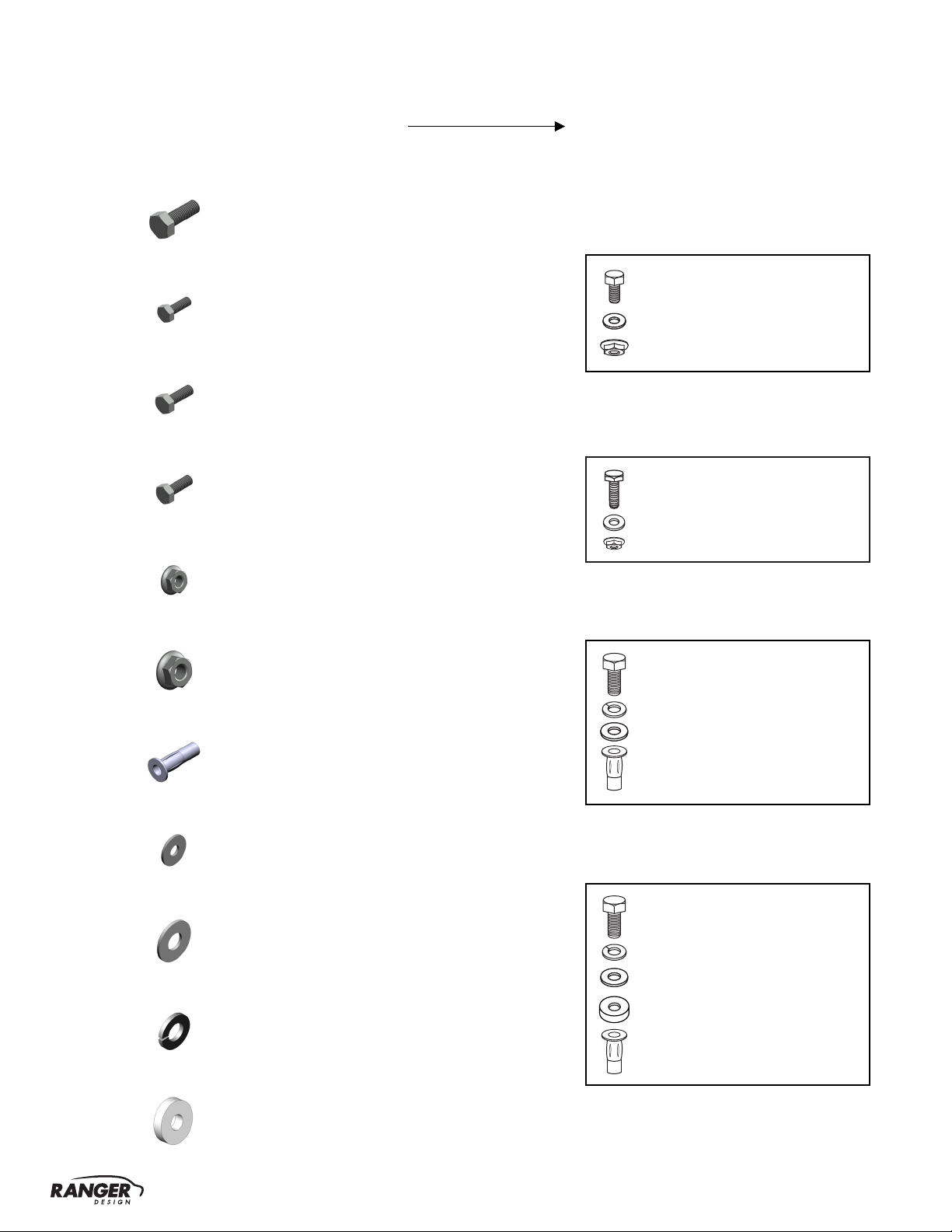

96 - 4803 Fastener Kit Fastener Assembly
1.1.3 Fastener kits.
2×2×
Hex Bolt
5/16"-18 × 1-1/4"
ZINC
# 90-212
4×4× Plusnut
# 94-132
# 98-112
Flat Washer
1/4"
ZINC
2×2×
4×4× # 98-122
Lock Washer
5/16"
ZINC
2×2×
Spacer
0.375" ID, × 1.0" OD × 0.25" LONG
NYLON
# 98-157
2×2×
Hex Bolt
5/16"-18 × 3/4"
ZINC
# 90-204
2×2×
Hex Bolt
1/4"-20 × 3/4"
ZINC
# 90-110
# 94-116
Serrated Nut
5/16"-18
ZINC
2×2×
# 94-112
Serrated Nut
1/4"-20
ZINC
2×2×
2×2×
#90-110 Hex Bolt 1/4" × 3/4"
#98-112 Flat Washer
#94-112 Serrated Nut
2×2×
#90-212 Hex Bolt 5/16" × 1-1/4"
#98-122 Lock Washer
#98-116 Flat Washer
#94-132 5/16" Plusnut
#94-132 5/16" Plusnut
2×2×
#90-011 Hex Bolt 5/16" × 1-3/4"
#98-122 Lock Washer
#98-116 Flat Washer
#98-157 Spacers
( QTY = Gap beTween floor and end panel )
#90-204 Hex Bolt 5/16" × 3/4"
#98-116 Flat Washer
#94-116 Serrated Nut
2×2×
# 98-116
Flat Washer
5/16", O.D. 7/8"
ZINC
2×2×
2×2×
Hex Bolt
5/16"-18 × 1-3/4"
ZINC
# 90-011
For technical support, contact us at 1-800-565-5321 S2-WA48-0 Installation Guide |REV. B1 | Page 5

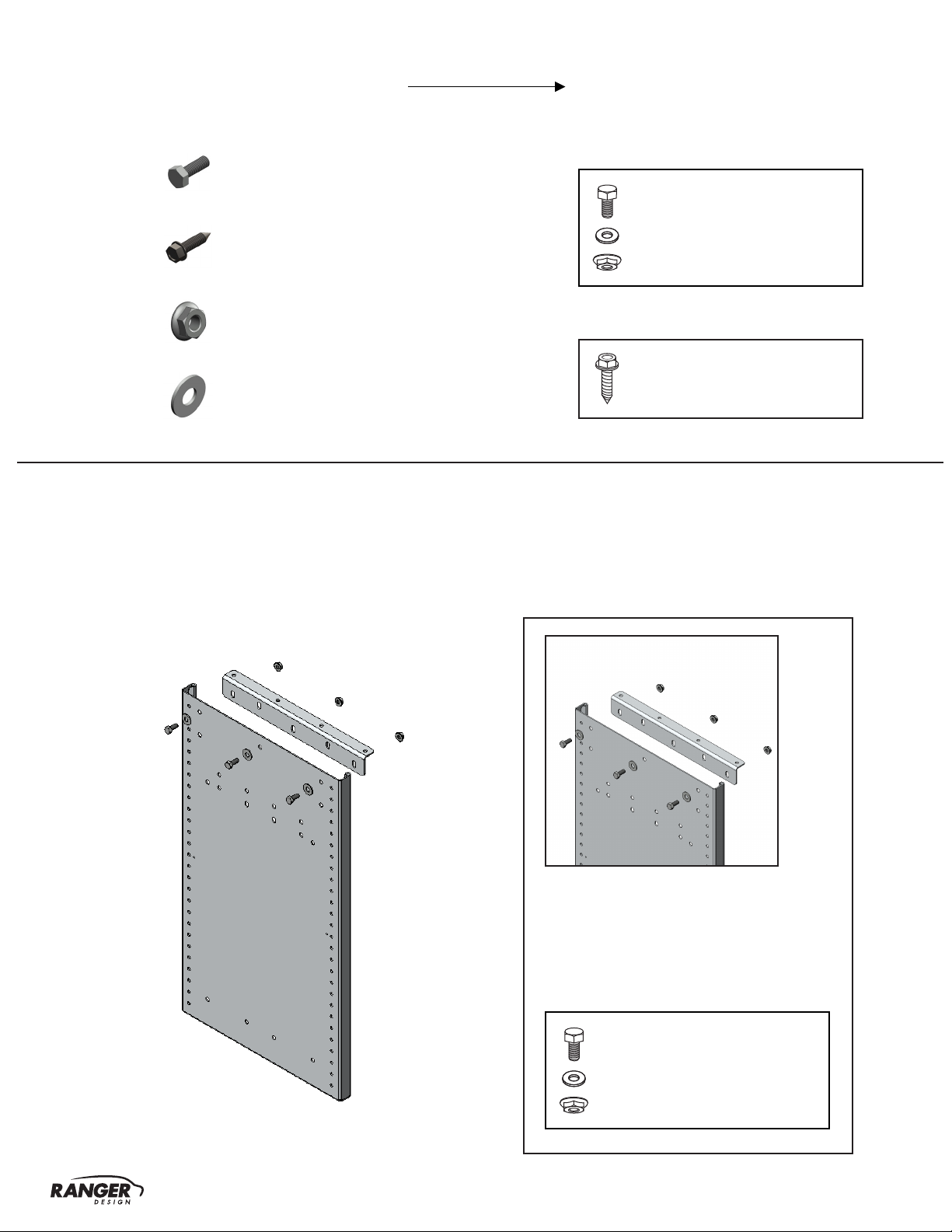

1.2.1 Attach side panels bracket to the end panel.
PHASE 1 – ASSEMBLY
1.2 WORKBENCH ASSEMBLY
94-4803 Fastener Kit Fastener Assembly
#90-204 Hex Bolt 5/16" × 3/4"
#98-116 Flat Washer
#94-116 Serrated Nut
3×3×
13×13×
#92-102 Screw #14 × 1"
3×3×
Hex Bolt
5/16"-18 × 3/4"
ZINC
# 90-204
# 94-116
Serrated Nut
5/16"-18
ZINC
3×3×
# 92-102
Screw HWH
#14 × 1"
ZINC
13×13×
3×3× # 98-116
Flat Washer
5/16" - 18 × 1"
ZINC
#90-204 Hex Bolt 5/16" × 3/4"
#98-116 Flat Washer
#94-116 Serrated Nut
HARDWARE USED
3×
TOOLS
qCordless Impact
q1/2" Socket
For technical support, contact us at 1-800-565-5321 S2-WA48-0 Installation Guide |REV. B1 | Page 6

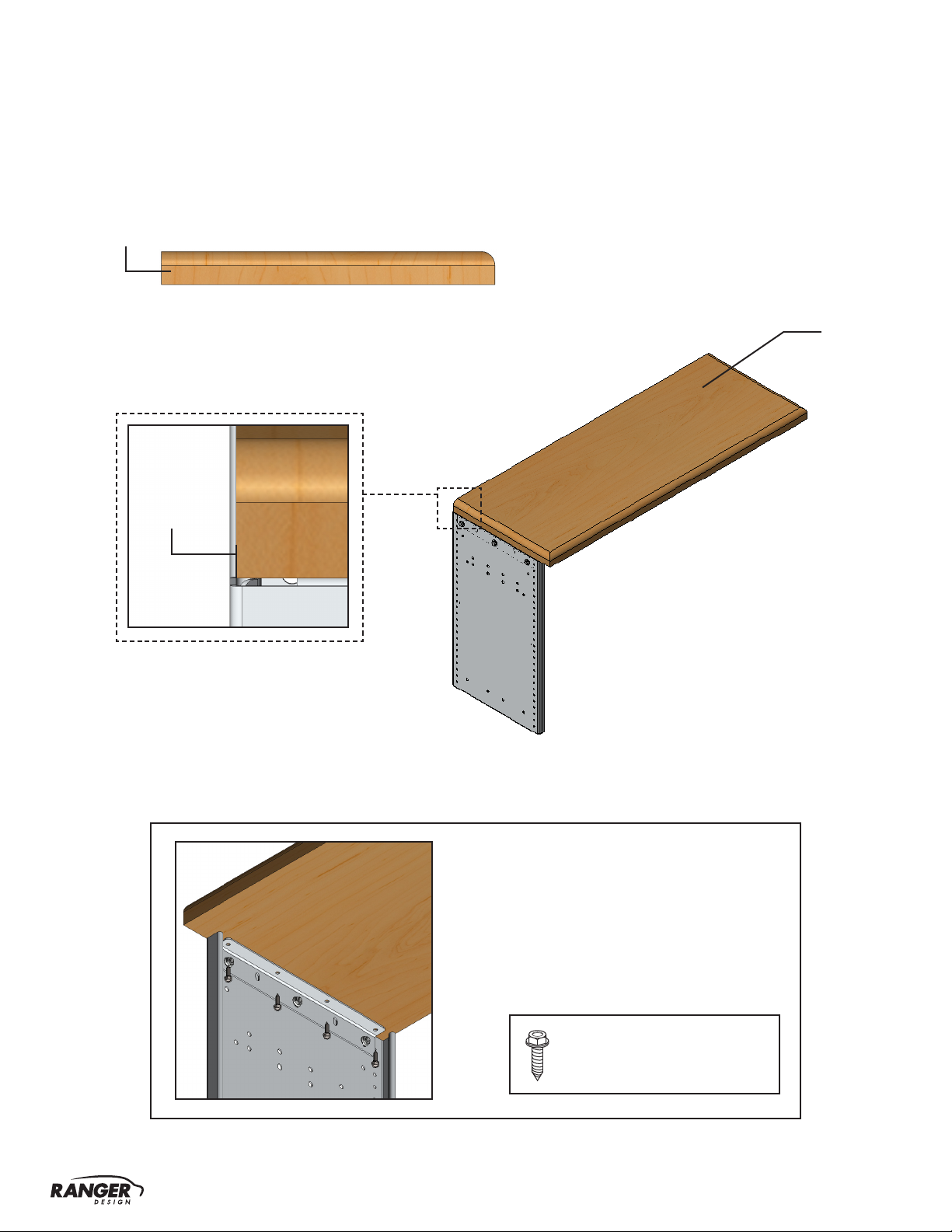

1.2.2 Screw the hardwood top on the side panel bracket with the back of the hardwood top
ushed against one end of the panels.
NOTE: Pre-drill the hardwood using 3/16" drill bit rst before screwing the bracket to the hardwood
to prevent spliting the wood.
BACK
FLUSHED
#92-102 Screw #14 × 1"
HARDWARE USED
4×
TOOLS
qCordless Impact
qCordless Drill
q3/8" Driver Bit
q3/16" Drill Bit
70-810
For technical support, contact us at 1-800-565-5321 S2-WA48-0 Installation Guide |REV. B1 | Page 7

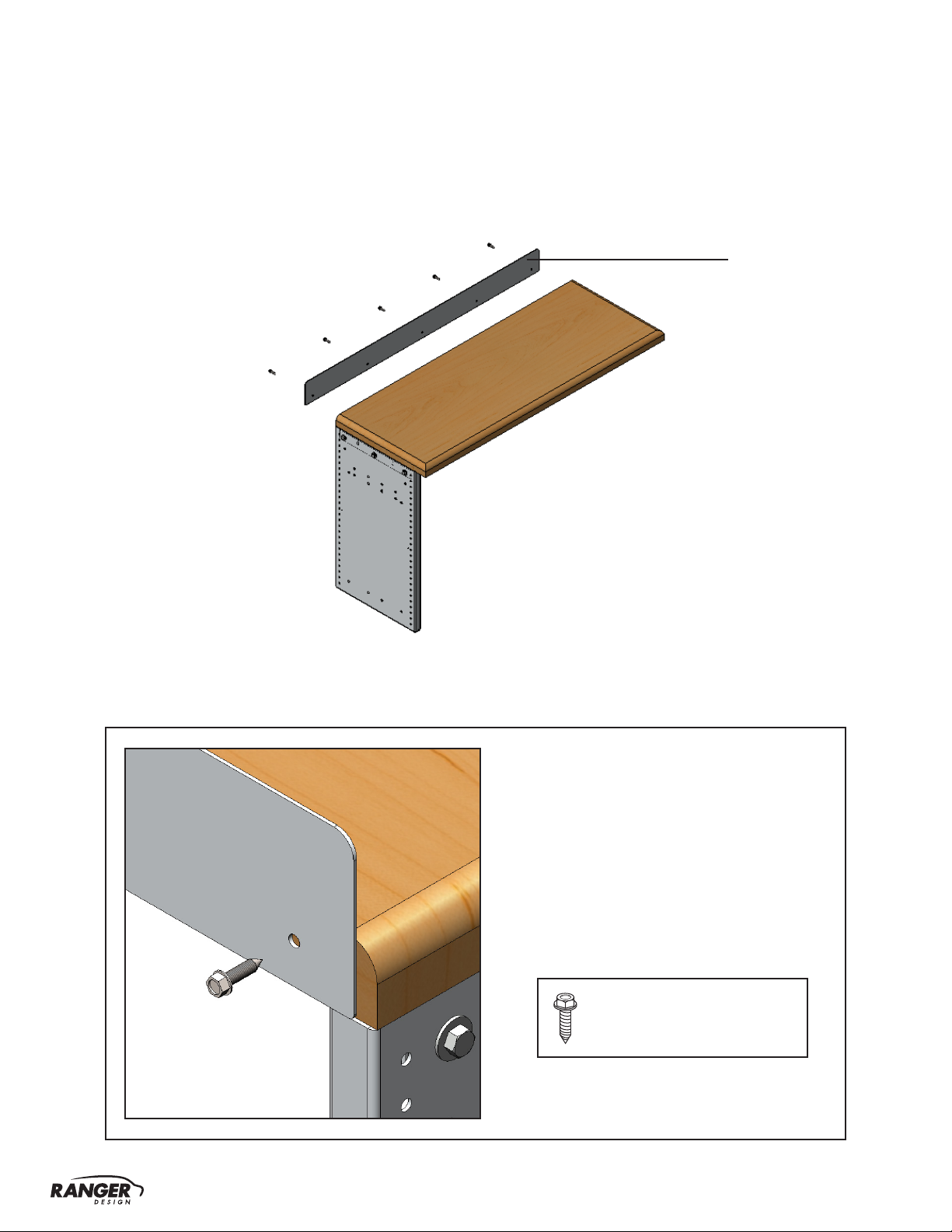

NOTE: Pre-drill the hardwood using 1/8" drill bit rst before screwing the backsplash to the hardwood to
prevent spliting the wood.
1.2.3 Screw the backsplash on the back end of the workbench.
70-818
#92-102 Screw #14 × 1"
HARDWARE USED
5×
TOOLS
qCordless Impact
qCordless Drill
q3/8" Driver Bit
q3/16" Drill Bit
For technical support, contact us at 1-800-565-5321 S2-WA48-0 Installation Guide |REV. B1 | Page 8
PHASE 2 – INSTALLATION

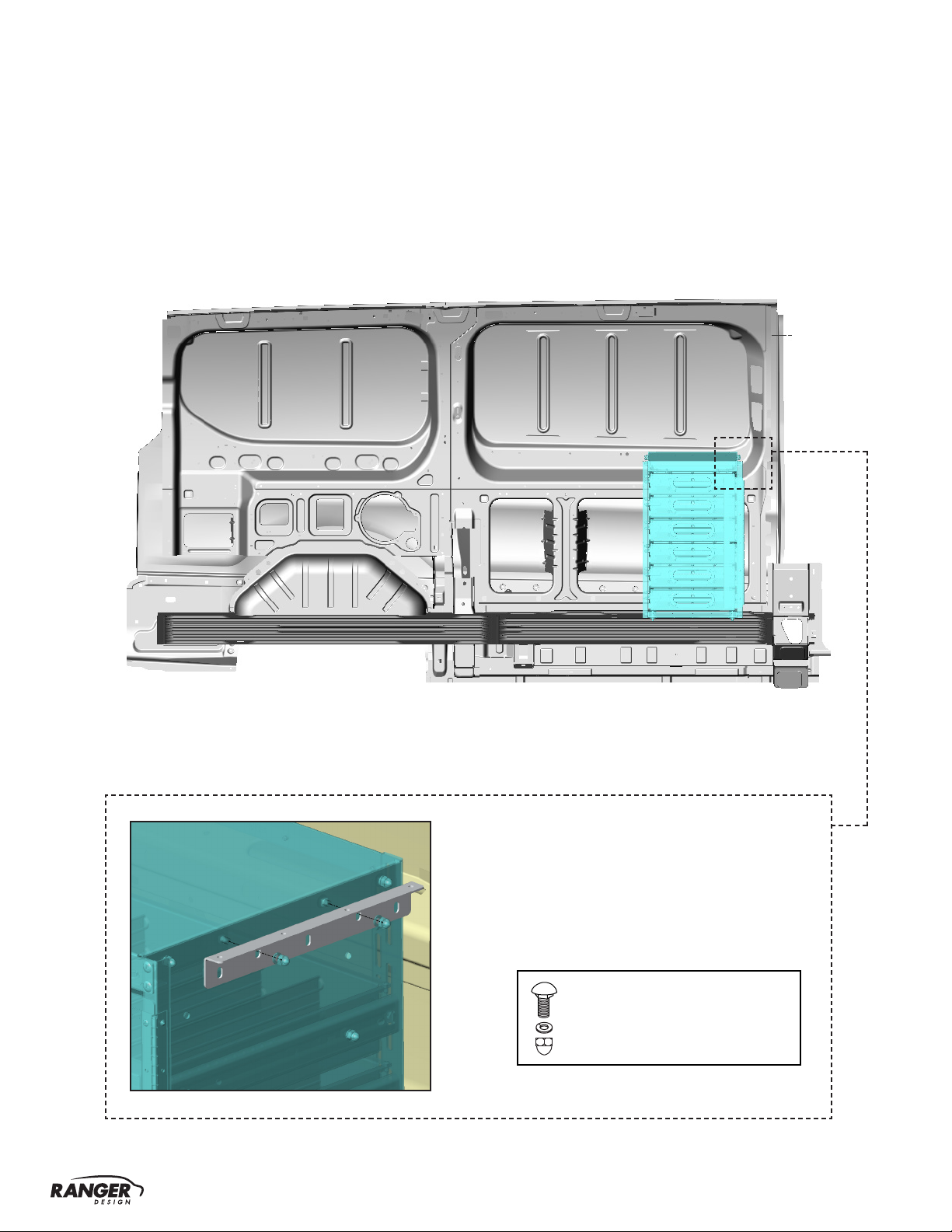

2.1 ATTACHING WORKBENCH TO DRAWER UNIT
2.1.1 Remove the top drawer of the installed drawer unit, then attach the side panel bracket to
the side panel of the drawer unit.
TOOLS
qCordless Impact
q1/2" Socket
Carriage Bolt 1/2" & 5/8"
Lock Washer 5/16"
Acorn Nut 5/16"
HARDWARE USED
2× draWer hardWare
For technical support, contact us at 1-800-565-5321 S2-WA48-0 Installation Guide |REV. B1 | Page 9

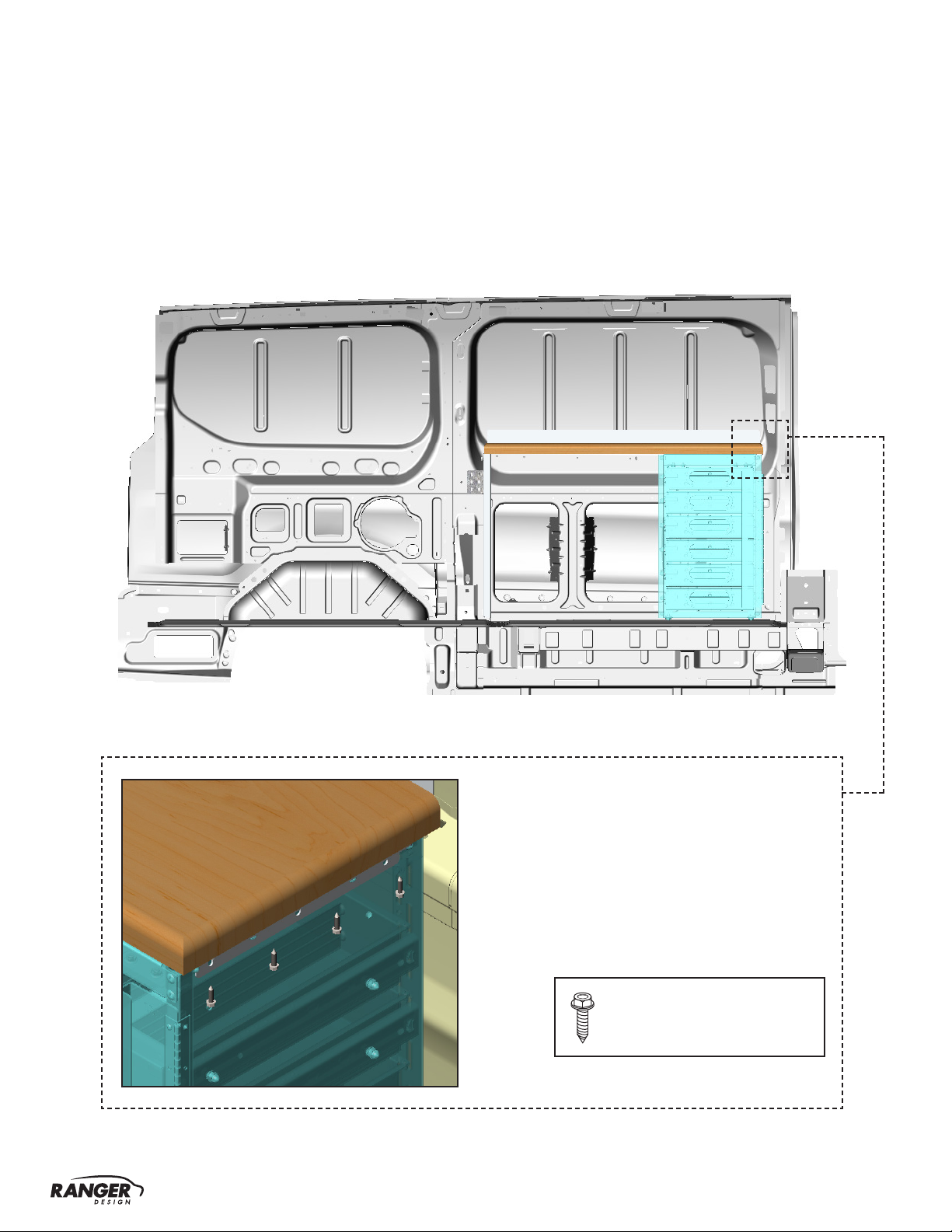

2.1.2 • Lift the assembled workbench to the vehicle, then put it in place.
• Attach the side panel bracket to the hardwood top, then slide the top drawer back.
NOTE: Pre-drill the hardwood using 1/8" drill bit rst before screwing the bracket to the hardwood
to prevent spliting the wood.
#92-102 Screw #14 × 1"
HARDWARE USED
4×
TOOLS
qCordless Impact
qCordless Drill
q3/8" Driver Bit
q3/16" Drill Bit
For technical support, contact us at 1-800-565-5321 S2-WA48-0 Installation Guide |REV. B1 | Page 10
PHASE 2 – INSTALLATION

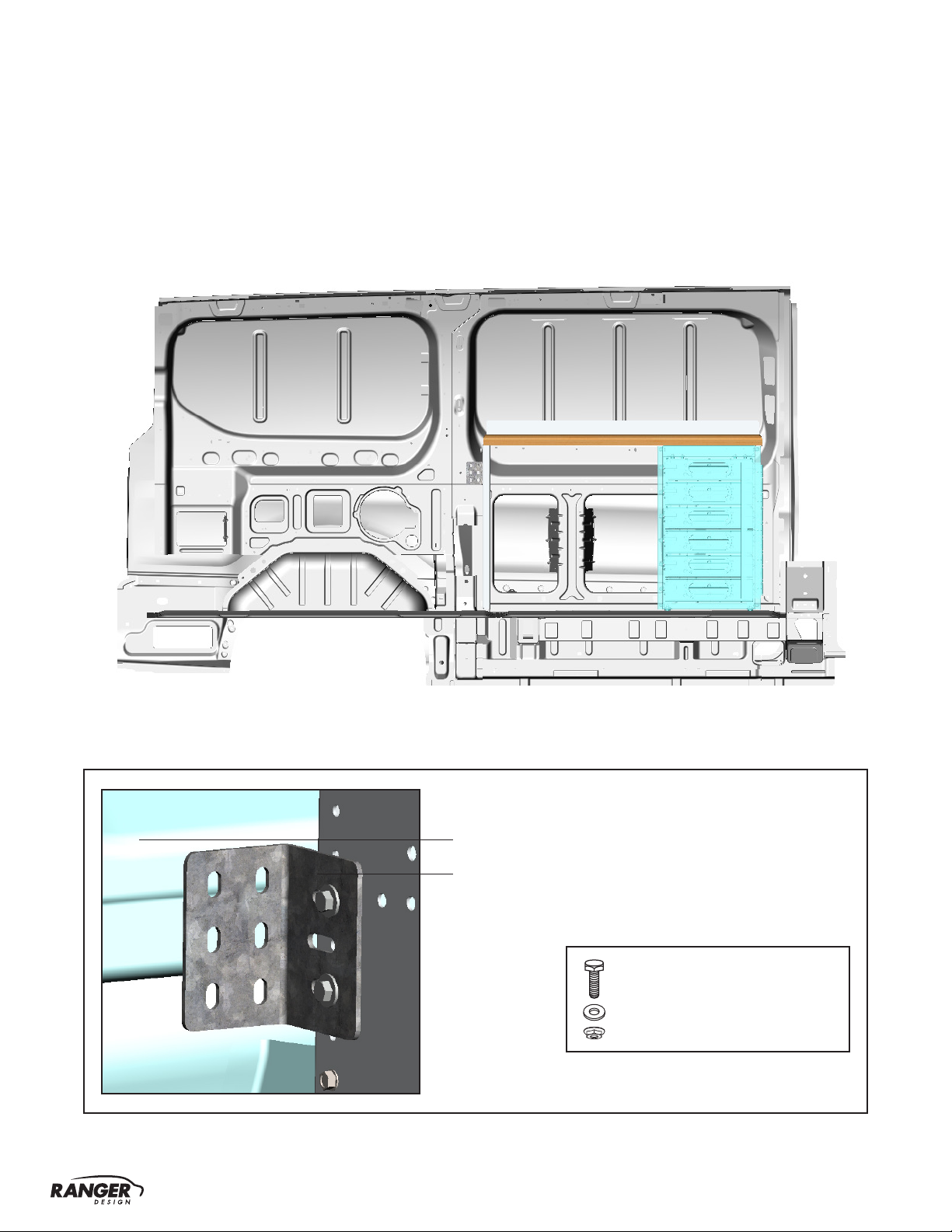

2.2 ATTACH WALL BRACKETS TO THE END PANELS
2.2.1 Attach the wall bracket to the panels aligning the bracket to the horizontal rim of the vehicle.
HORIZONTAL RIM
BRACKET HEAD
TOOLS
qCordless Impact
q1/2" Socket
HARDWARE USED
2× hand-tighten the bolts
#90-110 Hex Bolt 1/4" × 3/4"
#98-112 Flat Washer
#94-112 Serrated Nut
