Raven Hawkeye Guida
1
016-0171-598 Rev. B 05/17 E29361
Copyright 2017
Hawkeye® Quick
Start Guide
While every effort has been made to ensure the accuracy of
this document, Raven Industries assumes no responsibility
for omissions and errors. Nor is any liability assumed for
damages resulting from the use of information contained
herein.
Raven Industries shall not be responsible or liable for
incidental or consequential damages or a loss of anticipated
benefits or profits, work stoppage or loss, or impairment of
data arising out of the use, or inability to use, this system or
any of its components. Raven Industries shall not be held
responsible for any modifications or repairs made outside our
facilities, nor damages resulting from inadequate
maintenance of this system.
As with all wireless and satellite signals, several factors may
affect the availability and accuracy of wireless and satellite
navigation and correction services (e.g. GPS, GNSS, SBAS,
etc.). Therefore, Raven Industries cannot guarantee the
accuracy, integrity, continuity, or availability of these services
and cannot guarantee the ability to use Raven systems, or
products used as components of systems, which rely upon
the reception of these signals or availability of these services.
Raven Industries accepts no responsibility for the use of any
of these signals or services for other than the stated purpose.
Disclaimer
©Raven Industries, Inc. 2015
Manual No. 016-0171-598 Rev. B 1
Contents
Overview 2
Requirements 2
Machine Configuration 2
Initial Hawkeye Configuration 5
Finalizing Machine Configuration 6
Additional Information 7
2 Hawkeye Start-Up Guide
Overview
This quick guide provides directions for machine configuration and the first-
time setup of a HawkeyeTM system on a Viper®4. If installing a Hawkeye
system on an machine with an existing Viper 4, only perform the steps in the
Initial Hawkeye Configuration section.
Note: Since Hawkeye utilizes an ISO control platform, the directions in the
Initial Hawkeye Configuration should be similar on other computers
than Viper 4.
The steps in this document should only be performed after the Hawkeye
system has been installed in accordance with the machine specific Hawkeye
installation manual.
Requirements
• Hawkeye Hardware Installed on the Machine
• Viper 4 with ROS 2.1.0 or Newer
• Virtual Terminal and Task Controller Unlocks Installed.
Machine Configuration
If this is the first time using a Viper 4 on this machine:
1. Power on the Viper 4.
At Raven Industries, we strive to make your experience with our
products as rewarding as possible. One way to improve this experience
is to provide us with feedback on this manual. Your feedback will help
shape the future of our product documentation and the overall service
we provide. We appreciate the opportunity to see ourselves as our
customers see us and are eager to gather ideas on how we have been
helping or how we can do better. To serve you best, please send an
email with the following information to:
-Hawkeye Start-Up Guide
-Manual No. 016-0171-598 Rev. B
-Any comments or feedback (include chapter or page numbers if
applicable).
-Let us know how long have you been using this or other Raven
products.
We will not share your email or any information you provide with anyone
else. Your feedback is valued and extremely important to us.
Thank you for your time.
Manual No. 016-0171-598 Rev. B 3
2. Select the desired language from the drop-down menu.
3. Read the end user License Agreement.
4. Press OK to accept. A New Machine Configuration Detected Window will
open.
5. Press OK. The Please Select a Machine Type window will open.
4 Hawkeye Start-Up Guide

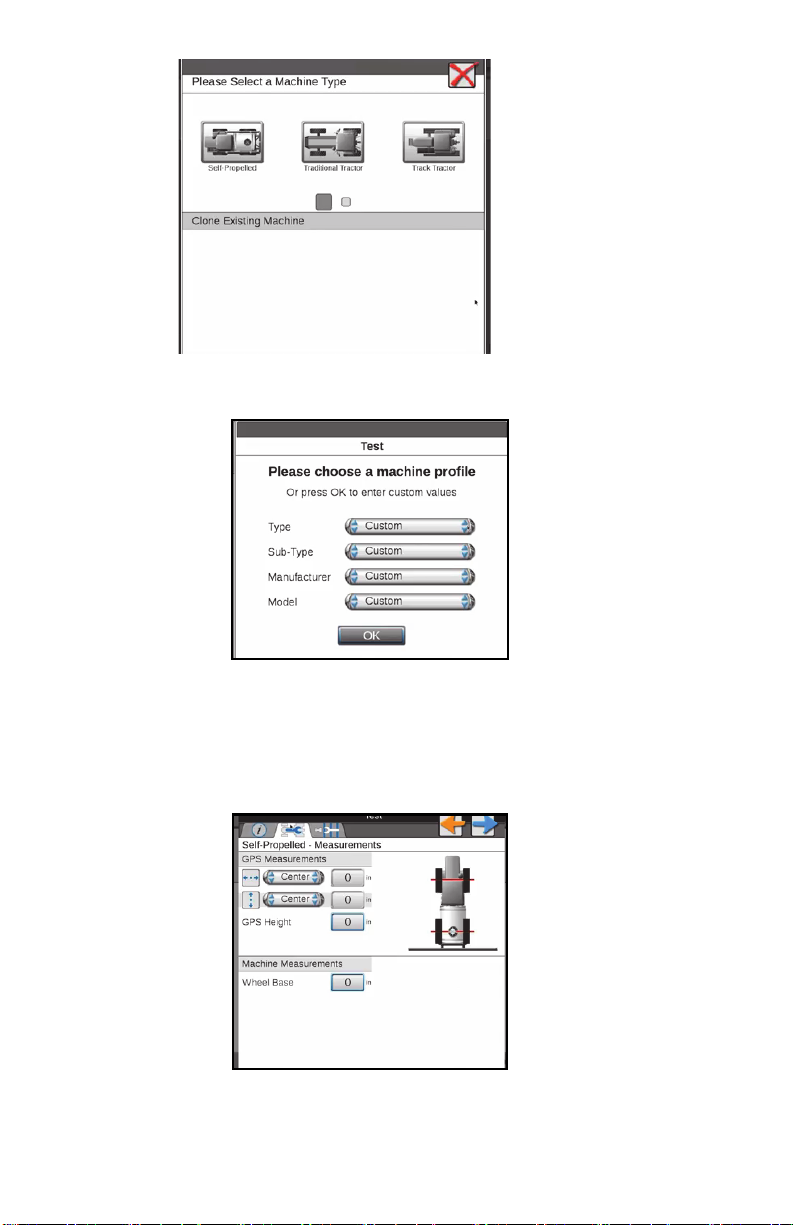

6. Select the appropriate machine type from the machine icons.
7. Press OK. The Machine Configuration Name window will open. Enter the
desired name and press the check mark to accept. The Machine Profile
window will open.
Note: If you pick a machine from the machine database, do not select one of
the standard boom configurations. The boom setup will be setup during
the Initial Hawkeye Configuration process.
8. Select the machine Type, Sub-Type, Manufacturer, and Model.
9. Press OK. The Self-Propelled-General Information tab will open.
10.Select the Self-Propelled - Measurements (second) tab.
11.Enter the location in relation to the machine in addition to the GPS unit
height.
12.Enter the machine Wheel Base information.
Manual No. 016-0171-598 Rev. B 5
Initial Hawkeye Configuration
1. Press the VT Menu button.
2. Walk through all of the steps in the setup wizard. For this you will need the
following information:
Note: If, at any point during the setup wizard you have a question, press the
??? button by the item for more information.
3. Press the tools button.
Number of Nozzle Control Valves
Applicator Type
Nozzle Spacing
Tip Size
Fence Rows (if needed)
Number of Sections
Section Widths
Boom Offset
Switch Mapping (if needed)
Boom Pressure Calibration
Valve Calibration
Flow Meter Calibration
Target Rate
Target Pressure
6 Hawkeye Start-Up Guide
4. Review and adjust the settings on the Calibration Summary page.
5. Press Next Page.
6. Review and information on the second Calibration Summary page. Any
adjustments to these settings must be done through the machine settings.
7. Press Previous Page.
8. Press Calibrate NCVs. The NCV calibration process will begin.
Finalizing Machine
Configuration
1. Press the Machine icon. The machine Setup window will open.
Manual No. 016-0171-598 Rev. B 7
2. Select the Self-Propelled - Equipment (third) tab.
3. Press the plus (+) sign. The boom configuration will generate.
Note: If a boom configuration already exists, delete it before importing a new
boom configuration, To do so, press the trash can by the profile.
The boom configuration should automatically populate the boom group
without any additional information from the user. If asked to name the
boom group and enter the number of sections, stop the configuration
process. Exit out of the boom group configuration, cycle power on the
machine, and restart the machine.
4. Press the modify button.
5. Verify the boom offset.
6. Verify red boom is no longer visible on the machine icon.
7. Initial set-up and calibration is complete.
Additional Information
For additional information on advanced Hawkeye settings, refer to the
Hawkeye Calibration and Operation manual included with the kit.
8 Hawkeye Start-Up Guide
