Raymarine ST40 Guida utente

Distributed by

Any reference to Raytheon or

RTN in this manual should be

interpreted as Raymarine.

The names Raytheon and RTN

are owned by the

Raytheon Company.

ST40 Bidata

Instrument

Owner’s

Handbook

Document number: 81159_2

Date: 1st May 2001

159_2cov.p65 01/05/01, 15:131

159_2cov.p65 01/05/01, 15:132

Preface i

Important information

WARNING

Although your ST40 instrument is designed to give accurate and

reliable performance, it should serve only as an aid to navigation

and should never lead to the erosion of good seamanship. Always

maintain a permanent watch and be aware of situations as they

develop.

EMC conformance

All Raymarine equipment and accessories are designed to the best

industry standards for use in the leisure marine environment.

The design and manufacture of Raymarine equipment and accessories

conform to the appropriate Electromagnetic Compatibility (EMC)

standards, but correct installation is required to ensure that performance

is not compromised.

Handbook information

To the best of our knowledge, the information in this handbook was

correct when it went to press. However, the Raymarine policy of

continuous product improvement may change product specifications

without notice. Consequently, unavoidable differences may occur

between the product and the handbook from time to time, for which

Raymarine cannot accept liability.

159_2pre.p65 01/05/01, 15:131

ii ST40 Bidata Instrument Owner’s Handbook

159_2pre.p65 01/05/01, 15:132

Preface iii

Contents

Important information .......................................................... i

WARNING ......................................................................... i

EMC conformance ............................................................. i

Handbook information ....................................................... i

Preface..................................................................................... v

Parts supplied ................................................................... vi

Chapter 1: Operation ............................................................. 1

1.1 Introduction ................................................................. 1

Display ....................................................................... 1

1.2 Operating procedures .................................................. 2

Display action............................................................. 2

Silencing alarms ......................................................... 2

1.3 Alarms ......................................................................... 7

Alarm indications ....................................................... 7

Shallow alarm ........................................................ 7

Deep alarm ............................................................. 7

Anchor alarms ........................................................ 7

Enabling/disabling alarms .......................................... 8

Chapter 2: Maintenance and Fault Finding ........................ 9

2.1 Maintenance ................................................................ 9

Servicing and safety ................................................... 9

Instrument................................................................... 9

Transducer ................................................................ 10

Cabling ..................................................................... 10

2.2 Fault finding .............................................................. 10

Preliminary procedures ............................................ 10

Fixing faults .............................................................. 10

Assistance ................................................................. 13

159_2pre.p65 01/05/01, 15:133

iv ST40 Bidata Instrument Owner’s Handbook

Chapter 3: Installation......................................................... 15

3.1 Planning your installation ......................................... 15

EMC installation guidelines ..................................... 15

Suppression Ferrites ........................................... 16

Connections to Other Equipment ......................... 16

Tools required .......................................................... 16

Site requirements ...................................................... 17

Transducers .......................................................... 17

Instrument ............................................................ 19

3.2 Procedures................................................................. 20

Fitting transducers .................................................... 20

Running transducer cable .................................... 20

Connections to the instrument .................................. 21

Stand-alone connections ...................................... 22

SeaTalk connections ............................................ 23

Fitting the instrument ............................................... 23

Desktop Mounting Bracket .................................. 25

3.3 Calibration requirement ............................................ 26

Chapter 4: Calibration ......................................................... 27

4.1 Introduction ............................................................... 27

EMC conformance ................................................... 27

4.2 User calibration ......................................................... 27

Depth offsets ............................................................ 31

4.3 Intermediate calibration ............................................ 31

4.4 Dealer calibration ...................................................... 32

Instrument Specification .................................................... 35

Glossary ................................................................................. 37

Index ...................................................................................... 39

159_2pre.p65 01/05/01, 15:134

Preface v

Preface

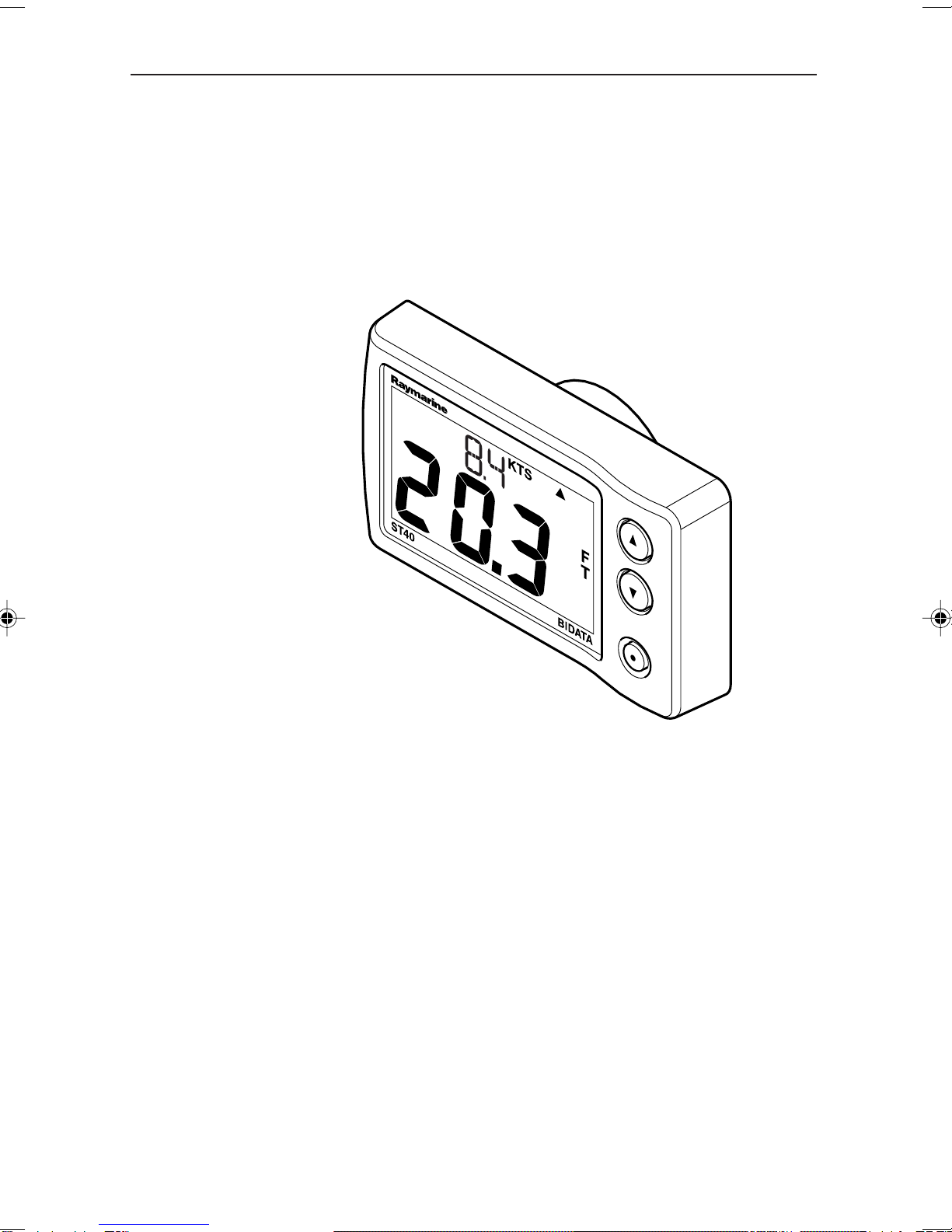

Thank you for purchasing a Raymarine product. We are sure your

ST40 instrument will give you many years of trouble-free operation.

This instrument is designed to provide reliable performance, even

under the most demanding conditions.

D4807-2

159_2pre.p65 01/05/01, 15:145

vi ST40 Bidata Instrument Owner’s Handbook

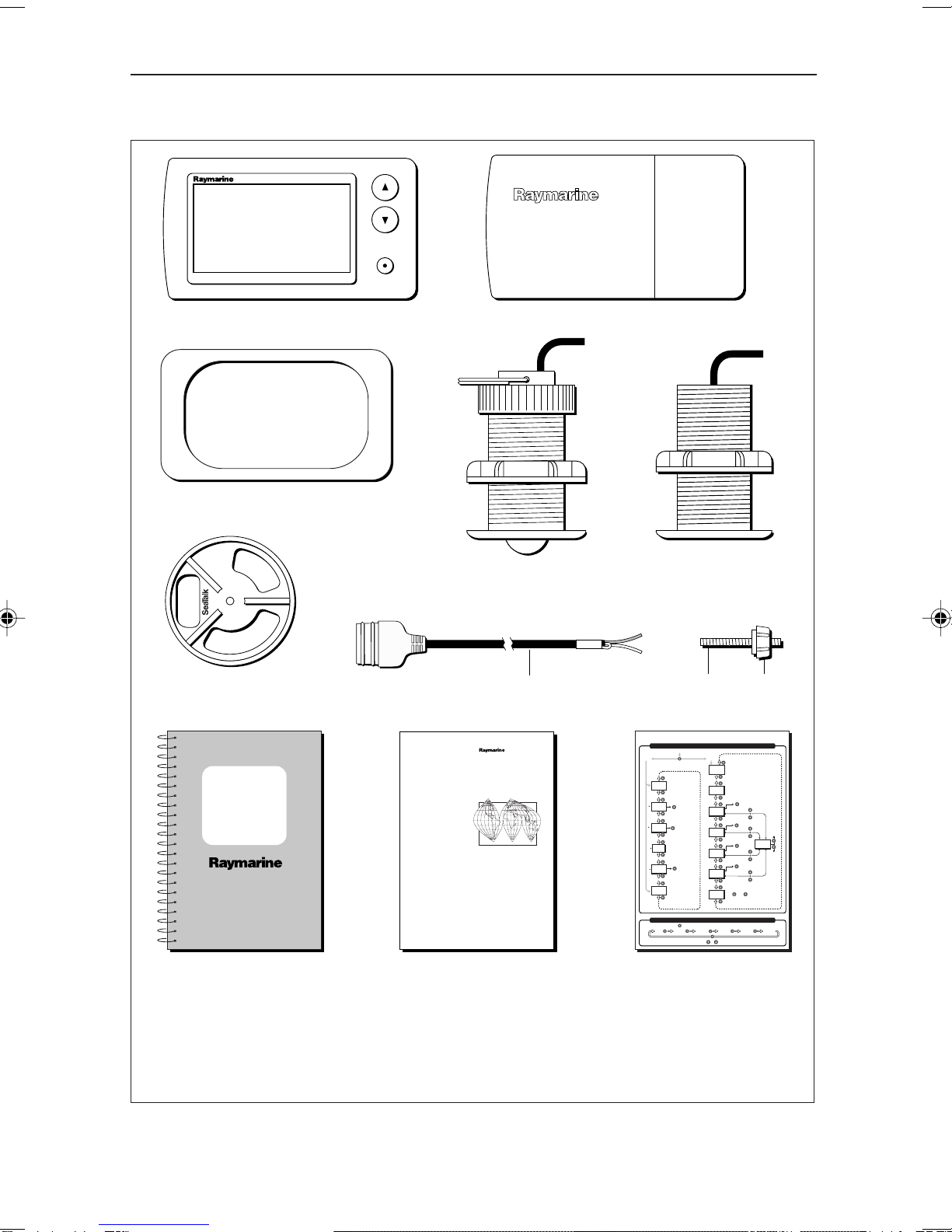

Parts supplied

D4730-2

ST40

Bidata

Instrument

Owner's

Handbook

Worldwide

Distributors

ST40 Bidata instrument

Gasket

Retractable speed transducer

Supplied with bung

(not illustrated)

1 m (3 ft) power cable

Instrument Cover

Owner’s Handbook.

Warranty document and fitting

templates included in Handbook

Worldwide Service Centre

Handbook.

Quick Reference Guide

Clamping bracket

BIDATA

ST40

Depth transducer

Note:

The items shown here are supplied for an ST40 Bidata system. If an instrument is purchased separately, transducers

are not included. If any item is not present, contact your Raymarine Dealer.

Fixing

stud

Thumb

nut

Adjusting display backlighting/contrast

Normal operation

ST40 Bidata Instrument - quick reference guide

orTo exit adjust mode press or wait for 5 second timeout

LEVEL 1 LEVEL 1

OFF LEVEL 2LEVEL 3LEVEL 2

To enter adjust mode,press for 1 second to adjust BACKLIGHTING and a further 1 second to adjust CONTRAST

SWITCH ON

Last permanent

screen is displayed

SPEED DEPTH

Current

speed

3 seconds

Reset

Maximum

speed

3 seconds

Reset

Average

speed

Water

Temp.

Log

Trip 3 seconds

Reset

Depth

Minimum

depth

Shallow

alarm

Deep

alarm

Deep

anchor

alarm

Offset

Shallow

anchor

alarm

3 seconds

Alarm on/off

3 seconds

Alarm on/off

Set

alarm

level

3 seconds

Alarm on/off

3 seconds

Alarm on/off

Notes:

*denotes temporary screens

which will time-out to the previous

permanent screen after 5 seconds.

On repeater instruments, on;ly the

Speed, Water temperature,

Depth and Minimum depth

screens are available.

With Set alarm level screen displayed,

to save the alarm level and return to

normal operation.

and keys simultaneously

press the

159_2pre.p65 01/05/01, 15:146

Chapter 1: Operation 1

Chapter 1: Operation

1.1 Introduction

Your ST40 Bidata instrument:

• Provides speed information (current, maximum and average), in

either knots (KTS), miles per hour (MPH) or kilometres per

hour (KPH).

• Provides log and trip information. These are given in either nautical

miles (NM), statute miles (M) or kilometres (KM).

• Provides water temperature information. This is given in either

degrees Celsius (°C) or degrees Fahrenheit (°F).

• Provides depth information in either feet (FT), metres (M) or

fathoms (FA).

• Records the minimum depth encountered during the period it is

switched on. You can reset this at any time.

• Enables you to define alarm thresholds for shallow water, deep

water, shallow anchor and deep anchor.

• Enables you to see what offset is applied to the depth reading.

Note: The required speed, distance, depth and water temperature units

are selected during User calibration (see Chapter 4, Calibration).

CAUTION

Your instrument is calibrated to factory (default) settings when

first supplied and must therefore be calibrated before use, to

ensure optimum performance on your vessel. Do NOT use the

instrument until the calibration procedures have been

satisfactorily completed, using the procedures in Chapter 4,

Calibration.

Coloured bezel and Desktop Mounting Bracket options are available

for your ST40 instrument. Contact your Raymarine dealer for further

information.

Display

The ST40 Bidata display comprises upper and lower data areas, each of

which shows either depth or speed information, selected as shown in

the following illustration.

159_2c01.p65 01/05/01, 15:141
