Raymarine ST60 Tridata Manuale utente

D6566-1

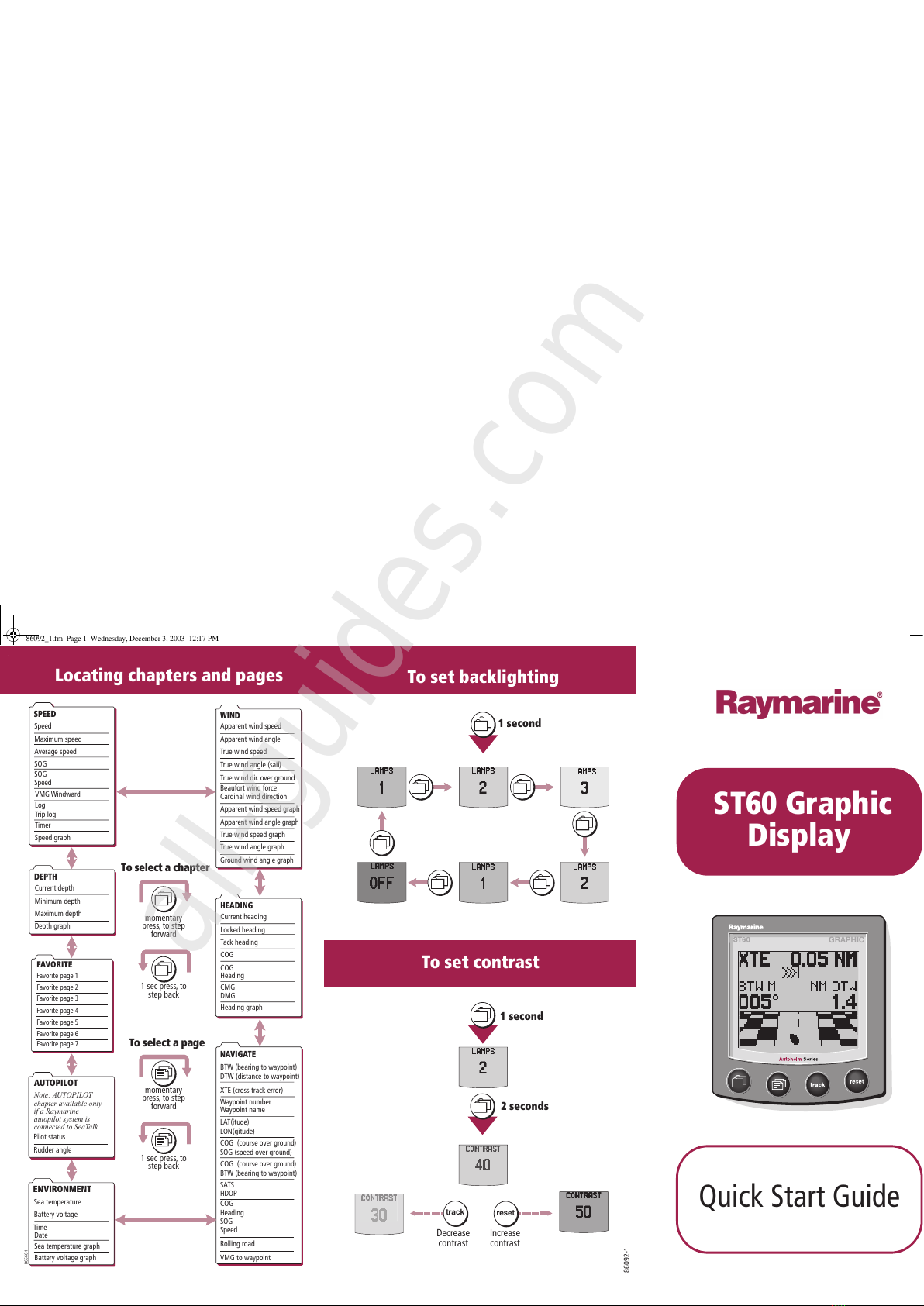

Quick Start Guide

ST60 Graphic

Display

ST60 Graphic

Display

Locating chapters and pages To set backlighting

To set contrast

Decrease

contrast

Increase

contrast

track reset

GRAPHIC

86092-1

To select a chapter

To select a page

momentary

press, to step

forward

1 sec press, to

step back

momentary

press, to step

forward

1 sec press, to

step back

SATS

HDOP

Depth graph

Speed graph True wind speed graph

Apparent wind angle graph

Ground wind angle graph

Apparent wind speed graph

True wind angle graph

Heading graph

Sea temperature graph

Battery voltage graph

VMG Windward

Maximum speed

Minimum depth

Maximum depth

True wind dir. over ground

Beaufort wind force

Cardinal wind direction

Tack heading

DMG

CMG

FAVORITE

Favorite page 5

Favorite page 4

Favorite page 7

Favorite page 6

Favorite page 3

Favorite page 2

Favorite page 1

Current depth

DEPTH

Speed

Average speed

Log

Trip log

SOG

Timer

SPEED WIND

Apparent wind speed

True wind speed

Apparent wind angle

True wind angle (sail)

COG

Locked heading

Current heading

Heading

COG

HEADING

NAVIGATE

BTW (bearing to waypoint)

DTW (distance to waypoint)

Speed

Rolling road

VMG to waypoint

LAT(itude)

COG (course over ground)

BTW (bearing to waypoint)

COG

Heading

SOG

XTE (cross track error)

LON(gitude)

SOG (speed over ground)

Waypoint number

Waypoint name

ENVIRONMENT

Sea temperature

Battery voltage

Date

Time

Pilot status

Rudder angle

AUTOPILOT

Note: AUTOPILOT

chapter available only

if a Raymarine

autopilot system is

connected to SeaTalk

1 second

2 seconds

86092_1.fm Page 1 Wednesday, December 3, 2003 12:17 PM

All manuals and user guides at all-guides.com

all-guides.com

Display layout Using Favorite pages Setting up Favorite pages

GRAPHIC

Press to select the CHAPTER

you want.

Hold down for 1 second to

enter backlight-adjust mode.

When in backlight-adjust

mode:

- Press to adjust the backlight

level.

- Hold down for 2 seconds to

enter contrast-adjust mode.

When resettable data such

as Maximum & Minimum

Depth are displayed, hold

down for 3 seconds to reset

the data to the current

value.

When an adjustable value is

displayed, press to increase

the value.

reset

Press to enter track

mode. When in track

mode:

- Hold down for 1 second

to advance to the next

waypoint.

- Press to leave track

mode.

When an adjustable

value is displayed, press

to decrease the value.

track

Press to select the

PAGE you want.

Favorite page number

(Displayed when page first selected.

Disappears after 5 seconds)

momentary

press

1 sec

press

2. Enter Favorite set up +

3. Select the required

page format

Single element

Dual

element

Triple element

Quad

element

4. Highlight the line you want to set up

MND 7.5 FA7.5 FA RUD 10o3/3/03

DATE

MXD

5. Select the required data in the highlighted line

1. Select required Favorite page

2 seconds

track reset

track track

track

reset reset

CHAPTER

PAGE

Step forward Step back

D6567-1

86092_1.fm Page 2 Wednesday, December 3, 2003 12:17 PM
