model 105

•105,000 BTUH

•Natural or propane gas

•Indoor/outdoor

•Standard stackless top

•User-friendly control panel

•High efficiency for economical

operation

•Electronic ignition or millivolt pilot

•Lightweight combustion chamber

•Copper fin tube heat exchanger design

•Completely field serviceable

•Small footprint

•Glass-lined cast iron castings

VVEERRSSAA

Photo courtesy of Ester Williams, Delair Group

The Pool and Spa Heating ExpertsSM

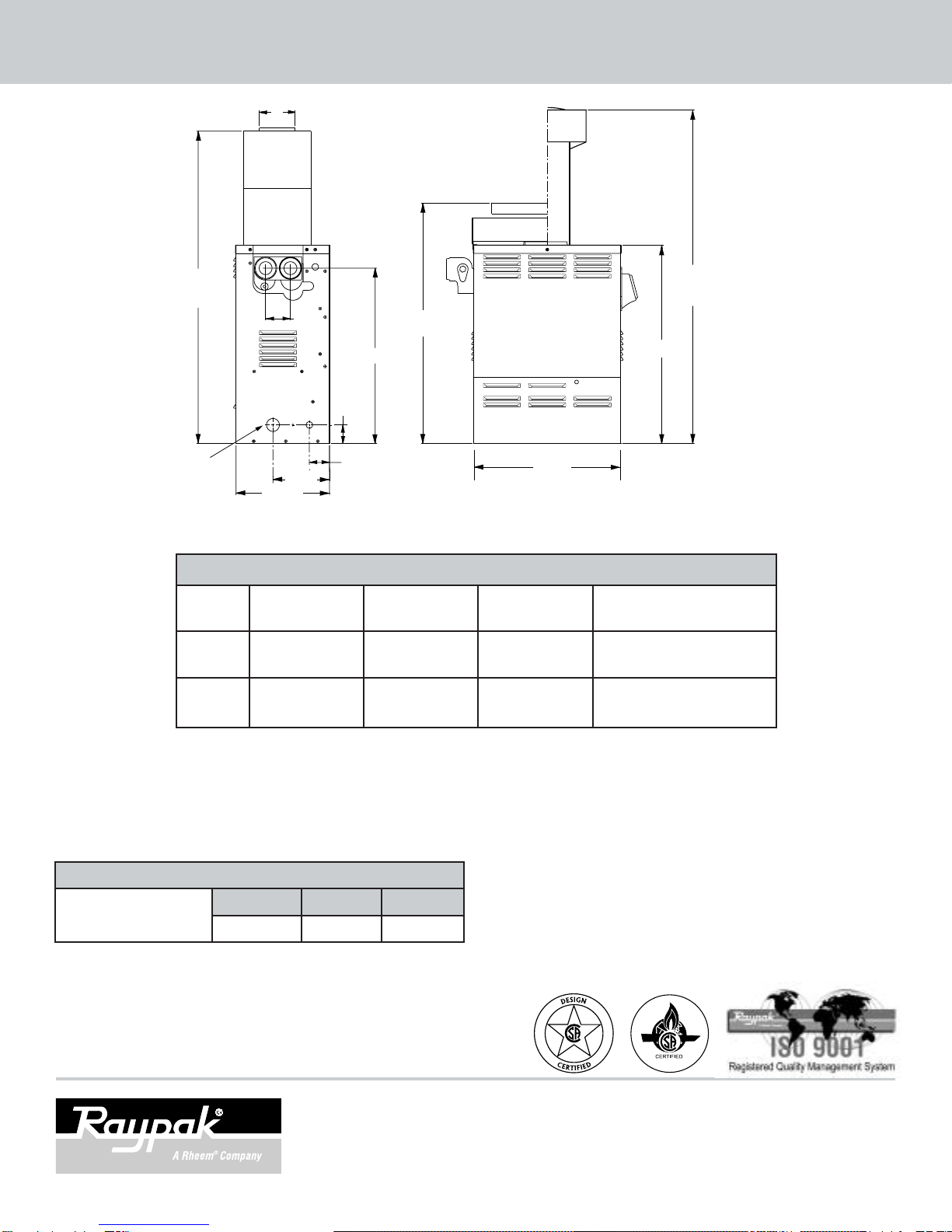

VERSA 105 Above-Ground Pool Heater

42-1/8"

INDOOR

DRAFTHOOD

3-3/8"

2-1/2"

23-7/8"

2-3/4"

ELECTICAL

7-3/4"

GAS

12-3/4"

32-7/8"

STACKLESS

27"

OUTDOOR

STACK

45 3/8"

20-1/8"

3/4" GAS

CONNECTION

Raypak, Inc.

2151 Eastman Ave, Oxnard, CA 93030 • (805) 278-5300 • Fax (800) 872-9725

Raypak Canada Limited

2805 Slough Street, Mississauga, Ontario, Canada L4T IG2 • (905) 677-7999 • Fax (905) 677-8036

www.raypak.com

Heating Capacity

The table below shows the heating capacity of the VERSA 155 in

temperature rise per hour for a given pool size. For example, the

heater will raise the temperature of a 400-square-foot pool 1 °F per

hour.

Patented Econotherm Heat Exchanger

Your VERSA is equipped with a unique all-copper-fin-tube heat

exchanger, designed for efficient heat transfer, and built to provide

years of trouble-free performance. Both header castings are made

of porcelainized cast iron for durability and resistance to corrosion.

Your VERSA is also available with optional bronze headers for

completely rust-free operation.

Two-Year Limited Warranty against defects in materials and

workmanship (see warranty for details). In addition, every VERSA is

thoroughly tested in simulated conditions before shipment.

Note: Outdoor stack & indoor drafthoods can be supplied but

must be ordered separately.

Fig # 9296

Model

BTUH Input

(000)

Water

Connections Casting

Shipping Weight (lbs.)

Heater w/Stackless Top

C-105 105 1-1/2” Glass-lined

cast iron 113

B-105 105 1-1/2” & 2” Bronze 113

Temp. rise per hour

300 400 500

1-1/4 °F 1 °F 3/4 °F

Specifications

Above-Ground Pool Size (Square Feet)
