USER MANUAL FOR
GAMING HEADSET
System model number RZ04-0268
Consist of Headset Model RC30-026801
and Wireless USB Transceiver
RC30-0267
DATE: 28 JULY 2018
FOR GAMERS. BY GAMERS.™ 1
PACKAGE CONTENTS / SYSTEM REQUIREMENTS
PACKAGE CONTENTS
Gaming headset (System model number RZ04-0268 Consist of Headset Model RC30-026801
and Wireless USB Transceiver RC30-0267)
USB wireless transceiver
Charging cable
3.5mm combo cable
Important Product Information Guide
SYSTEM REQUIREMENTS
HARDWARE REQUIREMENTS
Devices with a USB port
Mobile devices with a 3.5mm combo port
RAZER SYNAPSE 3 REQUIREMENTS
Windows® 7 64-bit (or higher)
Internet connection
500 MB of free hard disk space
FOR GAMERS. BY GAMERS.™ 2
2. REGISTRATION / TECHNICAL SUPPORT
REGISTRATION
Register your product online at razerid.razer.com/warranty to get real-time information on your
product’s warranty status.
If you haven’t registered for a Razer ID yet, register now at razerid.razer.com to get a wide range of
Razer benefits.
TECHNICAL SUPPORT
1 year limited manufacturer’s warranty
Free online technical support at support.razer.com
Your product’s serial number can be found
underneath the ear cushion, as shown here.
Placeholder image
FOR GAMERS. BY GAMERS.™ 3

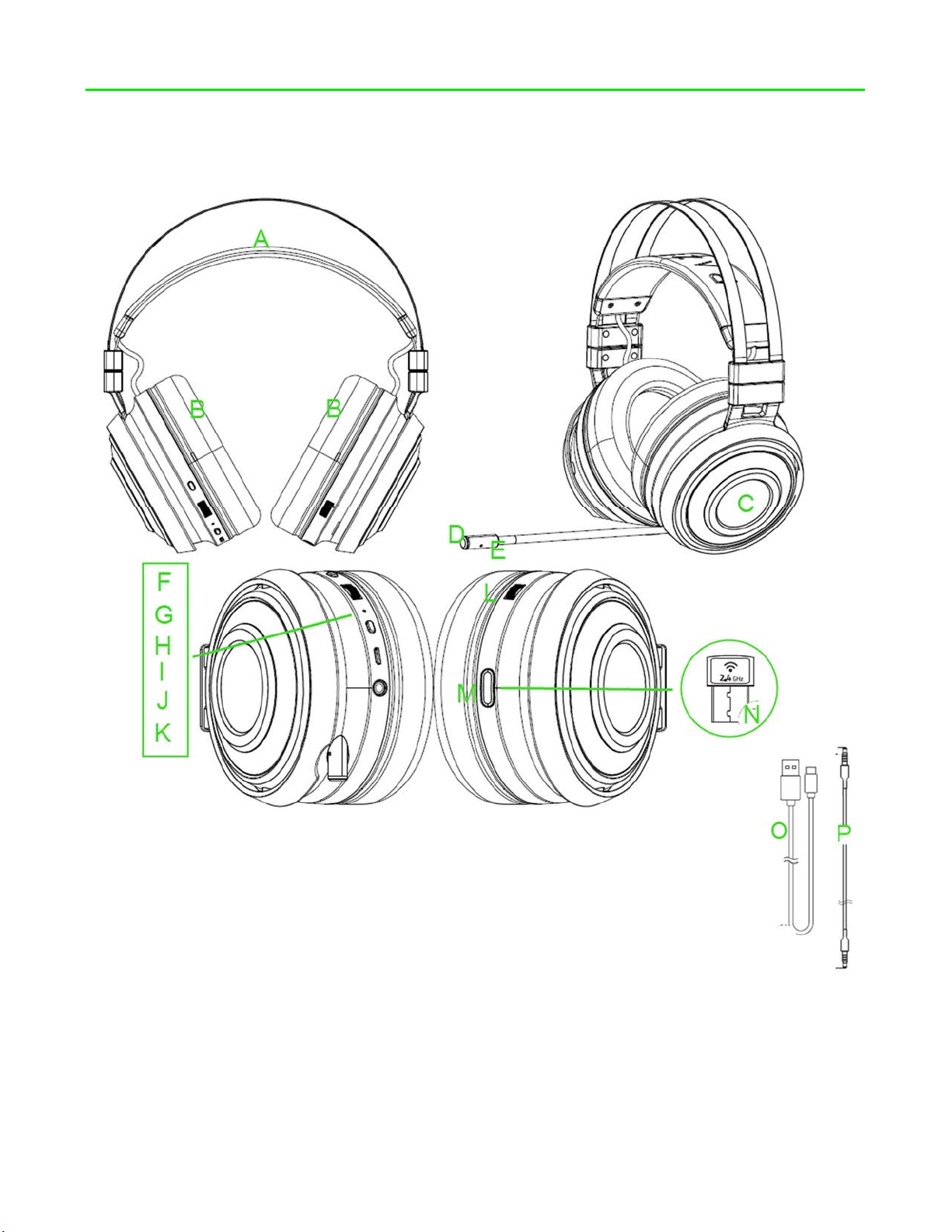

DEVICE LAYOUT
A. Auto-adjusting headband
B. Cooling gel-infused ear cushions
C. Razer Chroma backlighting
D. Mic mute indicator
E. Retractable mic
F. Mic mute button
G. Game/Chat balance
H. Status indicator
I. Power button
J. Charging port
K. 3.5mm combo port
L. Volume control
M. Transceiver storage
N. USB wireless transceiver
O. Charging cable
P. 3.5mm combo cable
Placeholder image
FOR GAMERS. BY GAMERS.™ 4
SETTING UP YOUR RAZER NARI
CHARGING YOUR HEADSET
Connect your Razer Nari to a powered USB port using the charging cable.
For best results, please fully charge your headset before using it for the first time. A depleted unit
will fully charge in about 4 hours.
UNDERSTANDING THE CHARGING NOTIFICATIONS
Your Razer Nari will send out notifications depending on its current charging status, as shown here:
STATUS INDICATOR SOUND INDICATOR DESCRIPTION
Static red None Charging/low battery
Static blue None Fully charged/full
battery
Blinking red Warning tone Low battery
Placeholder image
Placeholder image
FOR GAMERS. BY GAMERS.™ 5

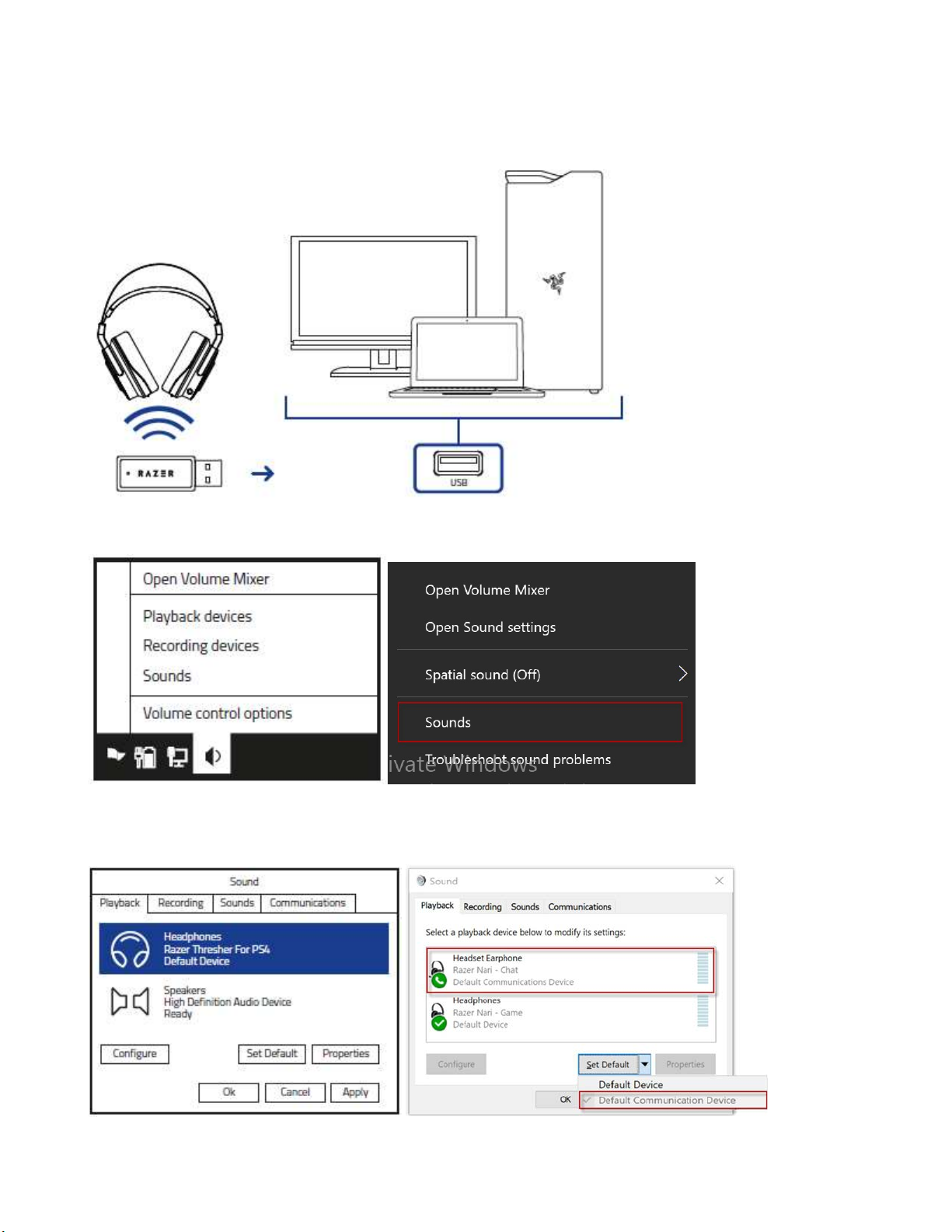

CONNECTING TO YOUR PC VIA USB PORT
1. Plug the USB wireless transceiver to your PC.
2. Right-click on the sound icon on the system tray, and then select Sounds.
3. On the Playback tab, select Razer Nari - Chat from the list, and then set it as the Default
Communication Device.
FOR GAMERS. BY GAMERS.™ 6

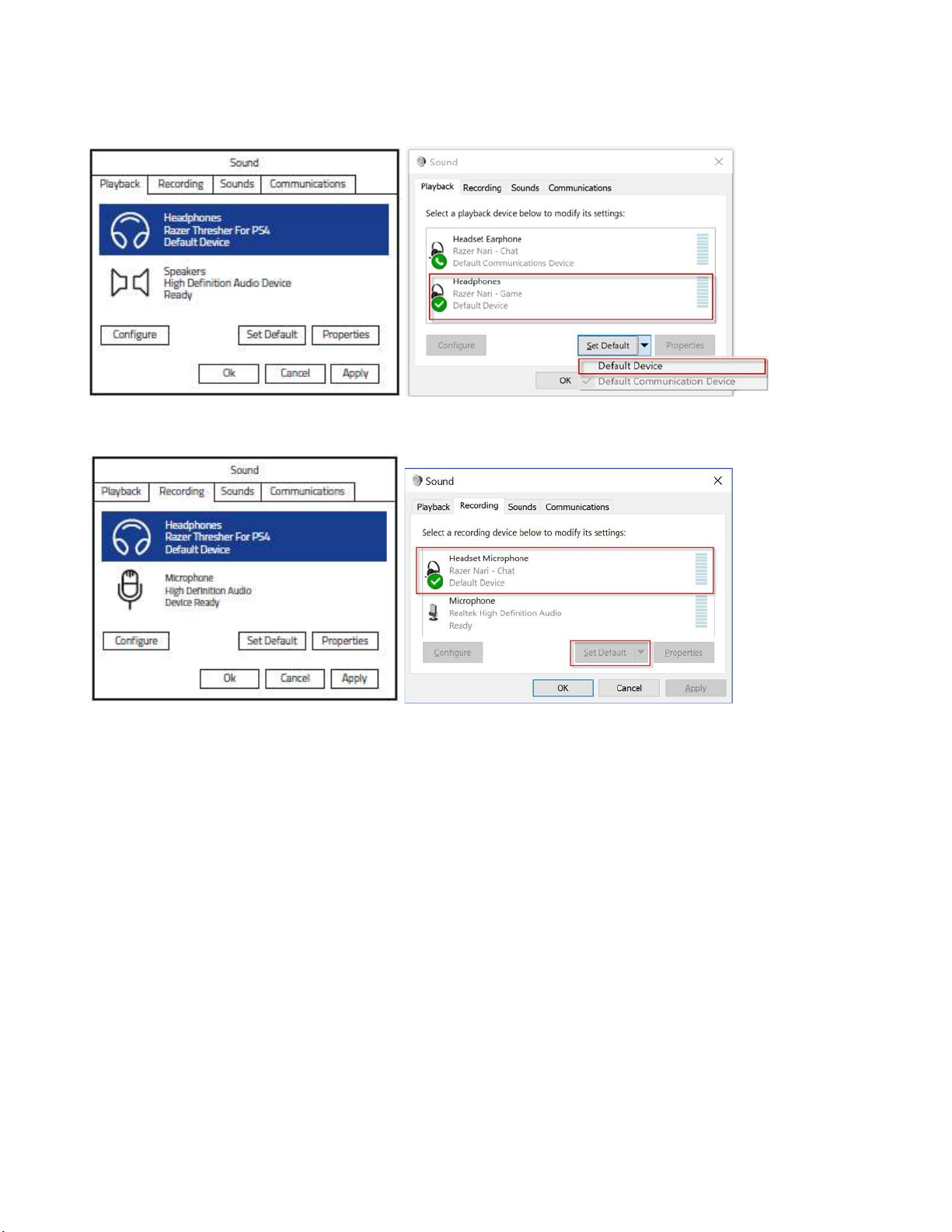

4. On the Playback tab, select Razer Nari - Game from the list, and then set it as the Default
Device.
5. In the Recording tab, select Razer Nari - Chat from the list and click the ‘Set Default’ button.
FOR GAMERS. BY GAMERS.™ 7

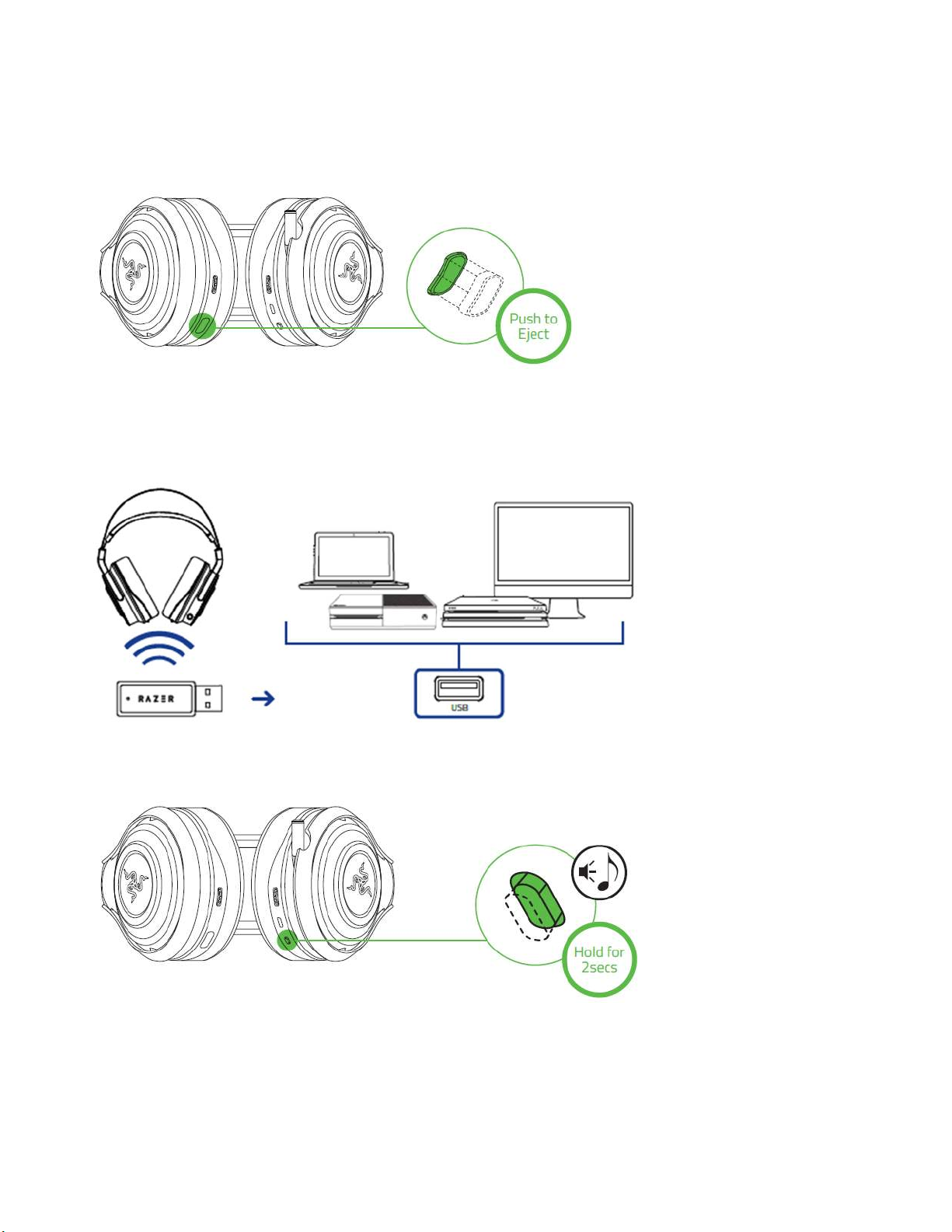

CONNECTING TO OTHER DEVICES VIA USB PORT
1. Push in the USB wireless transceiver until you hear a click then release your finger so that it
ejects from your headset.
Note: To return the USB wireless transceiver, push it into the compartment until you hear a click.
2. Plug the USB wireless transceiver to your device and make sure your Razer Nari is the
default input and output audio device.
3. Power on your headset by holding the power button for at least 3 seconds or until you hear
2 short beeps.
Placeholder image
Placeholder image
Placeholder image
FOR GAMERS. BY GAMERS.™ 8
4. Wait until the status indicator is static blue.
Note: Keep your headset within close proximity of the USB wireless transceiver for a faster and more
stable connection. If your headset fails to connect, it will automatically power off after a few minutes.
CONNECTING TO DEVICES VIA 3.5MM COMBO PORT
If your device has a 3.5mm audio + mic combined jack, simply plug the 3.5mm audio cable from
your headset to your device’s audio jack.
NOTIFICATION STATUS
Blinking
Pairing
Rapid blinking
Connecting
Static
Connected
Placeholder image
Placeholder image
FOR GAMERS. BY GAMERS.™ 9
USING YOUR RAZER NARI

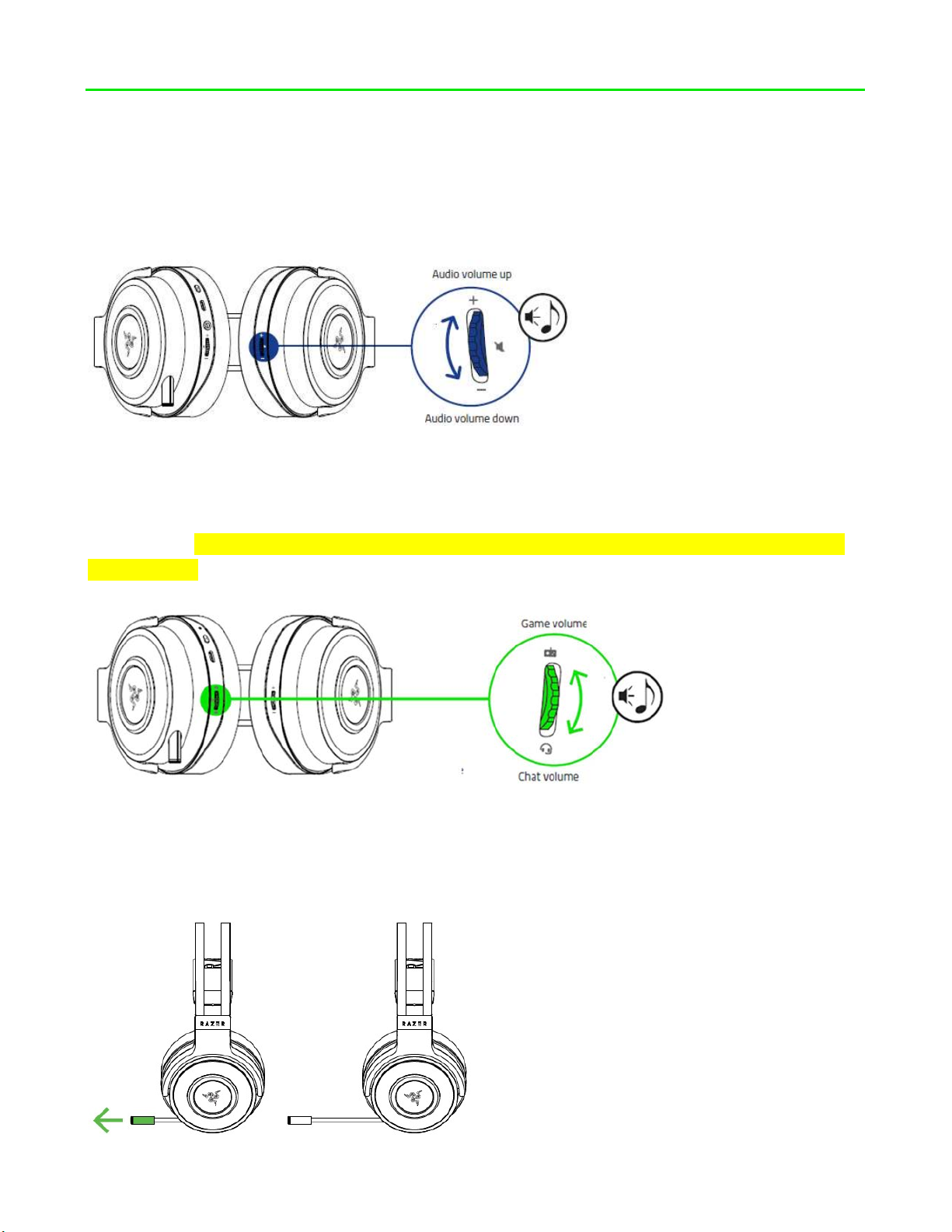

USING THE VOLUME CONTROL
Rotate the volume control to increase or decrease the volume.
USING THE GAME/CHAT BALANCE
Rotate the game/chat balance to increase the in-game volume and decrease the voice chat volume
or vice versa. By default, the notch on the wheel is set to the middle to indicate 50% chat and 50%
game volume.
USING THE RETRACTABLE MIC
Pull the tip of the mic until it is fully extended.
Placeholder image
Placeholder image
Placeholder image
