RLED2445A-B

INSTRUCTION MANUAL

LED TV

Table of Contents

1

Caution

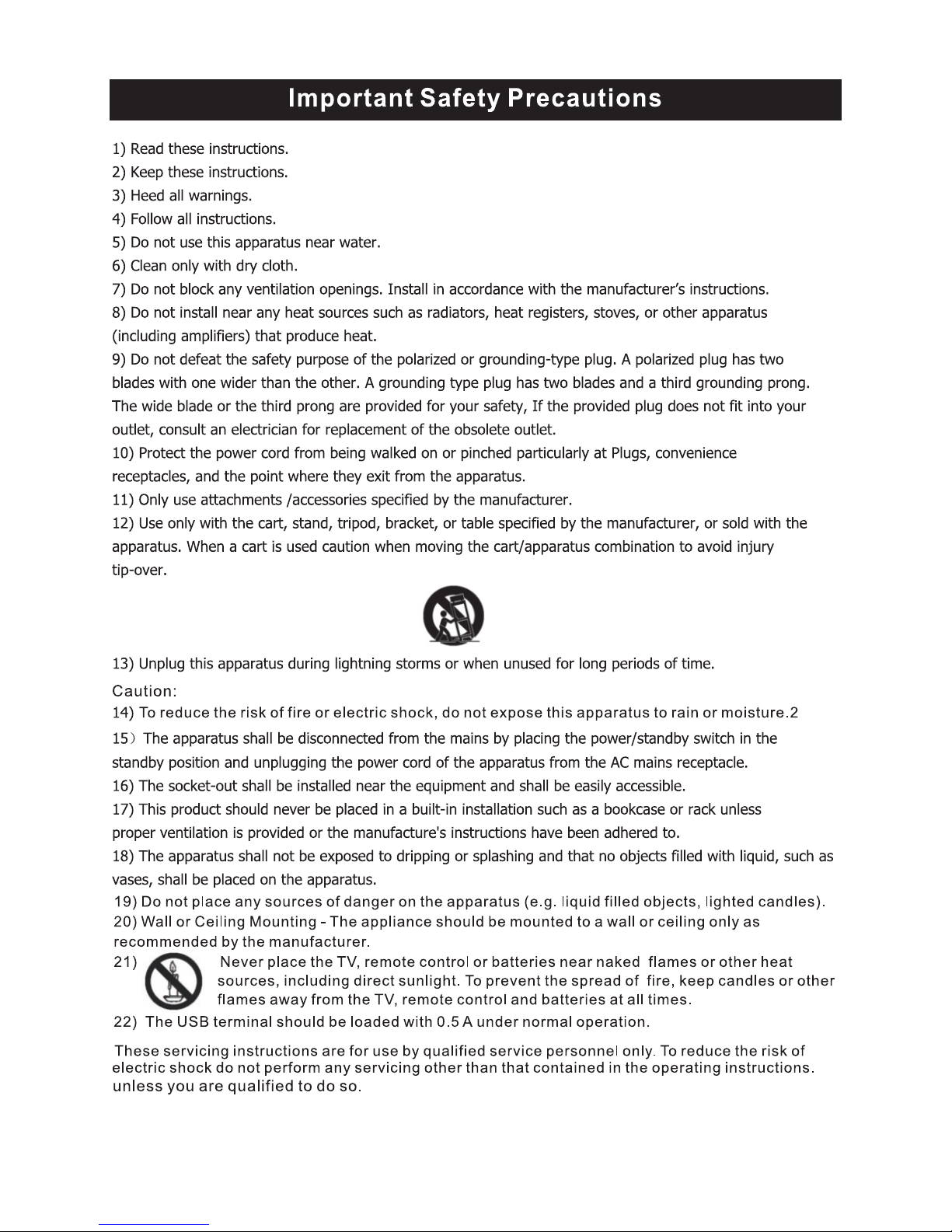

Important Safety Precautions

Top/Side panel diagram

Remote Controller

Battery Installation

Using the Remote Control

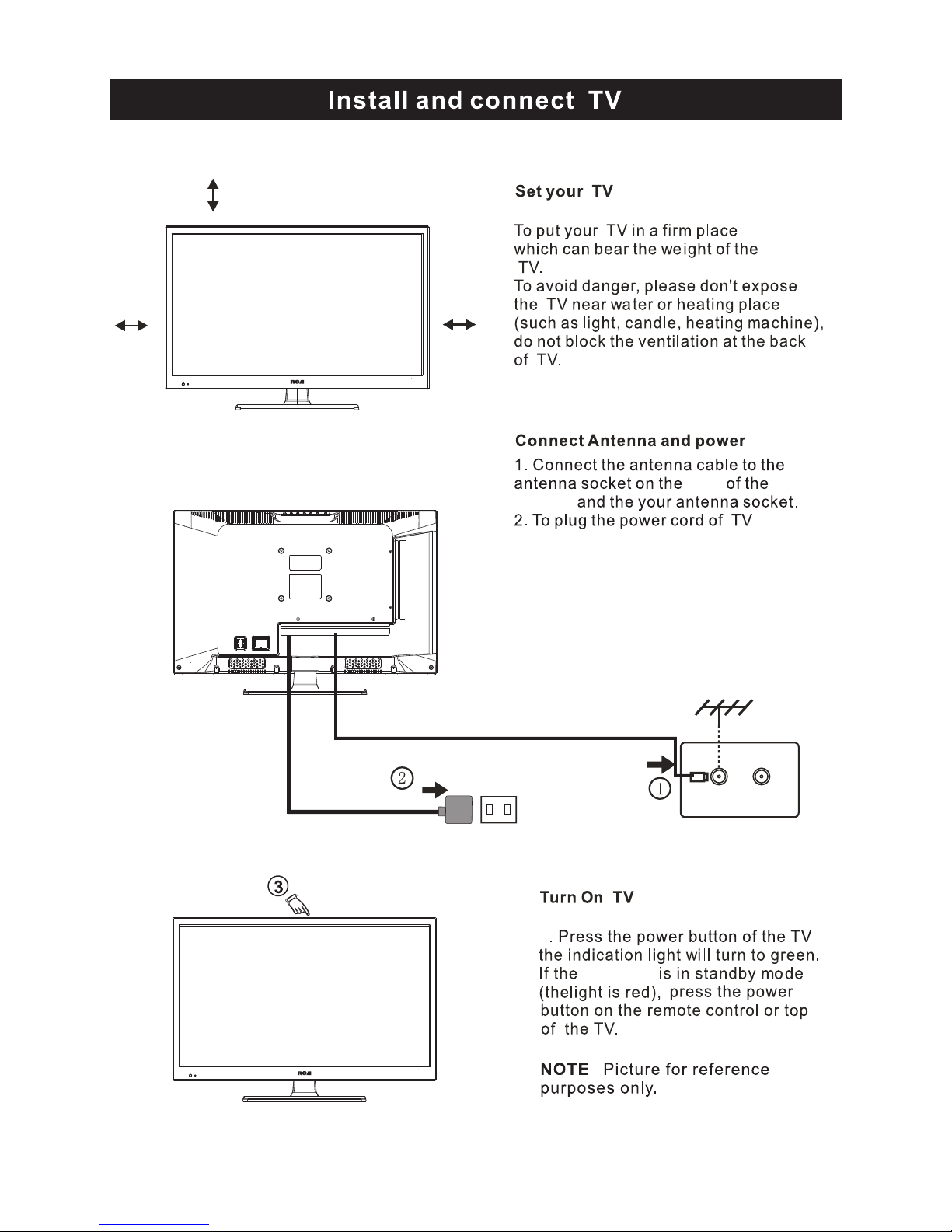

Install TV

Set your TV

Connect Antenna and power

Turn On TV

Help

2

3

4

6-7

8

9

12

13-29

30

31

TV Bracket assembly 5

Specifications

Select Input Source

Wall Mount Installation

Picture Menu

Audio Menu

Channel Menu

Parental Menu

Setup Menu

13-15

16-17

18-20

21-25

26-29

Systems Connection 10

The lightening flash with arrowhead symbol, within an equilateral triangle is

intended to alert the user to the presence of un-insulated "dangerous voltage"

within the products enclosure that may be of sufficient magnitude to constitute a

risk of electric shock to the persons.

The exclamation point within an equilateral triangle is intend to alert the user to

the presence of important operating and maintenance (servicing) instructions in

the literature accompanying the appliance.

Correct disposal of this Product

W aste Electrical & Electronic Equipment (WEEE)

Your product is designed and manufactured with high quality materials and

components which can be recycled and reused.

This symbol means that electrical and electronic equipment, at their end-of-life,

should be disposed of separately from your household waste.

Please dispose of this equipment at your local community waste

collection/recycling centre.

In the European Union there are separate collection systems for used electrical

and electronic products. Please help us to conserve the environment we live in!

Caution

2

3

4

8

3.95”

3.95”

4

3.95” x 3.95”

100 100

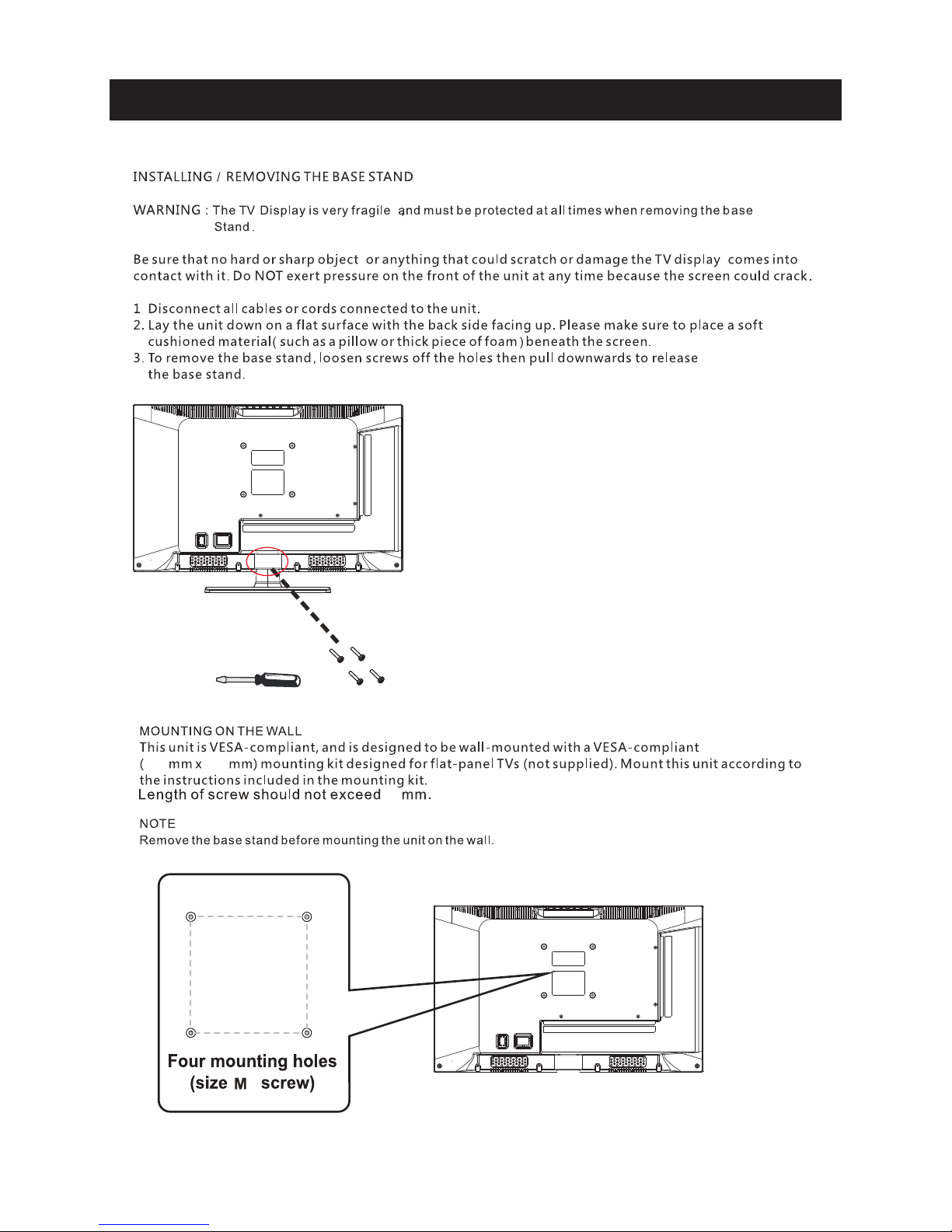

Wall Mount Installation

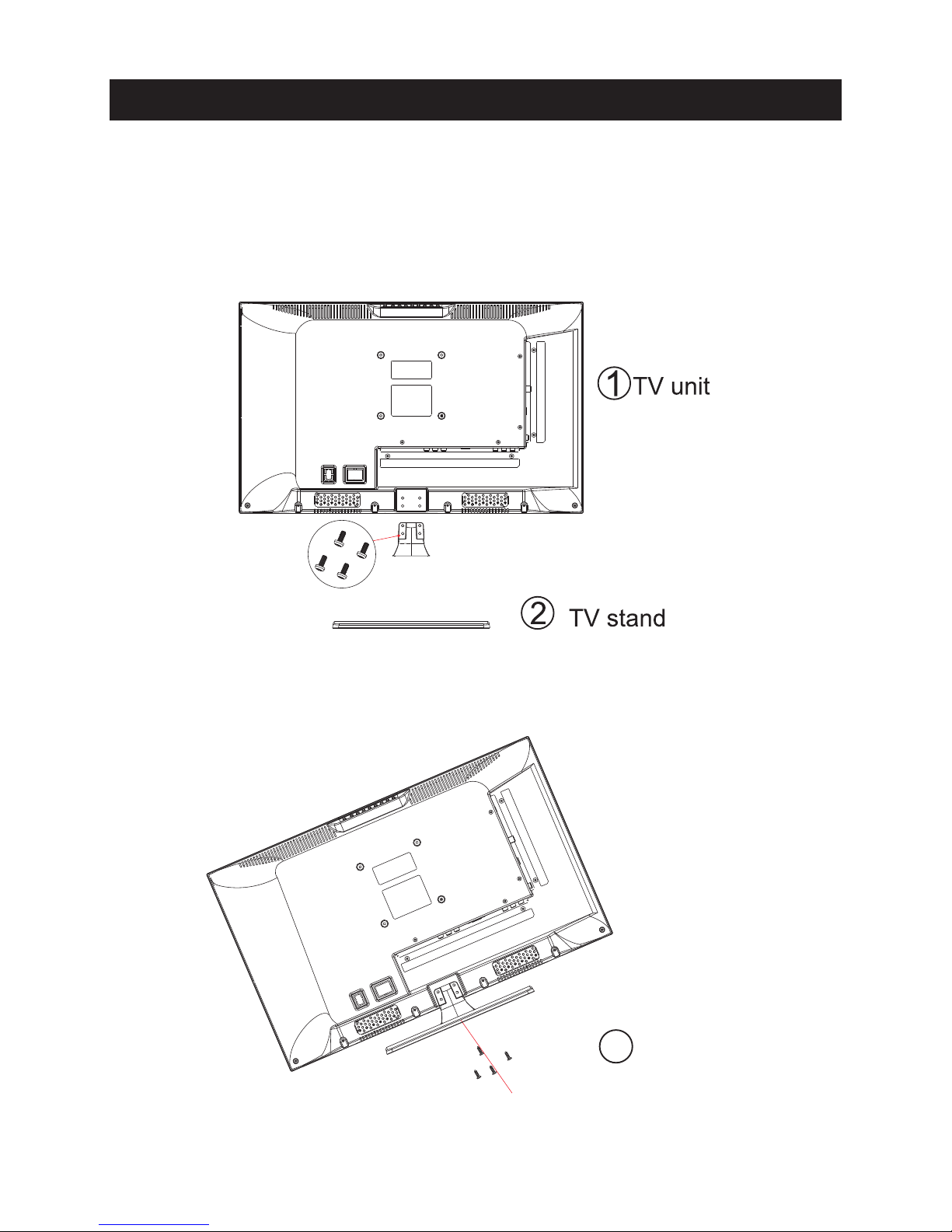

1.Match the TV unit into the stand, then hold the TV stand,

revolve and lock the tv unit tightly as the arrowhead point.

2.Fix the screws into the TV stand after installing the tv

unit and tv stand.

3screws

TV Bracket assembly

5

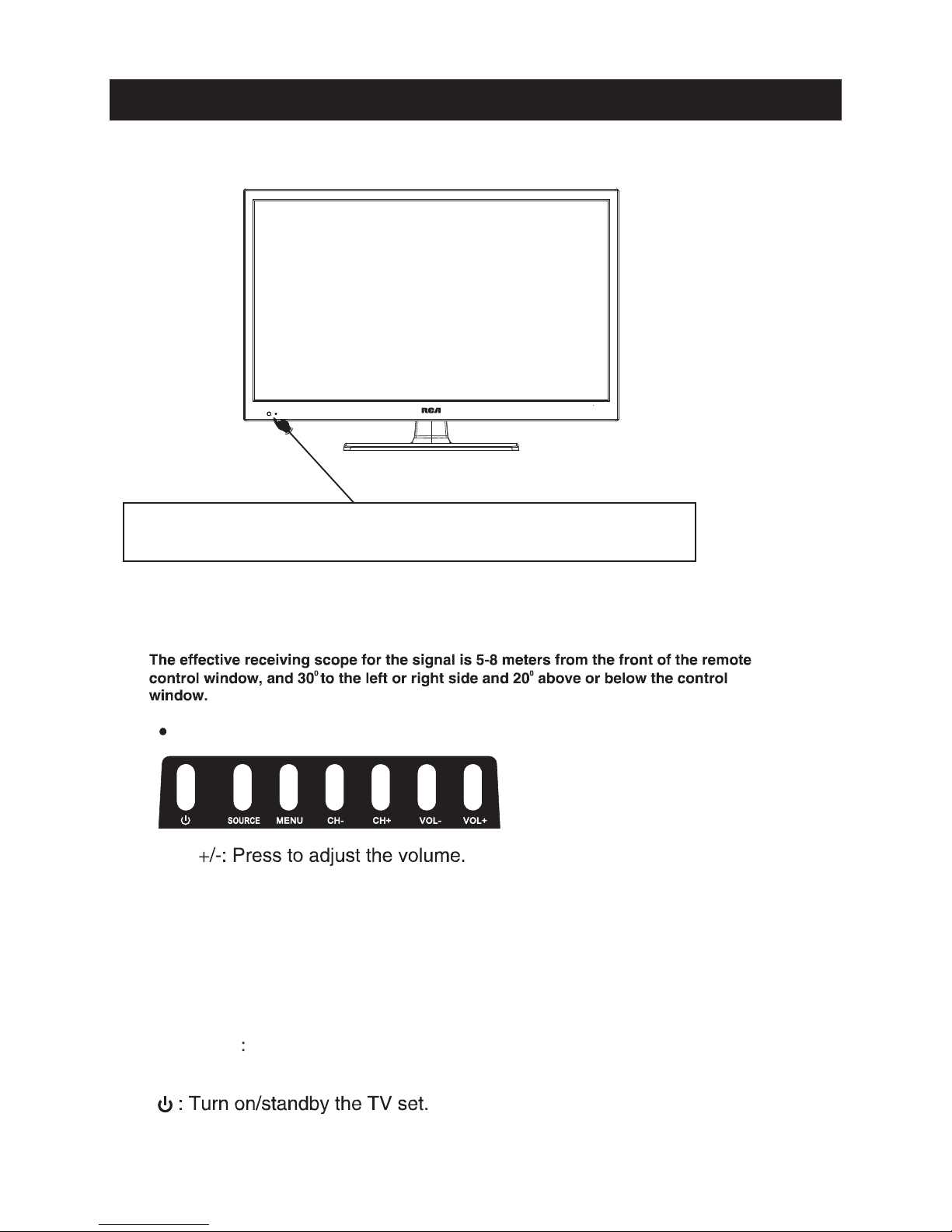

Indicator on(Red) Standby mode

Indicator on(Green) Power on mode

(IR) Infrared Receiver: Receives IR signals from the remote control.

(Power on/Standby) LED Indicator: Press to turn on and off

VOL

The functions of the buttons on the are as follows:TV

CH+/-:When watching TV: select channels.

MENU:

1.Press Menu.

2.Press SOURCE to enter.

3.Use CH+/- to shift UP/DOWN.

4.Press SOURCE to confirm,then press VOL+/-to adjust.

5.Press SOURCE to confirm

Top panel diagram

6

SOURCE External signal input selection and confirm the

item selected.

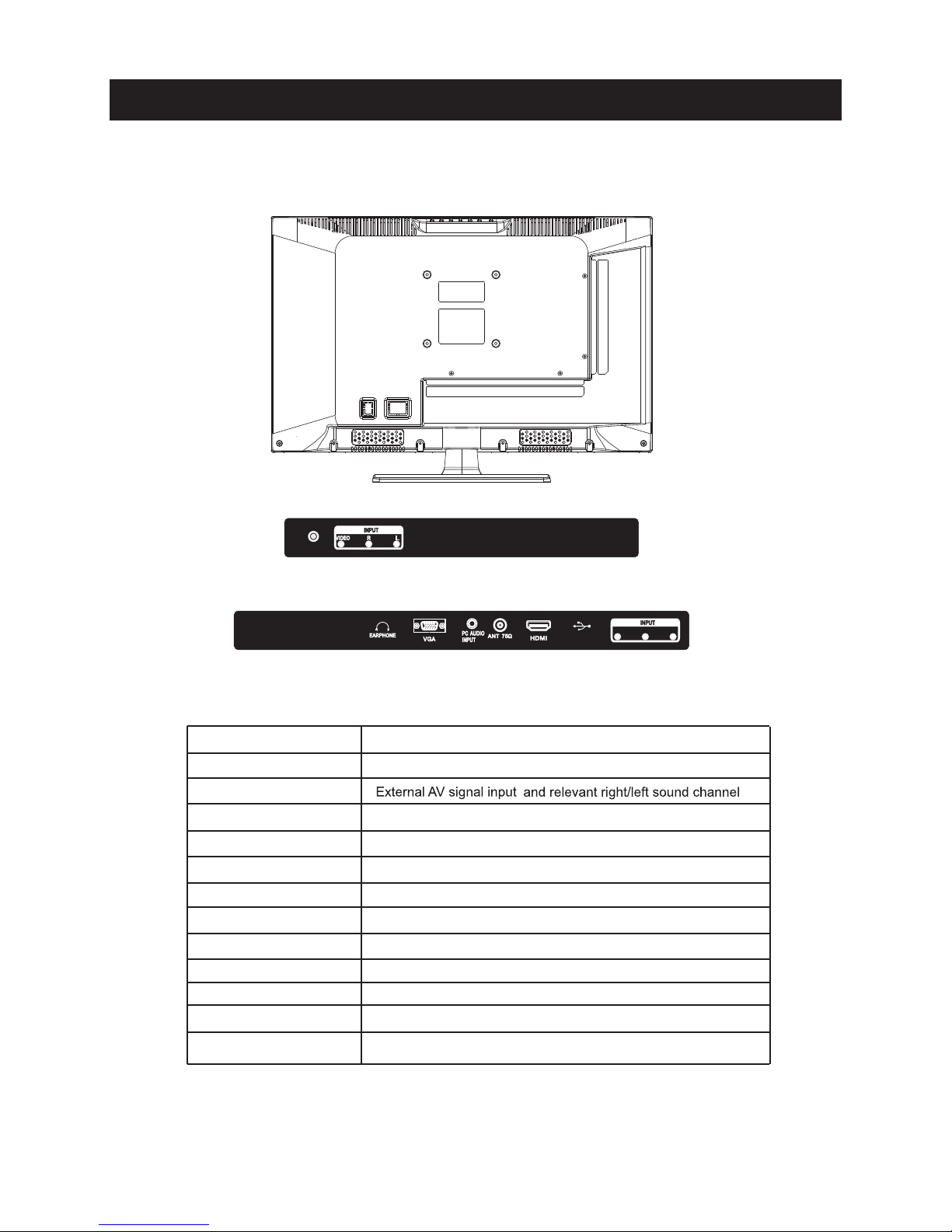

Side Panel Diagram

7

(Left Side)

(Back Side)

COAXIAL

Y P b Pr

Serv ice Port

Connect to ANT or cable source

PC AUDIO IN PC audio input

VGA IN VGA signal from computer output

YPbPr Connect to the composite terminal of your DVD/VCR

ANT 75 Ω

EARPHONE

For Upgrade Use

AV INPUT

Earphone output

COAXIAL Digital Audio Output

Service Port

HDMI IN Connect to HDMI of DVD or other equipment

Name Function Description

S.MODE: Press to cycle through the different sound settings

P.MODE: Press to cycle through the different picture settings

CH +/- : Pr ess to scan throu gh or to sel ect a cha nnel .

V +/-: Pr ess to inc rea se / de crea se the soun d level.

Pres s "-" to ent er a pr ogram numb er fo r mul tiple pr ogram

chan nel, such as 2- 1 etc.

SLEEP: Select amount of time before TV turn

off

automatically.

MTS:

Pres s to se lec t the audi o mode ,you can selec t ster eo,

Mon o,or SAP( se cond audi o pr ogram) .

GUIDE:

1

5

9

2

6

0

3

7

4

8

ENTER

MENU SOURCE

EXIT DISPLAY

P.MODE

S.MODE

SLEEP MTS GUIDE

FAV FAV- FAV+

Universal remote code

This is the code for remote control of

RLED2445A-B,if you want to change to a

universal remote control,you can edit

this code into your universal remote control.

(1)Open the battery compartment cover

on the back side

(2)Insert two 1.5V batteries of AAA type

with correct polarity

(3)Close the battery compartment cover

on the back side

Universal Remote Control code:007F

(Universal Remote control is not included)

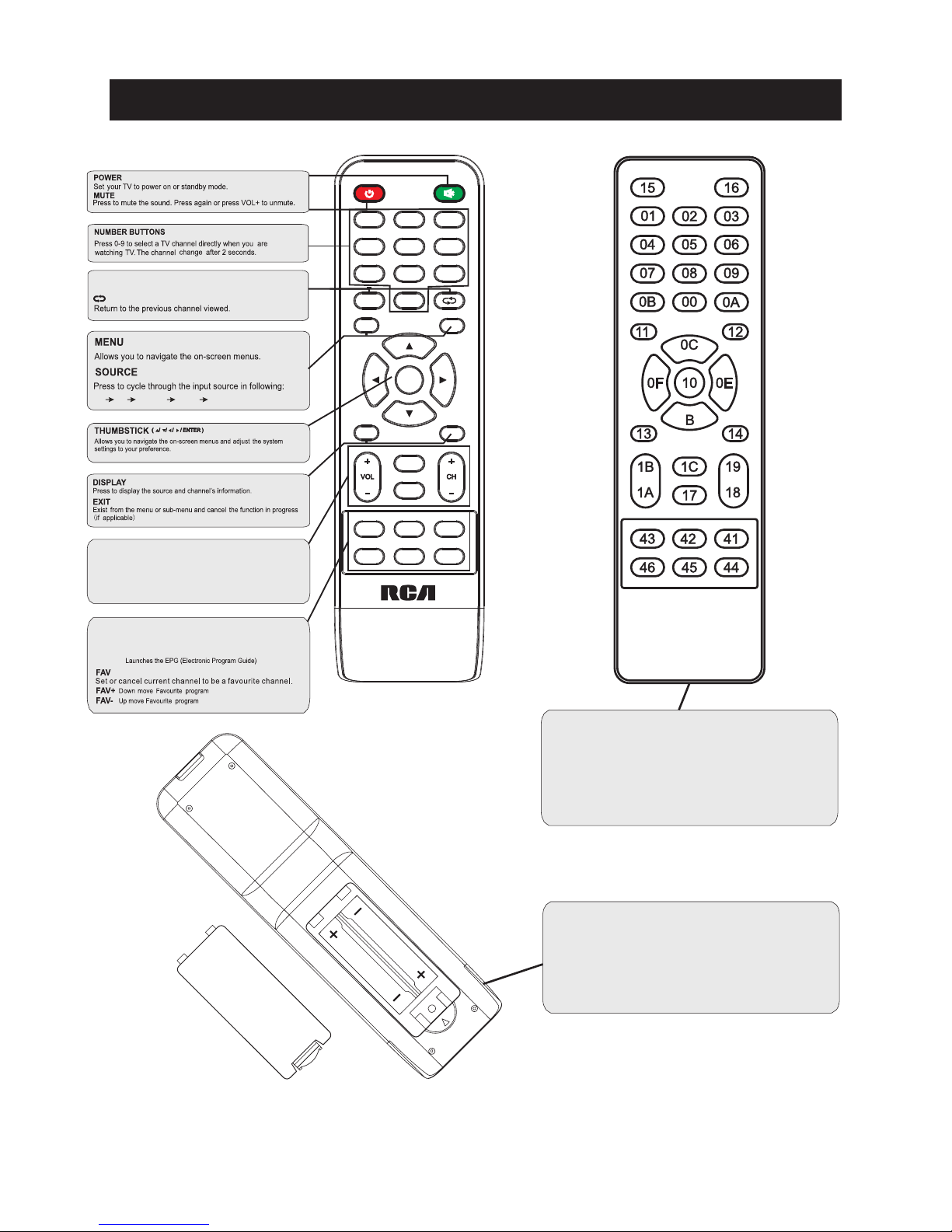

Remote Controller

8

TV AV Y Pb Pr HDMI PC

3

side

indicator

9

10cm

10cm 10cm

LED TV
