quick connect guide

RT2300/RT2300R

RT2400/RT2400R

Audio/Video Receiver

TEST / SET UP

P.SCAN

TUNING

TREBLE BASS

VIDEO

S-VIDEO

PRESET EQ

SURR.MODE

AUDIO

DVD

Audio Video

Integrated Receiver

VCR 2

TVPE

LEVEL

AM/FMVCR 2

DIGITAL

igital

ound

rocessor

RT2300-rev.1-quickstart 7/27/99 7:01 PM Page 3

Quick Connect Guide

Dolby Digital equipped for the RT-2300 / RT-2400 can reproduce realistic sound in your

listening room. Now start setting up your brand-new receiver.

Connect the components

Connect the speakers, TV and video component equipped with Dolby Digital decoder, for example, DVD player

with Dolby Digital. (For connections of other audio/video components, refer to user manual.)

* You can connect the DVD player to the receiver via coaxial, optical or analog cables, but to enjoy Dolby

Digital sound, coaxial or optical cable connection is necessary.

S VIDEOVIDEO

EXAMPLE: DVD PLAYER

PCM/DOLBY DIGITAL

VIDEO OUT DIGITAL OUT

COAXIALDIGITAL

Digital optical cable (not supplied) between

digital optical terminals

Digital coaxial cable (not supplied)

between digital coaxial terminals

TEST/SET

P.SCA

TUNING

TREBL

BAS

VIDE

S-

VIDEO

PRESET

SURR.MOD

AUDI

POWER/STAND

AudioVideo

Integrated Receiver

PHONE

VCR

TAP

LEVE

VCR1 AM/F

VCR

DIGITAL

Digital

Sound

ocessor

To VIDEO input

To S-VIDEO input

Centre Speaker

Front Speaker

Subwoofer

Rear

Speaker

Rear

Speaker

RT-2300

To VIDEO output

To S-VIDEO output

RT2300-rev.1-quickstart 7/27/99 7:01 PM Page 4

Quick Connect Guide

TEST / SET UP

P.SCAN

TUNING

TREBLE BASS

VIDEO

S-VIDEO

PRESET EQ

SURR.MODE

AUDIOLR

POWER/STANDBY

SAT DVD

Audio Video

Integrated Receiver

PHONES

VCR 2

TVTAPE

LEVEL

VCR 1 AM/FMVCR 2

DIGITAL

Digital

Sound

Processor

STOP PAUSE

ON OFF

VCR1

VCR2

DVD

LEVELAUDIO

RECORD

SURRDIGITAL

PLAY FORWARDREVERSE

MUTE

TAPECD

MENU CLEAR

123

456

789

SAT•CABLE

universal

AM•FM

INFO•RDS

INPUT•SEEK ANT•FMS

•

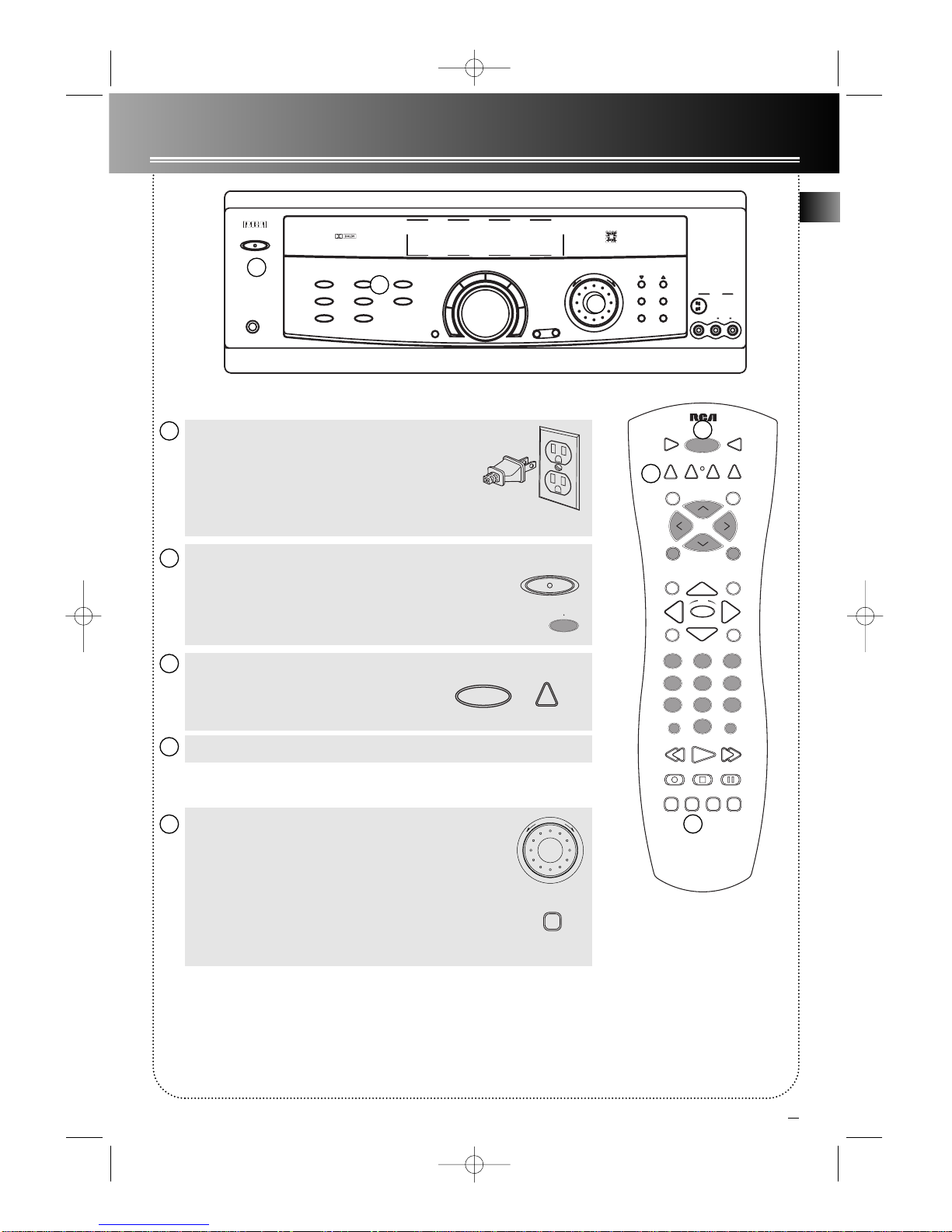

Plug the AC power cord into a standard

household 120V AC outlet. Right after you

plugged in the power, a demo message

will be appeared in display.

Turn on the Power

Press the Power/Standby Button on the receiver

or the On/Off button on the remote to turn on or

off the receiver.

POWER/STANDBY

ON OFF

Turn on your DVD player to play a Dolby Digital DVD.

Press DVD button.

DVD

Press Multi Jog once. DIGITAL will be shown on

display. Rotate to select your connection to DVD

player. Alternatively you can press Digital button

repeatedly until the connection appears on display.

Set Digital Input

5 5

DIGITAL

The receiver will now automatically shift to Dolby Digital surround mode.

The display will show AUTO DET .

RT2300-rev.1-quickstart 7/27/99 7:01 PM Page 5

Quick Connect Guide

TEST / SET UP

P.SCAN

TUNING

TREBLE BASS

VIDEO

S-VIDEO

PRESET EQ

SURR.MODE

AUDIOLR

POWER/STANDBY

SAT DVD

Audio Video

Integrated Receiver

PHONES

VCR 2

TVTAPE

LEVEL

VCR 1 AM/FMVCR 2

DIGITAL

Digital

Sound

Processor

Press Test Tone / Setup button for two seconds. LL//RRSSMMLLwill be shown on

display. Press Test Tone / Setup repeatedly until one of the following shows on

the display:

Speaker Arrangement Control

Note: You can skip this part if you purchase the home theater system with speakers and subwoofer

as the receiver has been already calibrated.

Display What to choose Selection

L/R Choose front speaker size Large/Small

C ch Choose center speaker size Large/Small/None

SURR Choose surround speaker size Large/Small/None

SUBW Register subwoofer connection Yes/No

Speaker Delay Time Control

Note: If the distance from your listening point to the center/surround speaker is equal to that to the

front speaker, set 0 ms. Increase the delay time as the distance to the center/surround speaker becomes

shorter.

Display What to choose Selection

DELY C:0ms Center speaker delay 0-5ms

DELY S:0ms Surround speaker delay 0-15ms

(Dolby Digital)

15-30ms

(Dolby Pro Logic)

Set Speaker Arrangement and Speaker Delay Time

TEST TONE

SETUP

Press Multi Jog to confirm speaker setting.

RT2300-rev.1-quickstart 7/27/99 7:01 PM Page 6

TEST / SET UP

P.SCAN

TUNING

TREBLE BASS

VIDEO

S-VIDEO

PRESET EQ

SURR.MODE

AUDIOLR

POWER/STANDBY

SAT DVD

Audio Video

Integrated Receiver

PHONES

VCR 2

TVTAPE

LEVEL

VCR 1 AM/FMVCR 2

DIGITAL

Digital

Sound

Processor

STOP PAUSE

ON OFF

VCR1

VCR2

DVD

LEVELAUDIO

RECORD

SURRDIGITAL

PLAY FORWARDREVERSE

MUTE

TAPECD

MENU CLEAR

123

456

789

SAT•CABLE

universal

AM•FM

INFO•RDS

INPUT•SEEK ANT•FMS

•

Quick Connect Guide

Set Night Mode (optional)

Press NIGHT button to set the Dynamic Range of different

sound (like the difference in volume between

normal voices and sounds like explosion) if you are

watching a DVD at night. There are two modes

(SOFT, SOFTER) for you to choose in terms of the

extend of compression.

Set Speaker Output Levels

Press Test Tone / Setup on receiver or

INFO•RDS button on receiver momentarily.

A test tone will be generated in each of the speakers.

TEST TONE

SETUP

INFO•RDS

Rotate the Multi Jog or the left

and right arrow buttons beside

OK in remote to adjust the level

of individual speakers.

Press Test Tone / Setup on receiver or

INFO•RDS button on receiver again to

confirm your choice.

TEST TONE

SETUP

INFO•RDS

Setup is now complete. Enjoy the Dolby Digital entertainment

brought you by your RCA home theater.
