RDMOTO CZECH REPUBLIC

info@rdmoto.cz

www.rdmoto.cz

1

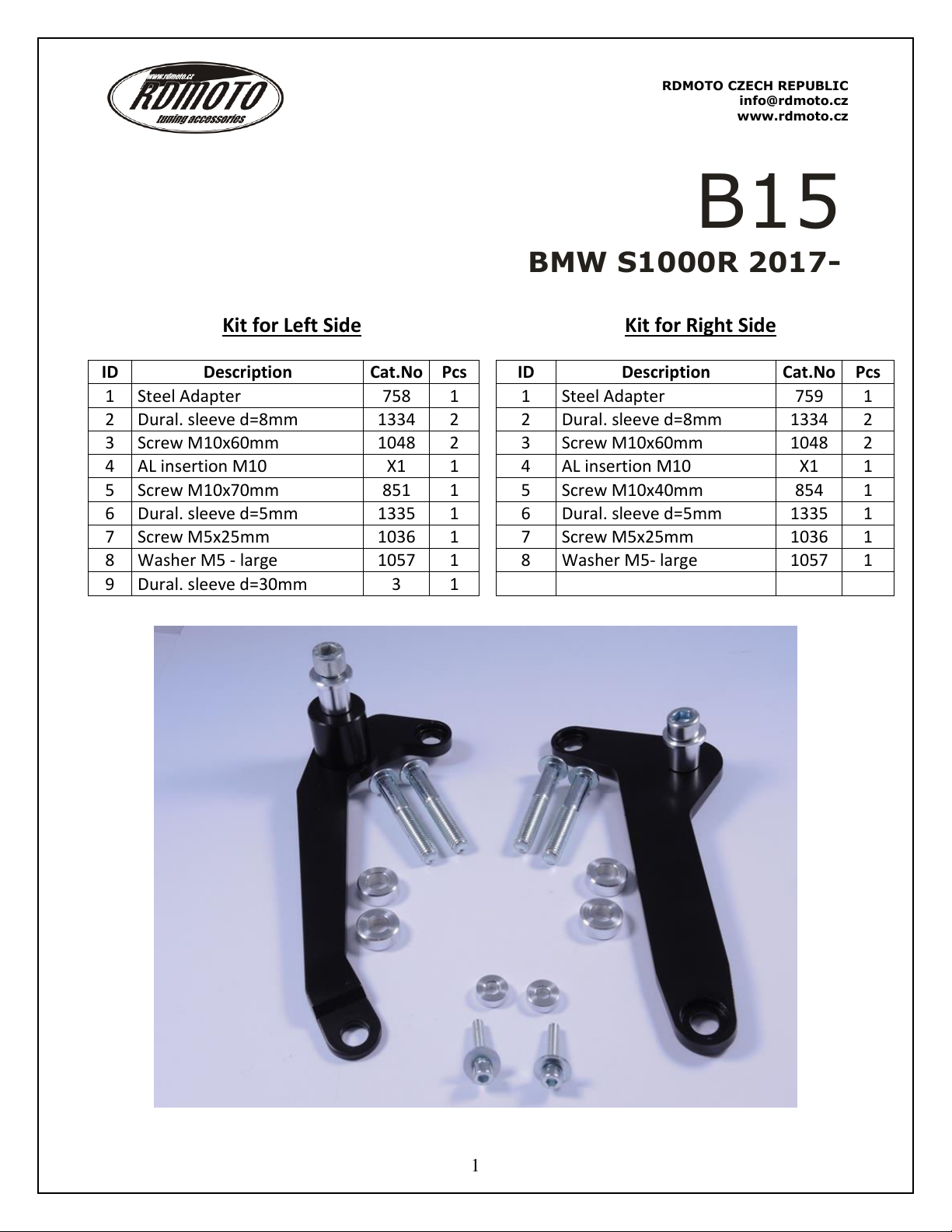

B15

BMW S1000R 2017-

Kit for Left Side

Kit for Right Side

ID

Description

Cat.No

Pcs

ID

Description

Cat.No

Pcs

1

Steel Adapter

758

1

1

Steel Adapter

759

1

2

Dural. sleeve d=8mm

1334

2

2

Dural. sleeve d=8mm

1334

2

3

Screw M10x60mm

1048

2

3

Screw M10x60mm

1048

2

4

AL insertion M10

X1

1

4

AL insertion M10

X1

1

5

Screw M10x70mm

851

1

5

Screw M10x40mm

854

1

6

Dural. sleeve d=5mm

1335

1

6

Dural. sleeve d=5mm

1335

1

7

Screw M5x25mm

1036

1

7

Screw M5x25mm

1036

1

8

Washer M5 - large

1057

1

8

Washer M5- large

1057

1

9

Dural. sleeve d=30mm

3

1

RDMOTO CZECH REPUBLIC

info@rdmoto.cz

www.rdmoto.cz

2

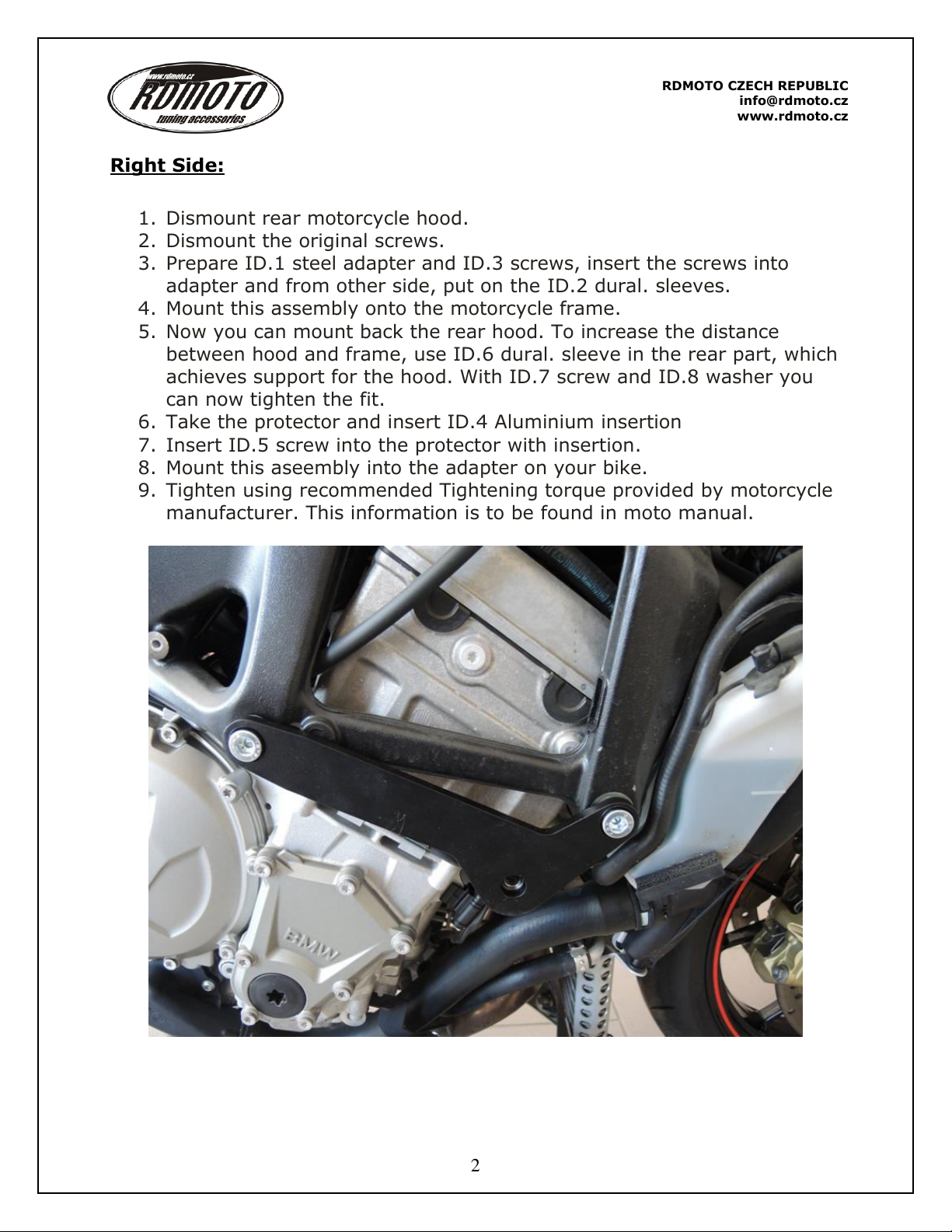

Right Side:

1. Dismount rear motorcycle hood.

2. Dismount the original screws.

3. Prepare ID.1 steel adapter and ID.3 screws, insert the screws into

adapter and from other side, put on the ID.2 dural. sleeves.

4. Mount this assembly onto the motorcycle frame.

5. Now you can mount back the rear hood. To increase the distance

between hood and frame, use ID.6 dural. sleeve in the rear part, which

achieves support for the hood. With ID.7 screw and ID.8 washer you

can now tighten the fit.

6. Take the protector and insert ID.4 Aluminium insertion

7. Insert ID.5 screw into the protector with insertion.

8. Mount this aseembly into the adapter on your bike.

9. Tighten using recommended Tightening torque provided by motorcycle

manufacturer. This information is to be found in moto manual.

RDMOTO CZECH REPUBLIC

info@rdmoto.cz

www.rdmoto.cz

3

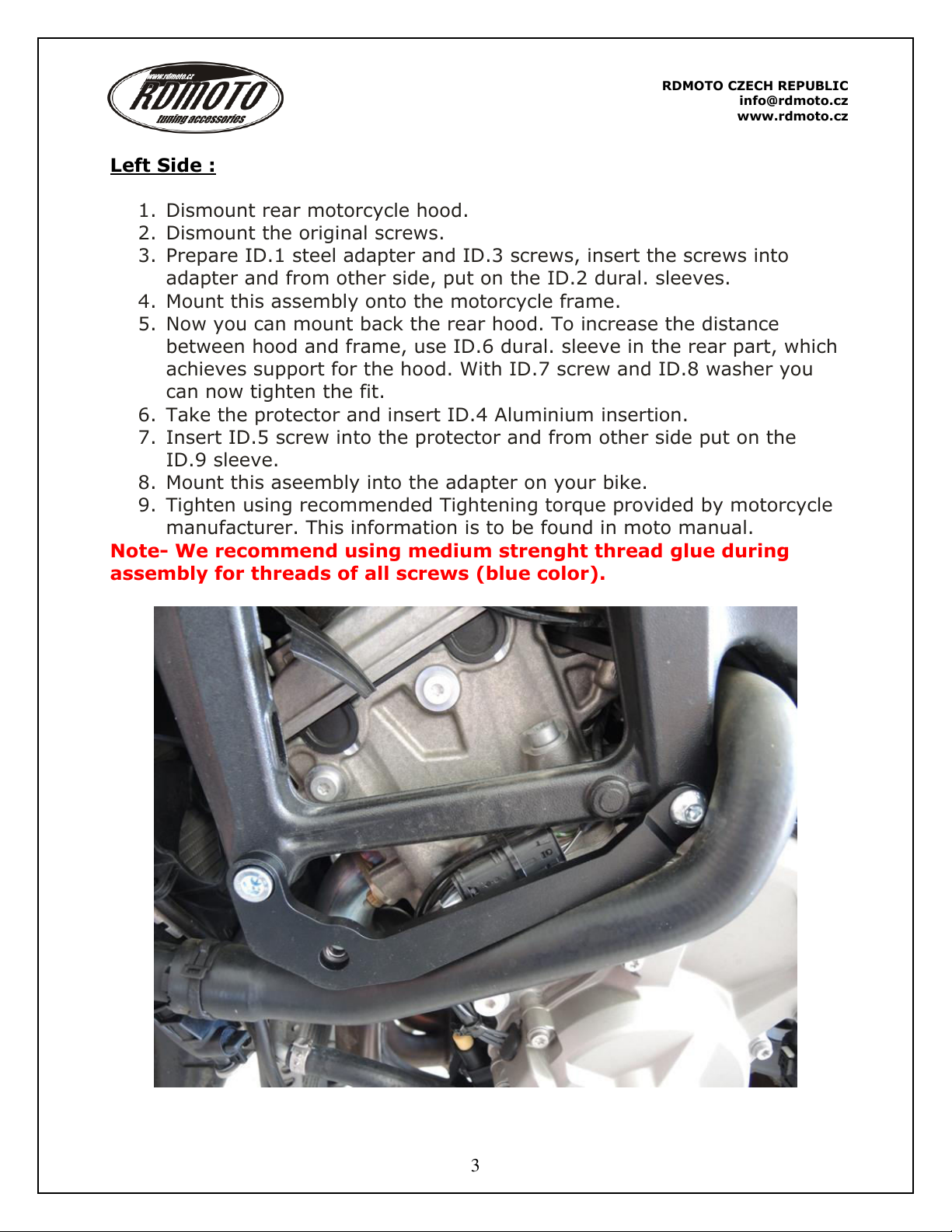

Left Side :

1. Dismount rear motorcycle hood.

2. Dismount the original screws.

3. Prepare ID.1 steel adapter and ID.3 screws, insert the screws into

adapter and from other side, put on the ID.2 dural. sleeves.

4. Mount this assembly onto the motorcycle frame.

5. Now you can mount back the rear hood. To increase the distance

between hood and frame, use ID.6 dural. sleeve in the rear part, which

achieves support for the hood. With ID.7 screw and ID.8 washer you

can now tighten the fit.

6. Take the protector and insert ID.4 Aluminium insertion.

7. Insert ID.5 screw into the protector and from other side put on the

ID.9 sleeve.

8. Mount this aseembly into the adapter on your bike.

9. Tighten using recommended Tightening torque provided by motorcycle

manufacturer. This information is to be found in moto manual.

Note- We recommend using medium strenght thread glue during

assembly for threads of all screws (blue color).
