REDEX DRP Manuale

Planetary servo-reducer

DRP

Mounting, Setup and Maintenance

Instructions

Document: RX182/009

Version: 01/2017

Language Summary:

I. English

II. French / Français

III. German / Deutch

IV. Spanish / Español

V. Italian / Italiano

VI. Chinese / 简体中文

VII. Russian / русский

DRP+ User manual

Ref.: RX182/009

Version 01/2017 - English

This document must not be reproduced nor information therein disclosed without our authorization

Page 1/ 30

Summary: English version

1INTRODUCTION 2

1.1 WARNINGS 2

1.2 GEARBOX IDENTIFICATION 2

1.3 LONG TERM STORAGE 2

2TECHNICAL DATA 3

2.1 GEARBOX 3

2.2 OUTPUT PINION 3

3LUBRICATION 4

3.1 RECOMMENDED LUBRICANTS 4

3.2 OIL FILLING:RIGHT-ANGLE CONFIGURATION (DRP+R &DRP+P) 4

3.3 OIL FILLING:MOTOR IN-LINE CONFIGURATION (DRP+M) 7

3.4 OIL DRAINING 10

4INSTALLATION ON THE MACHINE 14

4.1 RACK MOUNTING TOLERANCE 14

4.2 DRP+ PARALLELISM TOLERANCES 15

4.3 DRP+ HEIGHT SETTING 15

4.4 DRP+ PERPENDICULARITY TOLERANCES 17

4.5 PROPER TOOTH MESHING VALIDATION 18

4.6 TOOTH CONTACT PATTERN CHECK 19

4.7 DRP+ FINAL FIXING 19

5MOTOR INSTALLATION 20

5.1 MF-TYPE MOTOR FLANGE MOUNTING (FOR RIGHT ANGLE CONFIGURATIONS DRP+R AND CYLINDRICAL SHAFTS) 20

5.2 MF-TYPE MOTOR FLANGE MOUNTING (FOR RIGHT ANGLE CONFIGURATIONS DRP+R, DRP+P AND TAPER SHAFTS) 21

5.3 IF-TYPE MOTOR FLANGE MOUNTING (FOR IN-LINE CONFIGURATIONS DRP+M) 22

6MECHANICAL PRELOAD 25

6.1 DESCRIPTION 25

6.1.1 LOCKING TOOL 25

6.1.2 SPACER 25

6.1.3 COUPLING AND SHAFT ADAPTERS 25

6.2 GANTRY MACHINE CONFIGURATION 26

6.3 PRELOAD SETTING –LINEAR DRIVE 27

6.4 PRELOAD SETTING –ROTARY DRIVE 29

6.4.1 INSTALLATION ON THE MACHINE 29

6.4.2 DRP+ PARALLELISM TOLERANCES,HEIGHT SETTING,TOOTH MESHING VALIDATION 29

6.4.3 PRELOAD SETTING 29

7RACK & PINION LUBRICATION: OPTIONAL LUBE PINION (PGRP) AND LUBE PINION SUPPORT (SFRP)

7.1 DESCRIPTION OF THE PGRP &SFRP OPTION 30

7.2 RECOMMENDED LUBRICANTS 30

7.3 OIL FLOW RATES 30

DRP+ User manual

Ref.: RX182/009

Version 01/2017 - English

This document must not be reproduced nor information therein disclosed without our authorization

Page 2/ 30

1 INTRODUCTION

The DRP+ planetary gearbox will give you complete satisfaction if all the following mounting, operating &

maintenance instructions are respected.

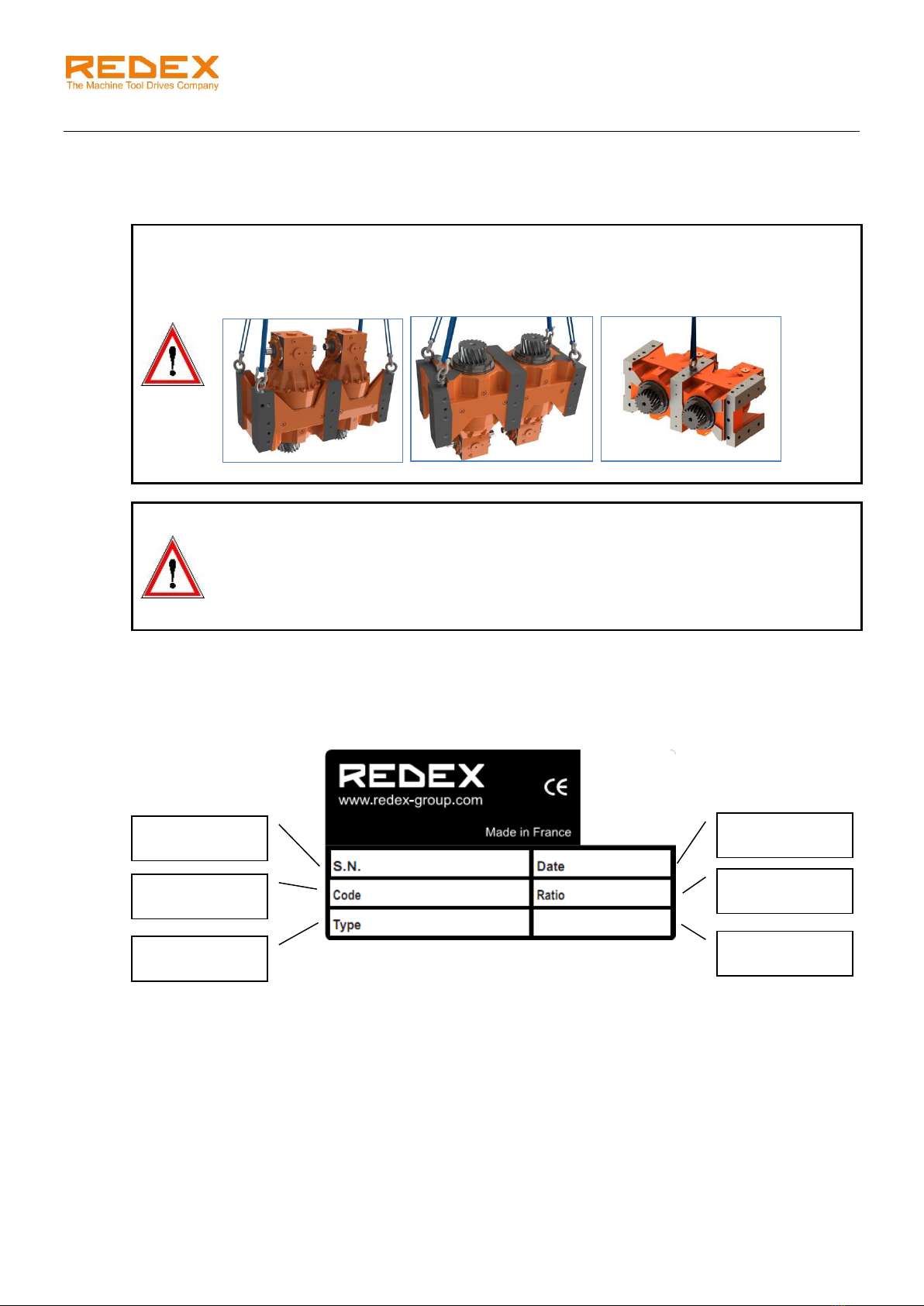

1.1 Warnings

WARNING! HANDLING OPERATIONS.

Never handle the DRP+ unit with bevel gearbox shafts. Use lifting rings fixed in the

universal housing, as shown on the pictures below. Any improper handling will void the

warranty.

WARNING! LUBRICATION REQUIREMENTS.

The rack and the output gears must be lubricated before running the DRP+. The DRP+ is

delivered WITHOUT OIL and has 2 independent lubrication circuits.

Refer to lubrication chapter in this manual to respect all lubrication requirements.

Any improper lubrication will void the warranty.

1.2 Gearbox identification

Each unit can be identified through its identification plate and the serial number indicated on it. The serial

number must be given for any correspondence on a particular unit.

1.3 Long term storage

Each gearbox is delivered wrapped and greased for 1 month anti-corrosion protection. Gearboxes which

are not installed shortly after receipt should be stored in a dry atmosphere with temperature between 0°C

& 40°C. The unit must be filled completely with oil for storage.

Serial number

Drawing code

Designation

Shipment date

Reduction ratio

Backlash (if

needed)

861606

RX129702-12

DRP4+M.31.3.H

NOV. 2016

DRP+ User manual

Ref.: RX182/009

Version 01/2017 - English

This document must not be reproduced nor information therein disclosed without our authorization

Page 3/ 30

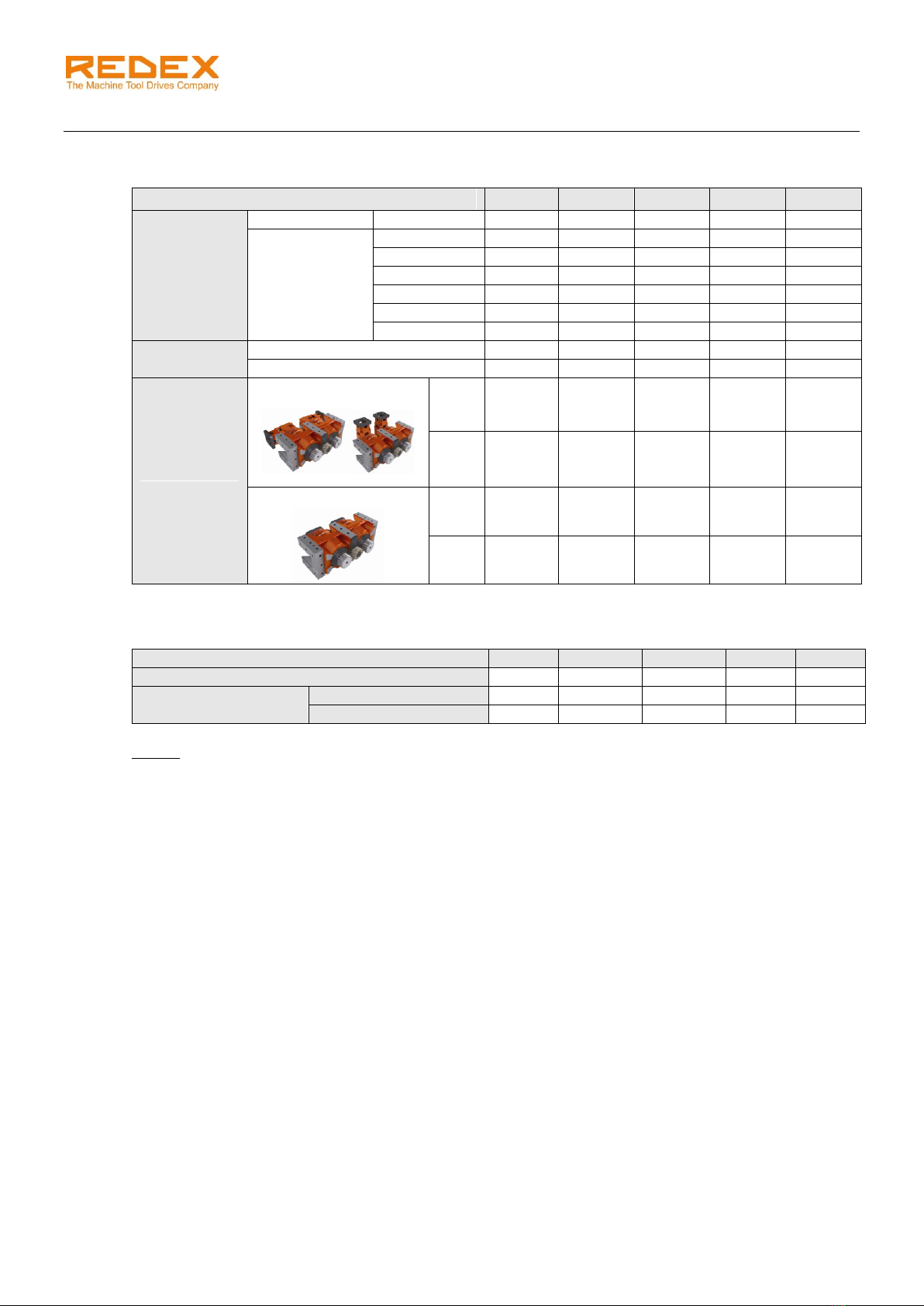

2 TECHNICAL DATA

2.1 Gearbox

DRP+1

DRP+2

DRP+3

DRP+4

DRP+5

Maximum

acceleration

output

torque (Nm)

1 st.

i=5, 7, 10

2 st.

i=17

683

1838

3240

6125

i=21

534

1400

2625

6125

7520

i=31

753

2100

3850

3600

10050

i=46

473

1400

2468

4480

8800

i=61

656

2013

2695

4970

8800

i=91

473

1400

2695

4970

8800

Max. input

Speed (rpm)

1 st. i=5, 7, 10

2 st. i=17 to 91

6000

5000

4000

Approx.

Weight (kg)

DRP+R / DRP+P

1 st.

2 st.

115

207

300

520

1116

DRP+M

1 st.

2 st.

109

202

294

506

1091

2.2 Output pinion

DRP+1

DRP+2

DRP+3

DRP+4

DRP+5

Module

Theoretical pitch

diameter (mm)

Helical: 19°31'42''

57.30

76.39

95.49

114.59

127.32

Straight

114

128

NOTE:

Data are subjected to change without prior notices.

DRP+ User manual

Ref.: RX182/009

Version 01/2017 - English

This document must not be reproduced nor information therein disclosed without our authorization

Page 4/ 30

3 LUBRICATION

3.1 Recommended lubricants

WARNING!

The DRP+ is delivered WITHOUT oil and has 2 independent lubrication circuits. Fill them

with oil before using the DRP+.

Any damage due to incorrect lubrication will void the warranty.

WARNING!

The rack and the output gears must be lubricated before running the DRP+.

We recommend using a synthetic PAO based oil with viscosity 150 Cst at 40°C to lubricate the DRP+

such as one of the followings (or an equivalent); for alternates, please consult us.

Trade mark

Oil reference

KLUBER

KLUBERSYNTH EG4-150

MOBIL

MOBILGEAR SHC XMP 150 or

MOBIL SHC629 (warning: life time 7500 hours)

TOTAL

CARTER SH150

SHELL

OMALA HD150

LUBCON

TURMOSYNTHOIL 150

3.2 Oil filling: right-angle configuration (DRP+R & DRP+P)

DRP+ are delivered with sight glasses and breathers in a separate plastic bag. They must be installed in

the correct position described in the following procedure and sketches.

1. Place the sight glass in the correct position.

2. Remove the two input plugs of the DRP+R & DRP+P (on the upper face of the bevel box).

3. Fill the DRP+R & DRP+P slowly until the oil level reaches the middle of the sight glasses. Note that

the level on the sight glass may take some time to stabilize.

4. Re-install the oil input plugs.

5. Install the 2 breathers (one per circuit) on the upper face of the bevel boxes in the place of the red

original plugs. (Except external forced lubrication).

6. Run the unit until it reaches operating temperature. Stop the unit, check and adjust the level.

Note:

For DRP1+R & DRP1+P the breathers are not necessary.

WARNING!

An O-ring seal insures the leak tightness of the oil plugs. Tighten carefully the plugs in

order to avoid damaging the seal.

DRP+ User manual

Ref.: RX182/009

Version 01/2017 - English

This document must not be reproduced nor information therein disclosed without our authorization

Page 5/ 30

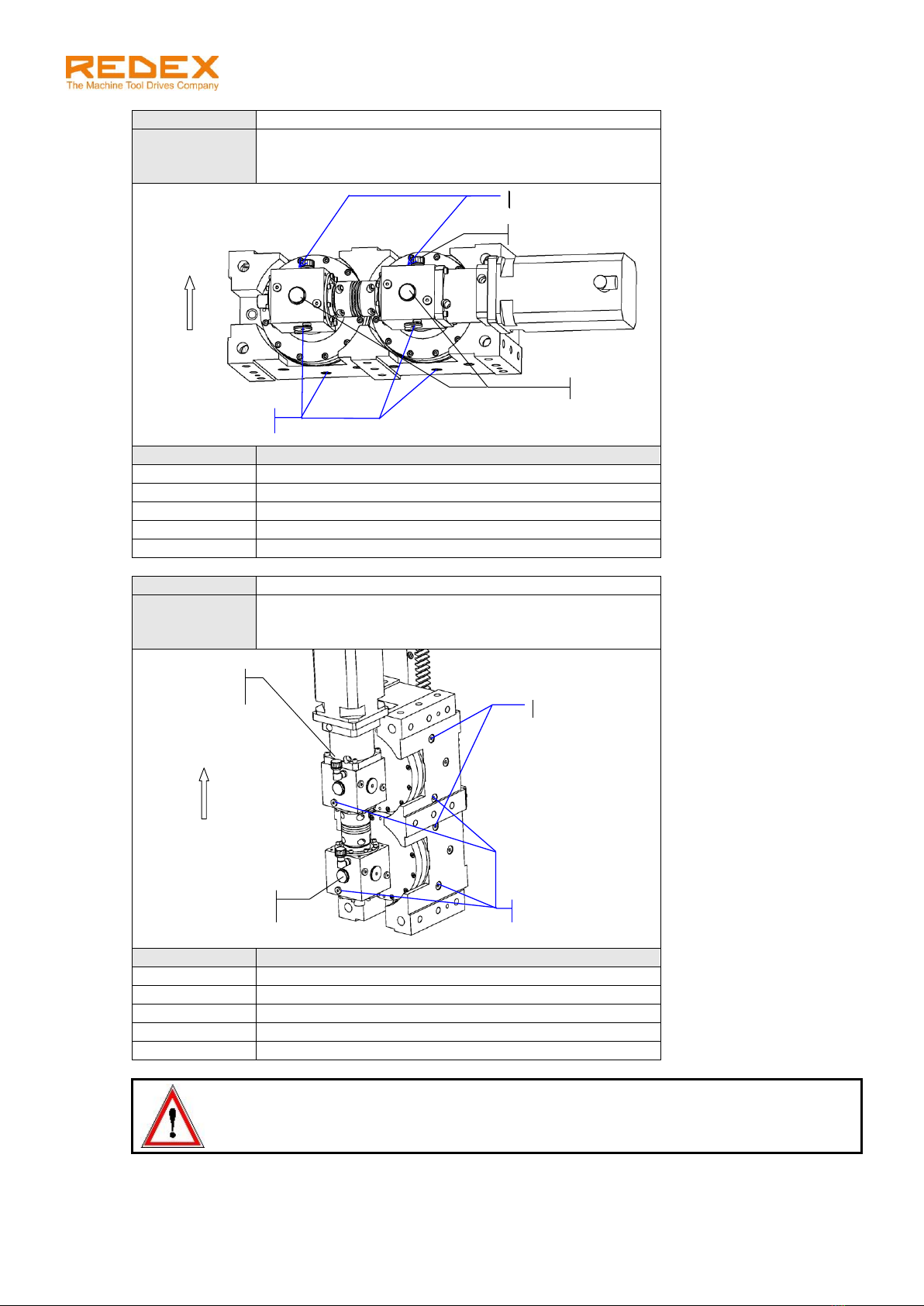

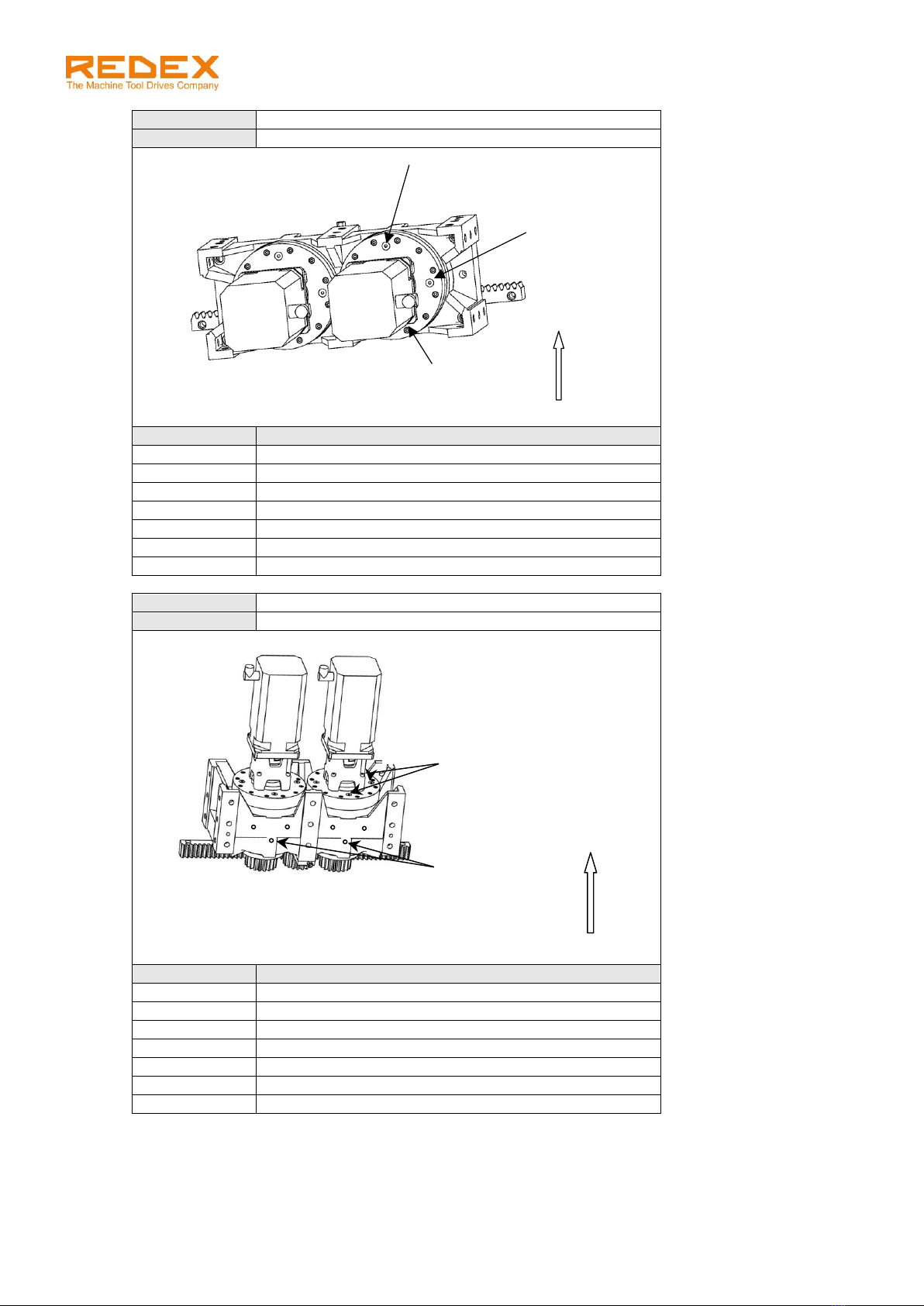

Configuration:

Horizontal mounting / Output pinions horizontal

Accessories:

- 2 sight glasses

- 2 breathers

- Oil plugs

2 oil input plugs

2 x 2 oil output plugs

Down

Sightglass

Breather

Size

Approximated oil quantity per circuit (L)

DRP1+R/P

0,4

DRP2+R/P

0.9

DRP3+R/P

1,6

DRP4+R/P

DRP5+R/P

5,3

Configuration:

Vertical mounting / Stacked output pinions

Accessories:

- 2 sight glasses

- 2 breathers with elbow

- Oil plugs

2 oil input plugs

2 x 2 oil output plugs

Down

Breather

(1 per circuit)

Sightglass

(1 per circuit)

Size

Approximated oil quantity per circuit (L)

DRP1+R/P

0,4

DRP2+R/P

0,9

DRP3+R/P

1,6

DRP4+R/P

DRP5+R/P

5,3

WARNING! The DRP+ may require a special lubrication arrangement for mounting

positions with vertical input shafts (B5/V1 & B5/V3) when operating at a continuous low

input speed (<50 RPM) to insure that the upper bearings are properly lubricated.

CONSULT US IF ANY DOUBT!

DRP+ User manual

Ref.: RX182/009

Version 01/2017 - English

This document must not be reproduced nor information therein disclosed without our authorization

Page 6/ 30

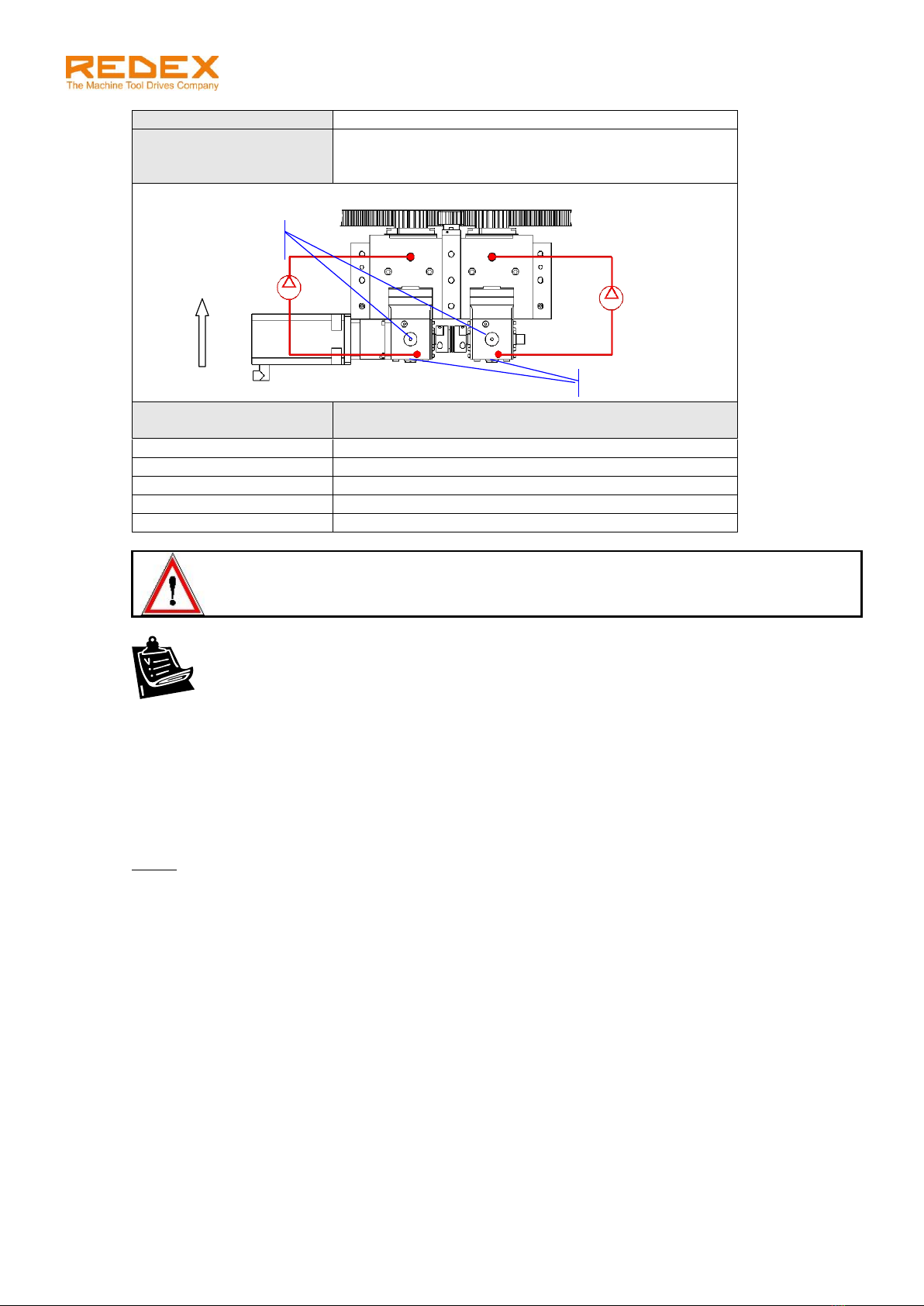

Configuration:

Horizontal mounting / output pinions up

Accessories:

External forced lubrication

- 2 sight glasses

- Oil plugs

Down

Oil draining plugs

Sightglass

(1per circuit)

Size

Advised oil flow

for each circuit (L/min)

DRP1+R/P

0,5

DRP2+R/P

DRP3+R/P

DRP4+R/P

2,5

DRP5+R/P

WARNING!

External forced lubrication: special procedure.

For each lubrication circuit:

1. Connect the external lubrication pipes and fill them with oil. The oil suction is located in the bottom

hole of the bevel box and the oil injection in the upper hole of the DPR+ housing.

2. Adjust the oil level to the middle of the sight glass while the pump is not running.

3. Run the pump and re-adjust the oil level to the middle of the sight glasses while the pump is running.

Notes:

The breathers are not necessary.

Oil must be filtered (< 50µm).

Internal pressure must not exceed 1 bar.

DRP+ User manual

Ref.: RX182/009

Version 01/2017 - English

This document must not be reproduced nor information therein disclosed without our authorization

Page 7/ 30

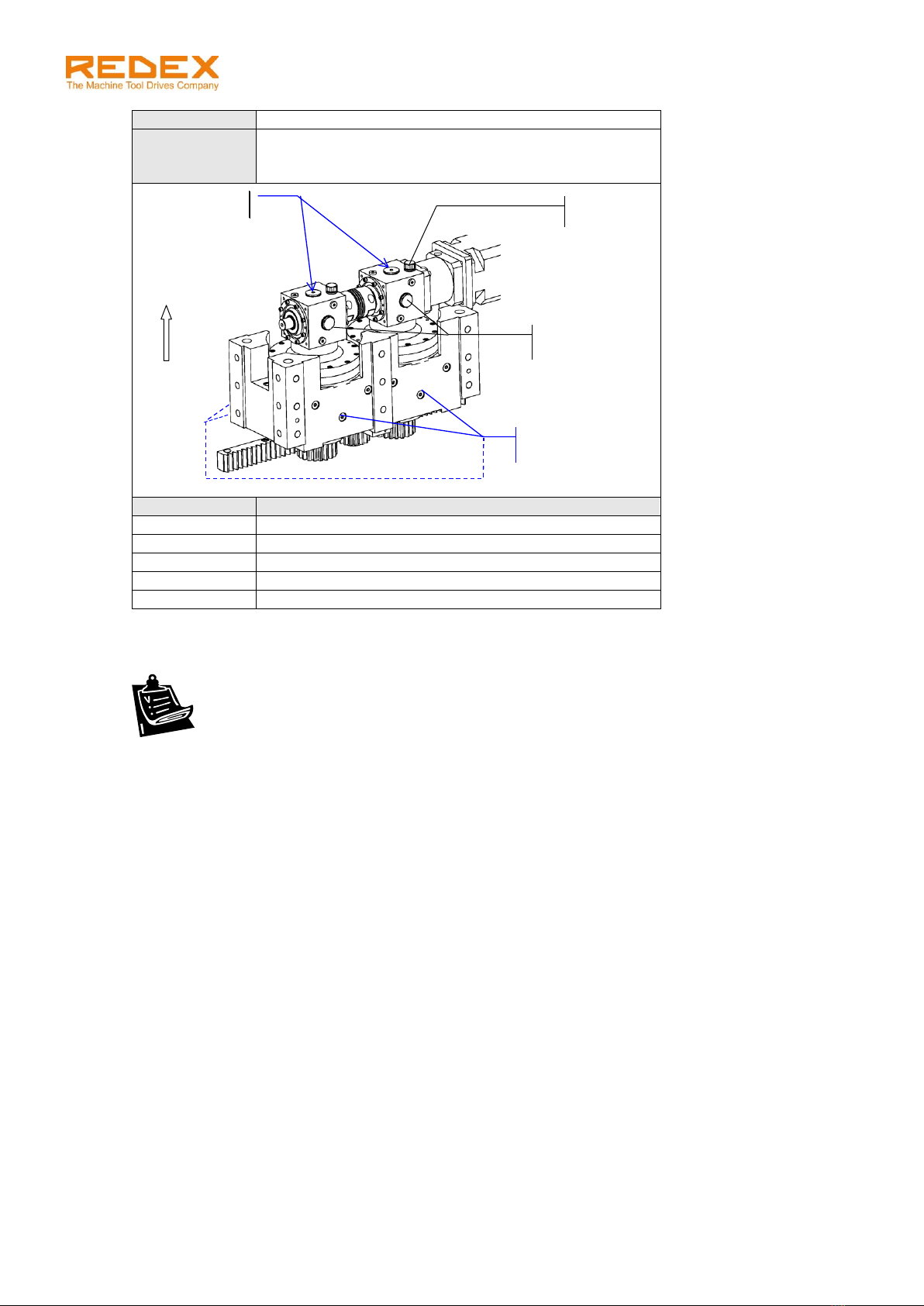

Configuration:

Horizontal mounting / output pinions down

Accessories:

- 2 sight glasses

- 2 breathers

- Oil plugs

2 oil input plugs

2 x 2 oil output plugs

(2 on each face)

Down

Breather

Sightglass

(1 per circuit)

Size

Approximated oil quantity per circuit (L)

DRP1+R/P

0,65

DRP2+R/P

1,5

DRP3+R/P

2,6

DRP4+R/P

DRP5+R/P

3.3 Oil filling: motor in-line configuration (DRP+M)

1. Remove the 2 oil input plugs and the 2 oil level plugs.

2. Fill the DRP+ with oil until the oil comes out of the level hole.

3. Replace the oil input plugs and oil level plugs into position.

DRP+ User manual

Ref.: RX182/009

Version 01/2017 - English

This document must not be reproduced nor information therein disclosed without our authorization

Page 8/ 30

Configuration:

Horizontal mounting / Output pinions horizontal

Accessories:

- Oil plugs

Oil input plug

Oil level plug

2 x 2 Oil output plugs

Down

Size

Approximated oil quantity per circuit (L)

DRP1+M 1st.

Consult us

DRP1+M 2st.

0,35

DRP2+M 1st.

Consult us

DRP2+M 2st.

0,72

DRP3+M

1,3

DRP4+M

2,6

DRP5+M

4,6

Configuration:

Horizontal mounting / Output pinions down

Accessories:

- Oil plugs

2 x 4 Oil input plug and level

2 Oil output plugs

Down

Size

Approximated oil quantity per circuit (L)

DRP1+M 1st.

Consult us

DRP1+M 2st.

0,6

DRP2+M 1st.

Consult us

DRP2+M 2st.

1,2

DRP3+M

2,3

DRP4+M

4,6

DRP5+M

8,1
