USER MANUAL
Please read and keep these instrucons
BARIATRIC
COMMODE
CHAIR
B588
redgumbrand.com.au
BASICS by Redgum owns the copyright to the Bariatric Commode Chair user manual.
Any informaon contained in this user manual shall not be photocopied, reproduced or
translated into any other languages without the prior wrien consent of BASICS by Redgum.
BASICS by Redgum strives to provide the highest quality products possible.
Product is subject to change without noce.
© Copyright BASICS by Redgum 2021
BASICS by Redgum is part of FOR-DE Group Pty Ltd
redgumbrand.com.au
CONTENTS
1. INTRODUCTION - INTENDED USE
2. PRODUCT OVERVIEW - FEATURES / SPECIFICATIONS
3. SET UP - UNPACK and INSPECT SUPPLIED PARTS
4. ASSEMBLY - INSTALL ADJUSTABLE LEGS
5. ASSEMBLY - INSTALL SEAT
6. ASSEMBLY - INSTALL BOWL AND LID
7. ASSEMBLY - INSTALL BACKREST
8. SET UP - BARIATRIC COMMODE CHAIR HEIGHT ADJUSTMENT
9. USAGE GUIDELINES - DO’s + DON’Ts
10. PRODUCT CARE - INSPECTIONS / CLEANING
11. WARRANTY
12. BASICS by Redgum - PRODUCT RANGE
redgumbrand.com.au
INTRODUCTION
Thank you for purchasing this quality BASICS by Redgum product.
If you have any issues or quesons about the Bariatric Commode Chair
please contact your supplier or BASICS by Redgum direct:
T: +61 8 9248 4180
E: sales@for-de.com.au
A: 1 Business Way, Malaga Western Australia 6090
INTENDED USE
This product has limitaons and should be used in accordance to these guidelines.
Failure to follow these guidelines may result in damage to the product and injury to
the user. It is the responsibility of the user to ensure the suitability of this product
for its intended use. The user should consult their appropriate healthcare professional
if unsure of the correct product usage for their unique circumstances.
Only use the Bariatric Commode Chair
for its intended purpose which is as
a height adjustable seang soluon
for toileng away from the toilet.
Refer to usage guideline page for
informaon on how to use the
Bariatric Commode Chair
in a safe manner.
IMPORTANT NOTE
This equipment MUST
be set up for use by a
competent person.
1.
redgumbrand.com.au
PRODUCT OVERVIEW
FEATURES
Allows for toileng away from the toilet
for when users cannot make it to the
bathroom.
280kg user weight capacity.
Plasc seat / backrest / armrests.
Adjustable seat height.
Removable bowl with carry handle and lid.
Non slip rubber ps.
Lightweight - easy to move.
Easy to clean surfaces.
SPECIFICATIONS (All dimensions shown are nominal)
Overall:
685mm (W) x 620mm (D) x 700mm (H) - lowest height seng
Seat:
590mm (W) x 470mm (D) x 410 - 575mm (H) - 8 sengs at 25mm increments
Backrest Pad:
400mm (W) x 150mm (H) x 300mm (from seat to top of backrest)
Armrests:
50mm (W) x 310mm (L) x 210mm (H) - from seat to top of armrest
585mm between armrests
Product Weight:
8.5kg
Maximum User Weight:
280kg
Please contact BASICS by Redgum if you would like any further informaon
on the Bariatric Commode Chair .
2.
redgumbrand.com.au
SET UP- UNPACK and INSPECT SUPPLIED PARTS
Ensure you have been supplied with the following parts:

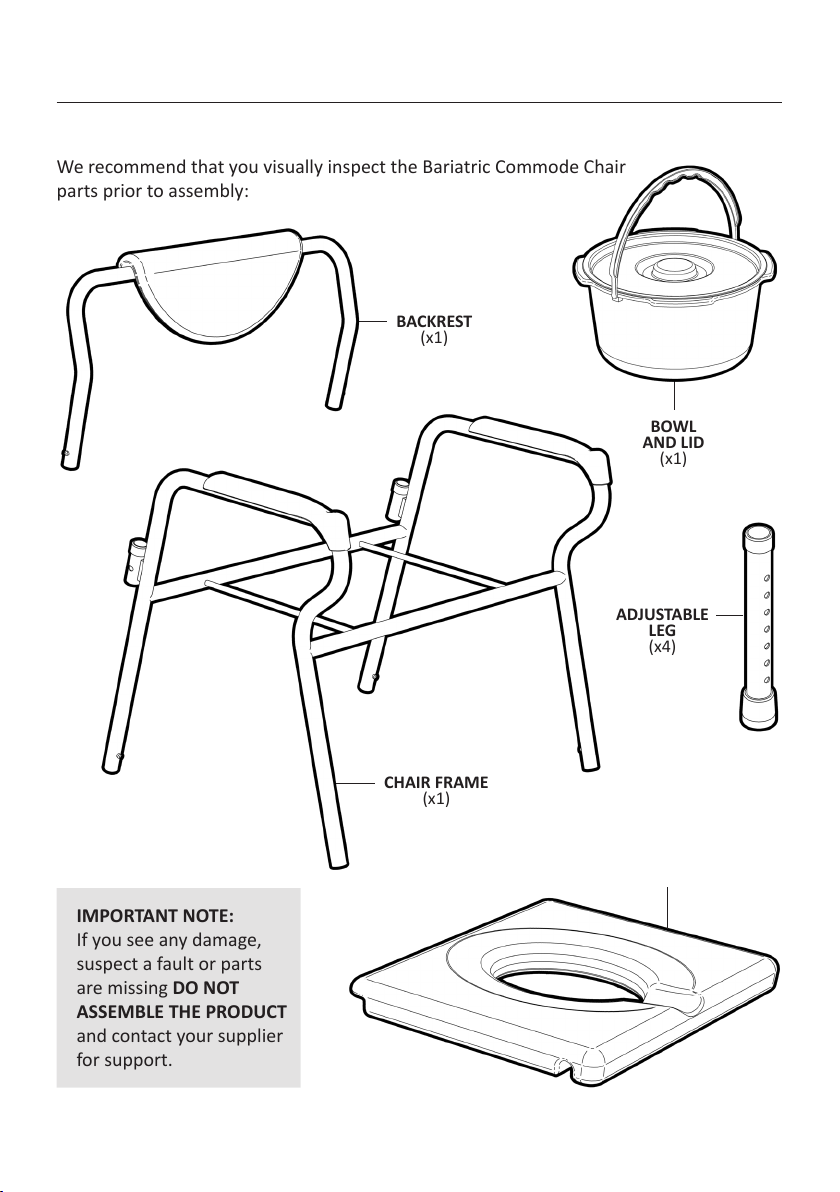

We recommend that you visually inspect the Bariatric Commode Chair
parts prior to assembly:
3.
IMPORTANT NOTE:
If you see any damage,
suspect a fault or parts
are missing DO NOT
ASSEMBLE THE PRODUCT
and contact your supplier
for support.
BACKREST
(x1)
BOWL
AND LID
(x1)
CHAIR FRAME
(x1)
ADJUSTABLE
LEG
(x4)
SEAT
(x1)
redgumbrand.com.au
4.
ASSEMBLY- INSTALL ADJUSTABLE LEGS
Please follow these steps to t the legs correctly to the Bariatric Commode Chair:
1. Put the chair frame on its side.
2. Oer up adjustable leg to leg on chair frame.
Align holes in leg with press buon on frame.
3. Slide leg onto frame.
4. Push in press buon and connue to slide leg onto frame unl press buon pops
out of hole in leg. (Refer to page 7 for walking frame height adjustment)
5. Repeat process to t other legs onto chair frame.
1. Push in press buon
2. Slide leg onto frame unl press
buon pops out of hole in leg.
IMPORTANT NOTE
Press buon MUST
protrude 3mm out
from tube when
properly located
in place.
Refer to page 7. for
informaon on seng
the seat height on the
Bariatric Commode Chair.
redgumbrand.com.au
ASSEMBLY- INSTALL SEAT
Please follow these steps to install the seat
onto the Bariatric Commode Chair frame:
1. Line up the seat with the chair frame.
Ensure seat is facing the correct way.
Shallow recess must be facing forward.
Underside of seat has cut outs that allow
it to sit onto cross tubes on chair frame.
2. Locate seat on chair frame and push
down unl a loud ‘CLICK’ is heard.
This sound indicates that seat is now
correctly ed to chair frame.
5.
Cross
tubes
Seat locates over cross tubes
on chair frame.
Shallow recess
on seat MUST
face forward
Cross
tubes
Underside
redgumbrand.com.au
6.
ASSEMBLY- INSTALL BOWL AND LID
The Bariatric Commode Chair comes with a
bowl with carry handle and lid.
Please follow these steps to locate bowl and lid
correctly onto the commode:
1. Remove the lid from bowl.
Keep lid close by to put on
bowl aer use.
2. Lower carry handle down.
3. Insert bowl into cradle
located on underside of seat.
4. Ensure bowl is fully
pushed into cradle.
Bowl and hole in
seat should line up.
TIP:
Add some water to the bowl
prior to use as it makes it
easier to clean aer use.
Refer to user guidelines
on page 9 for more
informaon on using
Bariatric Commode Chair.
Remove lid prior
to locang bowl
onto commode.
redgumbrand.com.au
ASSEMBLY- INSTALL BACKREST
Please follow these steps to install the
backrest onto the Bariatric Commode Chair:
1. Line up the backrest with the sockets
on chair frame. Ensure the padded
backrest is facing the correct way.
2. Slide backrest tubes into sockets.
3. Push in press buons on both sides
at the same me and connue to slide
the backrest onto chair frame unl both
press buons pop out of holes in sockets.
7.
1. Push in both press buons
at the same me.
2. Slide backrest into sockets on
frame unl press buons pop
out of holes.
Press buons
pop out of
holes.
