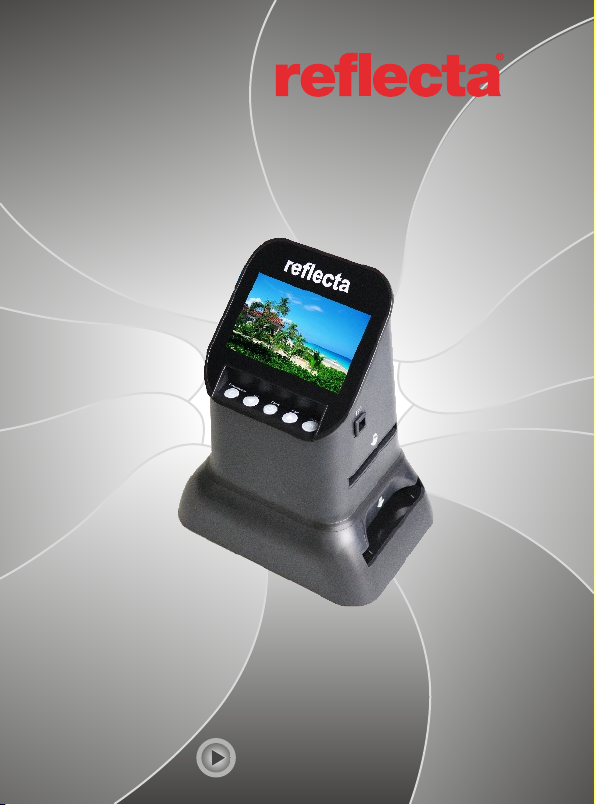

Reflecta x66-Scan Manuale utente
x66-Scan
Multi-Format Scanner
User‘s Manual
User‘s Manual
For correct usage please read these instructions carefully and keep it
a safe place for future reference!
Contents
1. Preface........................................................................................1
2. Safety Precautions......................................................................1
3. Package contents....................................................................... 2
4. Description of parts..................................................................... 3
6. 120 holder loading method......................................................... 5
10. Operation Guide ...................................................................... 9
11. Product Specification................................................................17
12. Declaration...............................................................................18
7.
..................................................... 6
127 holder loading method
5. ..................................................................... 4 Product Indicator
8.
................................................ 7
Positive Slide Holder
9. ........................................... 8
.....................
...........................
Negative Film Holder
Thank you for buying this product! Please read this instruction carefully
1
•
•
•
•
•
•
•
•
•
•
1. Preface
2. Safety Precautions
Do not attempt to disassemble or modify any part of the machine.
Do not touch the inside of the scanner after the product falls or suffers
other damage to avoid injury .
If the product smells or is abnormal, stop using it immediately.
Do not clean the scanner with alcohol, gasoline, diluent and other
organic solvent.
Please do not work in wet or humid and dusty area.
Do not overload the USB connections on your computer to avoid poor
working of the scanner for overloading.
Please use films of standard size.
Cleaning: Please make sure the scanner‘s luminous area is clean
before using for producing a clean image.
Non use period: The USB cord or adapter should be unplugged from
the computer or plug seat when the unit is left unused for a long period
of time.
The device can support 128GB SD, but we recommend to use 16GB
or less SD cards, as the device needs to pre-read and calculate
capacity of the inserted SD card to get the number of how many images
can be stored, large capacity SD might slow the response speed of the
device or even freeze the system, when this occurs, please disconnect
the power cable to restart the device.
before using this product.
In order to protect the machine and save energy, the product will
automatically shut down if there is no operation for 30 minutes.
Press the power button again to start to work.
•
2
Film scanner
• 120 Film Holder (for 120 film, positive \ negative \ B&W)
• 127 Film Holder (for 127 slides, 4x4 cm)
•
• AC/DC adapter 5V
• USB cable
• Cleaning brush
• User‘s Manual
3: Package contents
• Negative Film Holder (for 135 film strips, 24x36 mm frames)
Positive Slide Holder (for mounted slides, 5x5 cm)
3
4. Description of parts
When Using the cleaning brush to clean the backlight, please insert
120 Film Holder
•
127 Film Holder
USB cable
Adapter
Film Scanner
Cleaning brush
User Manual
Negative Film Holder
Positive Slide Holder
X66-Scan
Mul ti-For mat Sca nner
User Manual
the cleaning brush from the side of the product.
5. Product Indicator
Display screen
Enter key
Mode key
Left key
Power key
Right key
4
Focus button
6. 120 Holder loading method
a. Hold up the film toward the light.
Face the glossy side of the film to yourself.
b. Take 120 holder out.
c. Insert the 120 film holder horizontally into the
5
• Handle films with care to avoid scrathes or finger prints (for the best
use cotton gloves when handling films)
lower hole from the right side of the scanner
c. Take the 120 holder with the label facing up
and insert the film strip from the right side.
Center the image you want in the window.
7. h l127 older oading method
a. Take the 127 film holder with the
b.Take 120 film holder and open it, put 127 film
d. Insert the installed 120 film holder horizontally
6
c.Take the negative and insert it from the
right side into the closed 120 film holder
into the lower hole from the right side of the
scanner.
holder into 120 film holder and close 120 film
holder
markings facing up.
8. Positive Slide Holder
7
Open the slide holder at the marked spot on
the top.
With the slide holder laid open place the slide
into recessed area in the holder - the slide
should fit perfectly.
Note: Handle slides with care. Any dust,
scratches or fingerprints will show up on your
saved images.
It is recommended to use compressed air
to remove any dust from the slides.
the slides.
Close the slide holder and press the edges
so that it locks in place.
The loaded slide holder is inserted
horizontally into the upper hole of the scanner
from the right side.
Take mounted slides with the glossy side up.
9. Negative Film Holder
8
Open the negative holder at the marked spot on
the top.
With the negative holder laid open place the
negative into holder so the notches line up with
the notches on the holder.
Note: Handle negatives with care. Any dust,
scratches or fingerprints will show up on your
saved images. If possible use cotton gloves
when handling negatives.
Close the negative holder and press the edges
so that it locks in place.
The negative holder is inserted horizontally
into the upper hole of the scanner from the
right side.
Take the film strip with the glossy side
showing up.
