INSTRUCTION MANUAL

FOR

MODEL 518(D)-DL

ONE THOUSAND WATT

FREQUENCY MODULATED

BROADCAST TRANSMITTING

EQUIPMENT

RADIO

ENGINEERING

LABORATORIES

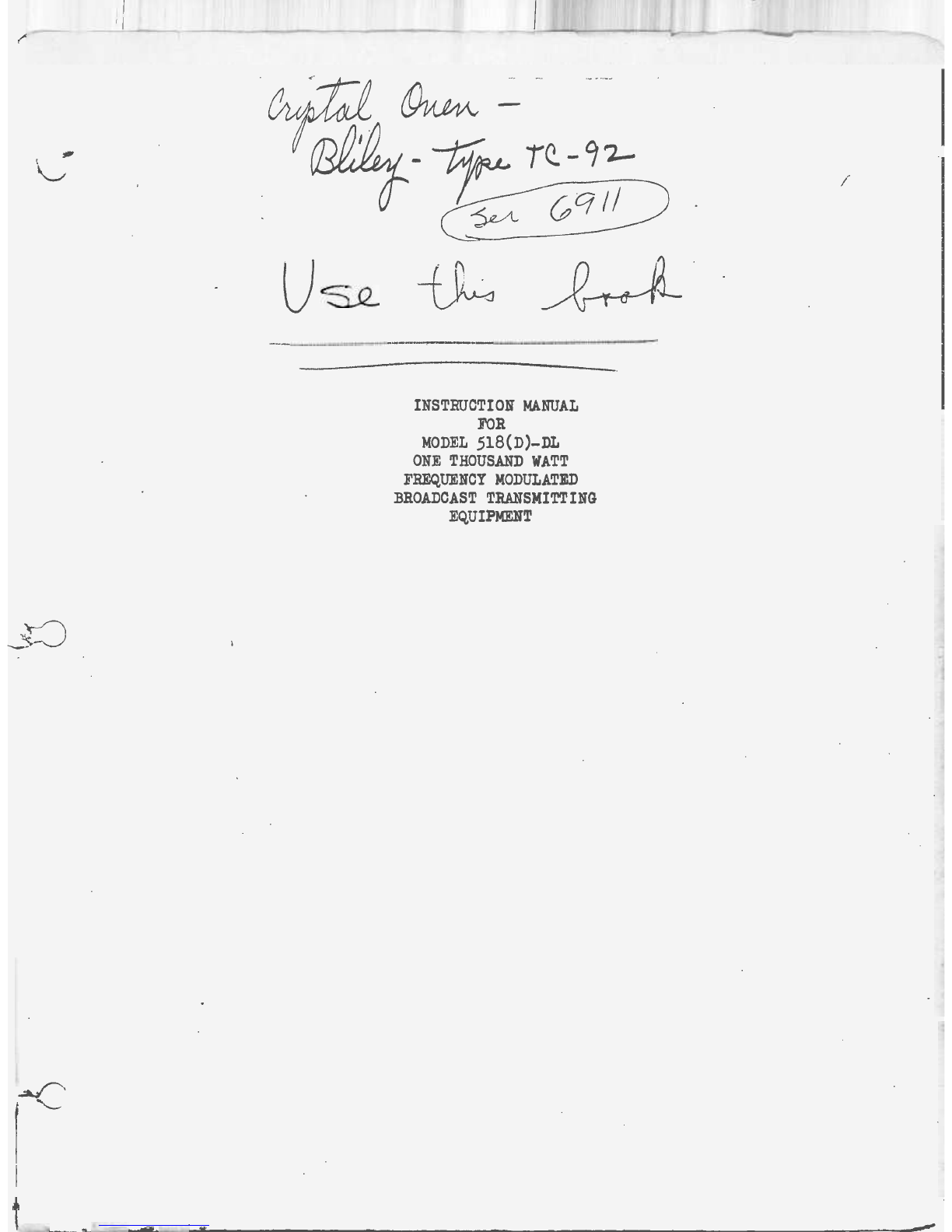

INSTRUCTION MANUAL

FOR

MODEL 518(D)-DL

ONE THOUSAND WATT

FREQUENCY MODULATED

BROADCAST TRANSMITTING

EQUIPMENT

TABLE OF CONTENTS

MODEL 518 INSTRUCTION MANUAL

SECTION I. INSPECTION OF RECEIVED MATERIAL - CLAIMS FOR BREAKAGE IN SHIP-

MENT

SECTION II. GENERAL DESCRIPTION OF EQUIPMENT

SECTION III. ASSEMBLY AND INSTALLATION

SECTION IV. THEORY OF OPERATION

SECTION V. PRELIMINARY ADJUSTMENTS AND OPERATION OF THE EQUIPMENT

SECTION VI. MODULATOR AND POWER AMPLIFIER ADJUSTMENTS

SECTION VII. CONSOLIDATED PARTS LISTS

SECTION VIII. MAINTENTANCE OF EQUIPMENT - ORDERING SPARE OR REPLACEMENT PARTS

PROCEDURE FOR RETURN OF MATERIAL

ACCESSORY DATA SUPPLIED 'dITH THIS MANUAL IN REAR COVER POCKET: -

6 COPIES DEFECTIVE MATERIAL NOTIFICATION FORM

6 COPIES DEFECTIVE MATERIAL RETURN FORM

IN SEPARATE DRAWING FOLDERs-

TITLE NUMBER

INSTALLATION DRAWING T-68

STATION WIRING DIAGRAM B-654

MODEL 518 WIRING DIAGRAM SS-635

CONTROL CIRCUITS - ACROSS THE LINE DIAGRAM B-629

r ß it// c.,.,

r fqI C ! IP ti c y / .¢(/-/ t

óatv«,, --- J Pc(lpN1/ - 9

SECTION 1

INSPECTION OF RECEIVED MATERIAL

RE-ASSEMBLY OF PARTS REMOVED FOR

SHIPMENT - CLAIMS FOR BREAKAGE

IN SHIPMENT.

1. UISPECTION OF RECEIVED MATERIAL

Received material should be carefully inspected at the time of uncrating for

evidence of damage or breaking due to careless handling in transit. Care and good

sense should be used in the process of unpacking or uncrating the equipment. Hasty

use of improper tools such as crowbars, etc., may easily result in damage to the

enclosed equipment. Be sure to note and follow externally marked instructions such

as, "This End up" or "Oper. This End ", etc. All equipment is carefully packed at

the factory to insure safe delivery with reasonably careful handling. When remov-

ing items from packing material check item by item against the enclosed pecking

list for errors or short shipment.

2. CLAIMS FOR BREAKAGE IN SHIPMENT

In cases of damage to equipment due to faulty handling in shipment, notify car-

rier immediately leaving broken or damaged item or items exactly as found in pack-

age. Do not destroy or remove any of the wrappings or protective material involved

in the wrapping of the damaged item. Carrier companies will not accept claims for

"Damage in Shipment" unless they can inspect the damaged item and its associated

packing material. Claims must usually be made within five days of receipt of ship-

ment.

Section 1 - 1

SECTION II

GENERAL DESCRIPTION OF EQUIPMENT

A. General Description

The REL Model 518 FM Broadcast Transmitter is designed to deliver 1000 watts

of radio frequency power at any selected frequency from 88 to 108 megacycles. Modu..

lation is accomplished by the Armstrong Dual Channel Phase Shift method, the modula-

tor being an integral part of the transmitter.

The equipment is completely housed in a vertical steel cabinet normally finished

in two tone green lacquer with chrome trim. The cabinet is 84" high, 40" wide and 36"

deep.

Various functional units in the equipment have been sectionalized on individual

chassis. Each separate chassis is hinged at one end and may be swung out for conven-

ient inspection or maintenance work.

B. Primary Power Connections

Refer to drawing B-654 which shows details of the transmitter input terminal

boards and connections.

208/230 volts, 60 cycles single phase should be terminated at the terminals mark-

ed A, B, using #10 AWG wire or larger. Primary load for rated output is approximately

3700 volt amperes at 890 power factor. 110 to 120 volts single phase should be connect-

ed to terminals 3 and 54 using #12 AWG wires for powering the convenience outlet

and interior lighting.

A good low resistance ground should be connected to the terminal marked "0" on the

terminal board which is located on the left vertical frame member just inside the lower

front panel.

C. Output Transmission Line Connections

The equipment is supplied for operation with a single 7/8" coaxial transmission

line which enters the top of the cabinet. Location of this point may be determined by

reference to outline drawing T-68.

D. Accessory Data

A 600 ohm balanced audio input line must be connected to the twin conductor jack,

which is located behind the lower front panel on the right hand corner post. This line

should be of the insulated shielded twisted pair type and should avoid proximity to high

level AC lines. Since there is not pre-emphasis included in the transmitter standard 75

micro second pre-emphasis should be included at some point in the audio equipment.

A coaxial jack is provided beside the audio input jack for connecting the monitor

to the sampling loop in the power amplifier cabinet.

Section II - 1

SECTION III

ASSEMBLY AND INSTALLATION

A. After the equipment has been unpacked remove all panels to permit easy access

to the interior. A considerable amount of packing material shipping straps and

braces will be found within the equipment, notably in the high voltage supply re-

lay panel, modulator power supply, and power amplifier compartment. This material

should all be removed and the supported parts carefully examined for any damage

which may have occured while the equipment was in transit.

B. After the equipment has been located in its final position the power lines may

be connected. Provision has been made in the cabinet design to permit cable en-

trance either through exposed conduit or concealed floor trench type wiring. A "TEE"

shaped duct is built into the base of the transmitter which allows conduit entrance

via either side near the front or through the rear center. The location of these

knockouts is indicated on the installation drawing T-68. In addition an 8" x 2" open-

ing covered with a removable plate is provided for entrance of cables via a floor

trench. If used, this palte should be removed and holes cut to permit passage of the

cables. Unless the plate is reinstalled, an air leak will result, thus destroying

the effectiveness of the intake air filter.

Primary power connections are made to terminals "A" and "B ". The auxiliary

lighting circuit connections are connected to terminals 53 and 54.

C. The output transmission line connections may now be made up.

D. Connect the audio input line and the monitor by means of the plugs which are pro-

vided in their respected jacks.

E. Install plug in resistors which are located as noted below:

SYMBOL NO. STOCK NO. RESISTANCE LOCATION

R-800 R-5104 or R-5273 200,000 ohms Resistor panel left side, bottom

row, center.

R-801 R-5105 5 neghom Resistor panel, bottom row, rear.

R-803 R-5097 or R-5269 500 ohms Resistor panel, bottom row, front.

R-805 R-5109 or R-5271 250 ohms Resistor panel, middle row.

R-806 Same as R-805 Resistor panel, middle row.

R-807 R-5321 500 ohms Bottom of grid circuit.

R-808 Same as R-805 Resistor panel, middle row.

R-809 Same as R-805 Resistor panel, middle row.

R-810 R-5321 500 ohms Below PA tube deck, left.

H--811 R-5269 500 ohms Resistor board, lower right side.

R-812 Same as R,-811 Resistor board, lower right side.

R-818 R-5336 1250 ohms Resistor panel, left side, top row,

rear.

R-819 B-5337 2000 ohms Resistor panel, left side, top row,

front.

R-820 R-5321 500 ohms Below PA tube deck, right.

Section III - 1

F. Install all tubes. Pilot lights and glass fuses are shipped in their res-

-oective sockets.

G. There are five lumiline lamas to be installed. Two are used to illuminate

the meter panel and the sockets for these will be found directly below the meters.

Two are used inside the power amplifier compartment and operate when the compart-

ment door is opened. One is located inside the plate compartment on the top front

Hanel. The other is located under the PA tube deck just inside the front flange.

The fifth light is located on the rear of the same cornerpost which supports the

audio input jack.

Section III - 2

SECTION IV

THEORY OF OPERATION

A. POWER CONTROL CIRDUIT

1. General

The power controls are designed to provide either complete manual or semi-

automatic control with facilities provided for remote control of the application

of power to the various stages, proper protection of equipment in the case of over-

loads, and reasonable time delays between the application of filament and plate volt-

ages. All cabinet doors with the exception of those over the modulator compartment

and the main front doors, are interlocked for the protection of personnel.

2. Primary Power Source

The main operating power is completely supplied by a 208/230 volt (plus or minus

5%) 60 cycles, single phase source. All filament transformer primary voltages are con-

trolled by the variable auto transformer YR-800 which is located on the right hand con-

trol panel, and should be adjusted to Produce a reading of 5.0 volts on the front panel

"FILAMENT VOLTAGE".

3. Control Circuits

The schematic diagram of the control circuits is shown on drawing SS-638. A func-

tional across the line diagram is shown on drawing B-629 which will be useful in under-

standing the sequence of control operation.

The STANDBY switch 5808 should always be on, except for maintenance work on the

standby circuit. Even so, the input side of 5808 and the main circuit breaker, K800,

will be energized, hence it is advisable to open the main safety switch which powers

the entire transmitter when maintenance work is required. When 5808 is closed, trans-

former T703 is energized through fuse F806 and protective resistor R-715. The second-

ary of T703 operates the crystal heater when the transmitter is off the air. The stand-

by fuses 7807 and F808 provide protection for the standby and blower shut down circuits.

With all of the switches except the STANDBY SWITCH S808 open, the first switch to

be closed is the PRIMARY POWER circuit breaker K800. The coil of the blower relay K806A

is energized through the standby fuses F807 and F808 closing contacts K806B, K806C, and

K806D. The blower time delay relay K807 is also energized through the normally closed

contact K801C of the time delay relay K801. However relay K807 will not operate at this

time since its normal time delay is 2 minutes, and contact K8010 will open 60 seconds

after switch 5800 is closed. Contacts K8060 and K806D apply power to the blower B800

through the thermal eliment K806E, and also to the blower pilot light, I803. The meter

lights 1805 and I806 should come on when K800 is closed.

When the FILAMENT switch 5800 is closed and the blower B800 has reached its Proper

speed, the air switch 5807 will be closed thus energizing the filament variable auto trans_

former YR800 which in turn controls the voltage on T700 through F801 which supplies 6.5

volts AC for the modulator AC filaments; T701 through F802 which supplies 6.6 volts DC

for the modulator DC filaments; K700 which switches the crystal heater from 6.0 volts AC

standby to 6.6 volts DC operate; T800 through F803 which controls the screen the bias

supply filaments; T801 supplying the power amplifier filaments at 5 volts which is read

on the FILAMENT VOLTAGE meter; T804, T805 and T806 which supply the high voltage rectifier

filaments; K801 the rectifier tube time delay (60 seconds) which withholds application of

high voltage until the rectifier tube cathodes are hot and finally I800, the filament

pilot light.

Section IV - 1

60 seconds after the closing of the FILAMENT switch S800, the time delay relay

K801 will operate, closing contact K801B and opening contact K8010. If all door inter-

locks are closed and the MODULATOR HIGH VOLTAGE switch is closed, then the coil of re-

lay K802A will be energized closing contacts K802B and K8020. K802B, when closed, applies

power to the modulator high voltage transformer T702 and the modulator high voltage pilot

light I801, through fuse F804. K802C when closed energizes the high voltage recycling

time delay (5 seconds) through the overload relay contact K805B, and the bias high volt-

age transformer T802 through fuse F805.

After 5 seconds from the time the MODULATOR HIGH VOLTAGE switch S801 was closed

time delay relay K803 will operate, closing its contact, K803B. Then if the HIGH VOLT-

AGE switch S805 is closed, the PA high voltage relay K804 will be energized, closing con-

tacts K804B and K8040 through which power will be applied to the primary of the high volt-

age transformer T803 through the tap changing switch S818, and to the high voltage pilot

light I802. The closing of the power amplifier high voltage switch completes the cycle

of manual operation and the equipment is ready for transmission provided that the eouip-

ment has been previously adjusted for proper voltages and the tuning controls were pro-

perly set. The switching controls are designed so as to control the cycle of operation

at any stage desired. If any of the control switches S-800, S-801 or S-805 are opened,

the cycle of operation will automatically continue to the stage controlled by the particu,

lar switch that is opened and then stop. Further continuation of the operating cycle re-

quires the closing of the switch or switches that follow.

The manual "OFF" operation is performed in the reverse sequence of the "ON" operation,

the power amplifier HIGH VOLTAGE SWITCH S-805 is turned off which removes the power ampli-

fier high voltage then the modulator high voltage switch S-801 is turned off, followed by

the turning off of the filament power switch S-800 and finally the primary power circuit

breaker, K-800.

If for any reason, by manual "OFF" operation or by a heavy overload, the overload

breaker K -800 is opened, only one of the parallel sources of supply for the blower relay

coil L-806A is removed and contacts K-8060 and K-806D remain closed. The power supplied

through these contacts will keep the blower B-800 operating. At the same time that the

circuit breaker K-800 is opened, power is removed from relay coil K-801A, thus closing

contacts L-8010. Contact K-8010 energizes the blower time delay relay K-807, and after 2

minutes, the normally closed contact K-807B opens thus removing the second of the two

parallel sources of power for relay K-806A. This relay opens contact K-806B which turns

off the blower B-800 and the blower pilot light I -803.

Section IV - 2

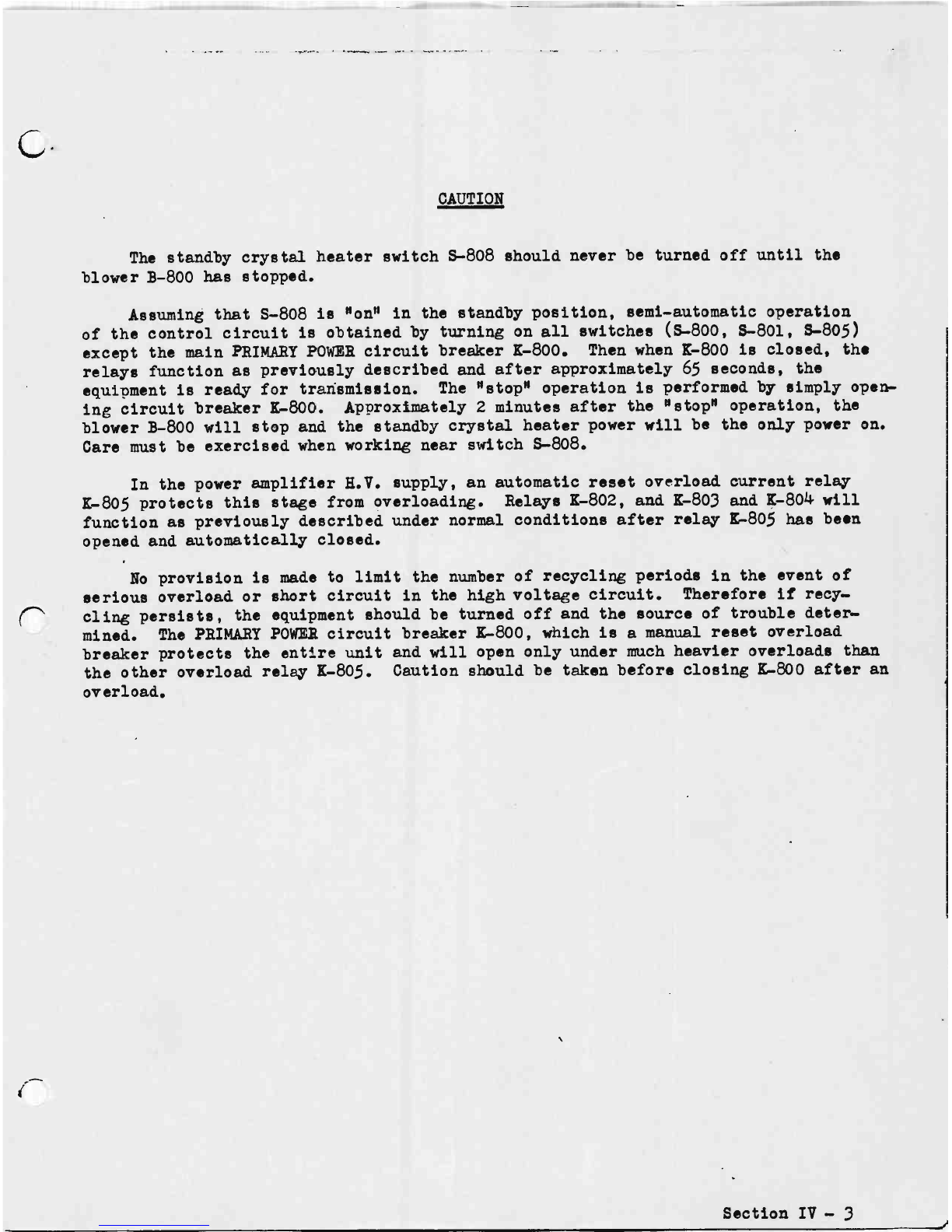

CAUTION

The standby crystal heater switch S-808 should never be turned off until the

blower B-800 has stopped.

Assuming that S -808 is "on" in the standby position, semi-automatic operation

of the control circuit is obtained by turning on all switches (S-800, S-801, S-805)

except the main PRIMARY POWER circuit breaker K-800. Then when K-800 is closed, the

relays function as previously described and after approximately 65 seconds, the

equipment is ready for transmission. The "stop" operation is performed by simply open-

ing circuit breaker K-800. Approximately 2 minutes after the "stop" operation, the

blower B-800 will stop and the standby crystal heater power will be the only power on.

Care must be exercised when working near switch S-808.

In the power amplifier H.Y. supply, an automatic reset overload current relay

K-805 protects this stage from overloading. Relays K-802, and K-803 and K-804 will

function as previously described under normal conditions after relay K-805 has been

opened and automatically closed.

No provision is made to limit the number of recycling periods in the event of

serious overload or short circuit in the high voltage circuit. Therefore if recy-

cling persists, the equipment should be turned off and the source of trouble deter-

mined. The PRIMARY POWER circuit breaker K-800, which is a manual reset overload

breaker protects the entire unit and will open only under much heavier overloads than

the other overload rely K-805. Caution should be taken before closing K-800 after an

overload.

Section IY - 3

Questo manuale è adatto per i seguenti modelli

Altri manuali REL Trasmettitore

REL

REL Longbow Manuale utente

Manuali Trasmettitore popolari di altre marche

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manuale del proprietario

Honeywell

Honeywell 5816WMBR Manuale utente

Kamstrup

Kamstrup READy MTU Istruzioni operative

Omega

Omega ZW Series Manuale utente

ABB

ABB Field 264H Guida

Alinco

Alinco DJ-V17T Manuale utente

Dejero

Dejero EnGo 3x Manuale utente

Rosemount

Rosemount 4600 Manuale utente

Speaka Professional

Speaka Professional 2342740 Manuale utente

trubomat

trubomat GAB 1000 Manuale utente

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manuale utente

Rondish

Rondish UT-11 Manuale utente

MG 10JRE Manuale utente

Burkert

Burkert 8177 Manuale utente

Firetide

Firetide HotPort 3203 Manuale

Tele Radio

Tele Radio T9-02 Manuale utente

Rotronic

Rotronic HygroFlex HF3 Series Manuale utente

Jamara

Jamara FCX6 Pro Tel Manuale utente
