Bulletin 023 Rev. B

Model F1S5-FSLO, K115, Large Orice Flat Spray-

Sprinkler

Types

Standard Pendent

Models F1S5-FS56, F1S5-FS42 and

F1S5-FSLO Flat Spray Sprinkler

Types

Standard Pendent

Listings & Approvals

F1S5-FSLO

• VdS Schadenverhütung GmbH: Certicate

Gxxxxx

• CE Certicate: Standard EN 12259-1, Certicate of

constancy of performance 0786-CPR-xxxxx

F1S5-FS56

• VdS Schadenverhütung GmbH: Certicate

G4080046

• CE Certicate: Standard EN 12259-1, EC-Certicate

of conformity 0786-CPD-40241

F1S5-FS42

• VdS Schadenverhütung GmbH: Certicate

G414024

• CE Certicate: Standard EN 12259-1, Certicate

of constancy of performance 0786-CPR-40297

Product Description

The F1S5-FS56, F1S5-FS42 and F1S5-FSLO Flat Spray

Sprinklers are designed for installation in accordance with

CEA 4001 or EN 12845 (Automatic Sprinkler Systems - De-

sign, Installation and Maintenance). The spray pattern cre-

ated by this sprinkler makes this an excellent choice for ap-

plications with lower clearance above the suspended open

ceilings and in racks.

The F1S5-FS56, F1S5-FS42 and F1S5-FSLO Flat Spray

Sprinklers with shield are used in applications where there

are high and lower level sprinklers. The shield is to help pre-

vent the lower level sprinklers from getting wet by the higher

level sprinklers.

The F1S5-FS56, F1S5-FS42 and F1S5-FSLO Flat Spray

Sprinkler utilize a special response frangible 5.0mm glass

bulb. The glass bulb consists of an accurately controlled

amount of special fluid hermetically sealed inside of a pre-

cisely manufactured glass capsule. This glass bulb is special-

ly constructed to provide fast thermal response.

Pendent

Pendent with shield

At normal temperatures, the glass bulb contains the fluid

in both the liquid phase and in the vapor phase. The vapor

phase can be seen as a small bubble. As heat is applied, the

liquid expands forcing the bubble smaller and smaller as the

liquid pressure increases. Continued heating forces the liquid

to push out against the bulb, causing the glass to shatter,

opening the waterway and allowing the deflector to distribute

the discharging water.

The F1S5-FS56, F1S5-FS42 and F1S5-FSLO Flat Spray

Sprinkler temperature ratings are identied by the color of

the glass bulb capsule.

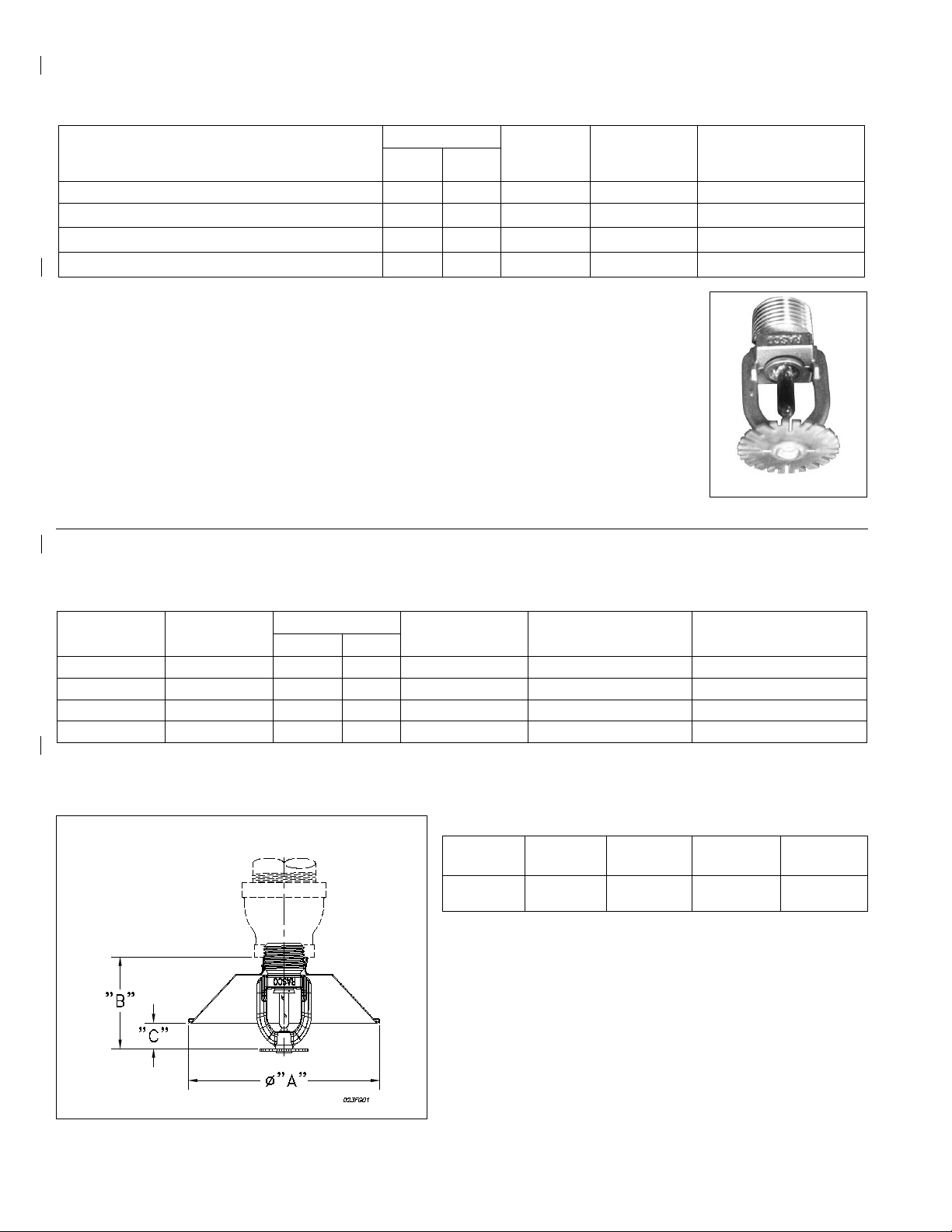

Models F1S5-FS56, F1S5-FS42 and F1S5-FSLO Pendent Sprinklers

Installation Wrench: Model D Sprinkler Wrench

Installation Data:

Sprinkler Type

Standard–Pendent (SSP)

Deflectors Marked to Indicate Position

K Factor Sprinkler

Height

Approval

Organizations

Sprinkler Identication

Number (SIN)

US Metric

1/2” (15mm) Standard Orice with 1/2” NPT Thread 5.6 80 2.25” (57mm) VdS RA2314

1/2” (15mm) Standard Orice with R1/2 BSPT Thread 5.6 80 2.25” (57mm) VdS RA2314

3/8” (10mm) Standard Orice with R1/2 BSPT Thread 4.2 57 2.25” (57mm) VdS RA2315

3/4” (20mm) Standard Orice with R1/2 BSPT Thread 8.0 115 2.28” (58mm) VdS RA2312

Pendent

Model F1S5-FS56 with shield

Models F1S5-FS56, F1S5-FS42 and F1S5-FSLO Pendent Sprinklers with shield

Installation Wrench: Model GFR2 Sprinkler Wrench

Installation Data:

Nominal

Orice

Thread

Size

K Factor Sprinkler

Height

Approval

Organizations

Sprinkler Identication

Number (SIN)

US Metric

1/2” (15mm) 1/2” NPT 5.6 80 2.25” (57mm) VdS RA2314

1/2” (15mm) R1/2” BSPT 5.6 80 2.25” (57mm) VdS RA2314

3/8” (10mm) R1/2” BSPT 4.2 57 2.25 (57mm) VdS RA2315

3/4” (20mm) R1/2” BSPT 8.0 115 2.28 (58mm) VdS RA2312

Shield Data

Part No. Approvals “A”

Dimension

“B”

Dimension

“C”

Dimension

6999995574 VdS 4 17/32”

(115mm)

1 15/16”

(49mm)

9/16”

(14mm)

Models F1S5-FS56, F1S5-FS42, F1S5-FSLO

Pendent Sprinklers, F1S5-FS56, F1S5-FS42

and F1S5-FSLO Pendent Sprinklers with

shield

Application

Models F1S5-FS56, F1S5-FS42 and F1S5-FSLO Flat Spray

Sprinklers are used in concealed spaces, suspended open

ceiling and in racks in accordance with CEA 4001 Sprinkler

System Planning) and EN 12845 (Automatic Sprinkler Sys-

tems - Design Installation and Maintenance).

Installation

Models F1S5-FS56, F1S5-FS42 and F1S5-FSLO Flat Spray

Sprinklers are special response sprinklers intended for instal-

lation as specied in CEA 4001 and EN 12845. They must

also be installed with the Model D Sprinkler Wrench speci-

cally designed by Reliable for use with these sprinklers.

When installing Models F1S5-FS56, F1S5-FS42 and F1S5-

FSLO Pendent with shield use the Model GFR2 Sprinkler

Wrench. Any other type of wrench may damage these sprin-

klers.

Note: A leak tight ½” NPT sprinkler joint can be obtained

with a torque of 8-18 ft-lbs (10,8 - 24,4 N-m). Do not tight-

en sprinklers over maximum recommended torque. It may

cause leakage or impairment of the sprinklers.

Ordering Information

Specify:

1. Sprinkler Model

2. Sprinkler Type

3. Orice Size

4. Deflector Type

5. Temperature Rating

- Specify Bulb Size when ordering

6. Sprinkler Finish - Bronze only

Note: When Models F1S5-FS56, F1S5-FS42 and F1S5-FS-

LO Pendent Sprinkler with shield are ordered, the sprinklers

and shields are packaged separately.

Maintenance

The Models F1S5-FS56, F1S5-FS42, F1S5-FSLO Pendent,

F1S5-FS56, F1S5-FS42 and F1S5-FSLO Pendent Sprinklers

with shield should be inspected quarterly. Do not clean sprin-

klers with soap and water, ammonia or any other cleaning

fluid. Remove any sprinkler which has been painted (other

than factory applied) or damaged in any way. A stock of

spare sprinklers should be maintained to allow quick replace-

ment of damaged or operated sprinklers. Prior to installation,

sprinklers should be maintained in the original cartons and

packaging until used to minimize the potential for damage to

sprinklers that would cause improper operation or non-oper-

ation.

Temperature Ratings

Classication

Sprinkler

Temperature Max. Ambient

Temp.

Bulb

Color

°C °F

Ordinary

Intermediate In-

termediate High

141

135

155

175

200

286

100°F (38°C)

150°F (66°C)

225°F (107°C)

Orange

Red

Yellow

Green

Blue

Finish

Sprinkler Shield

Bronze Galvanized
