Renault Scenic 2002 Manuale utente

QXBIUDB*T[G3DJH

MEGANE SCENIC MONOSPACE NU 679-3 C:\Documentum\Checkout\nu679-3_eng_T1.WIN 25/9/2002 11:10 -page1

QXBIUDB*T[G3DJH

MEGANE SCENIC MONOSPACE NU 679-3 C:\Documentum\Checkout\nu679-3_eng_T1.WIN 25/9/2002 11:10 - page 2

RENAULT

recommends

QXBIUDB*T[G3DJH

MEGANE SCENIC MONOSPACE NU 679-3 C:\Documentum\Checkout\nu679-3_eng_T1.WIN 25/9/2002 11:10 - page 4

0.02

Brief overview

•Tyre pressure ........................................................................................................... 0.04

• Adjusting the seats and driving position ............................................... 1.11 ¬1.15

• Child restraint devices .............................................................................. 1.26 ¬1.33

• Warning lights ............................................................................................ 1.38 ¬1.50

• Audible and visual signals ....................................................................... 1.54 ¬1.57

• De-icing/demisting .................................................................................................. 1.59

• Running in, driving ................................................................................... 2.02 ¬2.27

• Heating/air conditioning ........................................................................... 3.02 ¬3.19

• Opening the bonnet .................................................................................... 4.02 - 4.03

• Levels (engine oil, screen washer, etc.) .................................................. 4.04 ¬4.11

• Emergency spare wheel ............................................................................ 5.02 ¬5.05

• Practical advice (changing bulbs, fuses, breakdown,

operating faults) ......................................................................................... 5.02 ¬5.35

QXBIUDB*T[G3DJH

MEGANE SCENIC MONOSPACE NU 679-3 C:\Documentum\Checkout\nu679-3_eng_T1.WIN 25/9/2002 11:10 -page5

0.03

CONTENTS

Sections

Getting to know your car .....................................................................

Driving ...............................................................................................................

Your comfort .................................................................................................

Maintenance ..................................................................................................

Practical advice ...........................................................................................

Technical specifications ........................................................................

Alphabetical index ....................................................................................

QXBIUDB*T[G3DJH

MEGANE SCENIC MONOSPACE NU 679-3 C:\Documentum\Checkout\nu679-3_eng_T1.WIN 25/9/2002 11:10 -page6

0.04

Tyre inflation pressures when cold (in bar)

All versions

Normal use

•Front 2.2

•Rear 2.0

Full load (1)

• Front 2.3

•Rear 2.3

Emergency spare wheel 2.3

Tyre

dimensions

185/65 R15T - 195/60 R15H

205/55 R15H - 205/50 R16H

195/620 R420A (2)

Wheel sizes 6J15-6,5J16(2)

Tyre safety and snow chains

Refer to section 5 on tyres for information on maintenance and, depending on the version, the conditions under which

snow chains may be used.

(1) Special note concerning vehicles used at full load (maximum permissible all-up weight) and towing a trailer

Speed must be limited to 60 mph (100 km/h) and tyre pressure should be increased by 0.2 bar.

To find out more about weights, refer to the information on weights in section 6.

(2) Special features of the Pax System

Refer to the information on the PAX System in section 2.

QXBIUDB*T[G3DJH

MEGANE SCENIC MONOSPACE NU 679-3 C:\Documentum\Checkout\nu679-3_eng_T1.WIN 25/9/2002 11:10 -page7

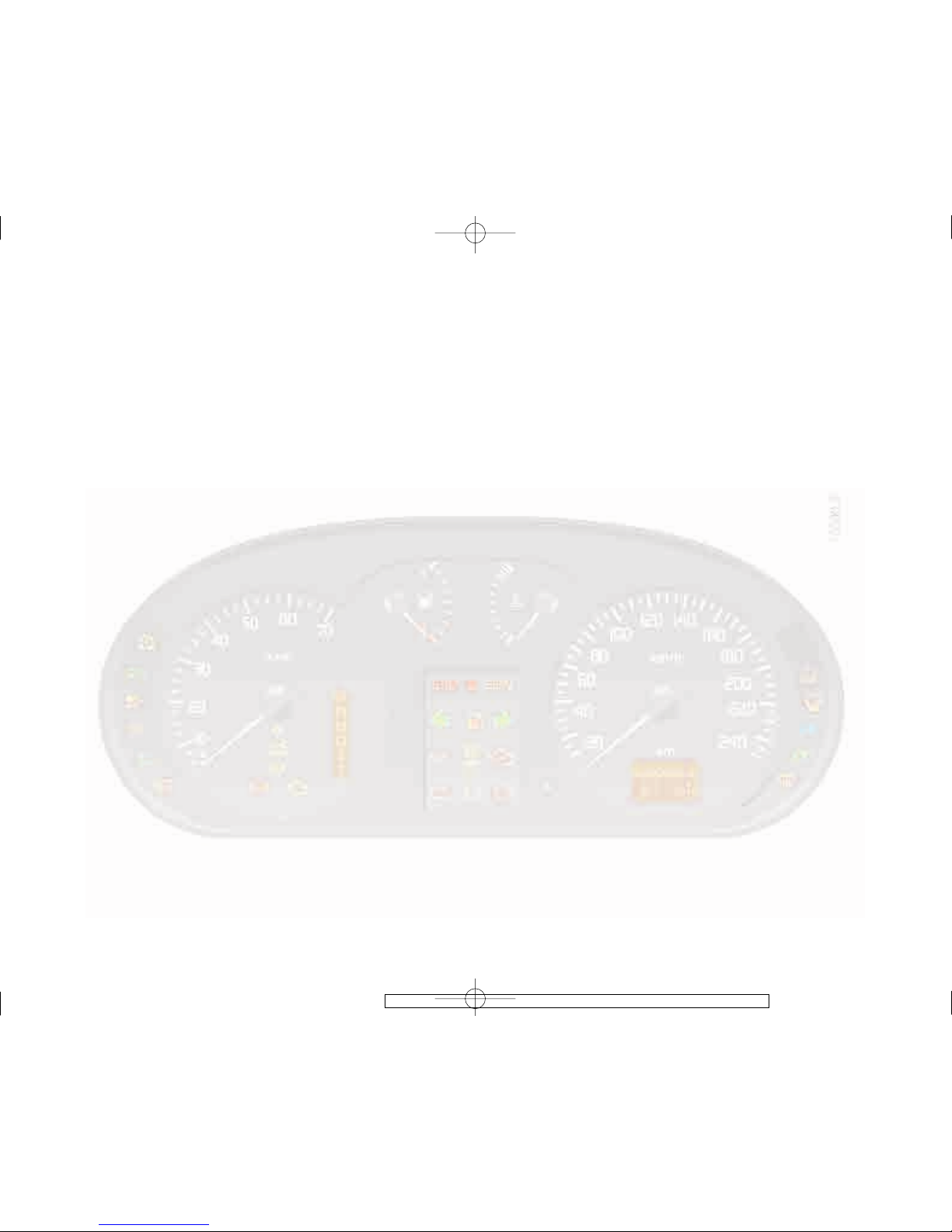

1.01

Section 1: Getting to know your car

Keys - Remote control ......................................................................................................................... 1.02 ¬1.05

Doors ..................................................................................................................................................... 1.05 ¬1.09

Engine immobiliser system .............................................................................................................................. 1.10

Head restraint - Seats .......................................................................................................................... 1.11 ¬1.14

Seat belts/methods of restraint in addition to the seat belts ........................................................... 1.15 ¬1.25

Child safety ........................................................................................................................................... 1.26 ¬1.35

Driver’s layout ...................................................................................................................................... 1.36 ¬1.39

Instruments ........................................................................................................................................... 1.40 ¬1.52

On-board computer .......................................................................................................................... 1.50 ¬1.52

Clock and external temperature ...................................................................................................................... 1.53

Rear-view mirrors ............................................................................................................................................. 1.54

Steering wheel .................................................................................................................................................. 1.55

Audible and visible signals ............................................................................................................................. 1.56

Lighting and external signals ................................................................................................................ 1.57 - 1.58

Adjusting headlight beam height .................................................................................................................... 1.59

Heated rear screen/electrically heated windscreen ....................................................................................... 1.60

Wipers ..................................................................................................................................................... 1.61 - 1.62

Fuel tank ............................................................................................................................................... 1.63 ¬1.65

QXBIUDB*T[G3DJH

MEGANE SCENIC MONOSPACE NU 679-3 C:\Documentum\Checkout\nu679-3_eng_T1.WIN 25/9/2002 11:10 -page8

1.02

KEYS / REMOTE CONTROL DOOR LOCKS

1Radio frequency remote control

locking unit, ignition key, key for

doors, luggage compartment and

fuel filler flap.

2Ignition key, key for doors,

luggage compartment and fuel

filler cap.

If there is a child (or

animal) in the car, never

leave it unattended with

the key in the ignition.

With the key in the ignition it

would be possible to operate

electrical equipment such as the

window risers and there is a risk

that the child may be seriously

injured (by trapping his or her

neck, arm, hand, etc.).

QXBIUDB*T[G3DJH

MEGANE SCENIC MONOSPACE NU 679-3 C:\Documentum\Checkout\nu679-3_eng_T1.WIN 25/9/2002 11:10 -page9

1.03

RADIO FREQUENCY REMOTE CONTROL DOOR LOCKING

Remote control unit 1locks and

unlocks the doors, the luggage

compartment and the fuel filler flap.

It is supplied by a battery which

must be replaced when battery

indicator light 2no longer lights up

(refer to the information below on

the radio frequency remote control:

batteries).

Locking/unlocking the doors

Press the remote control for

approximately one second to lock or

unlock the doors. (Light 2will come

on.)

-Locking is indicated by two

flashes of the hazard warning

lights and the side repeaters.

Note: If an opening element (door

or luggage compartment lid) is

open or not properly closed, the

hazard warning lights will not

flash.

- The hazard lights and side

repeaters flash once to indicate

unlocking.

The range within which the

remote control will operate

This varies according to the

environment: therefore take care

when handling the remote control

that you do not inadvertently lock

or unlock the doors.

Note: On certain vehicles, if no door

is opened within approximately

30 seconds of unlocking the door

using the remote control, the doors

will lock again automatically.

QXBIUDB*T[G3DJH

MEGANE SCENIC MONOSPACE NU 679-3 C:\Documentum\Checkout\nu679-3_eng_T1.WIN 25/9/2002 11:10 -page10

1.04

RADIO FREQUENCY REMOTE CONTROL DOOR LOCKS (continued)

Interference

Interference caused by factors in the

immediate vicinity (external

installations or the use of

equipment operating on the same

frequency as the remote control)

may affect the operation of the

remote control.

If you lose your keys or need

another set of keys (or a remote

control unit), contact your

RENAULT Dealer.

• It will be necessary to take the

vehicle to your RENAULT Dealer

if you need to replace a key

because both the vehicle and all

the keys are needed to initialize

the system.

• No more than four keys

(including the remote controls)

can be used on one vehicle.

If the remote control unit will not

operate:

•Make sure that the batteries are

always in good condition - they

last for approximately two years.

• Check that the remote control is

correctly synchronized.

In both instances refer to the

information on the radio frequency

remote control: batteries, on the

following page.

QXBIUDB*T[G3DJH

MEGANE SCENIC MONOSPACE NU 679-3 C:\Documentum\Checkout\nu679-3_eng_T1.WIN 25/9/2002 11:10 -page11

1.05

RADIO FREQUENCY REMOTE CONTROL DOOR LOCKING: BATTERIES

Replacing batteries

Remove screw 1, open the unit

(using a coin, for example) and

replace battery 2according to the

direction marked on the cover.

Note: When replacing the battery, it

is advisable not to touch the

electronic circuit in the key cover.

Do not dump your used

batteries in the country-

side, give them to an

organisation responsible

for collecting and recycling

batteries.

The batteries can be obtained from

your RENAULT Dealer.

These batteries should last about

two years. There is a delay of

1 second between locking and

unlocking actions.

Synchronizing the remote

control

After changing the batteries, it may

be necessary to synchronize the

remote control.

From inside the vehicle:

• Press the plip remote control for

approximately 10 seconds until

battery indicator light 3goes out;

• Release and then press it twice in

succession.

If this procedure is not successful,

contact your RENAULT Dealer.
