HSG2004

SiGe HBT

High Frequency Medium Power Amplifier REJ03G0484-0400

Rev.4.00

Jun 21, 2006

Features

• High Transition Frequency

fT= 30 GHz typ.

• Low Distortion and Excellent Linearity

P1dB at output = +14.5 dBm typ. f = 5.8 GHz

• High Collector to Emitter Voltage

VCEO = 5 V

• Ideal for 2 GHz, 5 GHz Band applications. e.g. WLAN, Digital cordless phone.

Outline

Renesas Package code: PWQN0008ZA-A

(Package name: HWQFN-8 <TNP-8TV>)

1. Collecto

2. Collecto

3. Collecto

4. Emitter

5. Emitter

6. Base

7. Emitter

8. Emitter

9. Emitter

765

2004

Note: Marking is “2004”.

Absolute Maximum Ratings

(Ta = 25°C)

Item Symbol Ratings Unit

Collector to base voltage VCBO 12 V

Collector to emitter voltage VCEO 5 V

Emitter to base voltage VEBO 1.2 V

Collector current IC200 mA

Collector power dissipation Pc 1Note W

Junction temperature Tj 150 °C

Storage temperature Tstg –55 to +150 °C

Note: Value on PCB (40 x 40 x 1.0 mm)

HSG2004

Rev.4.00 Jun 21, 2006 page 2 of 12

Electrical Characteristics

(Ta = 25°C)

Item Symbol Min Typ Max Unit Test Conditions

DC current transfer ratio hFE 170 240 320 V

CE = 3 V, IC= 30 mA

Reverse Transfer Capacitance Cre 0.6 pF

VCB = 3 V, IE= 0, f = 1 MHz,

emitter grounded

Transition Frequency fT30.0 GHz

VCE = 3 V, IC= 30 mA,

f = 1 GHz

Maximum Stable Gain MSG 14 15.5 dB

VCE = 3 V, IC= 30 mA,

f = 5.8 GHz

Maximum Available Gain MAG 21 dB

VCE = 3 V, IC= 30 mA,

f = 2.4 GHz

Maximum Available Gain MAG 12 dB

VCE = 3 V, IC= 30 mA,

f = 5.8 GHz

Power Gain PG 11.5 dB

VCE = 3.6 V, Iidle = 30 mA,

f = 5.8 GHz, Pin = +0 dBm

1dB Compression Point at output P1dB +14.5 dBm

VCE = 3.6 V, Iidle = 30 mA,

f = 5.8 GHz

Saturation Output Power Po(sat) +22 dBm

VCE = 3.6 V, Iidle = 30 mA,

f = 5.8 GHz, Pin = +0 dBm

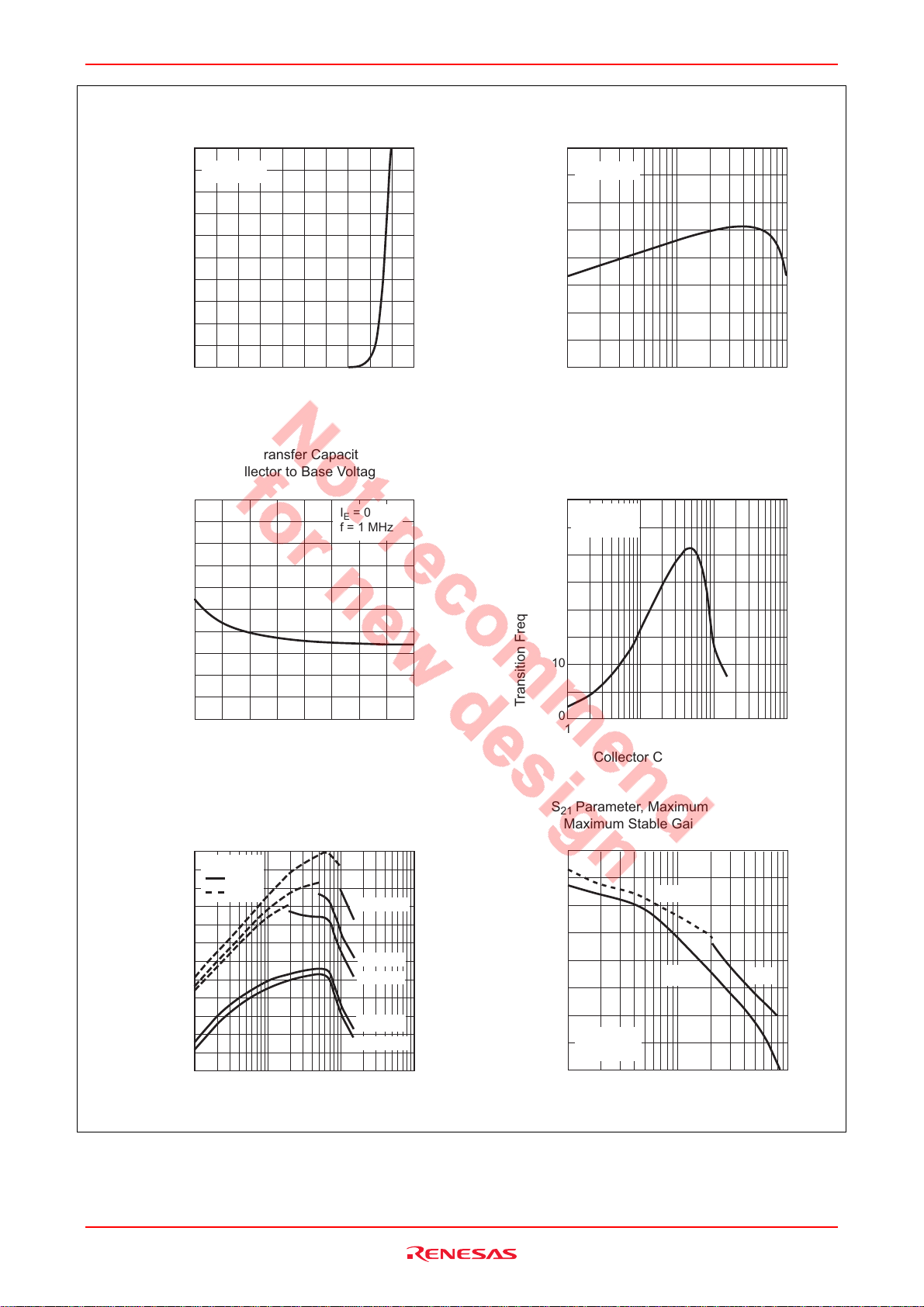

Main Characteristics

0 50 100 150 20

Collector Power Dissipation Pc*(mW)

Collector Power Dissipation Curve

Ambient Temperature T

(°C)

1500

1000

500

*(4 x 4 x 1mm) on PCB

HSG2004

Rev.4.00 Jun 21, 2006 page 3 of 12

Collector Current I

(mA)

Maximum Stable Gain MSG (dB)

Maximum Available Gain MAG (dB)

Maximum Stable Gain, Maximum Available Gain

vs. Collector Current

1 10 100 1000

0.1 1 10

Frequency f (GHz)

Parameter, Maximum Available Gain,

Maximum Stable Gain vs. Frequency

100

0 0.2 0.4 0.6 0.8 1.0

Base to Emitter Voltage V

(V)

Collector Current I

(mA)

Typical Transfer Characteristics

200

1 10 100

Collector Current I

(mA)

DC Current Transfer Ratio h

(-)

DC Current Transfer Ratio vs.

Collector Current

300

400

100

Reverse Transfer Capacitanse C

(pF)

Reverse Transfer Capacitanse vs.

Collector to Base Voltage

0.4

0.3

01234

0.5

Collector to Base Voltage V

(V)

0.2

0.1

1 10 100 1000

Collector Current I

(mA)

Transition Frequency f

(GHz)

Transition Frequency vs.

Collector Current

= 0

f = 1 MHz

= 3 V

= 30 mA

MSG

|S21|

MAG

VCE = 3 V

= 3 V

VCE = 3 V

f = 1 GHz

5.8 GHz

5.2 GHz

1.8 GHz

2.4 GHz

= 3 V

MAG

MSG

Parameter |S

(dB)

Maximum Stable Gain MSG (dB)

Maximum Available Gain MAG (dB)

HSG2004

Rev.4.00 Jun 21, 2006 page 4 of 12

2.4 GHz Characteristics

Input Power Pin (dBm)

Output Power Pout (dBm)

Power Gain PG (dB)

-5

-10

100

150

200

300

Pin - Pout Characteristics

(mA)

Evaluation Board Circuit

Pin - Pout Characteristics

-20

-10

-40

-20

1.5 3.0 4.02.51.0

Frequency f (GHz)

S parameter (dB)

S parameter vs. Frequency

-20

-40

-40 0 40-20-60

Input Power Pin (dBm)

3rd. Order Intermodulation Distortion (IMD3)

-50 20

2.0 3.5

-30

-10

-40

-20

1.5 3.0 4.02.5

1.0

Frequency f (GHz)

S parameter (dB)

S parameter vs. Frequency

2.0 3.5

-30

S21

S22

S12

S11

= 3.6 V

= 40 mA

S21

S22

S12

S11

= 3.6 V

= 30 mA

-30

-10

= 3.6 V

idle

= 30 mA

f = 2.4 GHz

Fundamental

(1tone)

IMD3

(2tone: ∆f = 1MHz)

250

Pout / IMD3 (dBm)

OUT

C : 1 pF

R : 27 Ω

VCC

VBB:Bias Control

C : 1 to 2 pF

L : 5.6 nH

L : 1.5 nH

C : 2 pF

C : 0.9 pF

L : 1.8 nH

L : 10 nH

10 pF 1000 pF *1 µF

1000 pF*1 µF 10 pF

= 3.6 V

idle

= 30 mA

f = 2.4 GHz

out

HSG2004

Rev.4.00 Jun 21, 2006 page 5 of 12

5.8 GHz Characteristics

Input Power Pin (dBm)

0-10

10 200

- P

out

Characteristics

(mA)

OUT

0.5 pF

*1 µF

0.3 pF

1000 pF

20 Ω

2 pF

VCC

VBB:Bias Control

1000 pF

0.5 pF

10 pF 10 pF

Evaluation Board Circuit

- P

out

Characteristics

-20

-10

-30

-20

57864

Frequency f (GHz)

S parameter (dB)

S parameter vs. Frequency

-20

-40

-40 0 40-20-60

Input Power P

(dBm)

out

/ IMD3 (dBm)

3rd. Order Intermodulation Distortion (IMD3)

-60

100

150

200

250

Output Power P

out

(dBm)

Power Gain PG (dB)

-10

-30

-20

57864

Frequency f (GHz)

S parameter (dB)

S parameter vs. Frequency

= 3.6 V

idle

= 30 mA

f = 5.8 GHz

Fundamental

(1tone)

IMD3

(2tone:∆f = 1MHz)

S21

S22

S12

S11

= 3.6 V

= 40 mA

S21

S22

S12

S11

= 3.6 V

= 30 mA

Pout

Iop

= 3.6 V

idle

= 30 mA

f = 5.8 GHz

HSG2004

Rev.4.00 Jun 21, 2006 page 6 of 12

Condition: V

= 3 V, I

= 30 mA, Zo = 50 Ω

100 to 3000 MHz (100 MHz Step)

3200 to 6000 MHz (200 MHz Step)

Condition: V

= 3 V, I

= 30 mA, Zo = 50 Ω

100 to 3000 MHz (100 MHz Step)

3200 to 6000 MHz (200 MHz Step)

1.5

-2

-3

-4

-5

-10

-.2

-.4

-.6 -.8 -1 -1.5

.2 .4 .6 .8 12345

1.5 10 0°

30°

60°

90°

120°

150°

180°

-150°

-90°

-60°

-30°

-120°

30°

60°

90°

120°

150°

180°

-150°

-90°

-60°

-30°

-120°

1.5

-2

-3

-4

-5

-10

-.2

-.4

-.6 -.8 -1 -1.5

.2 .4 .6 .8 12345

1.5 10

Scale: 14 / div.

Scale: 0.04 / div.

0°

Condition: V

= 3 V, I

= 30 mA, Zo = 50 Ω

100 to 3000 MHz (100 MHz Step)

3200 to 6000 MHz (200 MHz Step)

Condition: V

= 3 V, I

= 30 mA, Zo = 50 Ω

100 to 3000 MHz (100 MHz Step)

3200 to 6000 MHz (200 MHz Step)

Parameter vs. Frequency S

Parameter vs. Frequency

Parameter vs. Frequency S

Parameter vs. Frequency

HSG2004

Rev.4.00 Jun 21, 2006 page 7 of 12

Condition: V

= 3.3 V, I

= 30 mA, Zo = 50 Ω

100 to 3000 MHz (100 MHz Step)

3200 to 6000 MHz (200 MHz Step)

Condition: V

= 3.3 V, I

= 30 mA, Zo = 50 Ω

100 to 3000 MHz (100 MHz Step)

3200 to 6000 MHz (200 MHz Step)

1.5

-2

-3

-4

-5

-10

-.2

-.4

-.6 -.8 -1 -1.5

.2 .4 .6 .8 12345

1.5 10 0°

30°

60°

90°

120°

150°

180°

-150°

-90°

-60°

-30°

-120°

30°

60°

90°

120°

150°

180°

-150°

-90°

-60°

-30°

-120°

1.5

-2

-3

-4

-5

-10

-.2

-.4

-.6 -.8 -1 -1.5

.2 .4 .6 .8 12345

1.5 10

Scale: 14 / div.

Scale: 0.04 / div.

0°

Condition: V

= 3.3 V, I

= 30 mA, Zo = 50 Ω

100 to 3000 MHz (100 MHz Step)

3200 to 6000 MHz (200 MHz Step)

Condition: V

= 3.3 V, I

= 30 mA, Zo = 50 Ω

100 to 3000 MHz (100 MHz Step)

3200 to 6000 MHz (200 MHz Step)

Parameter vs. Frequency S

Parameter vs. Frequency

Parameter vs. Frequency S

Parameter vs. Frequency

HSG2004

Rev.4.00 Jun 21, 2006 page 8 of 12

Condition: V

= 3.6 V, I

= 30 mA, Zo = 50 Ω

100 to 3000 MHz (100 MHz Step)

3200 to 6000 MHz (200 MHz Step)

Condition: V

= 3.6 V, I

= 30 mA, Zo = 50 Ω

100 to 3000 MHz (100 MHz Step)

3200 to 6000 MHz (200 MHz Step)

1.5

-2

-3

-4

-5

-10

-.2

-.4

-.6 -.8 -1 -1.5

.2 .4 .6 .8 12345

1.5 10 0°

30°

60°

90°

120°

150°

180°

-150°

-90°

-60°

-30°

-120°

30°

60°

90°

120°

150°

180°

-150°

-90°

-60°

-30°

-120°

1.5

-2

-3

-4

-5

-10

-.2

-.4

-.6 -.8 -1 -1.5

.2 .4 .6 .8 12345

1.5 10

Scale: 14 / div.

Scale: 0.04 / div.

0°

Condition: V

= 3.6 V, I

= 30 mA, Zo = 50 Ω

100 to 3000 MHz (100 MHz Step)

3200 to 6000 MHz (200 MHz Step)

Condition: V

= 3.6 V, I

= 30 mA, Zo = 50 Ω

100 to 3000 MHz (100 MHz Step)

3200 to 6000 MHz (200 MHz Step)

Parameter vs. Frequency S

Parameter vs. Frequency

Parameter vs. Frequency S

Parameter vs. Frequency

HSG2004

Rev.4.00 Jun 21, 2006 page 9 of 12

S parameter

(VCE = 3 V, IC= 30 mA, Zo = 50 Ω)

S11 S21 S12 S22

f (MHz) MAG ANG (deg.) MAG ANG (deg.) MAG ANG (deg.) MAG ANG (deg.)

100 0.684 -61.3 47.90 147.5 0.0103 39.8 1.006 -19.0

200 0.708 -53.6 39.45 142.1 0.0168 50.5 0.811 -53.9

300 0.664 -81.8 35.97 128.9 0.0180 41.9 0.685 -71.2

400 0.644 -105.0 32.90 117.8 0.0192 36.7 0.601 -84.9

500 0.638 -121.4 29.04 109.5 0.0214 34.3 0.543 -94.8

600 0.640 -134.8 25.80 102.8 0.0225 31.8 0.505 -102.7

700 0.640 -143.6 22.83 97.7 0.0240 29.2 0.480 -109.5

800 0.640 -150.6 20.30 93.4 0.0238 28.5 0.460 -115.0

900 0.641 -156.5 18.23 89.8 0.0242 30.5 0.447 -119.7

1000 0.641 -161.6 16.44 86.5 0.0249 30.4 0.437 -123.8

1100 0.644 -166.1 15.00 83.6 0.0250 27.9 0.431 -127.3

1200 0.648 -169.8 13.75 80.9 0.0252 29.1 0.427 -130.2

1300 0.649 -173.1 12.70 78.4 0.0258 29.4 0.425 -132.7

1400 0.651 -176.2 11.78 76.0 0.0262 29.7 0.423 -134.9

1500 0.651 -179.2 10.97 73.9 0.0263 30.7 0.423 -136.9

1600 0.656 177.9 10.23 71.8 0.0270 32.4 0.424 -138.7

1700 0.660 175.5 9.58 69.9 0.0274 33.0 0.425 -140.3

1800 0.665 173.5 9.01 68.0 0.0282 33.6 0.427 -141.7

1900 0.667 171.5 8.52 66.1 0.0285 34.5 0.429 -143.0

2000 0.668 169.3 8.08 64.1 0.0294 34.3 0.432 -144.1

2100 0.669 167.1 7.65 62.4 0.0297 35.2 0.435 -145.2

2200 0.673 164.9 7.27 60.7 0.0304 35.9 0.438 -146.2

2300 0.678 163.1 6.92 59.2 0.0310 36.5 0.441 -147.3

2400 0.683 161.5 6.61 57.6 0.0318 37.7 0.444 -148.0

2500 0.687 160.0 6.32 55.9 0.0327 38.0 0.448 -148.9

2600 0.687 158.2 6.05 54.2 0.0337 37.6 0.450 -149.6

2700 0.688 156.4 5.80 52.5 0.0339 38.8 0.454 -150.3

2800 0.689 154.5 5.57 50.9 0.0348 38.8 0.457 -150.9

2900 0.693 152.9 5.35 49.5 0.0359 39.4 0.460 -151.6

3000 0.698 151.5 5.16 48.2 0.0364 39.9 0.463 -152.2

3200 0.702 148.6 4.80 45.0 0.0381 40.5 0.468 -153.4

3400 0.703 145.0 4.48 41.8 0.0399 40.5 0.473 -154.6

3600 0.709 142.1 4.19 39.0 0.0418 40.7 0.477 -156.0

3800 0.712 139.0 3.95 36.0 0.0436 40.1 0.480 -157.3

4000 0.715 135.4 3.72 32.7 0.0453 39.9 0.483 -158.9

4200 0.723 132.3 3.51 29.9 0.0477 39.2 0.485 -160.6

4400 0.726 129.2 3.33 27.0 0.0489 39.3 0.487 -162.5

4600 0.730 125.4 3.14 23.7 0.0511 38.3 0.490 -164.8

4800 0.742 122.4 2.98 20.8 0.0531 37.1 0.493 -167.0

5000 0.747 119.4 2.84 17.8 0.0555 36.5 0.497 -169.5

5200 0.753 115.9 2.69 14.5 0.0571 35.1 0.503 -172.1

5400 0.765 113.0 2.55 11.5 0.0592 33.4 0.509 -174.9

5600 0.773 110.3 2.43 8.4 0.0612 31.6 0.517 -177.8

5800 0.779 106.9 2.30 5.3 0.0628 30.0 0.525 179.3

6000 0.790 104.5 2.18 2.2 0.0643 28.2 0.534 176.2

HSG2004

Rev.4.00 Jun 21, 2006 page 10 of 12

S parameter

(VCE = 3.3 V, IC= 30 mA, Zo = 50 Ω)

S11 S21 S12 S22

f (MHz) MAG ANG (deg.) MAG ANG (deg.) MAG ANG (deg.) MAG ANG (deg.)

100 0.674 -60.3 48.82 147.33 0.0124 106.4 0.755 -22.6

200 0.708 -53.6 40.51 141.98 0.0146 57.5 0.814 -53.5

300 0.668 -81.6 36.68 128.82 0.0189 39.9 0.690 -70.4

400 0.646 -104.3 33.30 117.87 0.0211 42.3 0.598 -83.9

500 0.637 -121.1 29.33 109.63 0.0216 34.1 0.544 -94.1

600 0.638 -134.3 26.04 102.93 0.0229 32.8 0.506 -102.0

700 0.640 -143.1 23.01 97.82 0.0234 31.7 0.480 -108.7

800 0.639 -150.2 20.48 93.51 0.0239 29.8 0.460 -114.2

900 0.639 -156.1 18.38 89.85 0.0244 30.0 0.448 -119.1

1000 0.639 -161.2 16.56 86.63 0.0247 28.7 0.436 -123.2

1100 0.643 -165.7 15.11 83.71 0.0248 29.6 0.431 -126.6

1200 0.647 -169.5 13.85 80.95 0.0252 27.6 0.426 -129.5

1300 0.648 -172.8 12.80 78.44 0.0259 30.7 0.424 -132.0

1400 0.649 -175.9 11.87 76.09 0.0258 30.7 0.422 -134.3

1500 0.650 -178.9 11.05 73.89 0.0269 31.0 0.422 -136.4

1600 0.653 178.2 10.31 71.81 0.0273 32.5 0.423 -138.2

1700 0.658 175.8 9.66 69.89 0.0276 31.8 0.424 -139.8

1800 0.663 173.7 9.08 67.99 0.0281 33.4 0.426 -141.2

1900 0.665 171.7 8.58 66.10 0.0288 34.3 0.428 -142.5

2000 0.667 169.5 8.14 64.14 0.0294 35.0 0.431 -143.6

2100 0.667 167.3 7.71 62.39 0.0297 35.5 0.434 -144.8

2200 0.671 165.1 7.33 60.67 0.0305 35.8 0.437 -145.7

2300 0.676 163.3 6.97 59.20 0.0311 36.7 0.440 -146.7

2400 0.682 161.6 6.66 57.56 0.0318 37.6 0.443 -147.6

2500 0.685 160.1 6.36 55.90 0.0322 37.5 0.447 -148.4

2600 0.685 158.4 6.10 54.14 0.0337 39.1 0.450 -149.2

2700 0.687 156.5 5.85 52.44 0.0342 38.8 0.453 -149.8

2800 0.688 154.7 5.61 50.90 0.0348 39.2 0.456 -150.6

2900 0.692 153.1 5.39 49.52 0.0355 39.3 0.459 -151.2

3000 0.696 151.6 5.19 48.15 0.0361 39.5 0.462 -151.8

3200 0.701 148.7 4.84 44.97 0.0380 40.5 0.467 -153.0

3400 0.702 145.2 4.51 41.72 0.0397 40.5 0.472 -154.2

3600 0.708 142.3 4.22 39.02 0.0414 40.1 0.476 -155.6

3800 0.710 139.2 3.98 35.99 0.0437 41.0 0.479 -156.9

4000 0.714 135.5 3.75 32.71 0.0458 40.5 0.483 -158.5

4200 0.722 132.4 3.54 29.88 0.0477 39.9 0.484 -160.3

4400 0.724 129.4 3.35 26.99 0.0490 38.8 0.487 -162.2

4600 0.729 125.5 3.17 23.61 0.0509 38.5 0.489 -164.4

4800 0.740 122.4 3.01 20.69 0.0530 37.5 0.493 -166.7

5000 0.746 119.5 2.86 17.76 0.0554 36.7 0.497 -169.1

5200 0.752 115.9 2.71 14.45 0.0573 35.6 0.502 -171.7

5400 0.764 113.1 2.57 11.42 0.0592 33.8 0.509 -174.6

5600 0.773 110.4 2.45 8.38 0.0614 31.9 0.516 -177.5

5800 0.778 107.0 2.32 5.20 0.0623 30.6 0.524 179.6

6000 0.789 104.5 2.19 2.09 0.0639 28.1 0.534 176.6

Indice

Altri manuali Renesas Hardware per computer

Renesas

Renesas DP-64S Manuale utente

Renesas

Renesas Single-Chip Microcomputer H8/36079 Istruzioni operative

Renesas

Renesas H8S/2214 Series Manuale utente

Renesas

Renesas R0E53033GCFG90 Manuale utente

Renesas

Renesas RX24T Manuale utente

Renesas

Renesas R8C series Manuale utente

Renesas

Renesas RL78 Series Manuale utente

Renesas

Renesas H8S/2628 Manuale utente

Renesas

Renesas SH7124 Manuale utente

Renesas

Renesas SH7616 Manuale utente

Renesas

Renesas IE850A Manuale utente

Renesas

Renesas R0E0144TNPFK00 Manuale utente

Renesas

Renesas H8/329 Series Manuale utente

Renesas

Renesas Emulation Memory Board R0E330850MSRC0 Manuale utente

Renesas

Renesas H8SX/1500 Series Manuale utente

Renesas

Renesas M3T-DUMMY80 Manuale utente

Renesas

Renesas Single-Chip Microcomputer M306NKT3 Manuale utente

Renesas

Renesas H8S series Manuale utente

Renesas

Renesas SuperH SH-4A Istruzioni per il montaggio

Renesas

Renesas Emulator MCU Board M38D29T2-RLFS Manuale utente

Renesas

Renesas RSKM16C6NK Manuale utente

Renesas

Renesas R0E436640CFK20 Manuale utente

Renesas

Renesas H8/38099 Manuale utente

Renesas

Renesas Emulation Pod forM16C/20 Series... Manuale utente

Manuali Hardware per computer popolari di altre marche

EMC2

EMC2 VNX Series Manuale del proprietario

Panasonic

Panasonic DV0PM20105 Manuale utente

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuale utente

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuale utente

Raidon

Raidon iT2300 Manuale utente

National Instruments

National Instruments PXI-8186 Manuale utente

Hauppauge

Hauppauge WinTV-HVR-2250 Manuale utente

Kontron

Kontron CP6002 Manuale utente

Manhattan

Manhattan 702843 Manuale utente

Aphex

Aphex 230 Manuale utente

AMD

AMD Phenom II Manuale operativo

Intel

Intel NUC 12 Pro Manuale utente

dbx

dbx Zone Pro 1260 Manuale utente

Galaxy

Galaxy GHDX2-2430S-24F4D Manuale utente

Intel

Intel AXXRMFBU4 Manuale utente

Kontron

Kontron DIMM-PC/MD Manuale utente

ST X-NUCLEO-SAFEA1B Istruzioni operative

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuale utente
