Quick guide

ReSound LiNX Quattro™61

Product: ReSound LiNX Quattro

Model: 61

Serial number (R):

_______________________________

Serial number (L):

_______________________________

Battery size: Lithium-ion

My hearing aid information

PROGRAM WHEN TO USE BEEPS

Programs:

(if set up by your hearing care professional)

5. LED light indicator

6. Microphones

7. Right/Left indicator

8. Serial number and model

1. Push button

2. Receiver

3. Open dome

4. Receiver wire

View ReSound’s hearing aid tutorial videos at youtube.com/resoundus.

Get to know your hearing aid

Your hearing aids are automatically

turned on when they are removed

from the hearing aid charger. They

can also be turned on and o manu-

ally by pressing the push button for 5

seconds.

What you need to know

Getting started: On/O function

6.2 Hearing aid charger

1. Hearing aid charging bay

2. Receiver bay

3. Hearing aid battery indicator

4. Left indicator (blue)

5. Right indicator (red)

6. Charger battery indicator

7. Charging cable

8. Charging cable port (micro-USB)

• The ﬁve LEDs at the front of the

charger indicate the battery

status of the hearing aid with

the lowest battery level for 10

seconds when inserted or

removed (while the hearing aids

continue to charge).

Hearing Aid Battery Indicators

LEDs Battery Level

0-20%

20-40%

40-60%

60-80%

80-100%

When charging

Pulsating

When fully charged

On-until removed

How to charge your hearing aids

• Plug the power adaptor into

a power outlet and connect the

charging cable to the hearing aid

charger.

• Place both hearing aids in

the charging bays. The right side

is marked with a red dot and the

left side is marked by a blue dot.

• Place hearing aids so the receivers

go into the receiver bay.

• The LED on the hearing aids

slowly pulsates

when charging

and will stay solid

when fully charged.

How to charge the charger

• Plug the power

adaptor into a

power outlet and

connect the

charging cable

to the hearing aid

charger.

• The three LEDs at the back of

the charger show the battery

level of the hearing aid charger.

• When the hearing aid charger

is fully charged, it has a

capacity of at least 3 full

hearing aid charges before it

needs to be plugged in and

recharged.

LEDs Battery Level

LED is blinking

red. Less than 10%

power reserve.

10-33% charged

33-66% charged

66-100% charged

400965011 Rev A 2018.06

400965011

For more information

Refer to the user guide included in

your hearing aid box.

Your hearing care professional can

be reached at:

View ReSound hearing aid tutorial

videos at youtube.com/resoundus.

ReSound Government Services

8001 E Bloomington Freeway

Bloomington, MN 55420

USA

1.800.392.9932

www.resound.com/veterans

Manufacturer according

to FDA:

GN ReSound North America

8001 E Bloomington Freeway

Bloomington, MN 55420

USA

1.888.735.4327

resound.com

Flight mode:

Some airlines prohibit the use

of wireless hearing aids (RF

transmitters) onboard.

To use Flight mode, make sure this is

activated by your hearing care profes-

sional.

Follow these steps to turn on Flight

mode:

1. Turn the hearing aid o.

2. Press the push button for 9

seconds.

3. The hearing aid responds with

four times double ﬂashes and

double-dings for ten seconds.

To deactivate Flight mode:

1. Turn the hearing aids o and then

on.

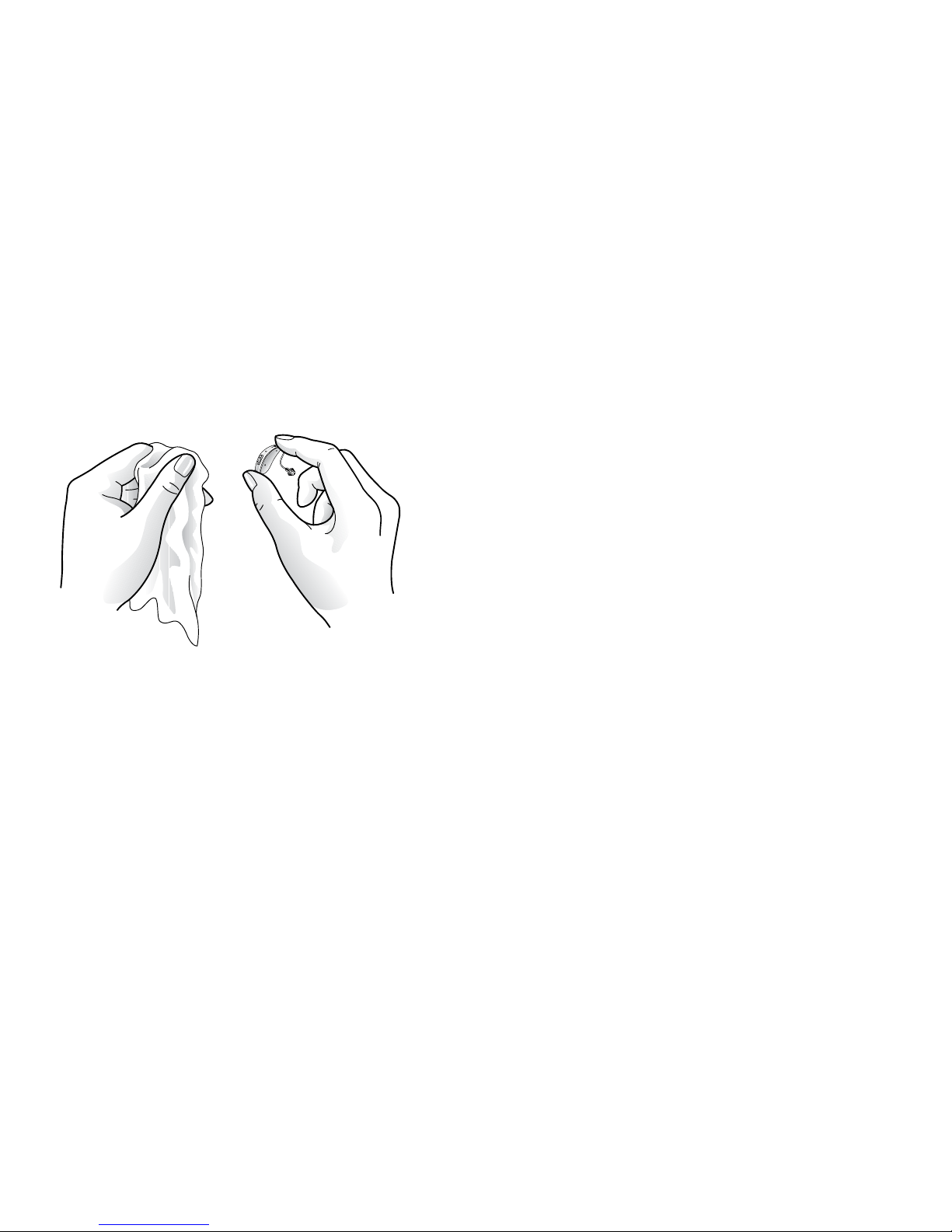

Daily: Clean your hearing aid.

Keep your hearing aids dry. Clean

the hearing aids using a soft cloth

or tissue.

Weekly: Clean the receiver

tubes and domes (E).

Use a soft cloth to clean the

receiver tube and dome on the

outside. Do not use water when

you are cleaning the receiver tubes.

Regular care & maintenance

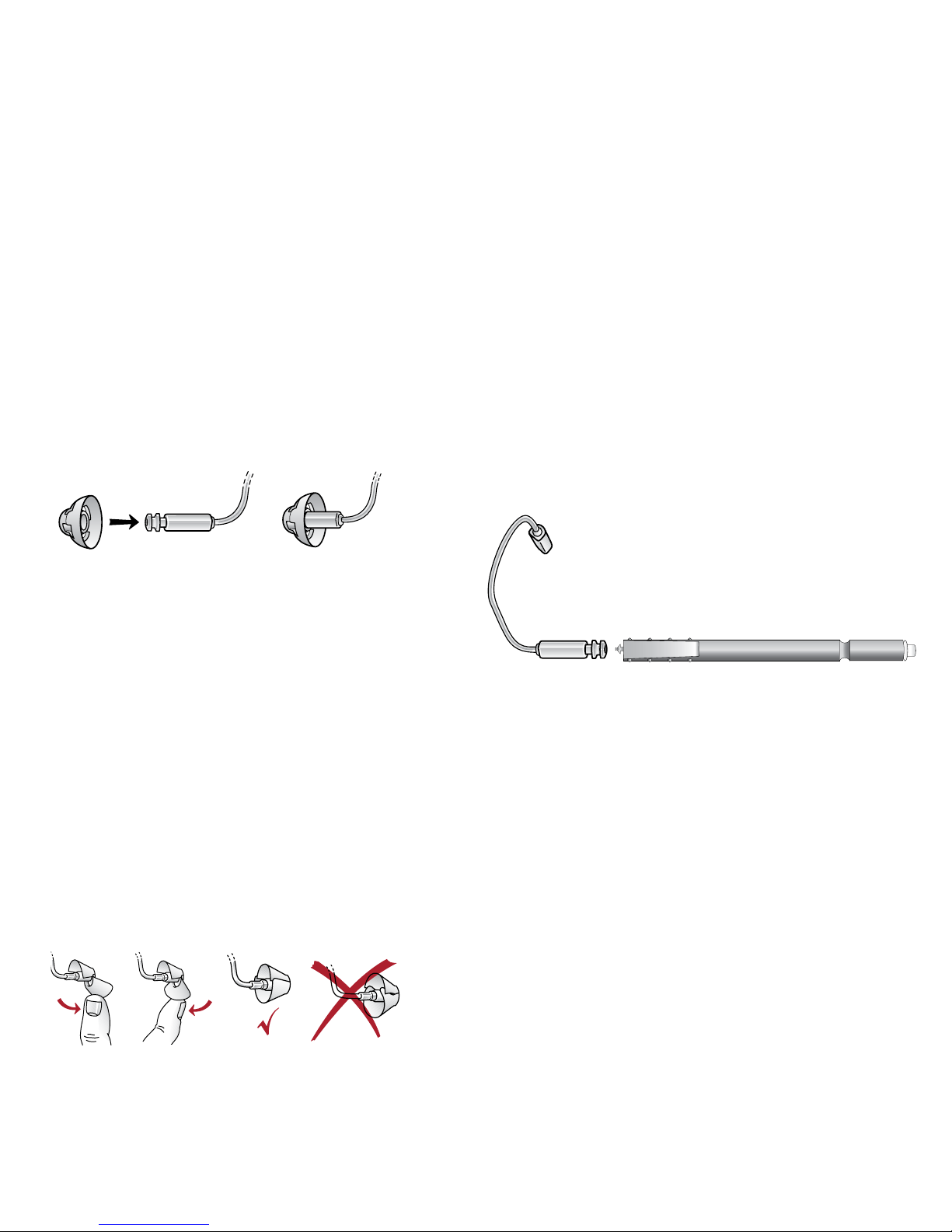

Monthly: Change the wax guard or

see your hearing care professional.

For changing CeruSTOP™(white)

wax guards, complete the following

steps:

Removal: Insert the removal side

of the wax guard tool into the used

wax guard so that the shaft of the

tool is touching the rim of the

wax guard. Slowly pull the wax

guard straight out.

Insertion: To insert the new wax

guard, gently press the replacement

side of the wax guard tool straight

into the hole of the sound outlet

until the outer ring lies ﬂush with the

outside of the receiver. Pull the tool

straight out. The new wax guard will

remain in place.

removal side replacement side

Wax guard tool

How to apply domes

It is recommended that your hearing care

professional change domes, as incorrect

dome replacement could result in injury.

ReSound standard domes

1. Push the new dome over the receiver.

2. Make sure that the new dome is

properly and securely mounted.

ReSound tulip domes

Tulip domes are mounted in a similar manner to standard domes, but a few extra steps are required. Tulip

domes consist of two “petals”. It is important to note that the largest petal is the outermost petal. To ensure

this:

1. Push the largest petal away from

the receiver tube using a ﬁnger. This

bends the petal forward.

2. Then push the largest “petal” back,

and it will be placed on top of the

smaller petal.

400344011-US-15.04-Rev.B.indd 30 20-05-2015 11:48:59

How to apply domes

It is recommended that your hearing care

professional change domes, as incorrect

dome replacement could result in injury.

ReSound standard domes

1. Push the new dome over the receiver.

2. Make sure that the new dome is

properly and securely mounted.

ReSound tulip domes

Tulip domes are mounted in a similar manner to standard domes, but a few extra steps are required. Tulip

domes consist of two “petals”. It is important to note that the largest petal is the outermost petal. To ensure

this:

1. Push the largest petal away from

the receiver tube using a ﬁnger. This

bends the petal forward.

2. Then push the largest “petal” back,

and it will be placed on top of the

smaller petal.

400344011-US-15.04-Rev.B.indd 30 20-05-2015 11:48:59

Regular care & maintenance

As needed: Change dome (E)

ReSound standard domes

1. Push the new dome over the

receiver.

2. Make sure that the new dome is

properly and securely maintained.

ReSound tulip domes

Tulip domes consist of two “petals”. It

is important that the largest petal is

the outermost petal. To ensure this:

1. Push the largest petal away from

the receiver tube using a ﬁnger.

This bends the petal forward.

2. Then push the largest petal

back, and it will be placed on top

of the smaller petal.

View ReSound hearing aid tutorial videos at youtube.com/resoundus.

BEEP/TONE INDICATION ACTION REQUIRED

Ding, ding, ding, dong Low battery Charge battery

Ding (5 or 10) Hearing aid is starting up After dings cease, hearing aid

is turned on

Ding-ding,

ding-ding, etc.

Hearing aid is in ﬂight mode Use in ﬂight mode if desired,

or turn the hearing aids o

and then on

Ripple tone Hearing aid is in streaming

mode

Use with wireless

accessory or press the push

button to exit streaming

mode

If there are any other problems not mentioned in this guide, please contact ReSound

or your hearing care professional.

Beep/tone indicators

SYMPTOM CAUSE POSSIBLE REMEDY

No sound Blocked earmold or tube

Blocked wax guard

Clean earmold or tube

Replace wax guard (D) or consult your hearing care professional

Not loud enough Blocked earmold or dome (E)

Change in hearing, volume too low

Excessive ear wax

Clean earmold, replace dome (E), replace guard (D)

Consult your hearing care professional

Excessive

whistling/feedback

Incorrect earmold placement

Incorrect dome (E) placement

Excessive ear wax

If none of the above

Re-insert earmold carefully

Re-insert dome (E)

Clean guard/consult your hearing care professional

Consult your hearing care professional

Wireless does not work Device may be in ﬂight mode Turn the hearing aid o and then back on

Hearing aid is not

charging

Does the hearing aid sit correctly in the

charger?

Is the hearing aid charger charged?

Reinsert the hearing aid in the charger.

Plug the charger into a power outlet and connect the

charger cable to the hearing aid charger.

Why do my hearing aids

not turn on automatical-

ly, although they have

been in the charger for

an extended period of

time?

If you leave your hearing aids in the charger

for more than 24 hours, the charger will go

into standby mode and turn o the power

of the hearing aids. If the charger runs out

of battery power during charging of the

hearing aids, it will instruct the hearing aids

to turn o power to preserve energy.

Remove the hearing aids from the charger and press the

push button for 5 seconds to turn the hearing aids on

manually.

Troubleshooting
