ReSound RT961-DRW Manuale utente
Technical Manual
RS CAMBRIDGE RIE Platform GN ReSound A/S
Global Technical Operations
https://gto.gnresound.com
Lautrupbjerg 7
DK-2750 Ballerup
Denmark
Doc 0371130 rev. F
Page 2 of 22
Not subject to issue control when printed
Table of Contents
Form-Factor-Matrix & Product Information...................................................................................... 3-4
Part list.................................................................................................................................................5
Part list - HSG parts......................................................................................................................... 6-8
Part list - SureFit receiver tubes ..........................................................................................................9
Part list - SureFit domes....................................................................................................................10
Part list - SureFit accessories............................................................................................................11
Disassembling procedure for size 312 & 13 DRW models.......................................................... 12-13
Replacing TOP HSG ASM (61-DRWC) .............................................................................................14
Replacing rec tube.............................................................................................................................15
Replacing wax guard/lter in rec tube ......................................................................................... 16-17
For internal GN Operations only........................................................................................................18
Part list - test equipment....................................................................................................................19
Test equipment ..................................................................................................................................20
HI testing ...........................................................................................................................................21
Wireless test......................................................................................................................................22
Doc 0371130 rev. F
Page 3 of 22
Not subject to issue control when printed

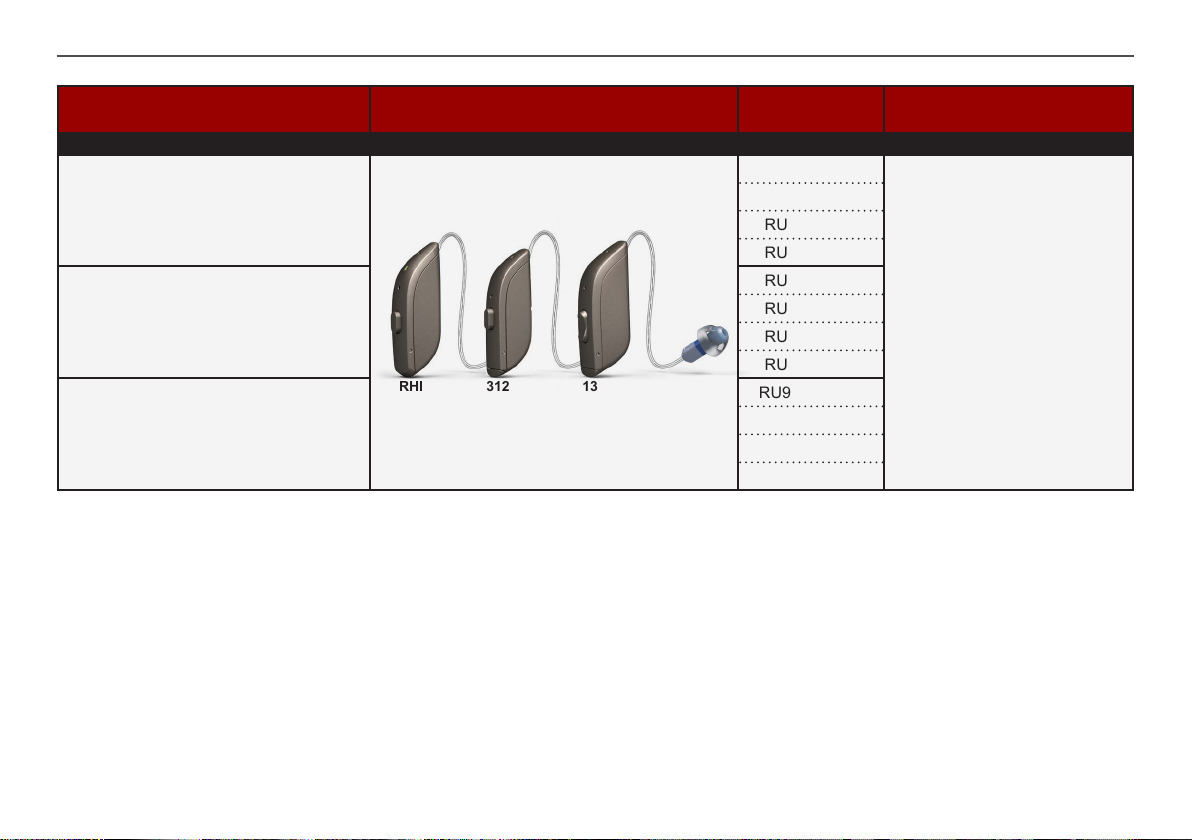

Form-Factor-Matrix & Product Information - OMNIA
The HIs are available with 4 selectable receiver power levels: Low Power (LP), Medium Power (MP),
High Power (HP) & Ultra Power (UP). The HI ts SureFit 3, 8 pin receiver tubes and the SureFit 3, 8
pin receiver M&RIE tubes
Platform CAMBRIDGE RIE C6 Product Model DATA SHEET
Wireless programming & HI test
Batt 312 zinc air
OMNIA
RU961-DRW
401872000 RIE&RHI
401876000 M&RIE
RU761-DRW
RU561-DRW
RU461-DRW
Wireless programming & HI test
Batt 13 zinc air
RU962-DRW
RU762-DRW
RU562-DRW
RU462-DRW
Wireless programming & HI test
Integrated Batt - rechargeable
RU961-DRWC
RU761-DRWC
RU561-DRWC
RU461-DRWC
RU61-DRWC:
Note that the TOP HSG ASM is the only HSG part which can be replaced. Due to the construction of
the HI, the BOT HSG must not be replaced
HIs are available in these colours:
Gold (GLD)
Warm Grey (WRM GRY)
Espresso (ESP)
Deep Black (DP BLK)
Bronze (BRNZ)
Champagne (CHMPN)
Sparkling Silver (SPK SIL)
Graphite (GRPH)
See also Data Sheets for more tech info
312 13RHI
Doc 0371130 rev. F
Page 4 of 22
Not subject to issue control when printed

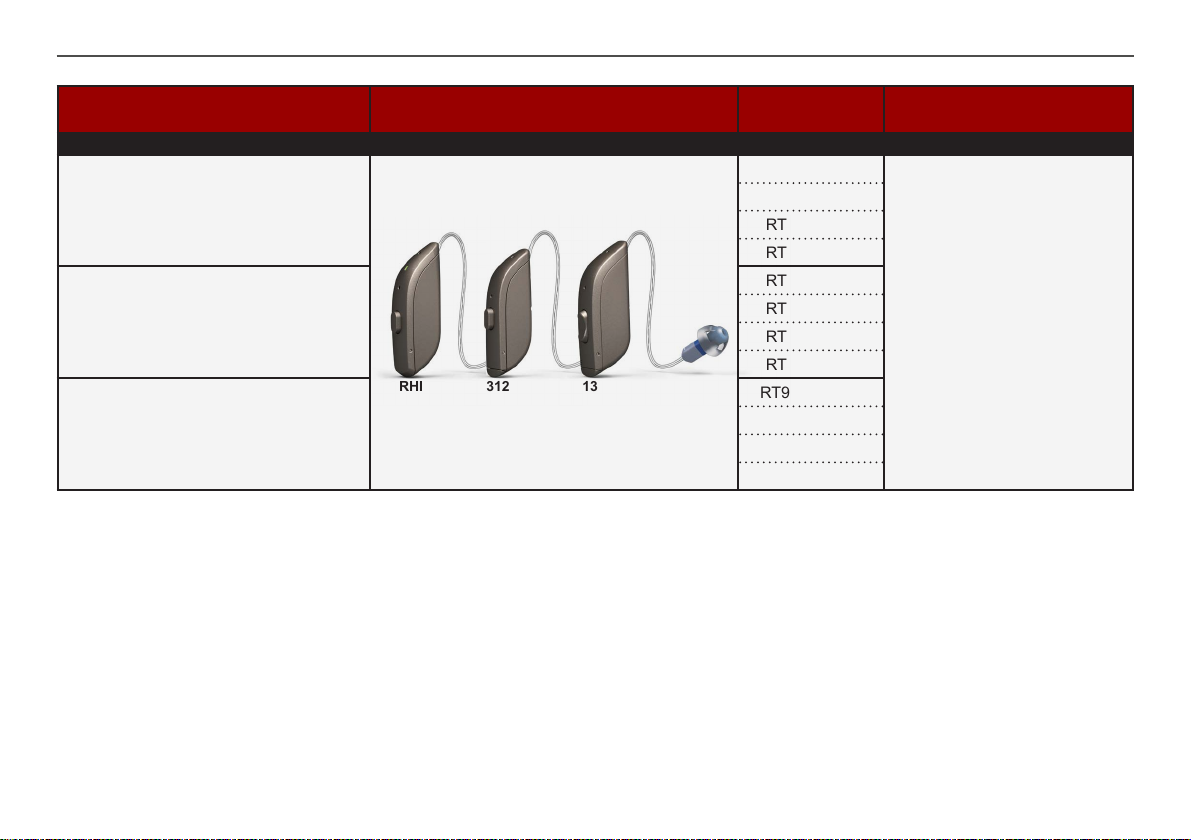

Form-Factor-Matrix & Product Information - ONE
The HIs are available with 4 selectable receiver power levels: Low Power (LP), Medium Power (MP),
High Power (HP) & Ultra Power (UP). The HI ts SureFit 3, 8 pin receiver tubes and the SureFit 3, 8
pin receiver M&RIE tubes
Platform CAMBRIDGE RIE C6 Product Model DATA SHEET
Wireless programming & HI test
Batt 312 zinc air
ONE
RT961-DRW
401304000 RIE&RHI
401361000 M&RIE
RT761-DRW
RT561-DRW
RT461-DRW
Wireless programming & HI test
Batt 13 zinc air
RT962-DRW
RT762-DRW
RT562-DRW
RT462-DRW
Wireless programming & HI test
Integrated Batt - rechargeable
RT961-DRWC
RT761-DRWC
RT561-DRWC
RT461-DRWC
RT61-DRWC:
Note that the TOP HSG ASM is the only HSG part which can be replaced. Due to the construction of
the HI, the BOT HSG must not be replaced
HIs are available in these colours:
Gold (GLD)
Warm Grey (WRM GRY)
Espresso (ESP)
Deep Black (DP BLK)
Bronze (BRNZ)
Champagne (CHMPN)
Sparkling Silver (SPK SIL)
Graphite (GRPH)
See also Data Sheets for more tech info
312 13RHI
Doc 0371130 rev. F
Page 5 of 22
Not subject to issue control when printed
Description Part No
PIN,0.60X2.50
(module pin sound outlet end,61-DRW) 20810100
PIN,0.60X6.60 (module pin BAT DR end,62-DRW) 15344300
PIN,0.60X4.85,W/3GROOVES
(BAT DR pin,61-DRW) 20649700
PIN,0.60X5.45,W/3GROOVES
(BAT DR pin,62-DRW) 19069900
PIN,0.60X6.80 (TOP HSG pin,61-DRW) 16949100
PIN,0.60X7.25 (TOP HSG pin,62-DRW) 16059800
PIN,0.60X7.35 (TOP HSG pin,61-DRWC) 21370600
Cleaning brush, black
17435000
Magnet
Cleaning
loop
Part List
SERV PIN TOOL ASM,BLK
21161685
(orange proto type tool is shown)
Description Part No
CLEANING BRUSH, BLK 17435000
PIN REMOVAL TOOL. PACKED (white tool) 15502500
AUTOPHONE MAGNETS 17294600
KIT,COLOR MARKERS,CAMBR RIE 13/312 20809900
COLOUR MARKER,BERLIN,RED 13/312 18924900
COLOUR MARKER,BERLIN,BLU 13/312 18924901
KIT,COLOR MARKERS,CRHI 20992600
SERVICE PIN TOOL ASM,BLK (61-DRWC) 21161685
KIT,REC CHANGE TOOL,SF3 (tool & guide) 21944100
The pin for the TOP
HSG is attached un-
der the transp cap
PIN REMOVAL TOOL
15502500
Colour mrk location (red circle)
312 & 13
Colour mrk location
(red circle)
RHI
The rec has a red
or blue conn lock
which will also in-
dicate R or L side
on all models
REC CHANGE TOOL
(shown from both sides)
Packed in a plastic bag
together with a guide
Doc 0371130 rev. F
Page 6 of 22
Not subject to issue control when printed
Part List - HSG Parts 61-DRW (BAT 312)
WRM GRY ESP DP BLK BRNZ CHMPN SPK SIL GRPHGLD
TOP HSG, mic lters & PB BAT DR & Retention bat
COLOUR TOP HSG ASM BOT HSG
(PTD with dierent logo)
BAT DOOR ASM
(di PFF PTD)
RT61-DRW RU61-DRW RT61-DRW RU61-DRW
GOLD 21512570 21512670 22324270 21512770 22324370
WARM GREY 21512571 21512671 22324271 21512771 22324371
ESPRESSO 21512572 21512672 22324272 21512772 22324372
DEEP BLACK 21512573 21512673 22324273 21512773 22324373
BRONZE 21512574 21512674 22324274 21512774 22324374
CHAMPAGNE 21512575 21512675 22324275 21512775 22324375
SPARKLING SILVER 21512576 21512676 22324276 21512776 22324376
GRAPHITE 21512577 21512677 22324277 21512777 22324377
Doc 0371130 rev. F
Page 7 of 22
Not subject to issue control when printed

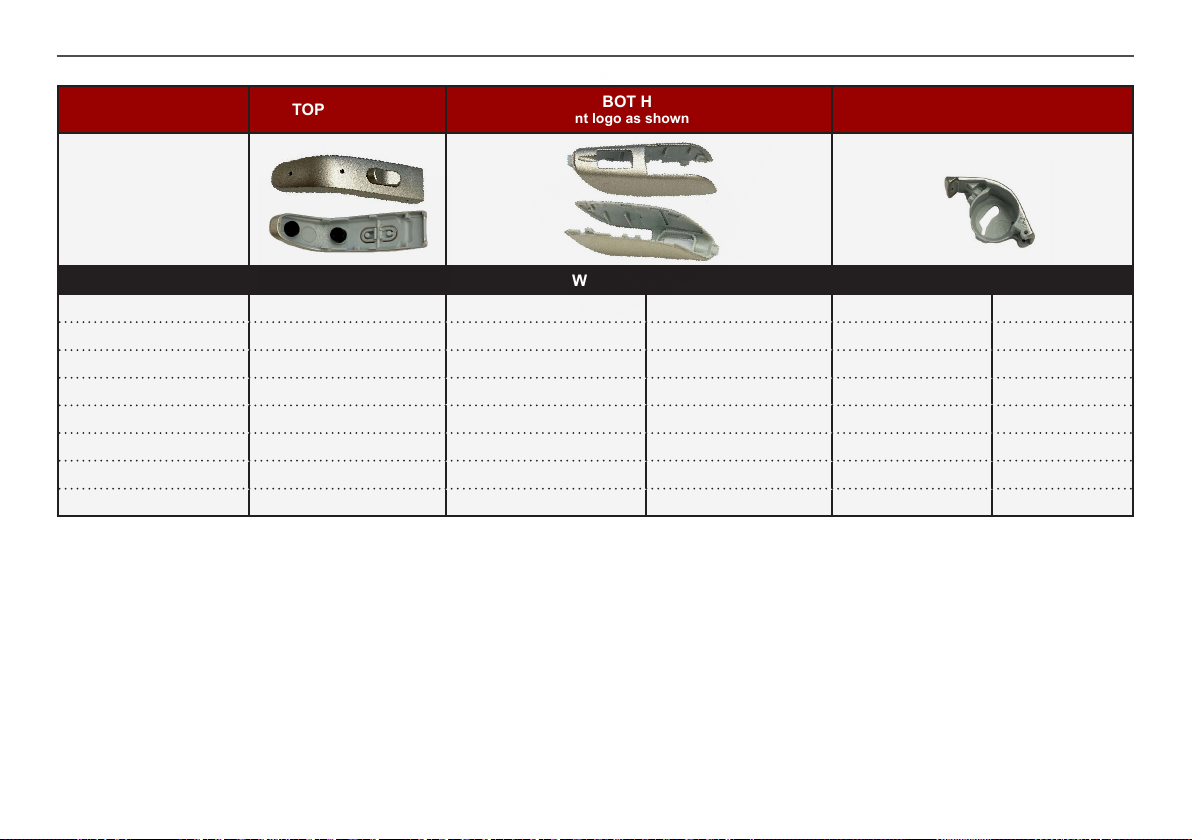

Part List - HSG Parts 62-DRW (BAT 13)
TOP HSG, mic lters & TGL
All HSG parts are nano coated
COLOUR TOP HSG ASM BOT HSG
(PTD with dierent logo as shown on previous page)
BAT DOOR
(di PFF PTD)
RT62-DRW RU62-DRW RT62-DRW RU62-DRW
GOLD 21512870 21513170 22324470 21513070 22324570
WARM GREY 21512871 21513171 22324471 21513071 22324571
ESPRESSO 21512872 21513172 22324472 21513072 22324572
DEEP BLACK 21512873 21513173 22324473 21513073 22324573
BRONZE 21512874 21513174 22324474 21513074 22324574
CHAMPAGNE 21512875 21513175 22324475 21513075 22324575
SPARKLING SILVER 21512876 21513176 22324476 21513076 22324576
GRAPHITE 21512877 21513177 22324477 21513077 22324577
Doc 0371130 rev. F
Page 8 of 22
Not subject to issue control when printed
Part List - HSG Parts 61-DRWC (RHI)
All HSG parts are nano coated
TOP HSG, mic lters & PB
If the mic lters are damaged (they are mounted inside the TOP
HSG) or the TOP HSG is damaged, the TOP HSG ASM can be
replaced. Choose either the TOP HSG ASM or a FILTER REPL
KIT.
Due to the mechanical construction of the HI and a sealing inside
the HI, the BOT HSG must not be replaced. If it is damaged and
needs to be replaced, the complete HI should be returned for
repair/replacement.
COLOUR TOP HSG ASM FILTER REPL KIT
GOLD 21513270 21618870
WARM GREY 21513271 21618871
ESPRESSO 21513272 21618872
DEEP BLACK 21513273 21618873
BRONZE 21513274 21618874
CHAMPAGNE 21513275 21618875
SPARKLING SILVER 21513276 21618876
GRAPHITE 21513277 21618877
FILTER REPL KIT:
Pin tool with pin,
TOP HSG ASM
Filter repl guide
Doc 0371130 rev. F
Page 9 of 22
Not subject to issue control when printed
Part List - SureFit 3 & 3B Rec Tubes (8 pin)
SUREFIT 3 (8 pin)
SIZE LP MP HP (SF3B)
0L 21384100 21385100 21879200
0R 21384200 21385200 21879201
1L 21384300 21385300 21879202
1R 21384400 21385400 21879203
2L 21384500 21385500 21879204
2R 21384600 21385600 21879205
3L 21384700 21385700 21879206
3R 21384800 21385800 21879207
4L 21384900 21385900 21879208
4R 21385000 21386000 21879209
SUREFIT 3B (8 pin)
M&RIE
SIZE
0L 21878800
0R 21878801
1L 21878802
1R 21878803
2L 21878804
2R 21878805
3L 21878806
3R 21878807
4L 21878808
4R 21878809
M&RIE: Rec with mic attached
Doc 0371130 rev. F
Page 10 of 22
Not subject to issue control when printed

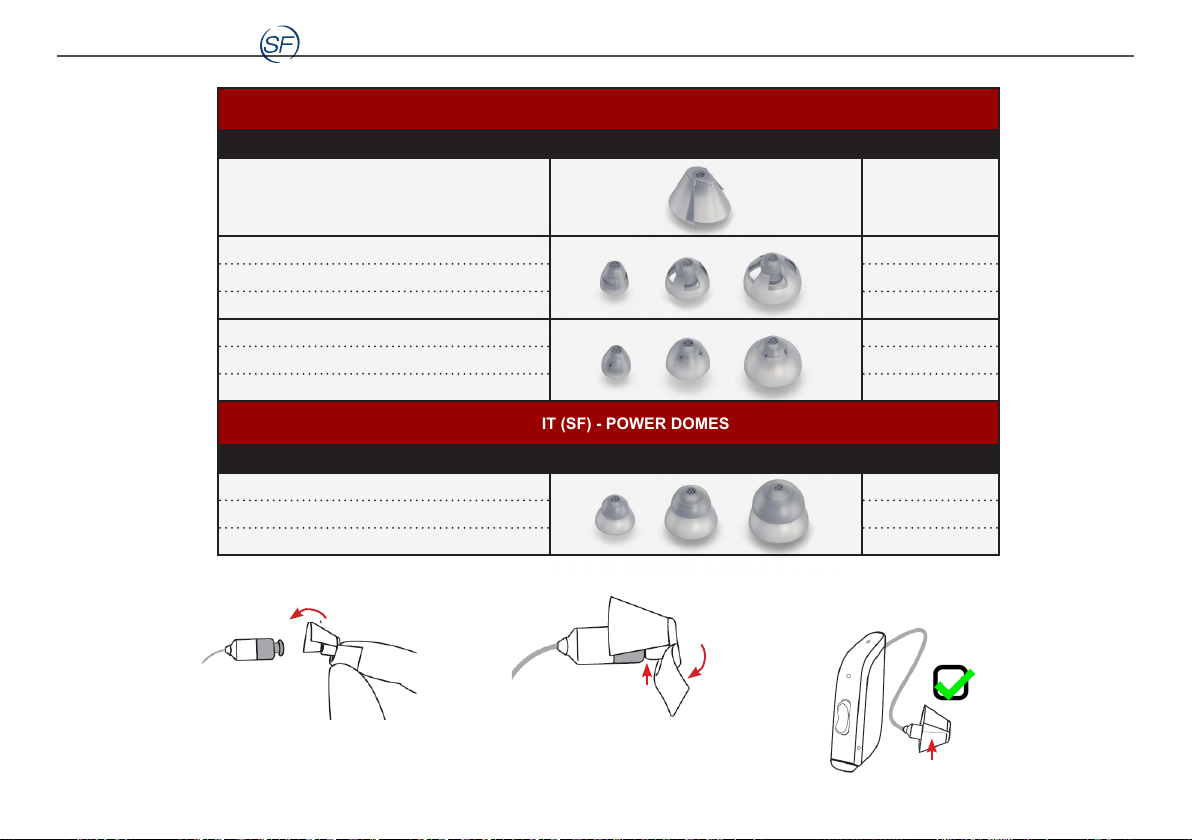

Part List - SureFit (SFDomes
SUREFIT (SF) - STD, OPEN & CLOSED DOMES
Description Bag (10 pcs)
DOME,REC,STD,BAG,10PC 21432300
DOME,OPEN,REC,SM,BAG,10PC 21432400
DOME,OPEN, REC,MDM,BAG,10PC 21432500
DOME,OPEN, REC,LGE,BAG,10PC 21432600
DOME,CLOSED,REC,SM,BAG,10PC 21432000
DOME,CLOSED,REC,MDM,BAG,10PC 21432100
DOME,CLOSED,REC,LGE,BAG,10PC 21432200
SUREFIT (SF) - POWER DOMES
DOME,PWR REC,SM,BAG,10PC 21432700
DOME,PWR REC,MDM,BAG,10PC 21432800
DOME,PWR REC,LGE,BAG,10PC 21432900
Large petal
The dome must be correct mounted. Check
that the collar completely covers the ribbed
end rec tube. Push the large petal forward
Push the largest petal back, then
press the STD/tulip dome over
the ribbed end of the rec tube
Ensure that the large petal on the STD
(tulip) dome is outside the small petal
