Response Electronics SAR E Manuale utente
These instructions should be read in conjunction with
your System Installation and Operating Instructions
and be retained for future reference
.
Introduction
The SAR E Remote Control is designed
for use with
Response Wirefree Intruder Alarm systems operating on
433MHz only
.
The Remote Control Unit is used to Arm and Disarm
the system. The Remote will activate the Instant Arm,
Part-Arm/Delay-Arm or Disarm functions dependent upon
which System it will be used with (refer to your System
Installation and Operating Manual).
The Remote Control also incorporates a Personal Attack
Switch (PAS). Activating the PAS will immediately initiate a Full
Alarm condition whether the system is Armed or Disarmed,
(unless the system is in Service, Test or Program mode).
Any number of Remote Controls can be used with your
system, providing they are all coded with the same
system House Code.
The Remote Control is powered by a CR2032 type
Lithium Cell battery which under normal conditions will
have a typical life in excess of 1 year. Under normal
battery conditions the LED on the Remote Control will
only illuminate when a button is pressed. However,
under low battery conditions the LED will flash every
time the button is pressed. When this occurs the battery
should be replaced as soon as possible.
Setting the Remote Control
Ensure that the system is in Test/Service Mode
1. Remove the front cover by undoing the small screw on
the rear of the Remote Control.
2. Located above the battery cover is a row of 8 DIP
switches. These switches set the House Code for the
Slide up
to operate
Transmit LED
Personal Attack
Disarm
Arm
Part-Arm/
Delay-Arm*
* Part Arm with Control Unit
Systems or Delay-Arm with
Siren only systems

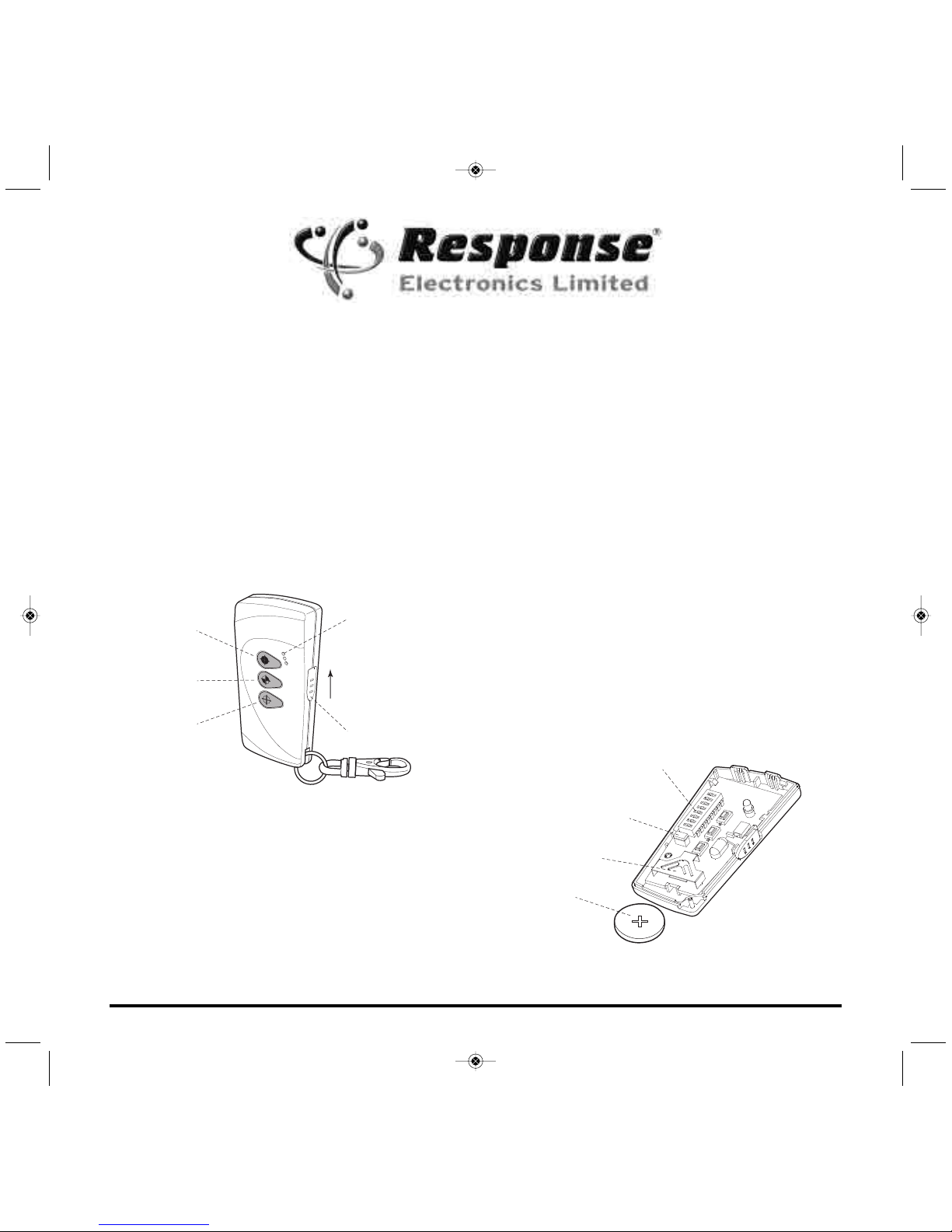

433MHz Wirefree Remote Control (SAR E)
Installation and Operating Instructions
Battery Clip
House Code
Dip Switches
Jumper Link
Battery
SAR E Ed2__Remote Control_Instructions_Art:210x210 format 07/02/2013 08:49 Page 1
Response Electronics Ltd.
Roman House, Lysons Avenue, Ash Vale, Surrey GU12 QF
Email: info@responseelectronics.com
Web: www.ResponseElectronics.com
Customer Support Helpline:
0845 373 1353
(Local Call Rate - lines open 09.00 to 17. 00 Monday to Friday)
SAR E Ed.2
Remote Control and must be set to the same ON/OFF
combination as the House Code DIP switches in all
other System Devices.
3. The Jumper Link is used to enable/disable the Personal
Attack Switch (PAS) dependent on which type of Alarm
System is in use.
If used with a Siren-controlled Alarm System (i.e. a
system without a separate Control Panel), the jumper
link located immediately below the House Code DIP
switches must be removed for the PAS to work.
If your System has a separate Control Panel then this
link must be fitted in place for the PAS to work.
4. Remove the battery from its packaging and insert it under
the clip, ensuring that the + terminal faces upwards away
from the PCB.
. Replace the rear cover and fixing screw.
Testing the Remote Control
Return the system to Operating/Standby Mode
The operation of the Remote Control should be tested with
the system in normal operating mode to ensure that the
new Remote Control will successfully communicate with
the system and the Arm and Disarm functions operate
correctly. Also check by activating the PAS on the Remote
to initiate an alarm condition.
Refer to your System Installation and Operating Manual for
further details on operating and testing the system.
Disposal and Recycling
Disposal of this product is covered by the
Waste Electrical or Electronic Equipment
(WEEE) Directive.
It should not be disposed of with other
household or commercial waste.
At the end of its useful life the packaging and product should
be disposed of via a suitable recycling centre. Please
contact your local authority or the retailer from where the
product was purchased for information on available facilities.
Guarantee
The product is guaranteed for one year from the date of purchase
against faulty materials and workmanship. No liability can be
accepted for any problems caused by fair wear and tear, buyer’s
negligence, improper fitting or use, wilful or accidental damage, or
any consequential loss or damage howsoever caused. This
guarantee does not affect your statutory rights and is valid for UK
and EIRE only.
If you believe the product to be faulty or in the unlikely event of the
product developing a fault during the warranty period, then please
contact our Customer Support Team (contact details shown below)
for product assistance. Product repair or replacement will be
offered for faulty products only with our prior agreement. Should
you need to return a products then:
1. Contact the Help Line on the number below to obtain a Return
Authorisation Number.
2. Adequately package your product to prevent damage in transit
and include the following:
a. A copy of your original invoice/receipt.
b. A covering letter giving your full contact details, including
email address (if applicable).
c. A description of the fault or problem.
