RGF Mini Split Units Manuale utente
Cleaner, Fresher Air in 24 Hours
New Advanced Environmental Air Treatment System
For Mini Split Units
NOTE: Please take time to read the attached assembly instructions.
All instructions and precautions should be adhered to while
operating this system.
Manufactured in the USA by RGF Environmental Group, Inc.
RGF Environmental Group, Inc.
Copyright 2013
MINI SPLIT 6-2013
WARRANTY REQUEST FORM
(INCOMPLETE FORMS WILL NOT BE PROCESSED!)
RETURN AUTHORIZATION NO. _____________________
CONTRACTOR:
NAME_________________________________________________________
ADDRESS_______________________________________________________
CITY____________________________ STATE___________ ZIP CODE______________
CONTACT________________________ PHONE_____________ FAX ________________
WHOLESALER:
NAME____________________________________________________
ADDRESS_________________________________________________
CITY_____________________________ STATE___________ ZIP CODE_______________
CONTACT_________________________ PHONE____________FAX__________________
EMAIL ADDRESS ___________________________________________________
UNIT: MODEL #__________________________ SERIAL #_________________________
INVOICE #_____________________DISTRIBUTOR P.O. #:_________________
DATE OF SALE:________________OVER THE COUNTER EXCHANGE? YES NO
IF YES, SERIAL #_____________________________
ITEM(S) SUBMITTED FOR WARRANTY:
1) __________________________________________________________________________
2) __________________________________________________________________________
REASON(S) FOR RETURN:
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
(FOR MANUFACTURER USE ONLY)
DATE ITEM(S) RECEIVED:____________________________________________
RECEIVED BY:__________________________________________________________
REPLACEMENT UNIT OR PART SENT
COMMENTS:___________________________________________________________________
NOTE: THIS COMPLETED FORM MUST
ACCOMPANY ALL RETURNED ITEMS
WITHIN 30 DAYS FOR PROCESSING
SHIP TO YOUR DISTRIBUTOR
The Mini Split PHI Unit by RGF
The PHI line of products are designed to help eliminate sick building syndrome
risks by reducing odors, air pollutants, bacteria and cold and virus causing
germs through the patented Photohydroionization®(PHI) process. The Mini
Split PHI Cell easily mounts onto existing Mini Split air conditioning, heating
and heat pump units. When the Mini Split system is in operation, the PHI Cell
uses an Advanced Oxidation Process to reduce airborne contaminants.
Ballast
Proprietary UVX Long life lamp

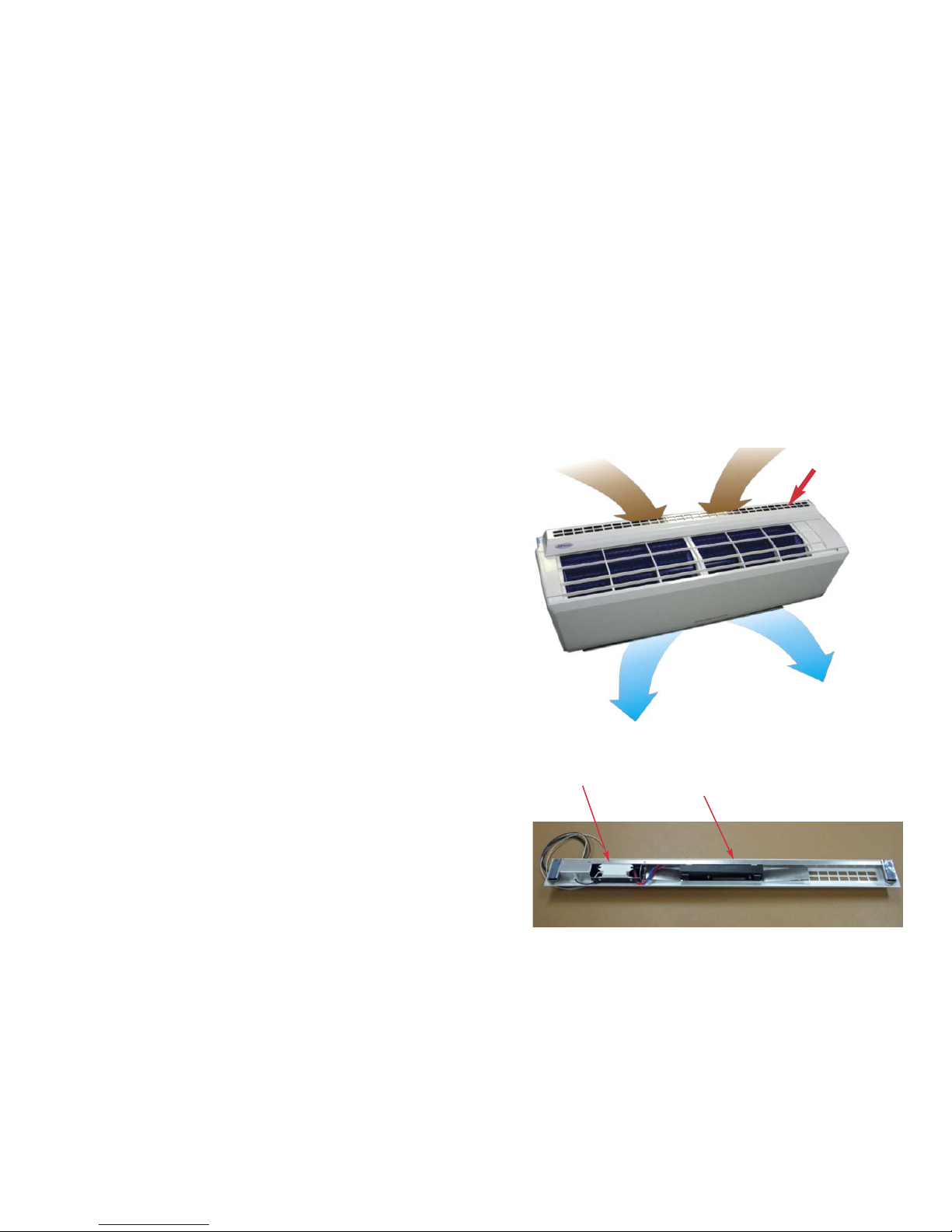

PHI Cell Features
Figure 2
Incoming air containing bacteria,
mold, smoke, virus and VOCs
Typical Installation
Purified air distributed to
conditioned space
RGF Mini Split unit
Figure 1
PTAC PHI Unit
INSTALLATION INSTRUCTIONS
Your kit contains the following:
• Mini Split unit with high voltage 230V ballast and 3’ leads
• Instruction manual
NOTE: BE SURE MINI SPLIT UNIT IS UNPLUGGED AND POWER IS
DISCONNECTED BEFORE PROCEEDING WITH INSTALLATION.
INSTALLATION & ELECTRICAL INSTRUCTIONS:

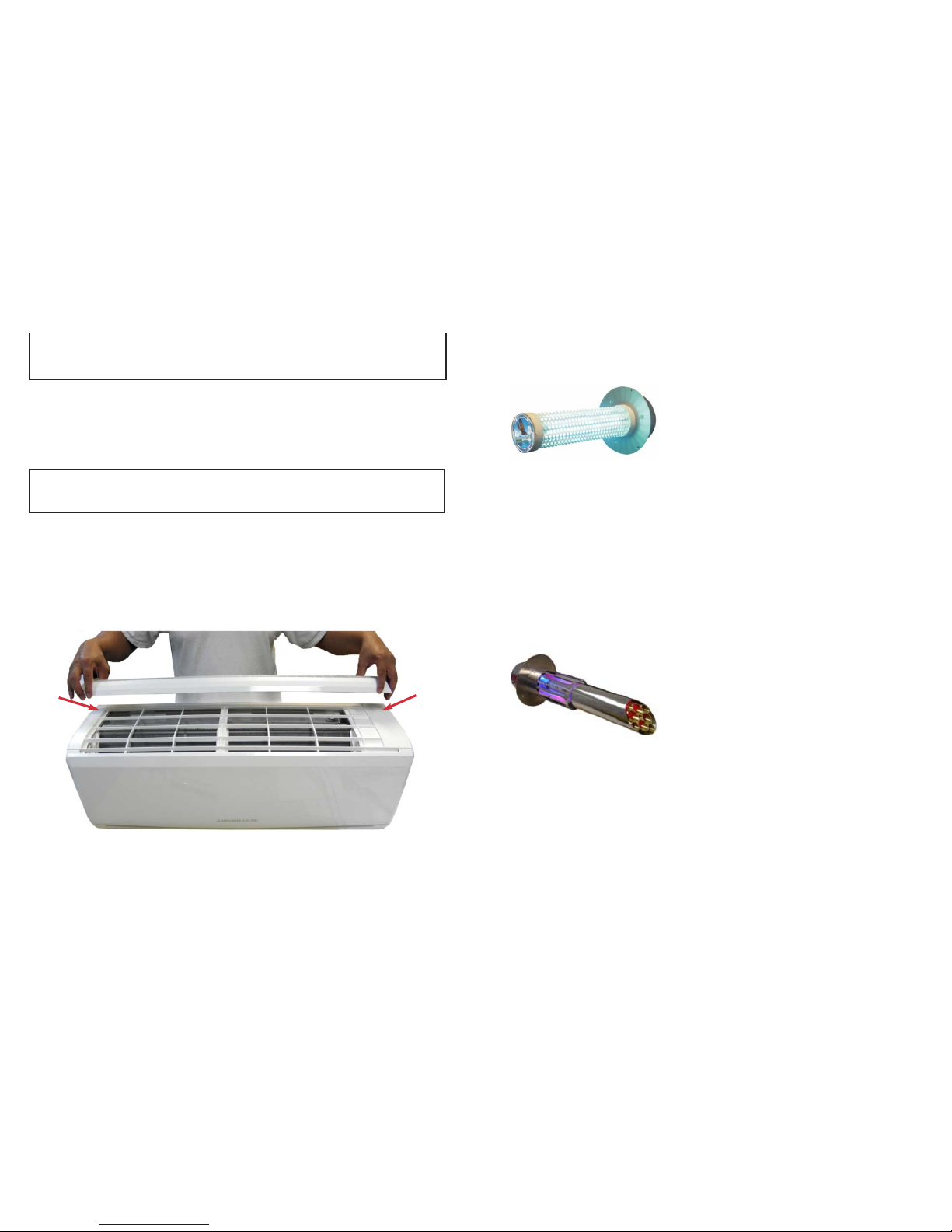

1. Remove plastic tapes from velcro tabs and position Mini Split unit over in-
take of indoor air unit. Press firmly to attach adhesive tab to unit. (Refer to
Fig.3)
CAUTION: NEVER LOOK DIRECTLY AT AN ILLUMINATED PHI CELL.
THIS DEVICE PRODUCES GERMICIDAL UV LIGHT AND WILL CAUSE
DAMAGE TO EYES
Figure 3
Guardian Air REME HVAC Cell REME or Re-
flective Electro Magnetic Energy utilizes an
electromagnetic energy cell to create ionized
hydro peroxides™, a friendly oxidizer plasma
made from oxygen and humidity. This air purify-
ing plasma is propelled into the HVAC duct or
plenum by a silent plasma propulsion module
that has no moving parts, yet propels the
plasma at 2 cfm. This provides for fan or blower-
less operation on a 24-hour basis. The purifying plasma will be propelled
through the ducts whether the fan or blower is on or not. 24 volt installation
lets the REME run 24/7 without wiring to the fan/blower circuit. The oxidizer
plasma transfers the electrical charge (positively and negatively charged ions)
from the hydro peroxides to suspended (airborne) particles in the occupied
space causing them to bond together. This makes them too heavy to float en-
abling them to be drawn back to the filter. This is an excellent solution for in-
divuals that suffer from dust and dander allergies.
RGF’s Guardian Air PHI is designed to elimi-
nate sick building syndrome risks by reducing
odors, air pollutants, VOCs (chemical odors),
smoke, mold, bacteria and viruses*. The HVAC-
PHI Cells are easily mounted into air condition-
ing and heating systems air ducts where most
sick building problems start. When the HVAC
system is in operation the HVAC-PHI Cell cre-
ates an Advanced Oxidation Process consisting of: Hydro-peroxides, super
oxide ions and hydroxide ions. All are friendly oxidizers that revert back to
oxygen and hydrogen after the oxidation of the pollutant.
Additional RGF Products
In Duct Microbe, VOC and Allergen Solutions
Figure 5
Figure 4

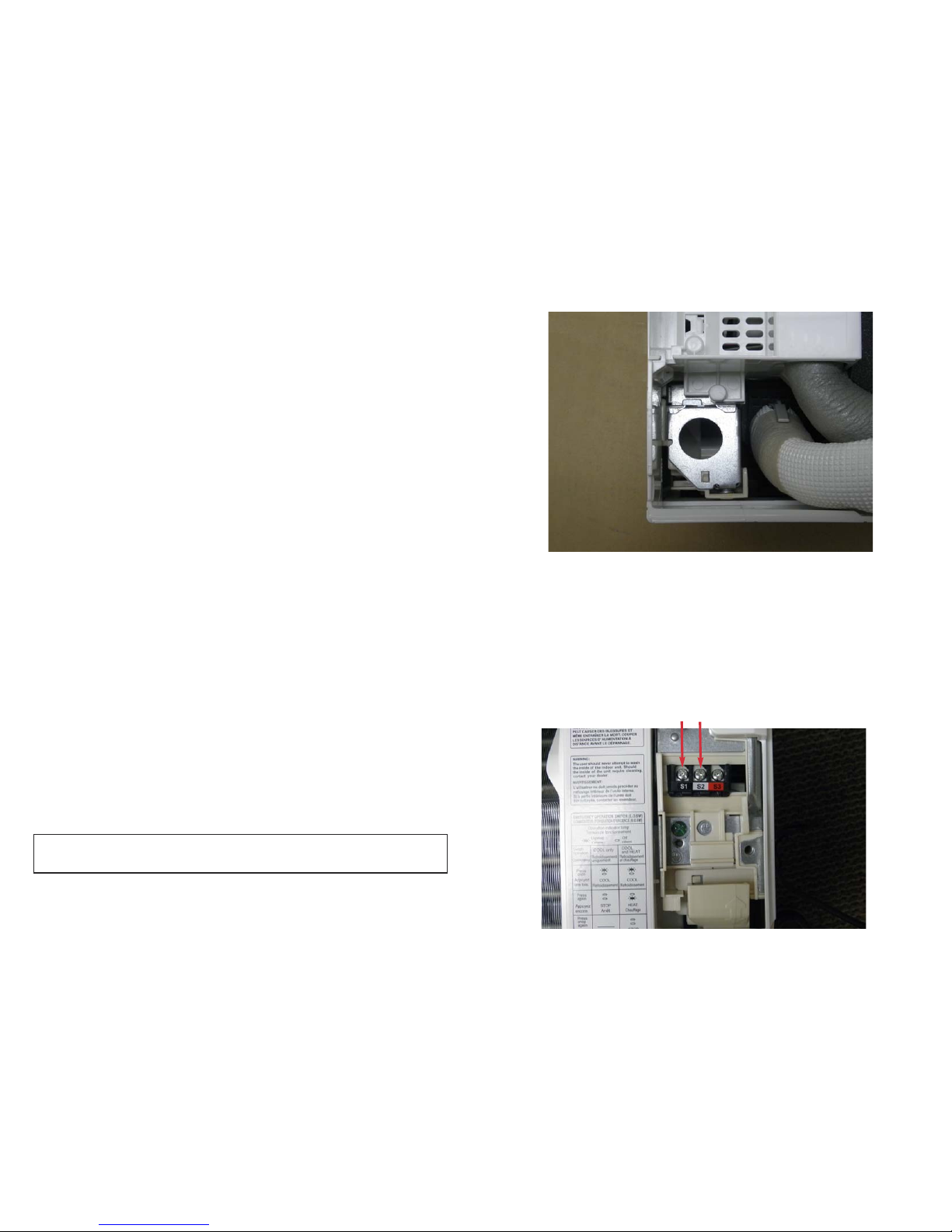

2. The power wire leads can be connected to the power source through
the back panel of the indoor unit (Refer to figure 4)
3. Remove the cover from indoor unit. Connect L1 (black wire) to S1 termi
nal. Connect L2 (white wire) to S2 terminal. (Refer to figure 5)
LIMITED WARRANTY
This warranty supersedes and replaces any warranty statements made orally
by the Sales Person, Distributor, or Dealer, or contained in the written instruc-
tions or other brochures or informational documents related to this product.
Manufacturer warrants the new MINI SPLIT equipment to be free from defects
in material and workmanship under normal use and service when operated and
maintained in strict accordance with manufacturer’s instructions for a period of
twelve (12) months parts only. Shipping not included.)
Manufacturer’s obligation under this warranty is limited to repairing or replacing
any part found to its satisfaction to be so defective. The manufacturer at its dis-
cretion may replace / exchange the defective unit up to 90 days from the date
of purchase. Hereafter it will need to be returned under a Returned Materials
Authorization (RMA) for review and or repair (if found defective). This warranty
does not cover parts damaged by decomposition from chemical action or wear
caused by abrasive materials, nor does it cover damage resulting from misuse,
abuse, or any other than its intended use, accident, neglect, or from improper
operation, maintenance, installation, modification or adjustments.
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE
DESCRIPTION ON THE FACE HEREOF.
To obtain warranty service and return authorization number, contact your
contractor or supplier.
Model number: MINI SPLIT-HVAC-PHI-230
Replacement cell part number: PHIC-5GA
Hg- LAMP CONTAINS MERCURY Manage in accord with disposal laws.
See: www.lamprecycle.org
Cell Replacement
Disconnect power before replacing the cell.

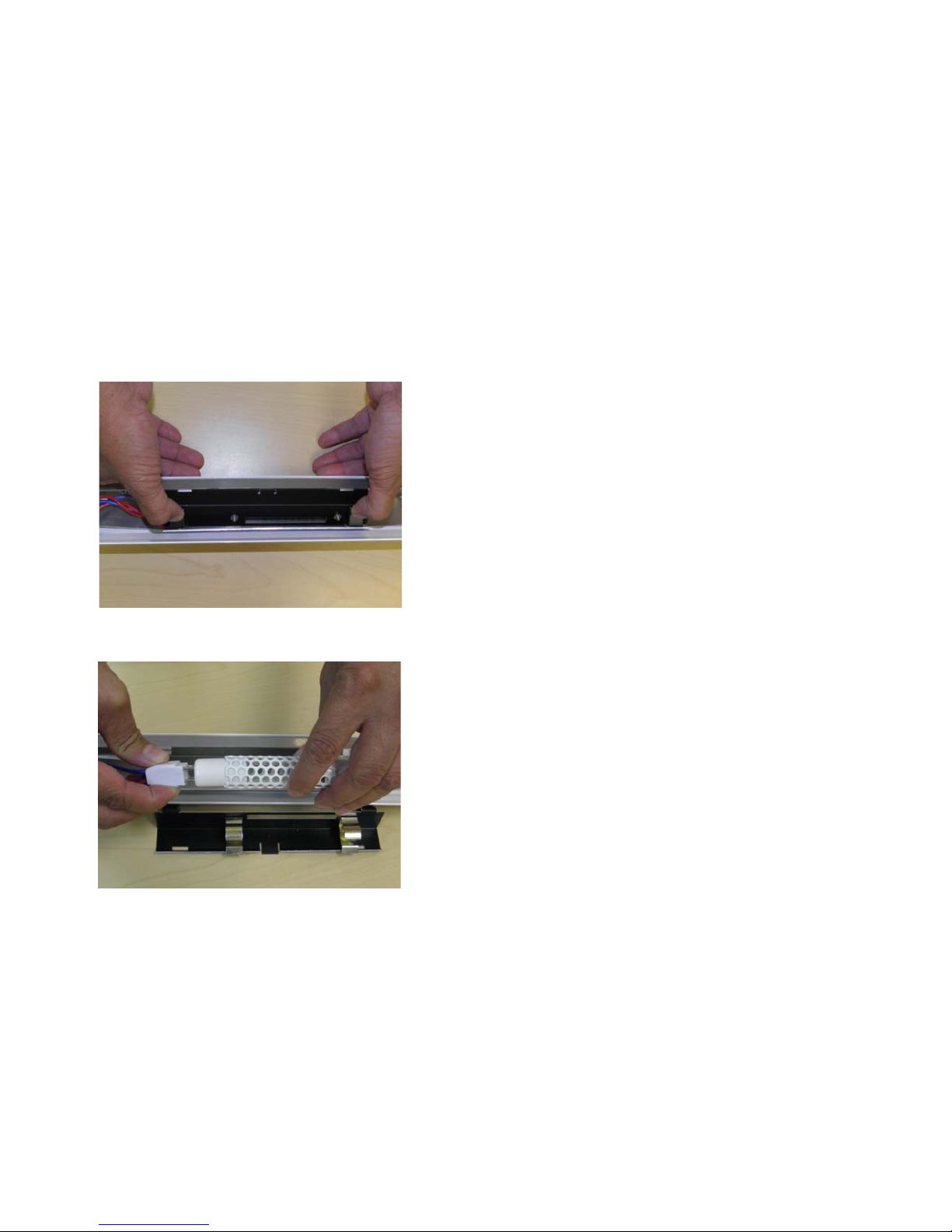

1. Pull Mini Split unit off of indoor unit.
2. Press the locking springs clips with thumbs to remove cell bracket. (Fig.6)
Figure 6
Figure 7
LIMITED WARRANTY COMMON QUESTIONS
How long is the warranty?
•For one (1) year from initial start up.
Are there any parts not covered by this warranty (that the manufaturer
will not repair or replace)?
•Yes. Parts damaged by decomposition from chemical action, hu-
midity, moisture, or wear caused by abrasive materials. It does not
cover damage resulting from misuse, abuse, or any other use
other than its intended use. This warranty does not cover acci-
dent, neglect, or from improper operation, maintenance, installa-
tion, modification or adjustments.
•Parts not made by Manufacturer. However, your supplier will
process the claim with the other manufacturer.
Steps to take when you have determined that your equipment is mal-
functioning within the warranty period.
•Call your contractor or distributor and notify them of the problem or
malfunction. (It may be a simple problem or oversight with a
simple solution.)
•If it is determined that a part is malfunctioning due to a defect, ship
unit to your supplier or call supplier for other means of
return. An Equipment Warranty Form should be completed and
included.
•Your supplier will repair or exchange the defective unit with a work-
ing replacement.
Things I should do to avoid problems or injuries when running my
PTAC PHI Equipment.
•Thoroughly read and understand all Operating Instructions,
Warnings and Precautions before commencing application.
•Place unit in a dry area when possible.
3. Disconnect cell from bracket and 4 pin connector. (Fig.7)
4. Install new cell. Reverse steps 1-3
