RHINO TM84 Manuale utente
R
© 2007Alamo Group Inc.
RHINO®
1020 S. SangamonAve.
Gibson City, IL60936
800-446-5158
Email: [email protected]
®
®
PART'S MANUAL
An Operator's Manual was shipped with the equipment in the
Manual Canister. This Operator's Manual is an integral part of
the safe operation of this machine and must be maintained
with the unit at all times. READ, UNDERSTAND, and FOLLOW
the Safety and Operation Instructions contained in this manual
before operating the equipment. If the Operator's Manual is
not with the equipment, contact your dealer or Servis-Rhino
(800-446-5158) to obtain a Free copy before operating the
equipment.
TM 60/72
Pub 05-14 Part No. 00779788P
Rear Discharge Rotary Mowers
84/100

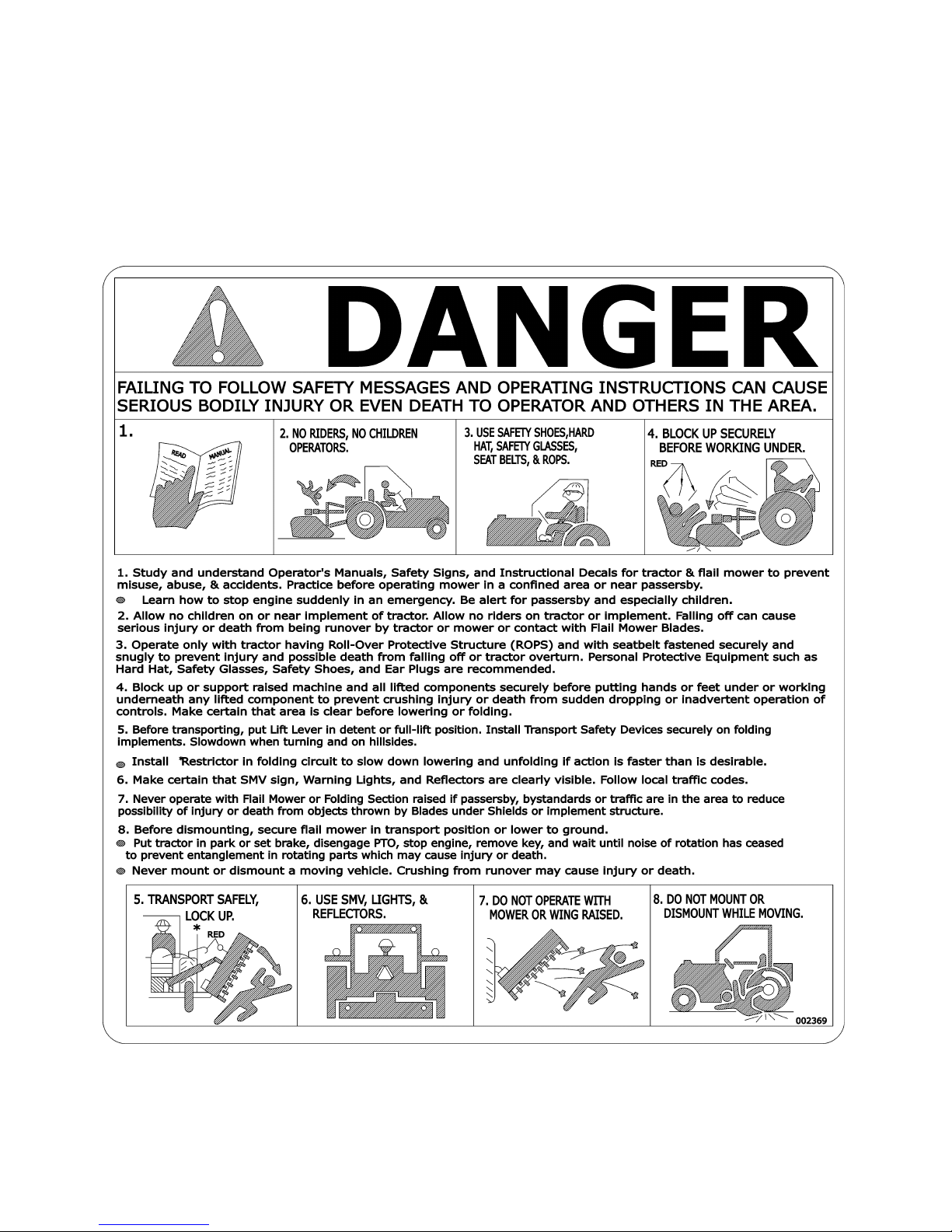

TO THE OWNER/OPERATOR/DEALER
Allimplementswithmovingpartsare potentiallyhazardous. Thereisno substituteforacautious, safe-mindedoperatorwho
recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to
be used with all its safety equipment properly attached to minimize the chance of accidents.
BEFOREYOUSTART!! Read the safety messages on the implement and shown in your manual.
Observe the rules of safety and common sense!
WARRANTY INFORMATION:
Readand understand the complete Warranty Statementfound inthis Manual. Fill outthe WarrantyRegistration Form
in full and return it within 30 Days. Make certain the Serial Number of the Machine is recorded on the Warranty Card
andontheWarrantyFormthatyouretain.Theuseof"will-fit"partswillvoidyourwarrantyandcancausecatastrophic
failure with possible injury or death.
PARTS
SECTION
Parts Section – 1
Parts Section – 2
©2007 Alamo Group Inc.
For maximum safety and to guarantee optimum product reliability, always use
genuine Servis-Rhino Parts. The use of inferior replacement parts may cause
premature or catastrophic failure which could result in serious injury or death.
Direct any questions regarding parts to:
The following instructions are offered to help eliminate needless delay and error in processing
purchase orders for the equipment in this section.
1. The Parts Section is prepared in logical sequence and grouping of parts that belong to the
basic machine featured in this manual. Part Numbers and Descriptions are given to help
locate the parts and quantities required.
2. The Purchase Order must include the name and address of the person or organization
ordering the parts, who should be charged, and if possible, the serial number of the machine
for which the parts are ordered.
3. The Purchase Order must clearly list the quantity of each part, the complete and correct part
number (be sure to include all periods), and the basic name of the part.
4. The Manufacturer reserves the right to substitute parts where applicable.
5. Some parts are unlisted items which are special production items not normally stocked and
are subject to special handling. Request a quotation for such parts before sending a
Purchase Order.
6. The Manufacturer reserves the right to change prices without prior notice.
NOTE: Please refer to The Safety Section in the front of this Manual for the proper
Part Number when ordering Replacement Safety Decals.
PARTS ORDERING GUIDE
RHINORHINO
RHINORHINO
RHINO®
1020 S. Sangamon Ave.
Gibson City, IL 60936
800-446-5158
Email: [email protected]
PART NAME INDEX
A-FRAME ASSEMBLY TM100................................................................................................................................................................... 4
A-FRAME ASSEMBLY TM60 72................................................................................................................................................................ 6
A-FRAME ASSEMBLY TM84..................................................................................................................................................................... 8
ANTI-SCALP ROLLER PARTS TM60 TM72 (OPTIONAL) TM84 (STANDARD)............................................................................... 10
AXLE & TIRE ASSEMBLY....................................................................................................................................................................... 11
DRIVELINE ASSEMBLY (TM100)........................................................................................................................................................... 13
DRIVELINE ASSEMBLY (TM60/TM72/TM84)....................................................................................................................................... 15
GEARBOX ASSEMBLY............................................................................................................................................................................ 16
LOWER DRIVE ASSEMBLY.................................................................................................................................................................... 18
ROLLER KIT TM100.................................................................................................................................................................................. 20
SPINDLE ASSEMBLY............................................................................................................................................................................... 21
UPPER DRIVE ASSEMBLY...................................................................................................................................................................... 22
©2014 Alamo Group Inc. Parts Section -3
TM60 TM72 TM84 TM100

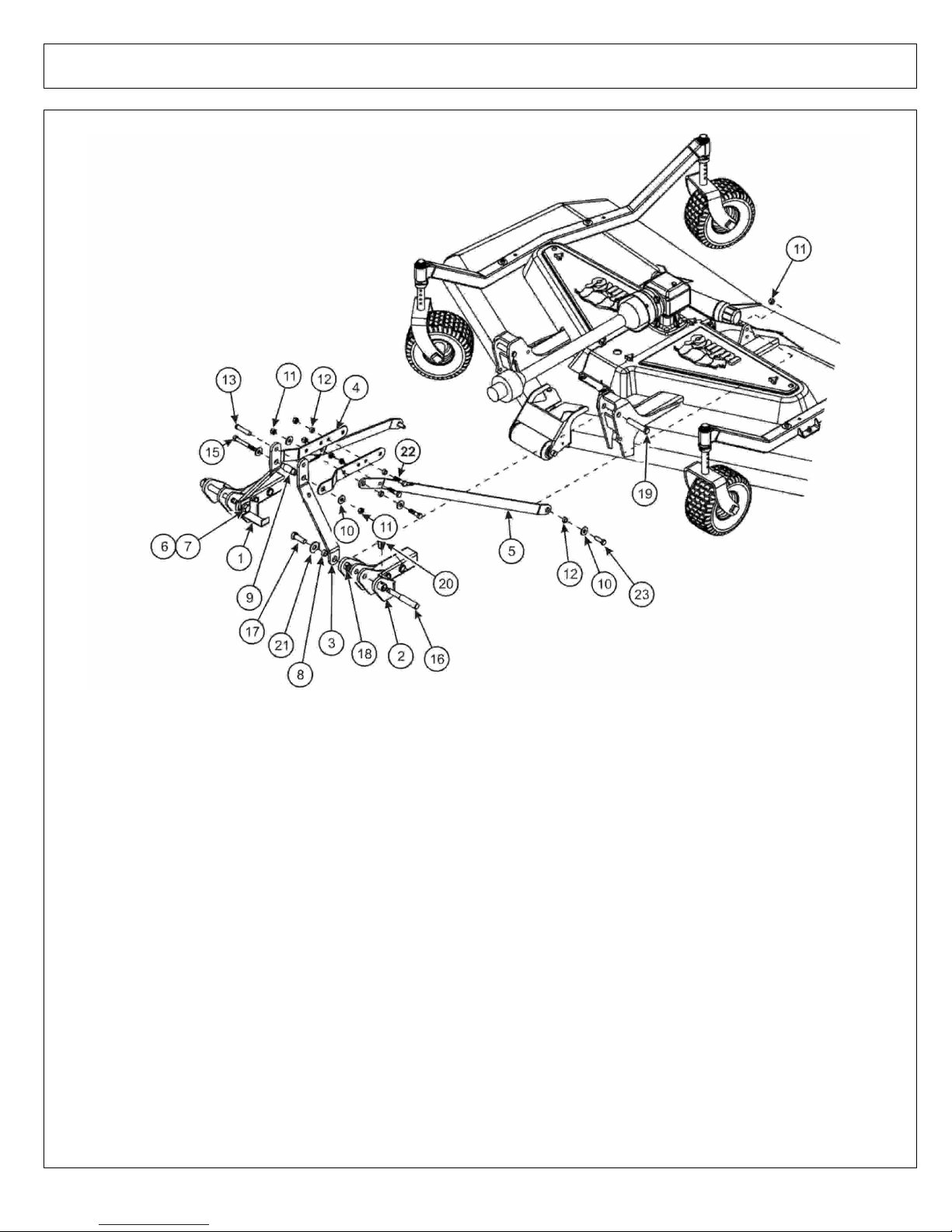

A-FRAME ASSEMBLY TM100
ITEM PART NO. QTY. DESCRIPTION
1 00779999 1 FLAT,DRIVELINE HOLDER
2 00779751 2 WDMT,LOWER LINK - TM100
3 00786022 1 ARM,FRONT A-FRAME - LH TM100
00786021 1 ARM,FRONT A-FRAME - RH TM100 (NOT SHOWN)
4 00779659 2 ARM,UPPER LINK - TM100
5 00779644 2 ARM,REAR A-FRAME - TM100
6 00748823 5 HHCS 1/2-13UNC 1-1/2 PL5
7 00001800 14 LOCKNUT TLM 1/2 NC PLB
8 00779848 2 BUSHING,LOWER A-FRAME
9 00779850 1 BUSHING,TOP LINK
10 00001400 9 FLATWASHER 5/8 PL STD
11 00695100 12 LOCKNUT TOPLOCK 5/8NC PLB
12 00779867 6 BUSHING,UPPER LINK
13 00779869 1 PIN,TOP LINK
14 37107B13 1 CLIP-X HAIR PIN (NOT SHOWN)
15 02957007 1 HHCS 5/8 NC 5 PL8
16 00779868 2 PIN,CAT I-II QH
©2014 Alamo Group Inc. Parts Section -4
TM60 TM72 TM84 TM100
A-FRAME ASSEMBLY TM100
Continued...
ITEM PART NO. QTY. DESCRIPTION
17 02793900 2 HHCS 7/8-9UNC 2-1/2 GR 5
18 00750226 2 NUT TOPLOCK 7/8 NF PLC
19 00779846 2 PIN,HITCH - 1-3/16 DIA.
20 00773592 2 PIN, SAFETY LOCK LYNCH
21 00750227 2 FLATWASHER 7/8 PL STD
22 00750952 3 HEXB,5/8NC X 2-1/2,ZP,GRD5
23 02845500 3 HEXB 5/8 NC 2 PL5
24 00779866 2 BUSHING,UPPER LINK
25 00606000 2 PIN,COTTER 3/16X2
26 00776031 1 CANISTER, PARTS MANUAL
©2014 Alamo Group Inc. Parts Section -5
TM60 TM72 TM84 TM100

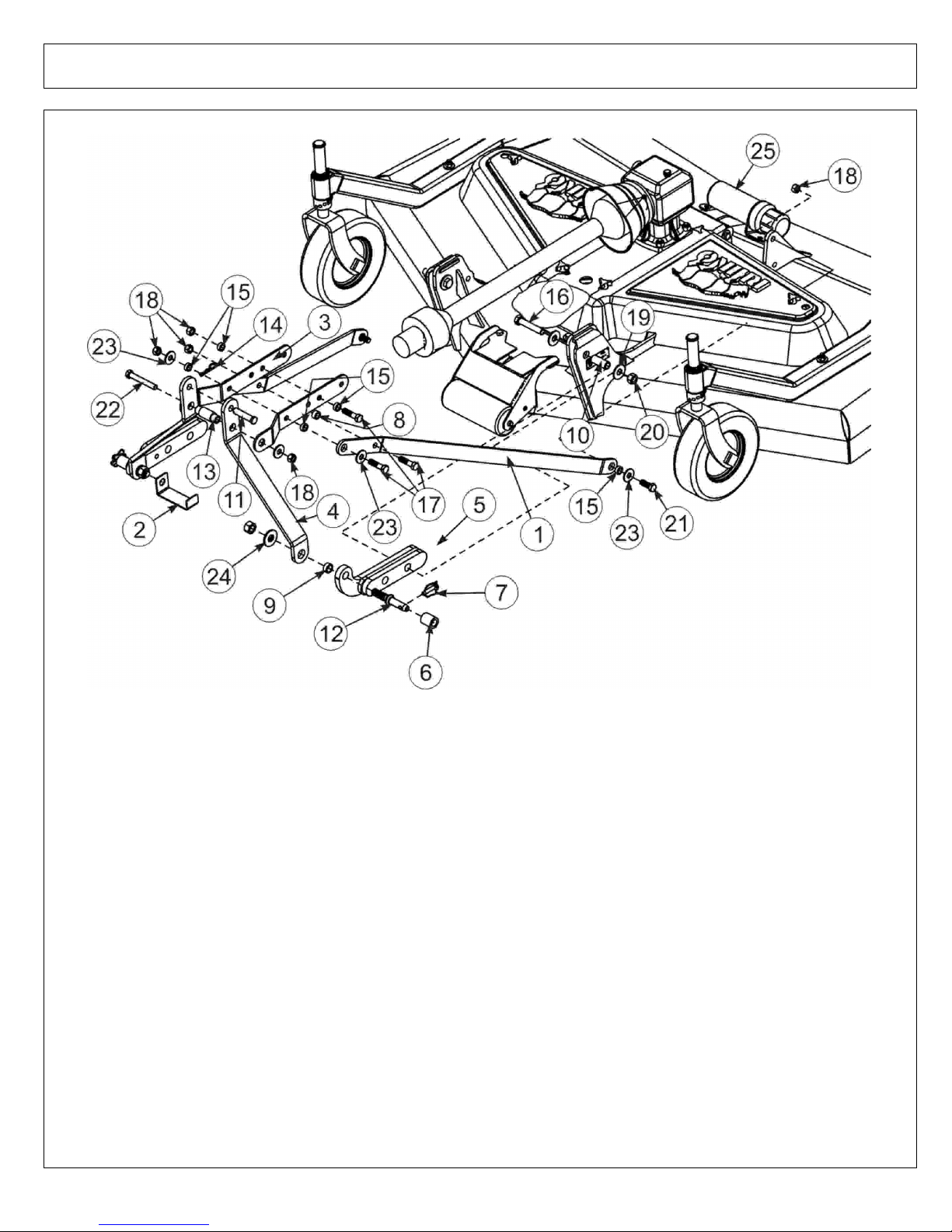

A-FRAME ASSEMBLY TM60 72
ITEM PART NO. QTY. DESCRIPTION
1 00779605 2 ARM,REAR A-FRAME - TM60
00779618 2 ARM,REAR A-FRAME - TM72
2 00779999 1 FLAT,DRIVELINE HOLDER
3 00779985 2 ARM,UPPER LINK
4 00779997 2 ARM,FRONT A-FRAME
5 00779991 2 PLATE,LOWER LINK
6 00777564 2 BUSHING,LOWER OUTSIDE HITCH
7 00773592 2 PIN, SAFETY LOCK LYNCH
8 00779866 2 BUSHING,UPPER LINK
9 00779847 2 BUSHING,LOWER A-FRAME
10 00779845 2 PIN,HITCH - 1-3/16 DIA.
11 00779869 1 PIN,TOP LINK
12 00779748 2 ASY,CAT.1 HITCH PIN W/LW & NUT
13 00779849 1 BUSHING,TOP LINK
14 37107B13 1 CLIP-X HAIR PIN
15 00779867 6 BUSHING,UPPER LINK
16 00606000 2 PIN,COTTER 3/16X2
©2014 Alamo Group Inc. Parts Section -6
TM60 TM72 TM84 TM100
A-FRAME ASSEMBLY TM60 72
Continued...
ITEM PART NO. QTY. DESCRIPTION
17 00750952 4 HEXB,5/8NC X 2-1/2,ZP,GRD5
18 00695100 12 LOCKNUT TOPLOCK 5/8NC PLB
19 00748823 5 HHCS 1/2-13UNC 1-1/2 PL5
20 00001800 8 LOCKNUT TLM 1/2 NC PLB
21 02845500 2 HEXB 5/8 NC 2 PL5
22 02845800 1 HEXB,5/8 NC X 4-1/2 GRD5 ZP
23 00001400 9 FLATWASHER 5/8 PL STD
24 00750227 2 FLATWASHER 7/8 PL STD
25 00776031 1 CANISTER, PARTS MANUAL
©2014 Alamo Group Inc. Parts Section -7
TM60 TM72 TM84 TM100

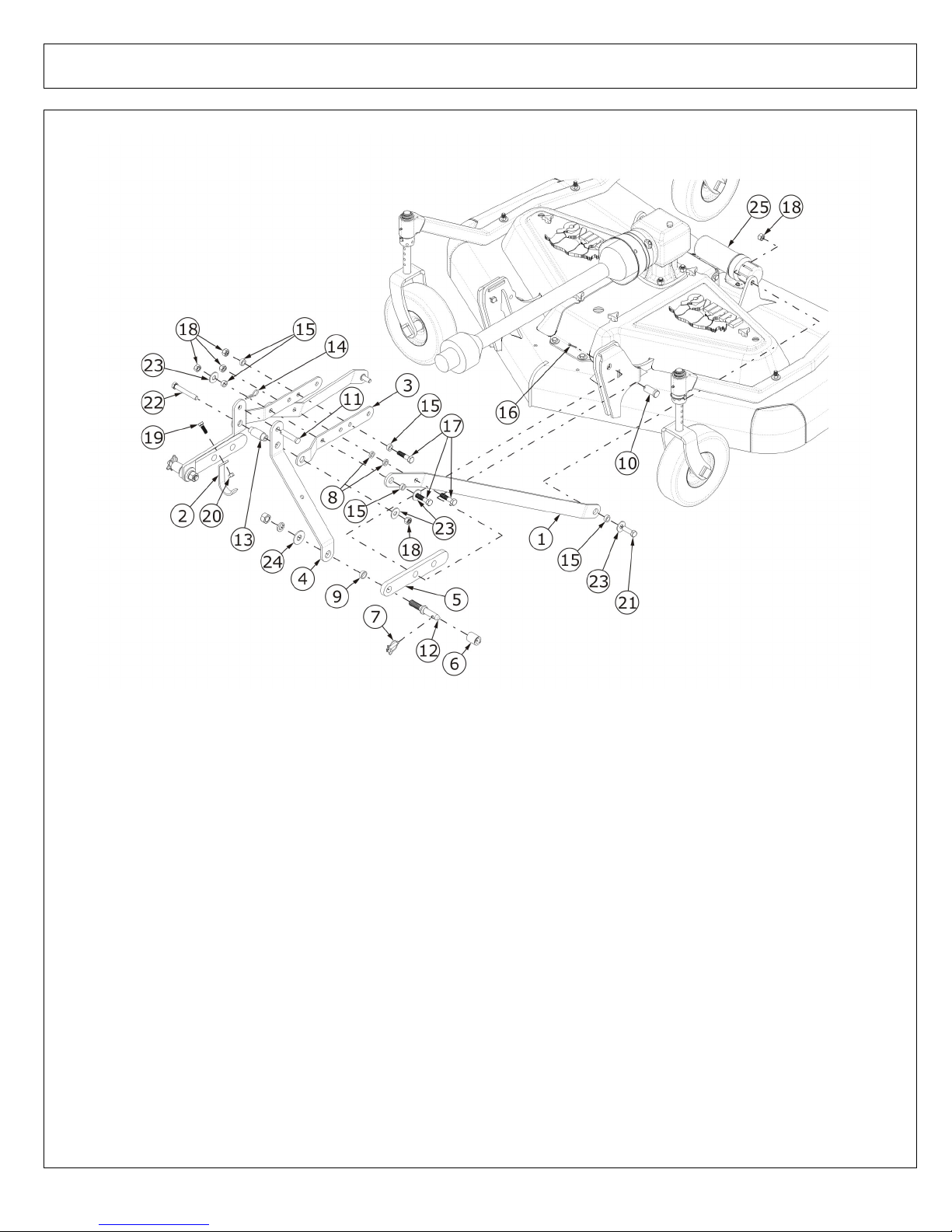

A-FRAME ASSEMBLY TM84
ITEM PART NO. QTY. DESCRIPTION
1 00779630 2 ARM, REAR A-FRAME
2 00785486 1 FLAT, DRIVELINE HOLDER
3 00779659 2 ARM, UPPER LINK TM84/TM100
4 00785716 2 ARM, FRONT A-FRAME TM84
5 00786029 1 WDMT, LOWER LINK - LH TM84
00786028 1 WDMT, LOWER LINK - RH TM84 (NOT SHOWN)
6 00777564 2 BUSHING, LOWER OUTSIDE HITCH
7 00773592 2 PIN, SAFETY LOCK LYNCH
8 00779866 1 BUSHING, UPPER LINK
9 00779848 2 BUSHING, 84/100 LOWER A-FRAME
10 00785739 2 BUSHING, TM84 A-FRAME LOWER
11 00779869 1 PIN, TOP LINK
12 00779748 2 ASY, CAT.1 HITCH PIN W/LW & NUT
13 00779850 1 BUSHING, 84/100 TOP LINK
14 37107B13 1 CLIP-X HAIR PIN
15 00779867 6 BUSHING, UPPER LINK
16 00003300 2 HEX CAP 3/4-10 X 4 GR.5
©2014 Alamo Group Inc. Parts Section -8
