Ricoh D104 Istruzioni per l'installazione

Content ID# rfg047077

Ver.1.5 Page 1 of 43 12/9/2011

Subject to change without notice

RICOH Americas Corporation

Product Support Guide

Model D104/D106

Introduction

Model Type Color MFP

Launch Date 2/1/2011

S/N Configuration V97/V98

Product Code D104/D106

Brand/Model Name

Product Code Lanier Ricoh Savin Gestetner

D104 LD 620C MP C2051 C9120 MP C2051

D106 LD 625C MP C2551 C9125 MP C2551

Product Concept

The D104/D106 series is replacing the D037/D038/D041 series.

The D104/D106 will be launched to enhance our competitiveness, offering

higher productivity, more solutions, improved eco specifications and advanced

security features. The D104/D106 will allow us to keep our #1 color market share

position and further expand it.

Launch Objectives are to:

1 - Keep color MFP Market share, Replace competitor’s MIF and protect our

MIF.

2 - Maximize profitability of aftermarket sales, Increase color document

volume.

3 - Satisfy market demands for Eco friendly products In order to keep the #1

position and expand the color market share in Segment 1 and lower

Segment 2, Ricoh has developed D104/D106. In the lower segment market,

many users use inkjet printers or color laser printers for their color

documents. Model D104/D106 targets to obtain competitors’ TDV by

replacing competitors’ inkjet printers and color laser printers.

As a B2C strategic product, D104/D106 will replace monochrome MFPs in

Segment 1 and lower Segment 2, and start the B2C conversion of sub

devices in medium to large-sized companies, bringing color closer to the

customer. By capturing their color document volume, D104/D106 would be

more profitable than selling monochrome MFPs.

Product Support Guide

Model D104/D106

Ver.1.5 Page 2 of 43 12/9/2011

Order Number

Main Frame

Item Model Name EDP Code Notes

D104 Lanier LD 620C

Ricoh MP C 2051

Savin C9120

415511 Includes Duplex, Bypass, ADF, Printer/ Scanner,160GB

HDD, 1.5GB Ram, VM Card, App2Me, Data Overwrite

Security, Encryption

D106 Lanier LD 625C

Ricoh MP C2551

Savin C9125 415526

Includes Duplex, Bypass,ADF,Printer/ Scanner,160GB

HDD, 1.5GB Ram, VM Card, App2Me, Data Overwrite

Security , Encryption

Note: Order Numbers are provided for reference purposes only. Please refer to your Pricing List for proper order numbers to

insure you receive the correct branding emblem.

Options

Item Description EDP Code Product

Code Common /

Unique

Fax Option Fax Option Type C2551 415537 D555-01 ( U )

Envelope Feeder EF3010 Envelope Feeder EF3010 415562 D559-01 ( U ) Must set

SP5063-002 to

enable

Postscript3 Unit Type C2551 Postscript3 Unit Type C2551 415543 D556-04 ( U )

USB Attachment Option USB2.0/SD Slot Type G 415672 D556-16 ( U )

Caster Table for PB3070 Caster Table Type B 414819 D448-03 ( C ) D038/D041

Inner 1 Bin Tray 1 Bin Tray BN3060 414617 D426-17 ( C ) D038/D041

PictBridge Camera Direct Print Card Type Ｉ415575 D546-21

1 Tray Paper Bank (500 x 1) Paper Feed Unit PB3070 414616 D425-17 ( C ) D038/D041

Side Tray Side Tray Type C2550 414618 D427-17 ( C ) D038/D041

Internal Shift Tray Internal Shift Tray SH3030 414619 D428-17 ( C ) D038/D041

Internal Finisher Internal Finisher Type C2550 414620 D429-17 ( C ) D038/D041

Punch Unit NA 2/3 holes Punch Unit PU3010NA 414621 D390-17 ( C ) D038/D041

Subject to change without notice

Product Support Guide

Model D104/D106

Ver.1.5 Page 3 of 43 12/9/2011

Product Common /

Item Description EDP Code Code Unique

Punch Unit EU 2 holes Punch Unit PU3010EU2 414622 D390-27 ( C ) D038/D041

Punch Unit EU 4 holes Punch Unit PU3010EU4 414624 D390-67 ( C ) D038/D041

Accessibility Handle ADF Handle Type B 414965 D366-10 ( C ) D038/D041

Platen Platen Cover Type 3800C 412551 G329-57 ( C ) D038/D041

2 Tray Paper Bank (500x 2) Paper Feed Unit PB3030 413673 D331-01 ( C ) D038/D041

SAF memory for Fax Memory Unit Type B 32MB N/A G578-17 ( C ) D038/D041

IEEE1284 IEEE 1284 Interface Board Type A 411699 B679-17 ( C ) D038/D041

IEEE 802.11a/g EU/AA IEEE 802.11a/g Interface Unit Type J 414009 D377-02 ( C ) D038/D041

IEEE 802.11g Specified Countries IEEE 802.11g Interface Unit Type K 414186 D377-19 ( C ) D038/D041

File Format Converter File Format Converter Type E 414007 D377-04 ( C ) D038/D041

Key Counter Bracket Key Counter Bracket Type H 412552 A674-05 ( C ) D038/D041

Optional Counter Interface Unit Type

A Optional Counter Interface Unit Type

A 413012 B870-11

( C ) D038/D041

Unicode Font Package for SAP 1

License Unicode Font Package for SAP 1

License 413009 B869-01

( C ) D038/D041

Unicode Font Package for SAP 10

License Unicode Font Package for SAP 10

License 413010 B869-02

( C ) D038/D041

Unicode Font Package for SAP 100

License Unicode Font Package for SAP 100

License 413011 B869-03

( C ) D038/D041

Fax Stamp ink Marker Type 30 334049 H903-02 ( C ) D038/D041

Hand Set for Fax Hand Set Type1018 410781 B433-01 ( C ) D038/D041

IEEE 802.11a/g NA IEEE 802.11a/g Interface Unit Type J 414008 D377-01 ( C ) D038/D041

Data Overwrite Security Unit Data Overwrite Security Unit Type H 414002 D377-06 ( C ) D086/D087

Subject to change without notice

Product Support Guide

Model D104/D106

Ver.1.5 Page 4 of 43 12/9/2011

Product Common /

Item Description EDP Code Code Unique

Card Reader Bracket Type C5501 Card Reader Bracket Type C5501 415495 D547-03 ( C ) D086/D087

Gigabit Ethernet Gigabit Ethernet Type B 414204 D377-21 ( C ) D017/D009

Cabinet FAC43 Cabinet Stand 415016 --- ( C ) D038/D041

Blue Tooth TBA TBA TBA TBA

IPDS TBA TBA TBA TBA

USB Keyboard Optional USB Keyboard 100266FNG --- ---

Bracket Optional USB Keyboard Bracket 100268FNG --- ---

Note: The Data Overwrite Security Unit is ISO 15408 is Certified. The Standard unit included with the machine is not certified

Supplies/Yields

Item Name Order Code Target Yield Notes

Ricoh/Savin/Lanier

Black Toner Print Cartridge Black Type MP

C2551/C9125/LD625C 841500 10,000* Used in D104/D106 only

Yellow Toner Print Cartridge Yellow Type MP

C2551/C9125/LD625C 841501 9,500* Can be used in

D104/D106/D037/D038/D041

Magenta Toner Print Cartridge Magenta Type

MP C2551/C9125/LD625C 841502 9,500* Can be used in

D104/D106/D037/D038/D041

Cyan Toner Print Cartridge Cyan Type MP

C2551/C9125/LD625C 841503 9,500* Can be used in

D104/D106/D037/D038/D041

Toner (Existing)

Black Toner Print Cartridge Black Type MP

C2550/C9025/LD525C 841280 10,000*

Used in D037/D038/D041

only

Cyan Toner Print Cartridge Cyan Type MP

C2550/C9025/LD525C 841281 5,500 Can be used in

D104/D106/D037/D038/D041

Magenta Toner Print Cartridge Magenta Type

MP C2550/C9025/LD525C 841282 5,500 Can be used in

D104/D106/D037/D038/D041

Yellow Toner Print Cartridge Yellow Type MP

C2550/C9025/LD525C 841283 5,500 Can be used in

D104/D106/D037/D038/D041

Staple Set Cartridge Staple Type T 415009 5,000

Staple Refill

Cartridge Refill Staple Type T 415010 10,000

Marker 30 Marker Type 30 334049 12,000

Supply Yield Condition:

1) * 5% chart is used to measure the yield.

2) The condition is standard temperature and humidity.

3) This yield number may change depending on the circumstances and printing conditions.

4) The New Toner is Tri-branded and used in all models. (One EDP Code)

5) The new toner cartridge is a High Yield Cartridge

Option Compatibility

Subject to change without notice

Product Support Guide

Model D104/D106

Ver.1.5 Page 5 of 43 12/9/2011

Hardware options

Platen

ARDF

Accessibility handle

1-Tray Paper bank

Caster table

2-Tray Paper Bank

1 Bin Tray

Shift Tray

Side Tray

Internal Finisher

Punch Unit (US 2/3)

Envelope Feeder

Key Counter Bracket

Optional Counter

interface

Cabinet

1 Platen

2 ARDF N Y

3 Accessibility handle N Y

4 1-Tray Paper bank Y N

5 Caster table Y N N

6 2-Tray Paper Bank N N

7 1 Bin Tray N N

8 Shift Tray N N

9 Side Tray

10 Internal Finisher N N Y

11 Punch Unit (US

2/3) N N Y

12 Envelope Feeder

13 Key Counter

Bracket

14 Optional Counter

interface

15 Cabinet N N N

Y: Must Install / N: Cannot Install

Controller options

Subject to change without notice

Product Support Guide

Model D104/D106

Ver.1.5 Page 6 of 43 12/9/2011

Subject to change without notice

Fax Option

SAF memory

Handset

Fax Stamp

PostScript3

PictBridge Option

IEEE 1284 Interface

IEEE802.11a/g

Gigabit Ethernet

HDD Data Overwrite

USB2.0/SD SLOT

File Format Converter

Card Reader Bracket

1 Fax Option Y Y Y

2 SAF memory Y

3 Handset Y

4 Fax Stamp Y

5 PostScript3

6 PictBridge Option

6 IEEE 1284 Interface N N N

7 IEEE802.11a/g N N N

8 Gigabit Ethernet N N N

9 HDD Data Overwrite

10 USB2.0/SD SLOT

11 File Format Converter N N N

12 Card Reader Bracket

Y: Must Install / N: Cannot Install

Product Support Guide

Model D104/D106

Ver.1.5 Page 7 of 43 12/9/2011

Branding Information

Branding is required as the machines are shipped as a generic version.

Ricoh version machines: You must attach the model label (provided) to the front cover.

Savin/Lanier: You must attach the model label (provided) to the front cover and set the Plug and Play name with

SP 5-907.

Branding Plaques

Model Ricoh Lanier Savin

Product Code MIU Product Code MIU Product Code MIU

D104 D104-31 415517 D104-34 415520 D104-32 415518

D106 D106-31 415532 D106-34 415535 D106-32 415533

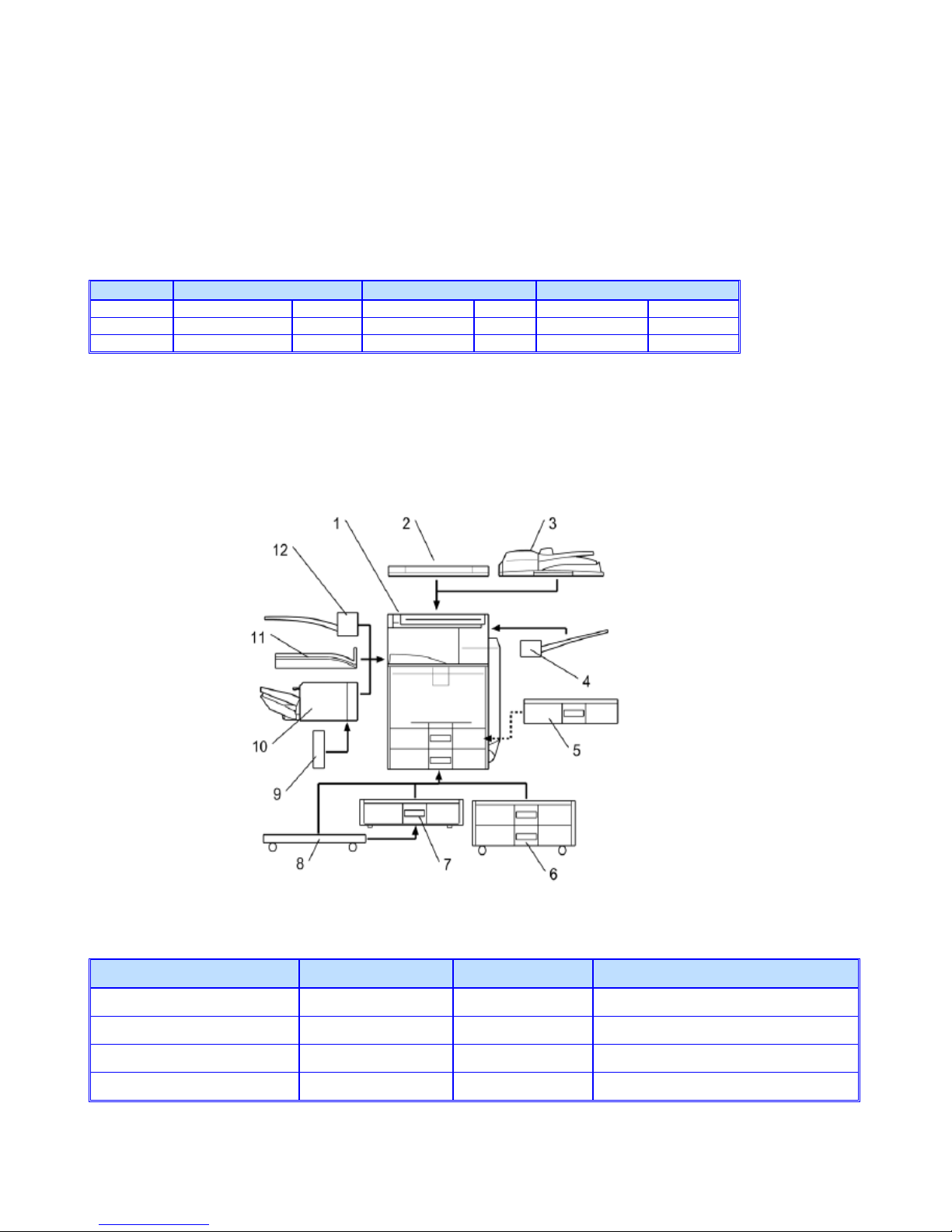

Configuration

Main Frame Configuration

D104/D106

Item Machine Code Call Out Remarks

Mainframe D104/D106 [1] D104/D106

Platen Cover G329 [2]

ARDF D541 [3] Standard

Side Tray D427 [4]

Subject to change without notice

Product Support Guide

Model D104/D106

Ver.1.5 Page 8 of 43 12/9/2011

Item Machine Code Call Out Remarks

1-Bin Tray D426 [12] One of the following 4 choices: [10]

only, [11] only, [12] only, or [11] and

[12]

Shift Tray D388 [11]

Internal Finisher D429 [10]

Punch unit: 2/3 holes D390-17 [9] Requires [10]

Punch unit: 2 holes D390-27 [9] Requires [10]

Punch unit: 4 holes D390-31 [9] Requires [10]

Two Tray Paper Feed unit D331 [6] One from [6], [7], and [8]

The one- Tray PFU [6] Requires [8]

If neither [6] nor [7] is installed, install

[8] if required by the customer

One Tray Paper Feed Unit D425 [7]

Caster Table D448 [8}

Envelope Feeder D559 [5} This option can only be installed in tray

1 of main frame

MFP Options

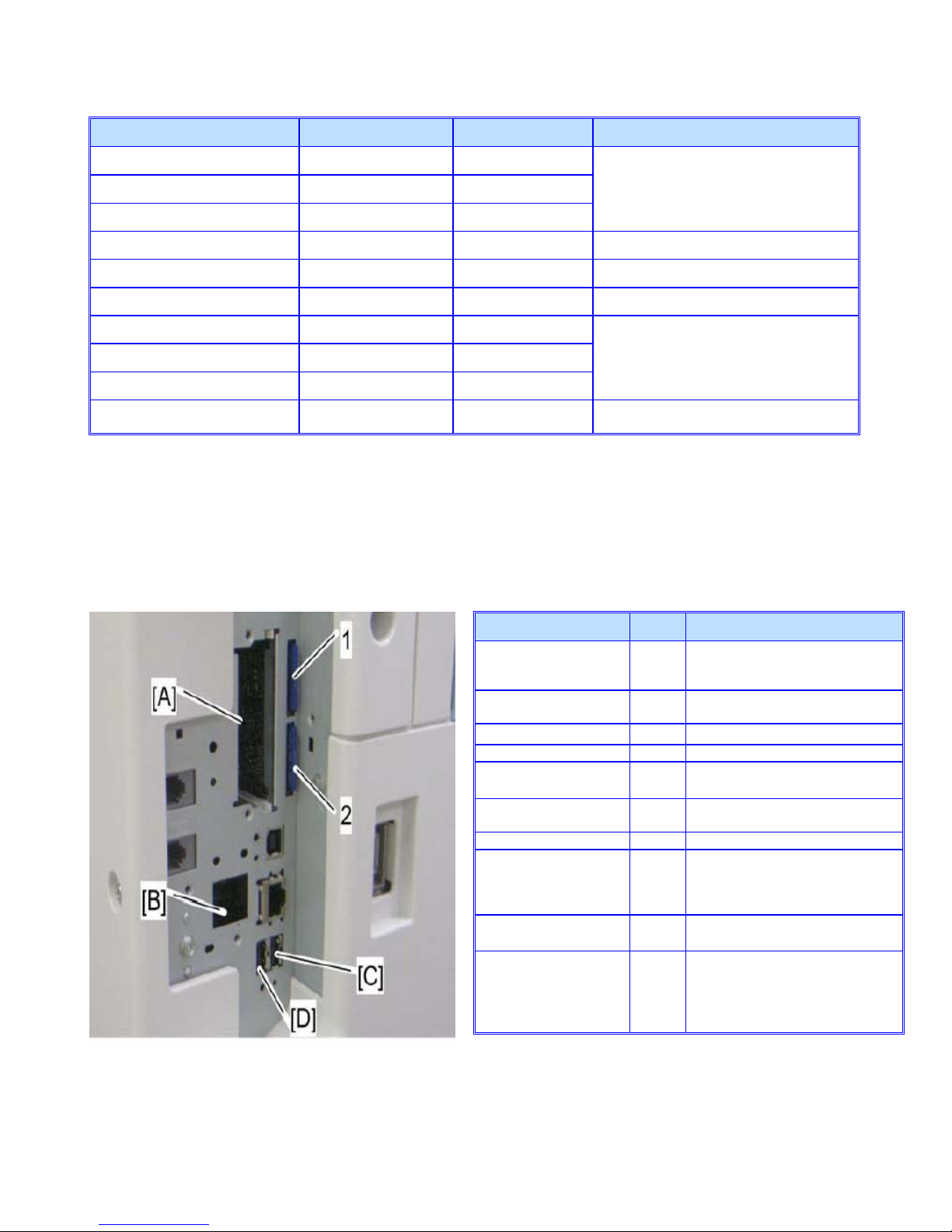

MFP Option Board Slot / SD Card Assignments

Option Slot Notes

Data Overwrite

Security/HDD

Encryption 1 Standard

Pre-installed on a single SD

card in slot 1

PostScript 3 1 Must merge Data Overwrite

Security/HDD Encryption

Picbridge 1 Must merge to PostScript

IPDS 1 TBA

Updating Firmware 2 VM Card must be removed to

update firmware

VM Card 2 Comes standard with machine

and must stay in slot 2

Gigabit Ethernet B Used for Gigabit Ethernet only

IEEE1284

IEEE802.11a/g

File Format Converter

Bluetooth A Only one option can be installed

in I/f Slot B

Bluetooth (TBA)

USB Slot for Digital

Camera C Camera must be Picbridge

compliant

USB Slot for Optional

USB2.0/SD Card Slot D

Scan to and Print from

PostScript or PDF Direct Card

must be installed

PDF Direct Card supplied with

USB2.0/SD Card option

Subject to change without notice

Product Support Guide

Model D104/D106

Ver.1.5 Page 9 of 43 12/9/2011

Subject to change without notice

Installation

Installation Requirements

Temperature Range: 10°C to 32°C (50°F to 89.6°F)

Humidity Range: 15% to 80% RH

Ambient Illumination: Less than 1,500 lux (do not expose to direct sunlight)

Ventilation: 3 times/hr/person

Ambient Dust: Less than 0.075 mg/m

(2.0 x 10-6oz/yd

)

Avoid areas exposed to sudden temperature changes:

Areas directly exposed to cool air from an air conditioner

Areas directly exposed to cool from a heater.

Do not place machine where it will be exposed to corrosive gas or vapor.

Do not install the machine at any location over 2,000m (6,500 ft.) above sea level.

Place the machine on a strong and level base. Inclination on any side should be no more than 5mm (0.2”)

Do not place the machine where it may be subject to strong vibrations.

Machine level Front to back: within 5mm (0.2”) of level

Machine level Right to left: within 5mm (0.2”) of level

Power Requirements

Input voltage level: 110 - 120 V, 60Hz: 12A

Do not place anything on power cord.

The required wall outlet is a NEMA 5-15R (receptacle)

Space

A (Front) Over 100m(3.9”)

B (Left) Over 100m(3.9”)

C (Rear) Over 315m(12.4”)

D (Right) Over 400m(15.7”)

Foot Print

NOTE: Measurement Conditions: Without Finisher installed and bypass table closed

Dimensions: W 587mm x D 655mm x H 725mm / 23.1”x25.8”x28.5” (w/o ARDF)

Dimensions: W 587mm x D 655mm x H 845mm / 23.1”x25.8 x33.3” (with ARDF)

Product Support Guide

D104/D106

Ver.1.5 Page 10 of 43 12/9/2011

Power Consumption / Noise Emission

Power Consumption

US/EU Wattage Recovery Time Shift Time BTU

Max Power US 1500 watts --- --- 5118.2

EU 1680 watts --- --- 5459.4

Operating Power US 540 watts --- --- 1842.5

EU 540watts --- --- 1842.5

Ready Mode US 120 watts --- --- 409.4

EU 119 watts --- --- 406.0

Standby US 250 watts --- --- 853.0

EU 250 watts --- --- 853.0

Panel Off Timer US 250 watts 7 Sec 1 min 853.0

EU 246 watts 7 Sec 1 min 839.38

Panel Off level 2 US 204 watts 10 Sec 1 min 696.0

EU 210 watts 10 Sec 1 min 716.5

Low Power US 96.7 watts 18 sec 15 min 329.9

EU 106 watts 17 sec 16 min 361.6

Sleep Mode US 1.0 watts 24 sec 45 min 3.4

EU 1.1 watts 24 sec 30 min 3.4

TEC (Typical Electricity

Consumption) D014 US 1.000 (kWh)

---

EU 1.000 (kWh)

D106 US 1.274(kWh) --- -- ---

EU 1.200 (kWh)

Note: Energy Star Qualified Version ES 1.2

Sound Noise Level

Mainframe only/

D104 D106

Stand-by 40 dB 40 dB

Copying 64 dB 66 dB

Complete System (Data is a result of actual measurement)

D104 D106

Stand-by 44 dB 44 dB

Copying 68db 70 dB

Sound Pressure Level

Mainframe only

D104 D106

Stand-by 34 dB 34 dB

Copying 58 dB 60 dB

Complete System

D104 D106

Stand-by 38.0 dB 38.0 dB

Copying Monochrome : 61.0 dB

Color: 62.0 dB Monochrome : 62.8 dB

Color: 63.5 dB

Note: Power consumption data are actual data and may differ depending on the

condition and environment of the machine.

Subject to change without notice

Altri manuali per D104

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Ricoh Stampante tutto in uno

Ricoh

Ricoh B230 Guida alla risoluzione dei problemi

Ricoh

Ricoh Aficio MP 161 Istruzioni di installazione e manutenzione

Ricoh

Ricoh Aficio MP W2400 Manuale utente

Ricoh

Ricoh Aficio 3025 Manuale del proprietario

Ricoh

Ricoh DX 4542 Manuale utente

Ricoh

Ricoh DX 3443 Manuale utente

Ricoh

Ricoh AC204 Manuale utente

Ricoh

Ricoh A66 Manuale utente

Ricoh

Ricoh FT3320 Guida all'installazione

Ricoh

Ricoh A151 Guida rapida

Ricoh

Ricoh Aficio MP C3500 EFI Istruzioni utente

Ricoh

Ricoh Aficio MP C6000 Manuale utente

Ricoh

Ricoh Aficio GX3000S Manuale utente

Ricoh

Ricoh All in One Printer Manuale utente

Ricoh

Ricoh SP 230 SFNw Manuale utente

Ricoh

Ricoh Aficio 401 Manuale utente

Ricoh

Ricoh MP 2001 Manuale utente

Ricoh

Ricoh Aficio 8060 Manuale utente

Ricoh

Ricoh MP C6502 Series Manuale utente

Ricoh

Ricoh Aficio MP C3500 Manuale utente

Ricoh

Ricoh Pro C5110 Series Manuale utente

Ricoh

Ricoh Aficio SP 204SN Manuale utente

Ricoh

Ricoh BizWorks 406e Manuale utente

Ricoh

Ricoh SP C435DN Manuale utente

Manuali Stampante tutto in uno popolari di altre marche

Triumph Adler

Triumph Adler DC 2016 Manuale

Epson

Epson WorkForce WF-2510 Guida utente

Epson

Epson Stylus Scan 2000 Manuale di installazione e funzionamento

Epson

Epson PictureMate Snap PM 240 Manuale di istruzioni

Konica Minolta

Konica Minolta bizhub C35 Manuale utente

Brother

Brother MFC-J430w Manuale utente

Konica Minolta

Konica Minolta BIZHUB 558 Manuale utente

Lexmark

Lexmark MX710 Series Manuale

Brother

Brother MFC-9760 Manuale utente

Lexmark

Lexmark XC8155 Manuale utente

Lexmark

Lexmark X642E Manuale utente

Sharp

Sharp MX-2310U Guida

Aficio

Aficio 200 Manuale utente

Canon

Canon ImageCLASS 2300 Manuale

Lexmark

Lexmark X925 Manuale utente

Brother

Brother Business Smart MFC-J4510dw Manuale utente

Epson

Epson Stylus CX8400 Series Manuale utente

Oce

Oce VarioLink 5022 Manuale utente
