Ricoh D124 Manuale

MO-C1 Training

Slide 1

D124

Service Training

MO-C1

Version 1.1

This training course provides service technician training for the Mo-C1. This is a

new engine, so the training course is a full course.

Version 1.1 modifications

Initializing the New Paper Roll (starting at slide 207)

Removing a Roll (starting at slide 215)

Controlling the Ink Supply to the Sub Tanks: Monitoring the Sub Tank During

Printing (slide 259)

Controlling the Ink Supply to the Sub Tanks: What Happens if Air is Detected?

(slide 260)

MO-C1 Training

Slide 2

D124

Service Training

Course Overview

This section provides an overview of the sections of the training course.

MO-C1 Training

Slide 3

Contents of the Course

Product Overview

Main Specifications

Installation

Maintenance

Machine Overview

Scanner

Image Processing

Paper Feed

Ink Supply and Printing

Maintenance Unit

Troubleshooting for the Printer Engine

The Operation Details section contains detailed descriptions of certain

procedures, such as power on initialization, paper roll initialization, and so on.

MO-C1 Training

Slide 4

D124

Service Training

Product Overview

This section provides an overview of the machine, and the options that can be

installed.

MO-C1 Training

Slide 5

What Models are there in the Series?

MO-C1 (D124)

Output speed (A1 LEF, high speed mode, copying):

» 3.4 ppm (

black-and-white), 1.1 ppm (color)

» 5 sheets A1 LEF in 109 s (

black-and-white)

, 293 s (color)

– 5 sheets D LEF in 116 s (

black-and-white)

, 318 s

(color)

» First copy: Less than 31 s

Warm-up time: Less than 40 s (23 degrees C)

Paper thickness: 51 to 220 g/m

Durability: 72 km

Paper Size:

» Width: 210 to 914.4 mm (8.3 to 36 in)

» Length 210 to 15,000 mm (8.3 to 591 in.)

Contains scanner and printer kits as standard equipment

Contains one roll unit, bypass feed, an original stacker and

a printout exit stacker as standard equipment.

Supports SDK solutions such as Global Scan NX.

The warm-up time includes time for the controller to start up.

Output speed: For printing, there are three types: standard, quality, and high

speed, selectable with the printer driver. For copying, there is high speed and

standard only.

MO-C1 Training

Slide 6

Enhanced controller

USB/SD Media to Print (STD)

Scan to USB/SD (STD)

High Productivity

The black heads have a staggered layout that makes b/w printing

faster.

New operation panel

Full Color Wide VGA touch screen

Environmentally Friendly

Power Consumption 90% of N-C3

Short warm up time (less than 40 seconds)

Complies with RoHS Directive

Paper Handing

Built-in exit stacker (10 sheets A0 SEF/A1 LEF, A1 SEF/A2 LEF,

plain/inkjet/glossy paper)

1 roll + manual feed (1 additional roll option)

Product Concepts

Additional Features

Full front operation

Increased languages from N-C3 (Brazilian Portuguese and Greek support)

HDD overwrite/encryption functions are standard

MO-C1 Training

Slide 7

Position in the Product Range

This is an office color machine, not a professional color machine.

MO-C1 Training

Slide 8

Appearance (1)

This shows the machine, with two roll feeders, exit stacker, and printer/scanner unit.

Roll feeder 1 (standard) is not pre-installed in the factory. It must be installed at the

same time as machine installation.

Rear Original

Stacker

Original Stacker

Original Table

Main Unit

(Printer)

Optional

Roll Unit

Front Cover

Exit Stacker

Scanner Unit

Ink Supply Unit

Original Guide

Standard

Roll Unit

In this photo, the standard roll unit is obscured by the ink supply unit.

Roll unit: Also known as a roll feeder unit.

MO-C1 Training

Slide 9

Appearance (2)

The exit stacker can be folded.

The operation panel and scanner unit can be separated

from the main unit and put on a table or a separate stand.

This is a lot easier to do than in the Be-C1/C1.5 series.

Exit Stacker

The operation panel and scanner unit cannot be turned around so that the exit is

the other side of the machine from the operator.

MO-C1 Training

Slide 10

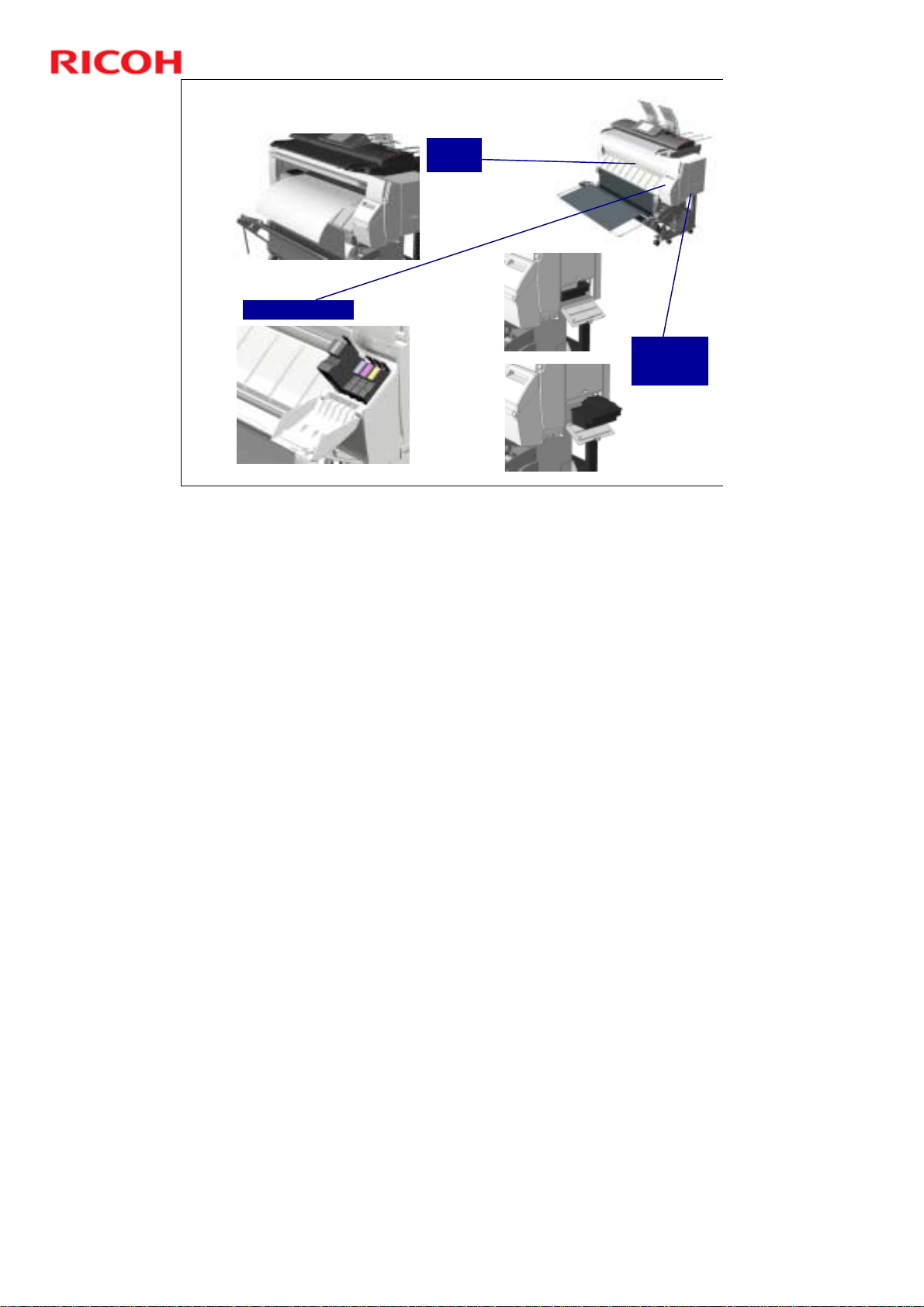

Appearance (3)

Bypass

Feed

Ink Cartridges

Ink

Collector

Tank

Ink Collector Tank

Capacity: 425 cc

Replace every 8,000 m (APV: 360m, Color ratio: 10％, Coverage: B/W 6%,

CMYK 5% each)

Replaced by users

Ink cartridges

Cartridge Capacity: Black 180ml, CMY 80m

Target Yield (A1 LEF, APV = 360m, 1P/J, Coverage B/W= 6% Color=

5%x4C=20%, Usage ratio Black 90% Color 10%):

¾Black: 774 Copies, 460 m

¾Cyan: 342 Copies, 203 m

¾Magenta: 347 Copies, 206 m

¾Yellow: 355 Copies, 211 m

Warranty period

¾Unopened: 24 months

¾Opened: 6 months

Environment

¾Storage: Temperature -30 to 43 degrees Celsius, Humidity 15 to 80%

¾Use: Temperature 10 to 32 degrees Celsius, Humidity 15 to 80%

¾Transport: Temperature -30 to 50 degrees Celsius, Humidity 15 to 90%
