Ricoh M049 Manuale

Ricoh Co. Ltd. http://www.ricoh.com/

M049 (MF-2a) / M048 (MF-2b)

Slide 1

M049/M048

Service Training

Product Overview

MF-2a/MF-2b

Most recently updated -January 30th, 2009 (New notes text for Slide #51)

Most recently updated -January 29th, 2009 (New photo for Slide #51)

Ricoh Co. Ltd. http://www.ricoh.com/

M049 (MF-2a) / M048 (MF-2b)

Slide 2

The Machine

This is the machine

you will study in

this training course.

Note the following:

wPaper tray

wBypass tray

»(Manual feed)

wADF (M048 only)

wOperation panel

Ricoh Co. Ltd. http://www.ricoh.com/

M049 (MF-2a) / M048 (MF-2b)

Slide 3

Machine Details

qThis product consists of a color scanner with a 600 dpi

resolution and a Black and White printer with a 600 dpi

resolution. These two components are integrated into a

single compact machine.

qDocuments are processed by a scanner using CIS

(Contact Image Sensor) technology, via the ADF

(Automatic Document Feeder -not available on all

models) or via the exposure glass for bulky documents.

qDirect Scanning to USB memory and Direct printing from

USB memory are also featured.

Ricoh Co. Ltd. http://www.ricoh.com/

M049 (MF-2a) / M048 (MF-2b)

Slide 4

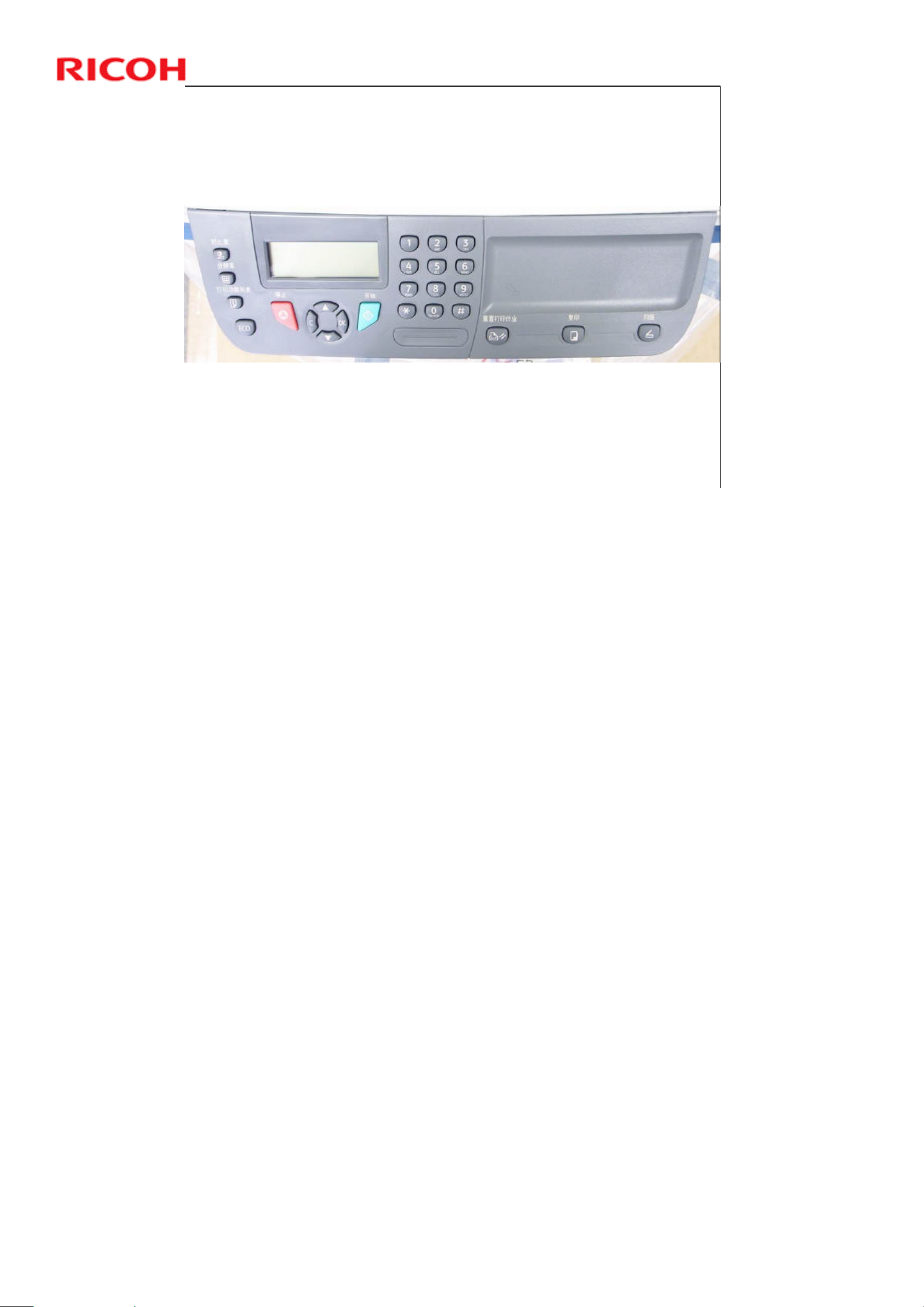

Operation Panel -1/2

Go to the machine and have a look at the operation panel.

w(Depending on the model and production date, the appearance of

the control panel may differ slightly from the above image.)

Model M048 / MF2b

Ricoh Co. Ltd. http://www.ricoh.com/

M049 (MF-2a) / M048 (MF-2b)

Slide 5

Operation Panel -2/2

Go to the machine and have a look at the operation panel.

w(Depending on the model and production date, the appearance of

the control panel may differ slightly from the above image.)

Model M049 / MF2a

Ricoh Co. Ltd. http://www.ricoh.com/

M049 (MF-2a) / M048 (MF-2b)

Slide 6

Clearance

Machine depth without paper tray and AC cord –386 mm.

Allowing for paper tray, ADF cord, and AC cord clearance –449 mm.

Verify that there is rear clearance for the paper tray, ADF cable, and AC cord when the machine is to be operated in confined spaces.

Ricoh Co. Ltd. http://www.ricoh.com/

M049 (MF-2a) / M048 (MF-2b)

Slide 7

Interfaces

qModel M048 provides Fax connectivity.

qFor full details, see the Service Manual and the

Operating Instructions

Ricoh Co. Ltd. http://www.ricoh.com/

M049 (MF-2a) / M048 (MF-2b)

Slide 8

M049/M048

Service Training

Specifications

Ricoh Co. Ltd. http://www.ricoh.com/

M049 (MF-2a) / M048 (MF-2b)

Slide 9

Changes from Previous Model

qPrint Speed

w20ppm (A4) (from 16ppm)

qCopy Speed

w20cpm (A4) (from 16ppm)

qDuplex

wManual setting (from no duplex)

qSupported OS

wW-2000/XP/Vista/Server-2003

»Vista & Server 2003 new

qID Card Copy

wAvailable (previously not available)

qScanning Capabilities

wTwain, WIA, & Scan-to-USB memory

»WIA & Scan-to-USB memory new

Ricoh Co. Ltd. http://www.ricoh.com/

M049 (MF-2a) / M048 (MF-2b)

Slide 10

General Specifications -1/2

qLook over the Specifications section of the Service

Manual for the following.

wGeneral Specifications

wPaper sizes

wMachine configuration

wOptional Equipment

qNote that this is a compact and lightweight machine:

wNon-ADF Model Dimensions -(W x H x D) -

447x412x386mm

»(depth of 449mm with cords)

»(height of 459 with ADF Tray)

wADF Model Dimensions -(W x H x D) -

447x452x386mm (depth of 449mm with cords)

wWeight (basic machine/ADF model) -11.6/13 kg
