Ricoh Pro C9200 Manuale utente

For safe and correct use, be sure to read Safety Information before

using the machine.

Using the Auto Color Diagnosis Function

Auto Color

Diagnosis Guide

TABLE OF CONTENTS

1. Using the Auto Color Diagnosis Function

Introduction......................................................................................................................................................... 3

Disclaimer........................................................................................................................................................3

Notes...............................................................................................................................................................3

About the Auto Color Diagnosis Function.........................................................................................................4

Generating Paper Properties (When Using Fiery)........................................................................................... 6

Using the "ACD Property" Screen................................................................................................................. 6

Generating Paper Properties.........................................................................................................................8

Printing with Auto Color Diagnosis.............................................................................................................11

Printing Diagnostic Marks........................................................................................................................... 11

Generating Paper Properties (When Using TotalFlow).................................................................................14

Using the "Paper" Screen............................................................................................................................ 14

Generating Paper Properties...................................................................................................................... 16

Troubleshooting................................................................................................................................................18

1. Using the Auto Color Diagnosis

Function

Introduction

Disclaimer

To the maximum extent permitted by applicable laws, in no event will the manufacturer be liable for any

damages whatsoever arising out of failures of this product, losses of documents or data, or the use or

non-use of this product and operation manuals provided with it.

Make sure that you always copy or have backups of important documents or data. Documents or data

might be erased due to your operational errors or malfunctions of the machine. Also, you are

responsible for taking protective measures against computer viruses, worms, and other harmful software.

Notes

Contents of this manual are subject to change without prior notice.

Depending on the release date, some of the specifications (operations) may differ from those given in

this manual. For details, please contact your local dealer.

Some illustrations in this manual might be slightly different from the machine.

In no event will the manufacturer be responsible for any documents created by you using this product or

any results from the data executed by you.

About the Auto Color Diagnosis Function

This section explains the Auto Color Diagnosis function, which is one of the functions of the Auto Color

Diagnosis Unit.

This function uses the in-line sensor to scan the printed colors while a continuous print run is in progress,

and suppresses color deviation without stopping the machine.

DWQ651

Master image Scanned image

Extract reference

color information

Check color deviation

Decide the adjustment

method based on the

paper properties

Tone Correction

Monitoring and Adjusting Colors Automatically

To suppress color deviation during a continuous print run, the machine compares the recently

printed colors to the colors initially printed at the beginning of the print run, and adjusts the colors

automatically.

• You cannot enable or disable the Auto Color Diagnosis function individually for each print

job.

• You need a sufficient number of measurement points in the image to be printed for the function

to be effective.

Generating and Registering Paper Properties

To adjust colors correctly, generate paper properties for each paper type. When generated, this

information is stored in the machine's data storage. The machine reads the properties of the paper

used for printing from the storage and adjusts colors according to the information.

Supported Paper

The paper supported by the Auto Color Diagnosis function is as follows:

1. Using the Auto Color Diagnosis Function

Paper attributes Requirements

Paper size 210 mm (8.3inches) or more vertically × 279–700 mm (11–27.6inches)

horizontally; or 279 mm (11inches) or more vertically × 210–700 mm (8.3–

27.6inches) horizontally (including custom and banner paper)

Paper weight Paper weight "1" or greater

Paper type Plain paper, recycled paper, high gloss paper, gloss paper, matte paper, or

synthetic paper

Paper color White

• You cannot use the Auto Color Diagnosis function when printing on a sheet of paper that has been

manually selected instead of selected from the media catalog.

About the Auto Color Diagnosis Function

Generating Paper Properties (When Using

Fiery)

To use the Auto Color Diagnosis function, print the color chart and generate paper properties for each

paper type. When generated, this information is stored in the machine's data storage and used for

adjusting colors when printing is performed.

To adjust colors properly, perform calibration before generating paper properties.

• Colors are adjusted using the Auto Color Diagnosis function when printing is performed on the

paper for which paper properties are generated.

• Up to 9 sheets of paper are required to generate paper properties.

• Generate this information again after:

• Changing the data registered in the master library (custom paper) via the machine's control

panel

• Changing the printing speed in the paper settings

• Replacing the Line Sensor

• Changing the maximum density (D-MAX) while performing calibration

• Changing the color profile registered in the paper catalog

• For details about the paper catalog, see the "Utilities" manual for the Fiery controller in use.

Using the "ACD Property" Screen

The "ACD Property" screen displays a list of paper types that can be used on the machine. In the screen,

you can generate paper properties, check the generation status, and specify the accuracy setting of the

information.

Viewing the generation status of paper properties

1. Click [Launch ACD] in the "WebTools" screen.

2. Log in with a user name and password.

When a large number of items is registered in the paper catalog, it may take a few minutes to

display the "ACD Property" screen.

The security warning screen may be displayed in your web browser when you access the

"WebTools" or [Launch ACD] screen.

1. Using the Auto Color Diagnosis Function

When the warning screen is displayed, ignore it and continue browsing the web page.

3. Check the generation status of paper properties in the "ACD Property" screen.

In the screen, you can view the information below. To check whether the Auto Color Diagnosis

function is enabled, check the [ACD status] field.

Display item Description

Name Registered paper name

Weight (gsm) Paper weight

Paper size Paper size (standard/inch/mm)

Tray Number of the tray where the paper is currently loaded

ACD status Disabled Paper properties are not generated.

Enabled Paper properties are generated.

Not Applicable Because the Auto Color Diagnosis

function does not support paper types,

paper properties cannot be generated.

ACD last updated The last registration time of paper properties

Specifying generation accuracies for paper properties

You can specify generation accuracies for paper properties from High Accuracy or Standard. You

cannot modify this information after it is generated. Specify settings before generating the information.

Generating Paper Properties (When Using Fiery)

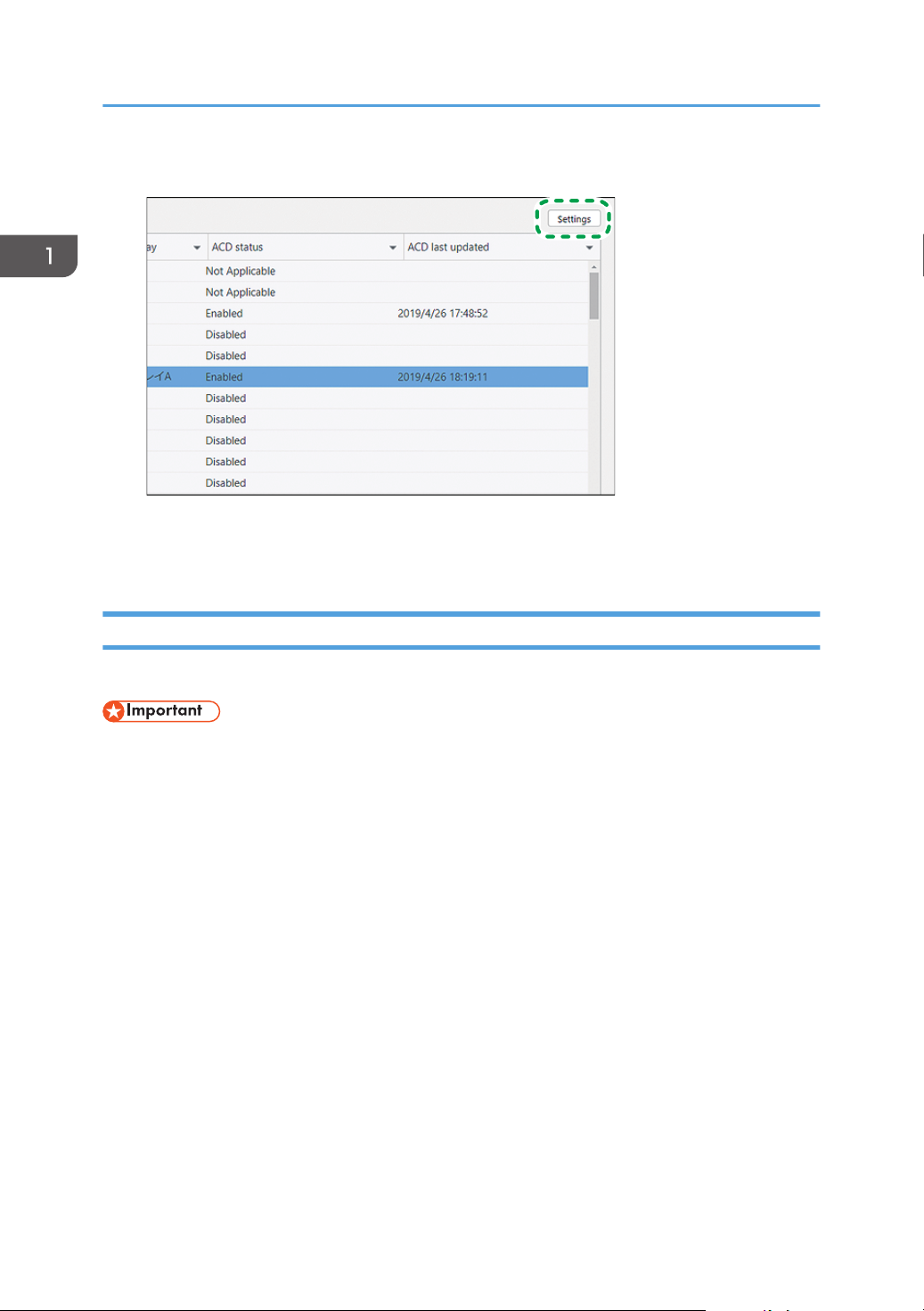

1. Click [Settings] in the top right corner of the "ACD Property" screen.

EDD651

2. Select the accuracy (High accuracy/Standard) of paper properties, and then click [OK].

The number of color charts to be printed is 5 for "Standard" and 9 for "High accuracy".

Generating Paper Properties

To generate paper properties, select the paper in the "ACD Property" screen.

• Specify the generation accuracy by following the procedure described in page 7 "Specifying

generation accuracies for paper properties" before generating paper properties.

• After changing the color profile registered in the paper catalog, generate the color properties

again. If you use the machine without generating the color properties, Auto Color Diagnosis may

fail or the hue of the printed image may vary excessively.

1. Load sheets of paper in the tray, and select the tray from the media catalog using the

machine's control panel.

When generating paper properties, depending on the precision of the selected paper properties,

the machine prints color charts on 5 sheets of paper (for "Standard") or on 9 sheets (for "High

accuracy"). Load paper for printing charts in the paper tray.

For details about how to select the tray from the media catalog, see "Specifying a Custom Paper"

Preparation.

2. Perform calibration.

1. Using the Auto Color Diagnosis Function
