Ricoh Y024 Manuale
1
Soleil-PJ1Training
Slide 1
Y024/Y025/Y026/Y027/Y028/Y029
Service Training
Altair-PJ1
Version 1.0
This training course provides service technician training for the Altair-PJ1
series.
2
Soleil-PJ1Training
Slide 2
Y024/Y025/Y026/Y027/Y028/Y029
Service Training
Product Overview
This section provides an overview of the machine, and the options that can
be installed.
3
Soleil-PJ1Training
Slide 3
What Models are there in the Series?
These are DLP projectors.
YesYesWXGA3000 lmY027PJWX3340N
NoYesXGA3000 lmY028PJX4240N
No
No
Yes
No
Auto Focus
NoXGA3000 lmY024PJX3340
YesXGA3000 lmY025PJX3340N
NoWXGAPJWX3340
YesWXGA3000 lmY029PJWX4240N
Network
3000 lmY026
ResolutionBrightnessModelModel Name
4
Soleil-PJ1Training
Slide 4
Main Specifications - 1
WXGAWXGA
Auto
3500 (5200)Lamp life (Eco)
297 ×
××
×235 ×
××
×100Dimensions (W×
××
×D×
××
×H)
40-240 40-24030-20030-200Projection size (inch)
Altair-PJ1 dwnAltair PJ1 dw Altair-PJ1 dxnAltair-PJ1 dx
YesHDMI
300WMax. Power Consumption
3.0 kg (6.6 lbs)Less than 2.9 kg (6.4 lbs)Weight
YesNo@Remote
YesNoPJLink
YesNoWireless LAN
Service Use, PC-Free
Presentation Use
Service Use OnlyUSB
YesNoWired LAN
High-pressure mercury lamp
(Standard mode: 230 W, Eco mode: 124 W)
Lamp type
3000lmBrightness
Desk Edge Model
Type DLP
Resolution XGA XGA
Focus Manual
Speaker 10W x 1
PointBlank Dongle Connector Yes
Altair-PJ1
Additional USB port: Users can use this to display JPEG or MPEG2 files
without PC or network connection.
LAN: For use with PJLInk. Users can also use the LAN to project files that
are stored on a PC or server on the network. @Remote will also be
available.
To enable projection of a file from a PC over a network, a network utility can
be downloaded to the PC or installed from the CD that comes with the
projector. No lengthy installation procedure is required.
5
Soleil-PJ1Training
Slide 5
Main Specifications - 2
3500 (5200)Lamp life (Eco)
ManualFocus
60-14050-120Projection size (inch)
Short Throw Model
YesHDMI
325WMax. Power Consumption
3 kg (6.7 lbs)Less than 3 kg (6.7 lbs)Weight
Yes@Remote
YesPJLink
YesNoWireless LAN
Service Use, PC-Free
Presentation Use
Service Use OnlyUSB
YesWired LAN
High-pressure mercury lamp
(Standard mode: 250 W, Eco mode: 135 W)
Lamp type
3000lmBrightness
Altair-PJ1 sx Altair-PJ1 swn
Type DLP
Resolution XGA WXGA
Dimensions (W×
××
×D×
××
×H) 257 ×
××
×144 ×
××
×221
Speaker 10W x 1
PointBlank Dongle Connector Yes
Altair-PJ1
Additional USB port: Users can use this to display JPEG or MPEG2 files
without PC or network connection.
LAN: For use with PJLInk. Users can also use the LAN to project files that
are stored on a PC or server on the network. @Remote will also be
available.
To enable projection of a file from a PC over a network, a network utility can
be downloaded to the PC or installed from the CD that comes with the
projector. No lengthy installation procedure is required.
6
Soleil-PJ1Training
Slide 6
Features
This product can be installed by users.
The DE model is designed for table-top and
ceiling mount use.
The ST model is designed for table-top and wall
mount use.
This product is designed for user maintenance.
Regular on-site maintenance is not needed.
There is no display panel, but LEDs show the
symptoms for troubleshooting (blinking/lit,
number of times the LEDs blink, etc).
A service mode is available.
No additional notes
7
Soleil-PJ1Training
Slide 7

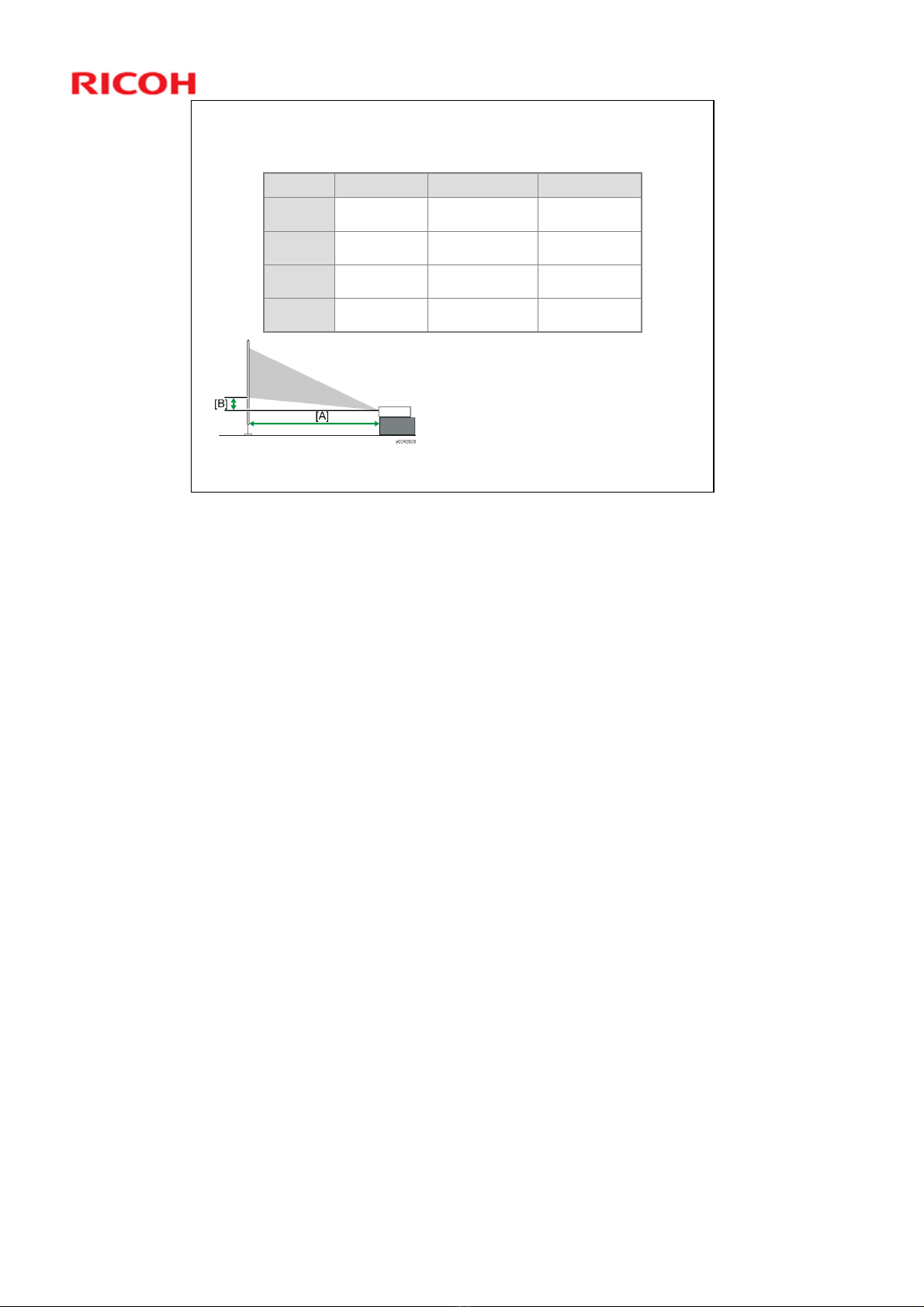

A: From the screen to the optical outlet
B: From the optical axis to the bottom of the
projected image
Relationship Between the
Projection Distance and the Screen Size
6~14 cm
(2~6 inches)
59~149 cm
(1.94~4.88 feet)
50~120 inches
Y028
Y029
Y026/Y027
Y024/Y025
5~11 cm
(2~4 inches)
61~148 cm
(2~4.85 feet)
60~140 inches
4~24 cm
(1~9 inches)
68~720 cm
(2.22~23.61 feet)
30~200 inches
3~18 cm
(1~7 inches)
77~733 cm
(2.53~24.06 feet)
40~240 inches
BAProjection Size
No additional notes
8
Soleil-PJ1Training
Slide 8
Network Features (Altair-PJ1)
Easy network setup
For network projection, Altair-PJ has an installation-
free network utility. Just download the file from the
Ricoh website to your PC or execute the program on
the attached CD, type in the PIN code, and you are
ready to project images.
¾Download network utility
from Ricoh website
[Step 1]
[Step 1] [Step 2]
[Step 2]
¾Type in the pass code
[Step 3]
[Step 3]
¾Make wireless network
connection on the PC
No additional notes
9
Soleil-PJ1Training
Slide 9
Network Features (Altair-PJ1)
@Remote capability
Remaining Lamp hour information
Power and status reporting
Projection server function
JPEG files stored on a web server can be
projected without a PC. Files can be uploaded
onto the web server using the supplied software:
JPEG conversion tool type A.
No additional notes
10
Soleil-PJ1Training
Slide 10
New Options - Interactive Tool Kit
The Interactive Tool Kit consists of an electronic pen, adapters
for the projector and computer, and a drawing software.
The user can use the pen to manipulate and perform operations on the projected
image and save the changes using the drawing software. Although the electronic
pen can be used in place of a mouse to operate the PC projection screen, it is
difficult to obtain the same level of positioning accuracy. The user should use a
mouse connected to the PC if required.
Electronic pen
Electronic pen Adapters
Adapters
For Projector (Cartridge)
For Projector (Cartridge)
For PC (USB dongle)
For PC (USB dongle)
Drawing software
Drawing software
*
* Support language :English/Chinese/ Japanese
Support language :English/Chinese/ Japanese
The characteristics of the Interactive Tool Kit are as follows.
1.It allows you to interact on any surface
2.It requires no calibration
3.The pen works from a distance or on the projected image surface
It allows flexible installation and interaction with large images
