Rifton Blue Wave E806 Manuale utente
Blue Wave
Toileting System
E806 & E808 Product Manual
®
E806 & E808
2© 2013 Rifton Equipment
Contents
Warnings and important information 4
Recommended use 5
Check your order 6
User and item dimensions 7
Basic item
Seat 8
Armrests 9
Hip strap and hip strap clips 9
Frame 10
Casters 10
Mounting bar 10
Accessories
Backs 11
Anterior support 13
Footboard 13
Abductor and pan 14
Operation 15
Maintenance and cleaning 18
Materials, user modifications and warranty 19
3
Key for EU users
Use this key to determine which sections of this product manual
apply to you.
Technical Users For professionals who order and set up
Rifton products.
Home Users For caregivers who use Rifton products on a
regular basis.
Maintenance Personnel For anyone who is responsible
for service or reordering of Rifton products and parts.
4
WARNINGS
• Thoroughly read and understand the information in this product
manual before attempting to use this product. If the procedures and
instructions in this product manual are not followed, serious injury
could occur.
• A qualified professional must assess the appropriateness and safety of
all equipment for each user.
• This product is intended for use by clients of unreliable judgment.
Adult supervision is required at all times.
• Do not use this product on rough and uneven terrain, around
swimming pools, or near stairways.
• All mobility equipment may become unstable when used improperly.
• Straps and supports are provided for the safety of the user and must
be carefully adjusted for comfort and security. The use of straps and
supports must be supervised at all times.
• Restraints – Using straps, trays or supports to restrict a client’s
movement is considered behavioral restraint, which may raise ethical
and legal issues for your facility. Rifton Equipment is not intended for
this use.
IMPORTANT
• Please save this product manual. Additional copies are available
at www.rifton.com
5
Recommended use
The Rifton Toileting System is a Class 1 medical device. The toilet seat is
recommended for use in conjunction with domestic or institutional toilets of sturdy
construction* and in good condition.
* Equipment should comply with the following standards: ANSI A112.19.2M
(Toilet bowls, USA), and ANSI Z124.5 (Toilet seats, USA), or BS 5503 (Toilet
bowls, UK), and BS 1254 (Toilet seats, UK)
WARNING
• Check your toilet bowl and seat bolts for age or wear before attaching the
mounting bar. Replace parts if necessary. Make periodic checks.
• Always check that the seat is attached firmly before placing the user in the
seat
Mounted on the toilet, with
or without backrest
Over the toilet Free standing unit and
as a shower chair
6
Check your order
The Blue Wave toileting system has been shipped according to your specifications.
It will require some tool-free assembly. Follow these instructions to insure
that your item is put together and used correctly. This product manual is
comprehensive and may discuss features not included in your item.
If your shipment is incomplete or in any way damaged on
arrival, please call Customer Service, 800.571.8198.
7
User dimensions - inches (cm) small large
Height 30-50 (76-127) 48-72 (122-183)
Key user dimension: height
The user’s overall height is a general guide to help you select the appropriate chair. Choose the
model that allows for growth.
Important: Make sure that seat width, depth, and height are adequate for each individual user and
that the user’s weight does not exceed the maximum weight recommended.
Item dimensions - inches (cm) small large
Frame width 20½ (52) 20½ (52)
Seat height above floor 10-20 (25-51) 15½-20 (39-51)
Seat width 12 (30) front 16 (41)
rear 12 (30)
Seat depth 9, 11 (23, 28) 11½, 13¾ (29, 35)
Armrest height above seat 5½ (14) 7 (18)
Hole size 3 x 9 (8 x 23) 4 x 10 (10 x 25)
Hole size (with deflector) 2¾ x 8½ (7 x 22) 3½ x 9½ (9 x 24)
Clearance to floor (for over toilet) 19 (48) 19 (48)
Back height 24 (61) Low back 18 (46)
High back 34 (86)
Max. working load - lbs (kg) 180 (82) 180 (82)
User and item dimensions
8
Basic item
Seat
Seat depth
The Rifton toilet seat has two settings of
seat depth (A and B): 11½" (29 cm) and
13¾" (35 cm) for the large seat, and 9"
(23 cm) and 11" (28 cm) for the small seat.
To alter the setting, remove the back and
place it in the other set of holes (see
Figure 8a).
Deflector and large seat cover
The deflector (C) and seat cover (D) insert
into the seat aperture and can be removed
for cleaning. The deflector for the large
seat is separate from the seat cover, and is
inserted into the front of the seat cover. It
should be removed prior to the user being
moved off the toilet
(see Figure 8b).
Small seat cover
The small seat cover with deflector is one
item. It can be removed for cleaning
(see Figure 8c).
The seat cover (E) should not be used
without the Rifton toilet seat.
Figure 8b. Large seat cover with deflector
being inserted.
Figure 8c. Small seat cover.
C
C
D
D
A
A
B
B
Figure 8a. Two settings of the seat depth help
you position the user close to the deflector for
best function.
E
E
9
Notice: The armrests for the small
seat and those for the large seat are
not interchangeable.
Figure 9a
Armrests
The armrests fit into the oval slots on the
side of the seat (see Figure 9a). They should
be pushed down and clipped in securely. To
release, squeeze the black clips under the
seat. To get more support at the elbows,
swap and rotate positions of the right and
left armrests. Keep the four armrest slots
(A) facing in.
1 (Front) 2 (Rear)
Figure 9c
Hip strap and hip strap clips
To remove the hip strap (B), reach under
the seat to release each clip. Push the front
half of the clip first, then the rear half. To
reinsert, push down firmly until it clicks into
place. Pull on the strap to check that it is
secure (see Figures 9b and 9c).
B
B
Figure 9b
A
A
10

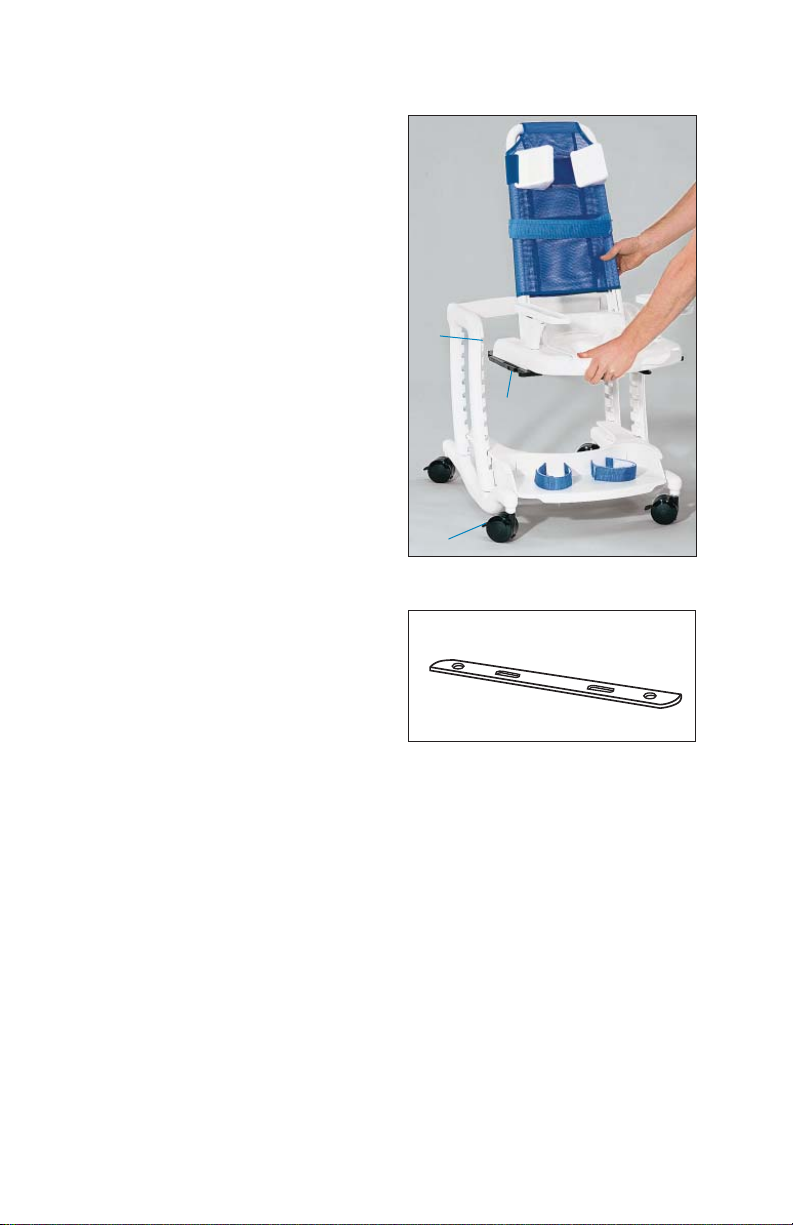

Frame
The inside of the frame has several sets of
slots (A) to adjust the height for the seat
and the footboard. The seat assembly
slides into one set of slots. Do not use the
seat unless completely latched in place.
To attach seat, press blue latches (B) on
outside of frame, and slide seat into place
until both black hooks at front are snug
against frame legs (see Figure 10a).
To remove the seat, press both latches and
pull seat out.
Casters
The corrosion-proof casters lock by
depressing lever (C) on the caster
(see Figure 10a).
Mounting bar
Attach the mounting bar (see Figure 10b)
permanently to the toilet. This will not
affect normal use of the toilet. It facilitates
quick, secure, tool-free attachment and
removal of the Rifton toilet seat.
Additional mounting bars may be
purchased for use on other toilets.
C
C
B
B
A
A
Figure 10a
Figure 10b
