Rigel AFSD101De Manuale utente
CUSTOMER SUPPORT
INSTRUCTION MANUAL
AFSD101De
R
DECK MOUNTED AUTOMATIC
FOAM SOAP DISPENSER
Rev : B
Date : 29.06.2021
VIETNAM
RIGEL TECHNOLOGY (INDOCHINA) LLC | Office & Showroom
Address : No. 207-209 Phan Dang Luu Road, Ward 1, Phu Nhuan District, Ho Chi Minh City, Vietnam
Tel Number : (84) 28 3600 3700
Fax : (84) 28 6255 3939
E-mail : [email protected]
Website : www.rigel.com.vn
CHINA
RIGEL SANITARY SHANGHAI CO., LTD 锐佳洁具（上海）有限公司 | Sales & Marketing Office
Address : 7th floor, Building 1 of Hongqiao Hub, 818 Shenchang Road, Shanghai，201107
E-mail : [email protected]
Website : www.rigel.com.cn
NINGBO RIGEL BATHROOM MARKETING CO., LTD (宁波锐佳卫浴销售有限责任公司) |
Sales & Marketing Office
Address : No. 11th, Meishan Avenue Business Centre, Room Nos. 3726, Beilun District, 315832,
Zhejiang, China
Tel Number : (86) 574 5626 1876
Fax : (86) 574 5626 1588
E-mail : [email protected]
Website : www.rigel.com.cn
RIGEL TECHNOLOGY (NINGBO) CO., LTD ( 锐佳科技宁波有限公司 ) | Manufacturing Plant
Address : No. 6, Chuangye Road 3, Ningbo Beilun Free Trade West Zone, 315800 Ningbo, Zhejiang
China
Tel Number : (86) 574 5626 1688
Fax : (86) 574 5626 1588
E-mail : [email protected]
Website : www.rigel.com.cn
RIGEL TECHNOLOGY CERAMICS (SICHUAN) CO., LTD 锐佳科技陶瓷工业（四川）有限公司 |
Manufacturing Plant
Address : No. 18, Shuanghechang, Anfu Town, Naxi District, 646300 Luzhou City 3 Sichuan, China
Tel Number : 86) 830 4270 028
Fax : (86) 830 4270 636
E-mail : [email protected]
Website : www.rigel.com.cn
IMPORTANT SAFETY INFORMATION CUSTOMER SUPPORT
The instructions contained herein are for the safe and correct use, care and maintenance of the
product, to minimize the risk of injury and damage to yourself, other persons, or property.
Please read the following safety information thoroughly and retain this document for future use
and reference.
Instructions accompanied by this symbol could lead to death or
serious injury if they are ignored or followed improperly.
Dangerous Voltage Inside
Do not expose the unit to rain or moisture to prevent shock and
fire hazard.
Please read this manual and ensure that you understand the instructions and procedures stated within
before installing or operating the product.
While every effort has been made to ensure that the information contained within this document was
accurate and complete at the time of printing, Rigel Technology (S) Pte Ltd shall not be held
responsible for any errors, omissions or inaccuracies. By installing or using the product, the user
agrees that no responsibility for the consequences resulting from any misinformation shall be incurred
on Rigel Technology (S) Pte Ltd. Rigel Technology (S) Pte Ltd reserves the right to change the
specifications and functions of the product described herein at any time without prior notice.
No part of this guide may be reproduced, stored in a retrieval system, or trans-mitted, in any form or by
any means, electronic, mechanical, recording, or otherwise, without the prior written permission of
Rigel Technology (S) Pte Ltd.
IMPORTANT SAFETY, INSTALLATION AND OPERATING INSTRUCTIONS
Rigel products have been designed and tested to be safe and risk-free when installed, operated and
maintained in good working order, in accordance with the instructions and recommendations found in
this document.
There are no user-serviceable parts in this product. Please contact a qualified and licensed trades
person should the product require dismantling and/or repairs.
Supervision should be given to any persons who may have difficulty understanding or operating the
controls of the product. Extra consideration should be given to the young, infirm, elderly, or any person
inexperienced in the correct operation of the product's controls.
Regular cleaning of the sensor eyes is recommended to remove dirt and stains which may impede the
sensor's functionality.
1.
AFTER SALES SERVICE
Rigel's Customer Support Team can provide you with service visits, sale of spare parts, and general product
help and advise.
SPARE PARTS
Spare parts for all Rigel products are available for up to 10 years after the product's date of final manufacture.
You should only purchase spare parts directly from our Customer Support Department, or from Rigel's
approved stockists or merchants to ensure authenticity and to maintain validity of your warranty.
NOTE: As a safety precaution, spare parts that require exposure to voltage from the power grid mains will only
be send to qualified personnel.
SERVICE GUARANTEE
All servicing provided by Rigel will be performed by a trained technician or agent, with genuine spare parts,
and will come with a 6-month warranty on the repair. Servicing outside of the product's warranty will be
charged at a reasonable cost
SINGAPORE (HQ)
RIGEL TECHNOLOGY (S) PTE LTD | Headquarters & Showroom
Address : RIGEL INNOVATION CENTRE | No. 20 Changi Business Park Central 2 Singapore 486031
Tel Number : (65) 6812 6288
Fax : (65) 6812 6388
E-mail : [email protected]
Website : www.rigel.com.sg
MALAYSIA
RIGEL TECHNOLOGY (M) SDN BHD | Office & Showroom
Address : Wisma Rigel, No. 16 & 18, Jalan 3/33B, MWE Commercial Park, 6 ½ Miles, Off Jalan Kepong,
52000 Kuala Lumpur, Malaysia
Tel Number : (603) 6258 6016
Fax : (603) 6258 5498
E-mail : [email protected]
Website : www.rigel.com.my
INDONESIA
PT. RIGEL MARKETING INDONESIA | Office & Showroom
Address : Jl. Sultan Iskandar Muda No. 99B, Arteri Pondok Indah, Gandaria Jakarta Selatan 12240,
Indonesia
Tel Number : (62) 21 2277 1188
Fax : (62) 21 2277 1199
E-mail : [email protected]
Website : www.rigel.id
Please read the following warranty information thoroughly and retain this document for future use and
reference.
Rigel Technology (S) Pte Ltd ("Rigel") warranties the products against any defect of materials or
workmanship for a period of 1 year from the date of purchase.
Within the warranty period, all defective parts will be repaired and/or replaced free of charge.
To be eligible for free repair and/or replacement, any service work on the product must be undertaken
by Rigel or our approved agents.
Service under this warranty will not affect the warranty expiry date, and any warranty on exchanged
parts or products will end when the warranty expires.
This warranty is only applicable for products properly installed and operated in accordance to the
operating procedures stated in the instruction manual.
This warranty does not extend to washroom accessories or other peripheral items.
Rigel's responsibility under this warranty does not apply to damage/defects caused by:
·Misuse, negligence, or accidents.
·Public abuse or vandalism.
·Repairs or alterations not authorized by or performed without consultation from Rigel.
·Repairs or alterations that do not comply with Rigel's installation instruction.
·Repairs or alterations that were not performed with genuine parts supplied by Rigel.
Rigel will not be held liable for any incidental or consequential damages, including loss of profits or
savings, arising from the use or misuse of the products.
The terms in this warranty are only valid after:
·Full payment has been made.
·The official Warranty Card is completely and correctly filled out in ink and returned to Rigel within
14 days of purchase. Loss or misplacement of the Warranty Card, or unauthorized amendments
to the Warranty Card, shall render the warranty null and void.
This warranty is in addition to your statutory and other legal rights.
WARRANTY
1) The installation must comply with the " Requirements for Electrical Installation" commonly
referred to as the IEE Wiring Regulations, or any particular regulations and practices, specified by
the local electricity supply company in force at the time of installation.
2) In accordance with e current edition of "The Plugs and Sockets etc (Safety) Regulations" in force
at the time of installation, the appliance is intended to be permanently connected to the fixed
wiring of the electrical mains system
3) In domestic installation, the rating of the electricity supply company fuse and the consumer unit
must be adequate for the additional demand required for the unit. As this is a high powered unit, it
is essential to contact your electricity supply company to ensure that the existing supply is
adequate for the additional load. Voltage drop due to high local demand will reduce the product
performance.
4) The unit must be earthed by connecting the supply cable earth conductor to the earth terminal.
Within the washroom, all accessible conductive parts of electrical equipment and extraneous
conductive (metal) parts that are likely to introduce earth potential, must be electrically bonded to
earth using a minimum 4mm² cable if unprotected and 2.5mm² cable if protected.
5) To obtain full advantage of the performance from the unit, it is advisable to have the shortest
possible route for the cable from the consumer unit to the product. Long cable runs will increase
the voltage drop and affect the performance of the unit. The maximum permissible length is
dependent upon current demand, voltage drop and cable size, refer to IEE Wiring regulations for
further information.
6) The current rating to the cable will be reduced if it is bunched with other cables, surrounded by
thermal loft or wall insulation or placed in areas where the ambient temperature exceeds 30°.
Under these conditions, de-rating factors apply and it is necessary to select a larger cable size.
7) In the majority of installations, one or more of the above conditions will apply and it is
recommended that a 10mm² cable be installed. The minimum recommended cable size in ideal
conditions is 6mm².
8) A separate, permanently connected supply must be taken from the consumer unit through a
double pole switch, which has at least 3mm minimum contact gap. The switch may be a ceiling
mounted pull cord type within the washroom or a wall mounted switch in an adjacent room.
9) A 30mA residual current device (RCD) must be fitted. This may be a part of the consumer unit or
a separate unit.
10) The product circuit must be protected by either a miniature circuit breaker (MCB) or cartridge fuse
of rating 10 amps installed at the Consumer Unit or Fuse Board.
11) When installing the cable, individual cores must not be twisted before entering the terminal block.
Care should be taken that no strains are exerted on the terminal block when connected to the
cable cores. Ensure all connections are tight to prevent overheating.
12) Do not turn on the electrical supply until the installation is complete and the unit is ready to be
operated.
ELECTRICAL INSTALLATION REQUIREMENTS
2.
LED indicator showing which setting
is currently under adjustment
Description of setting
Mode button: Setting selection
Plus button: Setting increment
Minus button: Setting decrement
1. Tobeginadjusting,touchontheModebuttononce,aredLEDwillbelituponthemiddleamongthe5
LEDindicators.
2. TaprepeatedlytheModebuttonuntiltheredindicatorlightsupontheAirVolumesetting.
3. Dependingontheexistinglevel,thePlusbuttoncanbepressedforincrementingthelevelofsetting.
Likewise,theMinusbuttoncanbeusedfordecrementing.
4. Foreverysuccessfuladjustment(bypressingPlusorMinusbutton),theredLEDwillblinkONCE.
5. Uponreachingeitherminimumormaximumlevel,theredLEDwillblinkTWICE.
6. Toconfirmtheadjustment,pressandholdtheModebuttonforfewseconds,untiltheredLEDblinksonce.
7. ToadjustforSoapVolumeorSensorDistance,oncetheredLEDison,taprepeatedlytoarriveatthe
desiredsetting.
1. Toeaserefilling,thecontrollercanbesetintorunningcontinuously.
2. Toenterrefillingmode,touchontheModebuttononce,aredLEDwillbelituponthefirstsetting,
AirVolume.
3. TaprepeatedlyontheModebuttonuntiltheredLEDlightsupontheRefillsetting.
4. PressandholdthePlusbutton,thecontrollerwilloperateautomaticallyfor15cycles.
5. Anytime,tointerruptthecontrollerfromcompletingthe15cycles,pressandholdtheMinusbutton.
Adjusting for Air Volume, Soap Volume and Sensor Distance:
Refilling functionality :
(Foam)SoapDispenserOperatingManual
3.

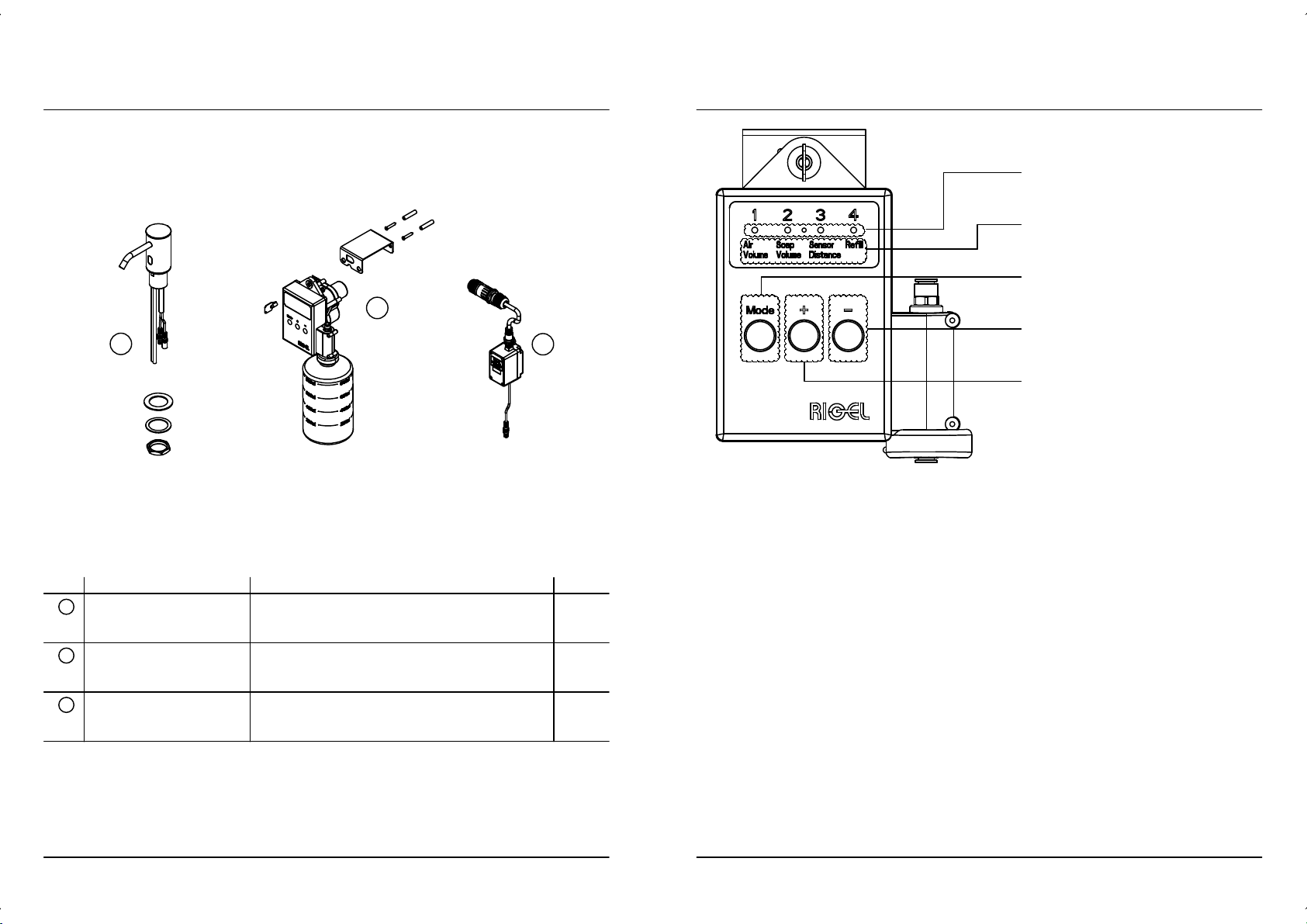

PARTLIST&ILLUSTRATIONS
8.
1.
2.
3.
NO. DESCRIPTION QTYPARTNO.
1
3
2
SA-PS14.5V-SWT POWERADAPTORWITHJUNCTIONBOX
AUTOSOAPDISPENSERSPOUTASSEMBLYSA-AFSD102D900-2
SA-CTRAFSD201900-2&
SA-BTLAFSD201-08L
CONTROLLERASSEMBLY&SOAPBOTTLE
1
1
1
4.

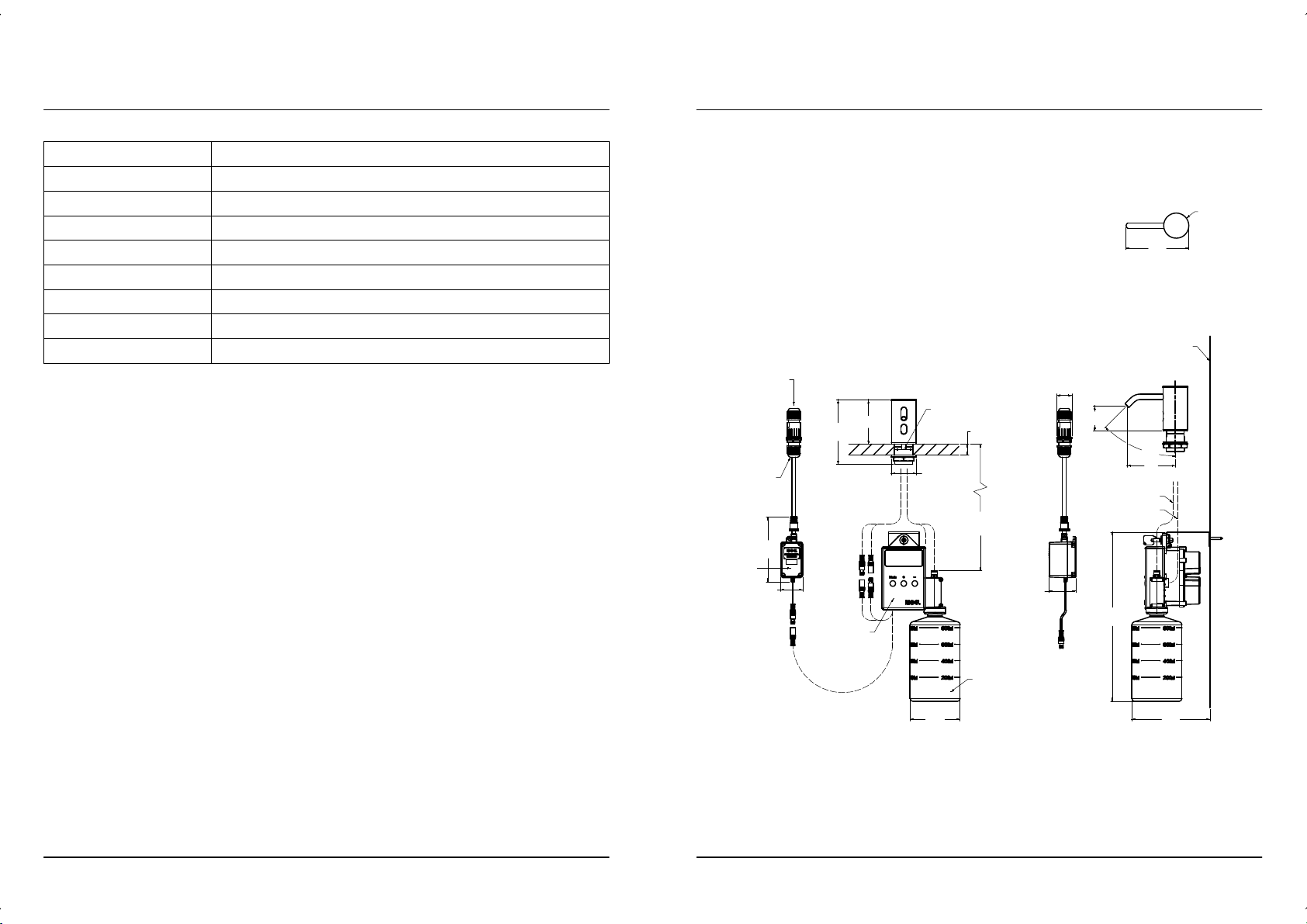

PRODUCT SPECIFICATIONS PRODUCT DIMENSIONS & INSTALLATION DIAGRAM
7.
Dimensions (faucet)
Material (faucet)
Finishing (faucet)
Power input
Soap viscosity
Discharge volume
Discharge soap state
114(L) x Ø46(W) x 81(H)mm
Brass
Chrome
220-240V AC 50/60Hz
100mm (default)
<3 cPs (recommended)
0.5ml approx. / per dosage
Foam
Sensing range
Soap bottle capacity 800ml (0.8Litres)
Max. 20
Controller
Air tubing
Soap tubing
<500
Ø91
308
Front view Side view
Soap bottle
143
Finished wall
114
Ø46
Top view
118
40
Junction Box
Power
adaptor
A/C supply
49
Ø28
88
46
45°
Cut-out hole.
*Ø35
81
118
Ø46
All dimensions are in mm.
5. 6.
Mount the spout from the top of the basin/
countertop, fasten the washers, & nut from
underneath the basin/ countertop.

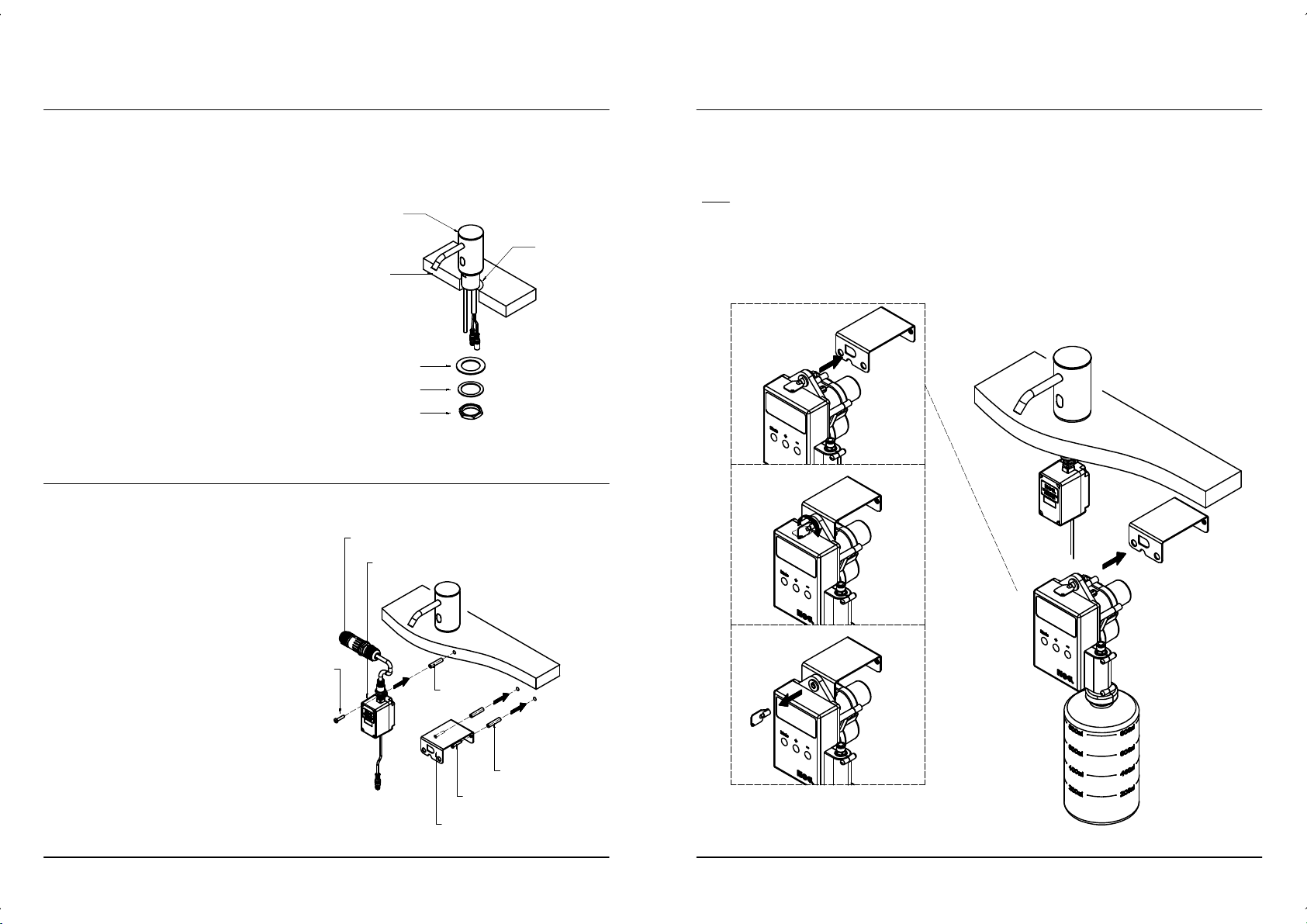

INSTALLATION GUIDE
Drill holes onto the finished wall to
accommodate the wall plugs, mounting
bracket & power adaptor.
*For drill hole size dimension, refer to the
set of mounting components provided.*
*Refer to pg 4. for recommended
mounting position.*
1.
2.
INSTALLATION GUIDE
1.
2.
3.
Nut
Washer
Basin/ Countertop
Opening hole
Spout
Wall plug
Power adaptor
Junction box (connect to A/C power supply)
Screw
Bracket
Screws
Wall plugs
3.
Mount the controller onto the bracket. Lock the controller by using the key as shown.
Note:
Improper connection may damage the product.
Connect the cables according to the diagram shown in pg 4.
Ensure the cables & tubing are connected to corresponding slot.
Rubber washer
·Item shown are illustrations only,and therefore may not reflect actual model supplied.
·Please read the instructions carefully before doing any installations
·Item shown are illustrations only,and therefore may not reflect actual model supplied.
·Please read the instructions carefully before doing any installations
Indice
Altri manuali Rigel Distributore
