ring BHAGC001 Manuale utente
User Guide
Doorbell Wired
2 3
Included hardware. Find your doorbell chime.
Your Doorbell Wired is
designed to replace an
existing doorbell button,
and gets its power from the
doorbell system.
Ring your existing doorbell
and listen for the chime. If it
rings, we know your existing
doorbell system is working.
Follow the sound to find your
chime and make a mental
note of the location. We’ll
return to your chime soon.
Don’t have an existing
doorbell? You can power
your Doorbell Wired Pro
directly using our Plug-in
Adapter. Visit ring.com/
accessories to learn more.
Bag Hardware
A
3x Mounting Screws
3x Wall Anchors
B
2x Security Screws
C
1x Jumper Cable
2x Wire Extenders
2x Wire Nuts
4 5
You’ll be working with
electrical wires during
the install process. If you
are uncomfortable or
inexperienced with
doing so, consult with a
licensed electrician.
Grab the included
Jumper Cable.
The Jumper Cable bypasses
and disables your existing
doorbell chime, and must be
installed before you install
your Ring Doorbell.
Your Doorbell Wired is
compatible with doorbell
systems supplying 8–24 volts
AC, at 50 or 60Hz, 40VA max.

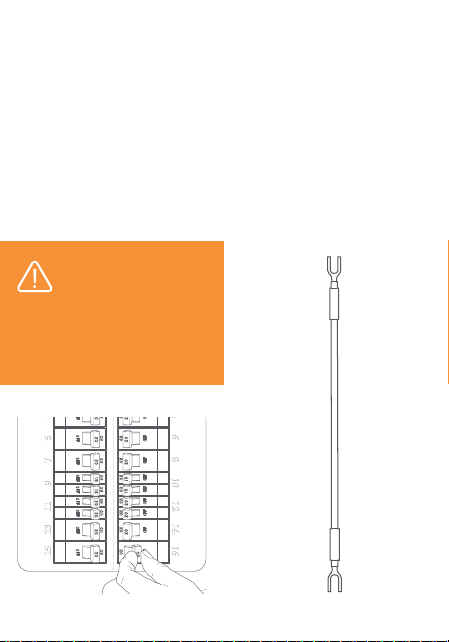

Turn o power
at the breaker.
This is essential to
keeping you and your
new Ring Doorbell safe.
If you’re not sure which
breaker controls your
doorbell chime, turn o the
master breaker for your home,
or contact an electrician.
6 7
Remove the cover from your
doorbell chime.
After you’ve located your
doorbell chime and turned o
power at the breaker, remove
the cover from your chime
and set it aside for now.
Loosen the “Front” and
“Trans” terminal screws.
Make sure to keep the existing
doorbell wires in place.

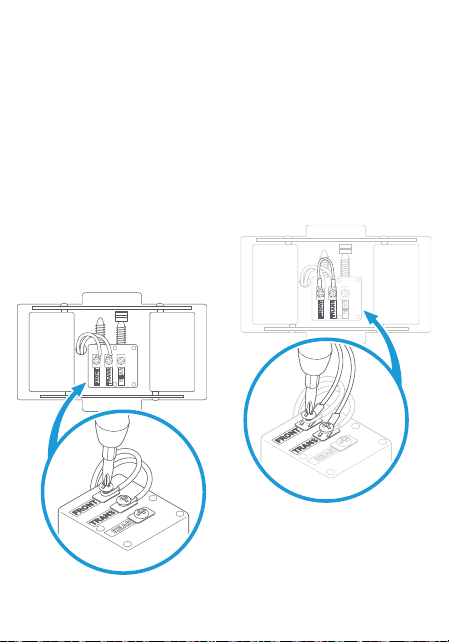

Connect the Jumper Cable.
Connect one end of the
Jumper Cable to the “Front”
terminal, and the other to the
“Trans” terminal. It doesn’t
matter which wire you
connect to which terminal.
Then re-tighten the
terminal screws.
8 9
Uninstall your existing
doorbell button.
Remove your doorbell from
the wall.
Disconnect the wires. Make
sure they don’t fall back inside
your wall so you can access
them later.

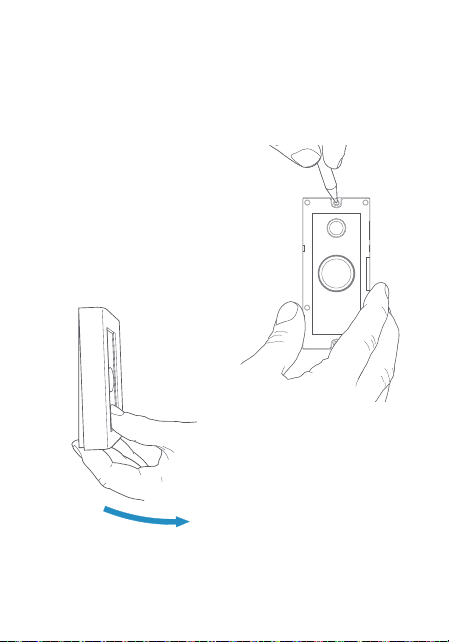

Remove the faceplate.
Grasp the bottom of the
faceplate and pull to remove.
Mark the screw holes.
Using your Ring Doorbell as
a template, mark the location
of the two mounting holes on
your wall.
10 11

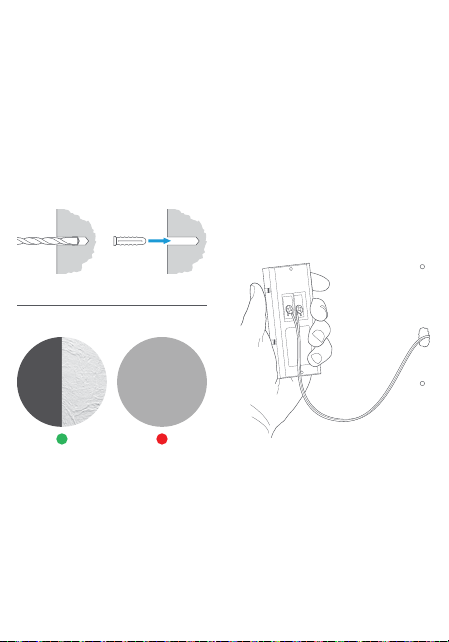

Install the anchors.
(optional)
On stucco, brick, or concrete,
use a ¼" masonry bit to drill
holes in your wall, then insert
the included wall anchors.
(If you’re installing on wood or
siding, you can skip this step.)
Connect the doorbell wires.
Loop one doorbell wire
around each of the screw
terminals on the rear of your
Ring Doorbell then tighten
the terminals to secure.
If your doorbell wires are too
short to reach your new Ring
Doorbell, you can attach the
included wire extenders using
the included wire nuts.
Security
screw
Mounting
screw
12 13

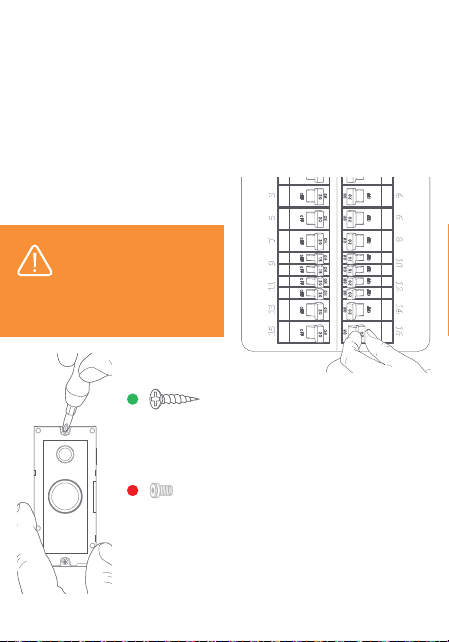

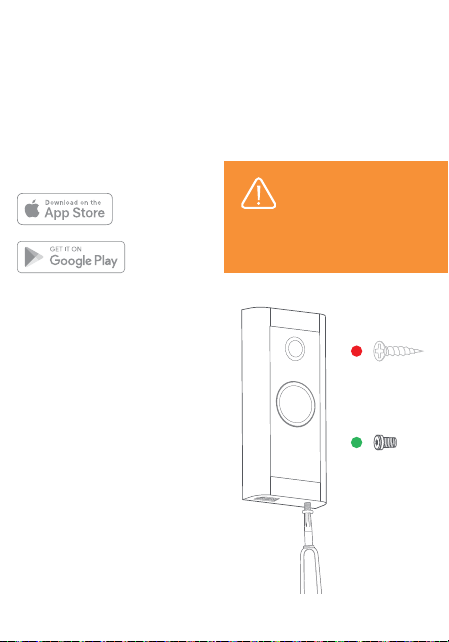

DO NOT USE
any screw other than the
included long mounting
screws when securing
your Ring Doorbell.
Screw in your
Ring Doorbell.
Mount your Ring Doorbell
with the two included
mounting screws.
Be sure to feed any excess
wiring back into the wall first.
If you used the wire nuts, push
them through the hole as well.
Restore power
at the breaker.
It may take a moment for your
Ring Doorbell to power on.
You’ll know it’s ready once it
lights up and speaks to you.
Security
screw
Mounting
screw
14 15
Secure your Ring Doorbell.
Re-attach the faceplate, then
use the included screwdriver
to drive the small security
screw into the bottom of
your Ring Doorbell.
DO NOT USE
any screw other than the
included short security
screw when securing your
Ring Doorbell.
Download the Ring App.
The Ring App walks you
through setting up and
managing your Ring Doorbell.
Search for “Ring” in one of the
app stores below, or visit
ring.com/app
Set up your Ring Doorbell.
In the Ring app, select Set
Up a Device and follow the
in-app instructions.
Review, share
and download.
Your new device comes
with a free 30-day trial
of Ring Protect video
recording service.
To continue your subscription
and save your videos, please
visit ring.com/protect-plans
What is Ring Protect?
Ring Protect is a subscription
service that stores videos
from your Ring devices.
Why do I want it?
Ring lets you interact with
visitors and monitor your
property in real time, while
Ring Protect allows you
review and share those
videos anytime.
How much does it cost?
Ring Protect Basic covers
one Ring device for $3 USD/
month or $30 USD/year.*
Ring Protect Plus covers all
Ring devices at one property,
and costs $10 USD/month or
$100 USD/year.**
How do I sign up?
Simply log into your Ring
account at ring.com/protect-
plans, and follow the on-
screen instructions.
*$5 CAD per month or $50 CAD per year
**$15 CAD per month or $150 CAD per year
For information on our warranty, theft
protection, and Ring Protect Plans, see
ring.com/legal
© 2020 Ring LLC or its aliates.
Ring and all related marks are trademarks
of Ring LLC or its aliates.
For additional help, visit
ring.com/help
Or give us a call:
US 1 800 656 1918
Canada 1 855 300 7289
Worldwide +1 310 929 7085
For a list of all our customer
support numbers, visit
ring.com/callus
