RIOTEC LS6302J Manuale utente

1

Programming Quick Guide

- LS6302J/ LS6302JW/ LS6302K

/ LS6302L / LS6302M

/FS5022J/FS5022JW/FS5022K

/ FS5022L / FS5022M

Installation

Make sure that the scanner has the correct cable to plug in the PC

as below described::

*Note : Please install PL-2303 driver for USB serial

Reset Configuration to Default :

(For USB HID, RS232, USB Serial)

If you are unsure of the scanner configuration or have scanned the

incorrect codes, please scan the following barcode. This will reset the

scanner to its factory defaults.

Default

Keyboard Language (For USB HID Only)

Scan the appropriate country code as below to program the keyboard

layout for your country or language. As a general rule, the following

characters are supported, but need special care for countries other

than the United States: @ | $ # { } [ ] = / ‘ \ < > ~

North American

Standard USB

Keyboard

German

Windows

French

Windows

French Canadian

Windows 95/98

French Canadian

Windows 2000/XP

French Belgian

Windows

Spanish

Windows

Italian

Windows

Swedish

Windows

UK English

Windows

Japanese

Windows (ASCII)

Portuguese-

Brazilian Windows

Redundancy Level

This scanner offers two levels of decode redundancy. Select higher

redundancy levels for decreasing levels of bar code quality. As

redundancy levels increase, the decoder’s aggressiveness decreases.

Select the redundancy level appropriate for the bar code quality.

Redundancy Level 1

barcode must be successfully read twice

before being decoded

Redundancy Level 2

barcode must be successfully read three

times before being decoded:

1D Symbologies -1

ENABLE UPC-A

DISABLE

ENABLE UPC-E DISABLE

ENABLE EAN-8 DISABLE

ENABLE EAN-13

DISABLE

ENABLE Code 128

DISABLE

ENABLE ISBT 128

DISABLE

ENABLE Code 39

DISABLE

ENABLE

Trioptic

Code 39 DISABLE

ENABLE

Code 39

FULL ASCII

DISABLE

2

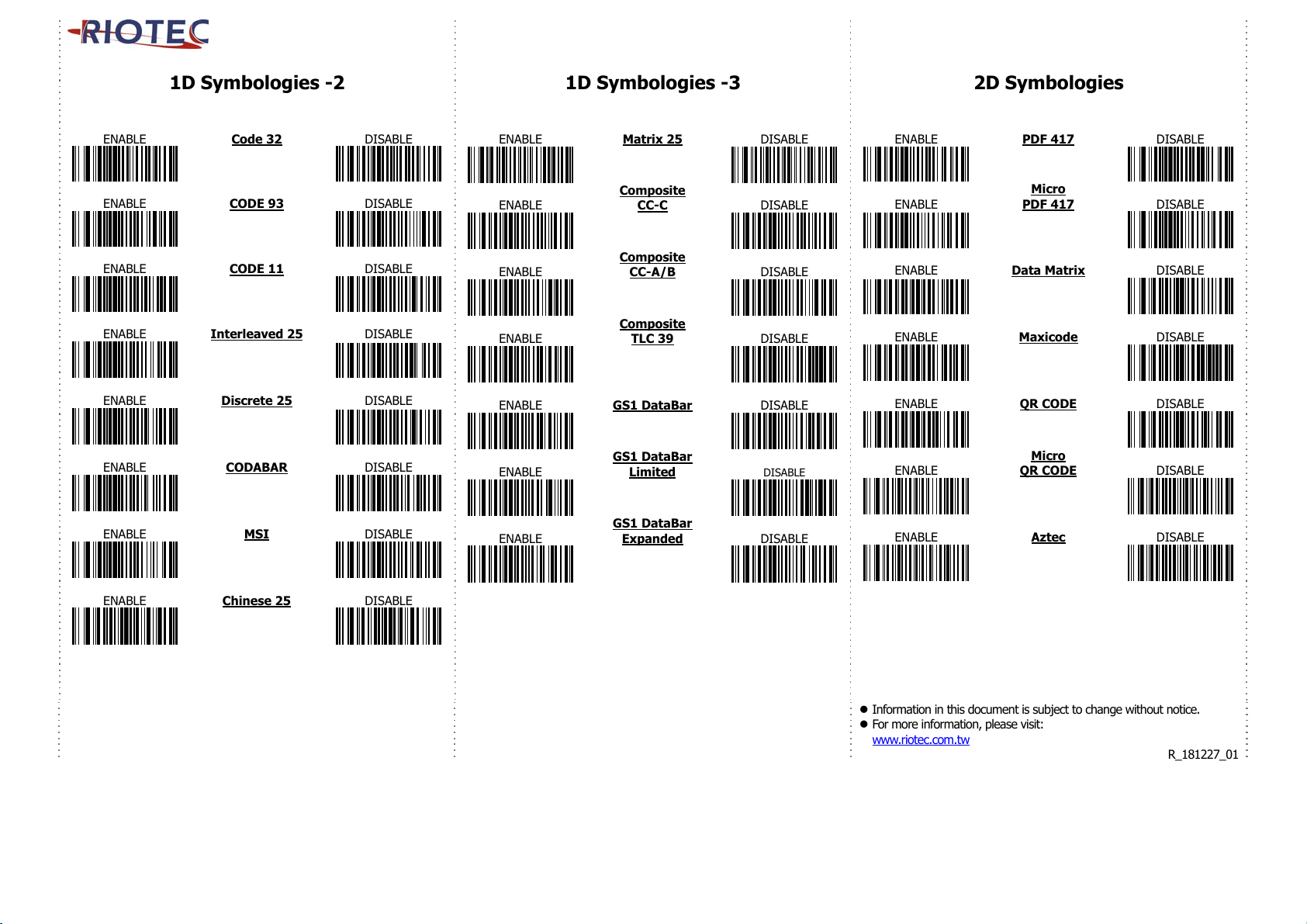

1D Symbologies -2

ENABLE

Code 32 DISABLE

ENABLE

CODE 93 DISABLE

ENABLE

CODE 11

DISABLE

ENABLE

Interleaved 25 DISABLE

ENABLE

Discrete 25 DISABLE

ENABLE

CODABAR DISABLE

ENABLE

MSI DISABLE

ENABLE

Chinese 25 DISABLE

1D Symbologies -3

ENABLE

Matrix 25 DISABLE

ENABLE

Composite

CC-C DISABLE

ENABLE

Composite

CC-A/B DISABLE

ENABLE

Composite

TLC 39 DISABLE

ENABLE

GS1 DataBar DISABLE

ENABLE

GS1 DataBar

Limited DISABLE

ENABLE

GS1 DataBar

Expanded DISABLE

2D Symbologies

ENABLE

PDF 417 DISABLE

ENABLE

Micro

PDF 417 DISABLE

ENABLE

Data Matrix DISABLE

ENABLE

Maxicode DISABLE

ENABLE

QR CODE DISABLE

ENABLE

Micro

QR CODE DISABLE

ENABLE

Aztec DISABLE

 Information in this document is subject to change without notice.

 For more information, please visit:

www.riotec.com.tw

R_181227_01
