Ritetemp 6022 Manuale utente

• Your thermostat is a precise instrument, handle it with care.

• Turn off electricity to the appliance before installing or

servicing thermostat or any part of the system. 

• Do not turn electricity back on until work is completed.

• Do not short (jumper) across electric terminals at control on

furnace or air conditioner to test the system. This will damage

the thermostat and void your warranty.

• All wiring must conform to local codes and ordinances.

• This thermostat is designed for use with 24 voltAC and

millivolt systems. The thermostat should be limited to a

maximum of 1.0 amps; higher amperage may cause damage

to the thermostat.

Caution

Install guide 6022

ENGLISH

HEAT

TARGET TEMP

PROGRAM

HOLD

COPY REVIEW

FILTER

TIME SLOT

TIME SET

SET CLOCK

EPA

PROG2

Location

Caution

Tools

To avoid electrical shock and to prevent damage to the furnace, air conditioner,

and thermostat, disconnect the power supply before beginning work.

This can be done at the circuit breaker, or at the appliance.

Replacement installations - mount the new thermostat in place of the old one.



New installations - follow the guidelines listed below.

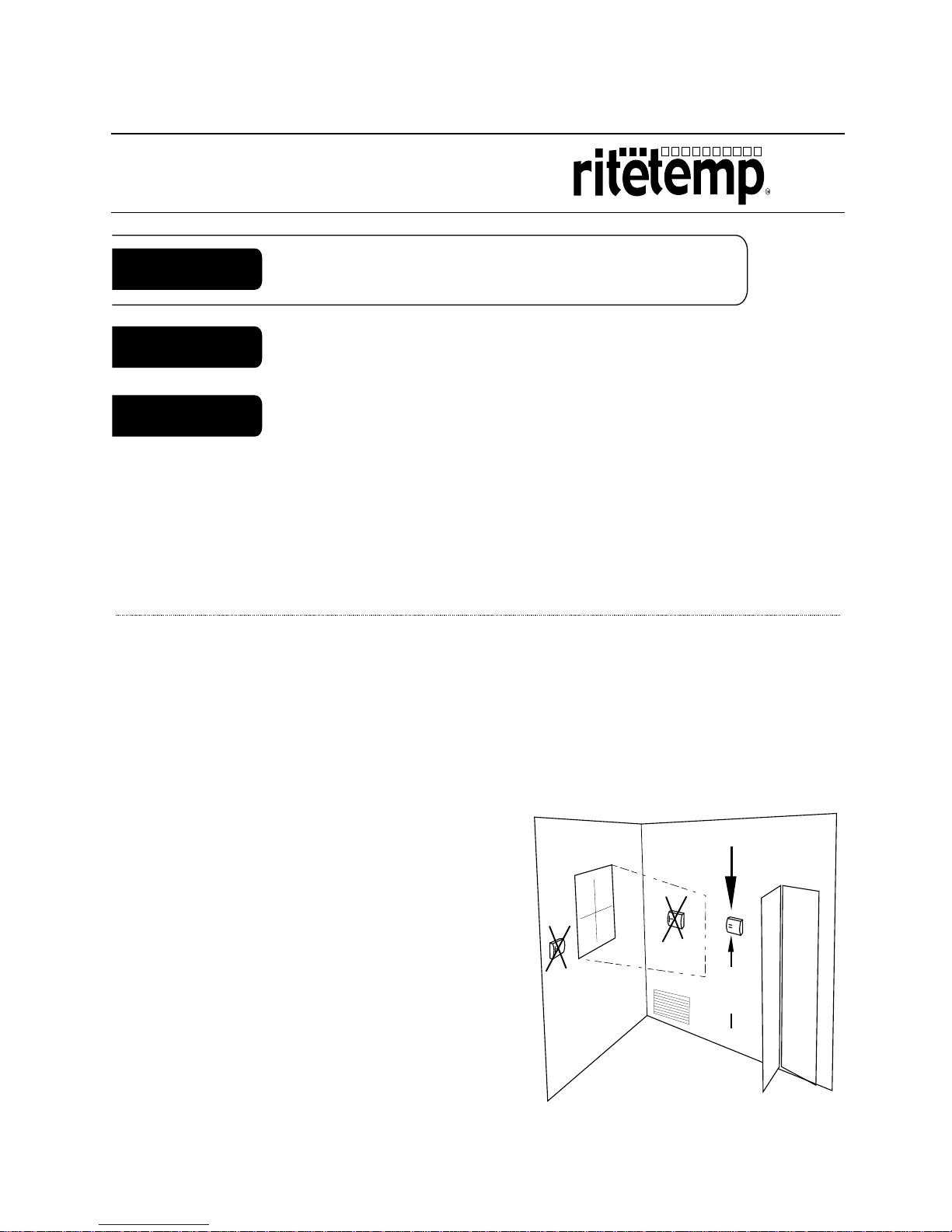

• Locate the thermostat on an inside wall, about 5 ft. (1.5m) above the floor, and

in a room that is used often.

• Do not install it where there are unusual heating conditions, such as: in direct

sunlight; near a lamp, radio, television, radiator register, or fireplace; near hot

water pipes in a wall; near a stove on the other side of a wall.

• Do not locate in unusual cooling conditions, such as: on a wall separating an

unheated room; or in a draft from a stairwell,

door, or window.

• Do not locate in a damp area. This can

lead to corrosion that will shorten thermostat

life.

• Do not locate where air circulation is poor,

such as: in a corner or an alcove; or behind

an open door.

• Do not install the unit until all construction

work and painting has been completed.

• This thermostat does not require leveling.

You will need a small Phillips screwdriver and possibly a drill

with 3/16-in. (4.8mm) bit for wall mounting.

Good

5ft.

(1.5m)

PG 1

PG 2

Install guide 6022

Remove old unit

Prepare wires

IMPORTANT : LABEL ALL WIRES 

BEFORE DISCONNECTING THEM!

• Switch electricity to the furnace and

air conditioner OFF; then proceed with the

following steps.

• Remove cover from old thermostat. Most are

snap-on types and simply pull off. Some have

locking screws on the side or front. These must

be loosened. Note the letters printed near the terminals.

Attach labels (enclosed) to each wire for identification.

• Label the wires one at a time. You must label all the wires before

you proceed. With all wires labeled, remove them from the old unit.

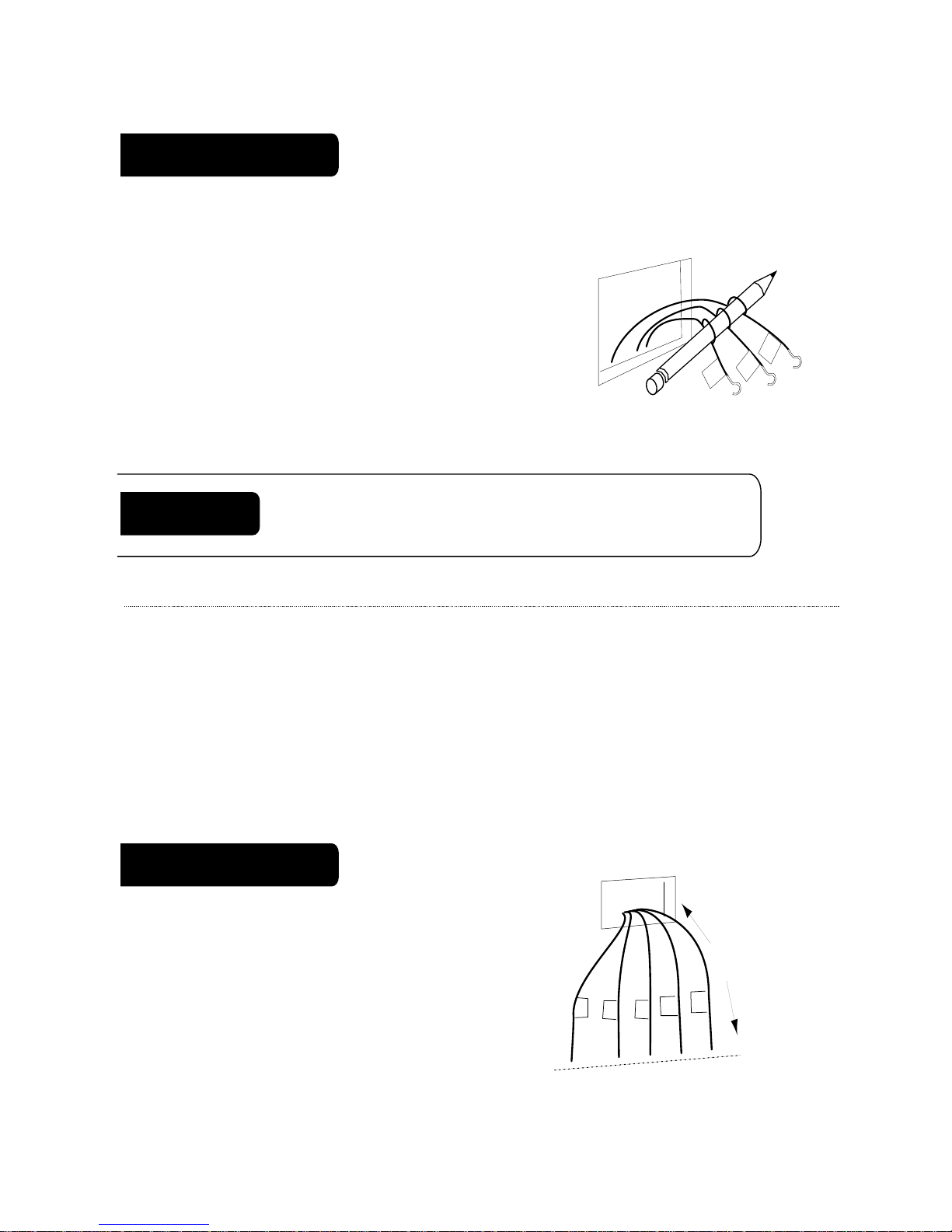

• Make sure the wires do not fall back inside the wall. You can wind

them around a pencil to keep them from falling.

• Loosen all screws on the old thermostat and remove it from the wall.

• Fill wall opening with non-combustible insulation to prevent drafts.

PG 3

PG 4

Caution

Read instructions carefully before removing any wiring from existing thermostat.

Wires must be labeled before they are removed. THERE IS NO STANDARD

COLOR CODE. When removing wires from their terminals, ignore the color of

the wires since these may not comply with any standard.

• You will need at least 2.6" of wire for each

of your connections to the 6022.

• If you do not have enough wire, splice

additional wire to allow enough slack.

• Fan out wires below the hole as shown.

From Wall

CYRH

Trim

2.6"

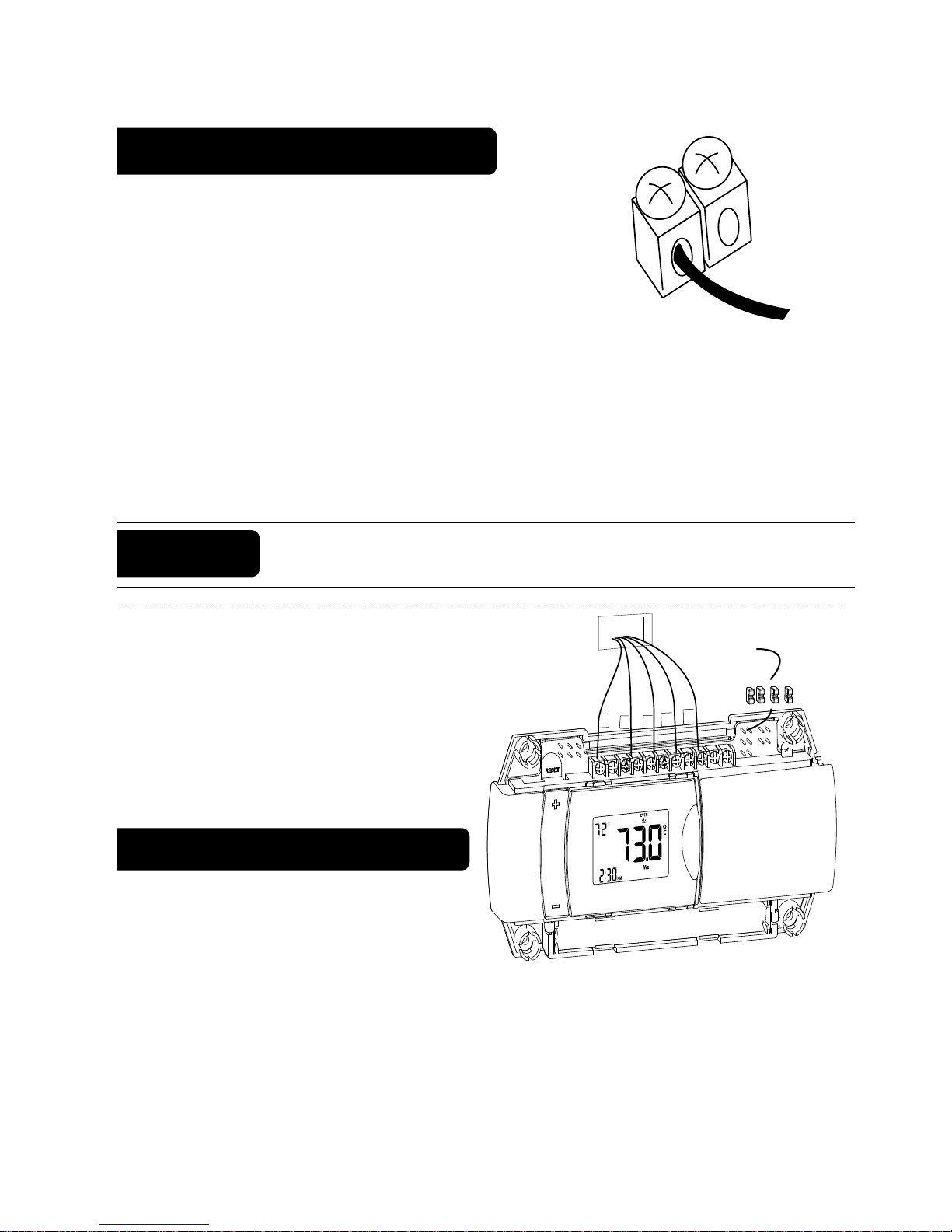

Before you Connect Wires

Caution

Do not allow wires to touch each other or parts on thermostat.

Please follow these guidelines for safe and secure

wire connections.

• Easy Terminals do not require stripping the wire.

• Clip any bare wire from previous installation.

• Take care not to damage the labels for each wire in handling.

• Fan wires out as illustrated with 6022 below the wall opening.

• Wires will dress behind the 6022 and up over the terminal area.

• Use the Step-By-Step diagram as your guide.

• Do not bunch wires behind 6022. Feed slack back into the wall opening.

• Connect labeled wires only to a terminal with corresponding letter.

• Insert the wire in the terminal and tighten

the screw securely.

• You will need to set Configuration

Jumpers per the Step-By-Step

diagram. A needle-nose plier may be

required to modify jumper positions

PG 5

PG 6

Determine which step-by-step wiring

diagram below you should use. Make

sure your wires are labeled. This may

require you to find the 'other end' connection for each wire on your heating or

air conditioning equipment and read the label there.

If you have a wire marked "C" it is optional. If you do connect it, the

thermostat will draw power from the C wire. This extends battery life.

What wires do you have?

Jumpers

From

Furnace

CYRH

HEAT

TARGET TEMP

•

If you combination of wires is not above you can use the

wiring table on pages 24-25 to determine your connections,

or call our USA support line at 1-877-505-2353 for help.

• Find the referenece page with your wiring

diagram and jumper set-up information.

Remember, the Cwire is optional.

Find the set-up diagram for your system

PG 7

PG 8

Go To Page 18Go To Page 17Go To Page 16

Go To Page 21

Go To Page 19

C W2 W Y Y2 RHG

2 stage Cool

2 stage Heat

From

Furnace

CWY

C W Y RH RC G

5 Wire

Heat/Cool

From

Furnace

CYRH

C W Y RH G

4 Wire

Heat/Cool

From

Furnace

CYRH

C W RH G

3 Wire

Heat

From

Furnace

CRH G

From

Furnace

C W RH

2 Wire

Heat

From

Furnace

WRH

W RH A

3 Wire

Zoned

Hot Water

Go To Page 20

C Bor O W2Y RHG

5 Wire

Heat Pump

w/ Aux Heat

From

Furnace

C Bor O Y RHG

4 Wire Heat Pump

w/o Aux Heat

From

Furnace

Go To Page 15

AGE

WIRES

Install AAA Batteries

• The 6022 requires 2 AAA batteries to operate .

• Switch MODE switch to OFF and the FAN switch to AUTO.

• Install 2 AAA alkaline batteries according to the polarity noted in

the compartment. LCD segments will go on.

• Press the RESET button (under top cover) to clear transient

program memory. NOTE: Replace the batteries when this LOW

battery indicator appears on the display or once a year.

• Replace top and bottom covers on unit.

Wall

Wires

6022

Wall anchor

• Hold the 6022 against the wall, with the wires coming over

the top above terminal block. The 6022 will cover the hole

in the wall.

• Position 6022 for best appearance. Use the optional stand-

offs if more space for wires is needed behind the 6022.

• Attach the base to the wall with the screws provided.

• If you are mounting the base to sheet rock or if you are

using the old mounting holes, use the plastic anchors

provided. Drill a 3/16-in.(4.8mm) hole for

the insert at each screw location, then

mount the base.

Mount the 6022

HEAT

TARGET TEMP

AAA

+-AAA

YRH

CYRH

HEAT

TARGET TEMP

NOTE: If you have labeled your wires, follow the correct Step-By-Step, and

these Check procedures do not operate your system call support at 

1-877-505-2353

Check Unit

Follow these procedures to verify you

have correctly installed the 6022.

To check Fan: (If you connected the

G wire - fan relay)

• Switch the FAN switch to the ON

position. Verify that air is blowing from

the system. Return to AUTO position

for normal operation.

To check HEAT mode:

Set the mode switch to HEAT.

Set the fan switch AUTO.

• Using the TEMP + button raise the Target Temp to 90deg. 

Allow the system 2 min to respond.

• Verify that heat is blowing from the system.

To check COOL mode:

• Set the mode switch to COOL.

• Press the TEMP - button to a temp 5 degrees below the room temp.

Allow the system 2 minutes to respond.

• Verify that cool air is blowing from the system.

Congratulations, you have successfully installed your unit.

Please proceed to the OPERATING Guide to initialize the 6022.

HEAT

TARGET TEMP

PROGRAM

HOLD

COPY REVIEW

FILTER

TIME SLOT

TIME SET

SET CLOCK

EPA

PROG2

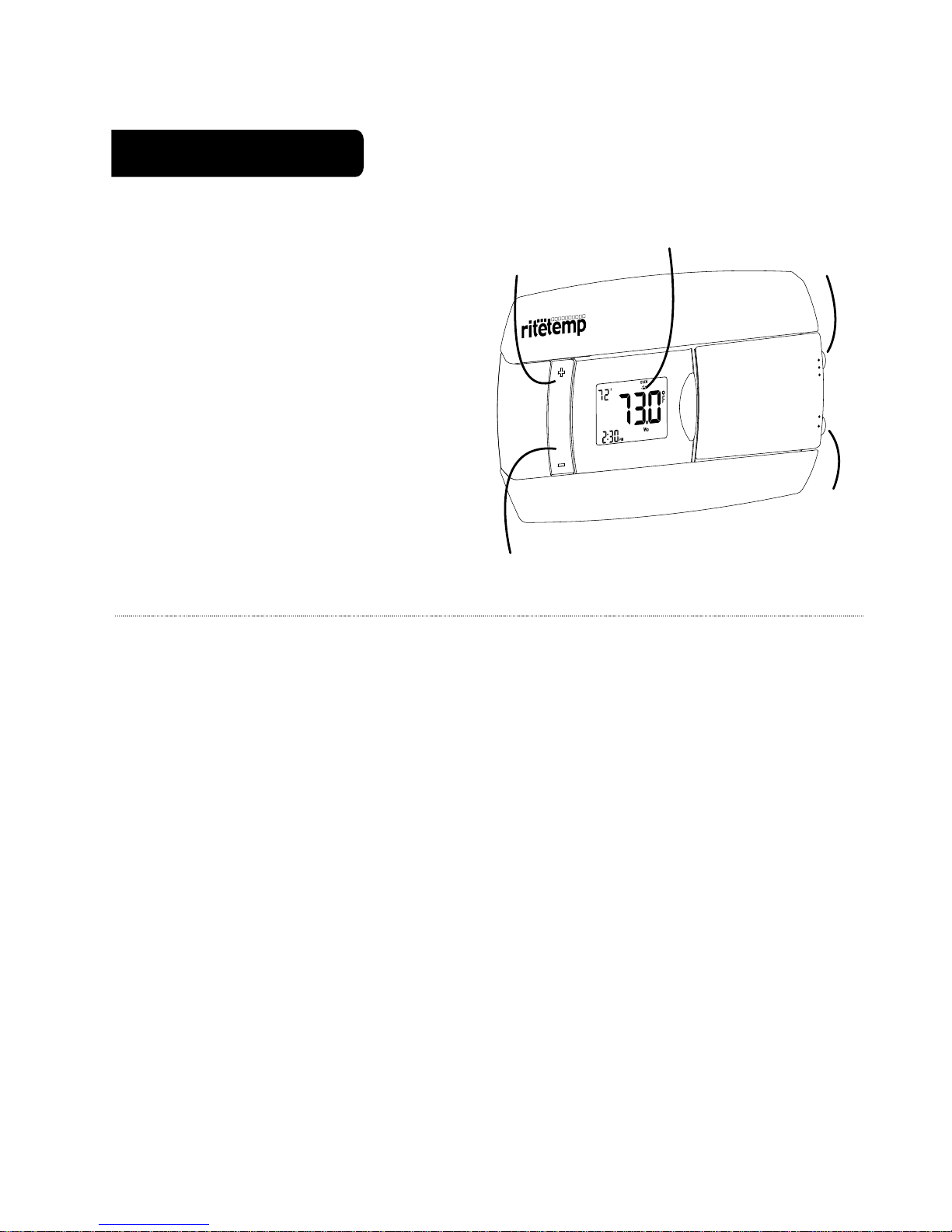

TEMP

UP button

TEMP

DOWN button

Temperature

Display Mode

Switch

Fan

Switch

HEAT

COOL

OFF

FAN

AUTO

BATTERIES ONLY - This thermostat can run on batteries only using 2AAA

alkaline batteries. The batteries will last at least 1 year; replace the batteries

once a year or when the low battery icon comes on the display. If the batteries

are not replaced, the thermostat will shut off the HVAC and then stop working.

24VAC - This thermostat can run on the HVAC 24VAC (C wire) if available.

As shown in the wiring diagrams, the C wire is the other side of the 24VAC

heating transformer and can be found where the other thermostat wires

connect at the wall or at the furnace. Do not use the common or ground side

of the line voltage. If the C wire is used, the batteries are then for back-up in

case of power loss only and will last much longer. With the C wire connected,

the thermostat will continue to work if the batteries die or are removed.

Power Options

NOTE:Your thermostat comes from the factory calibrated to +/- 1oof actual

temperature. It is an accurate instrument. If you want your thermostat to

display the same temperature as another thermometer in your home, you

can adjust its calibration.

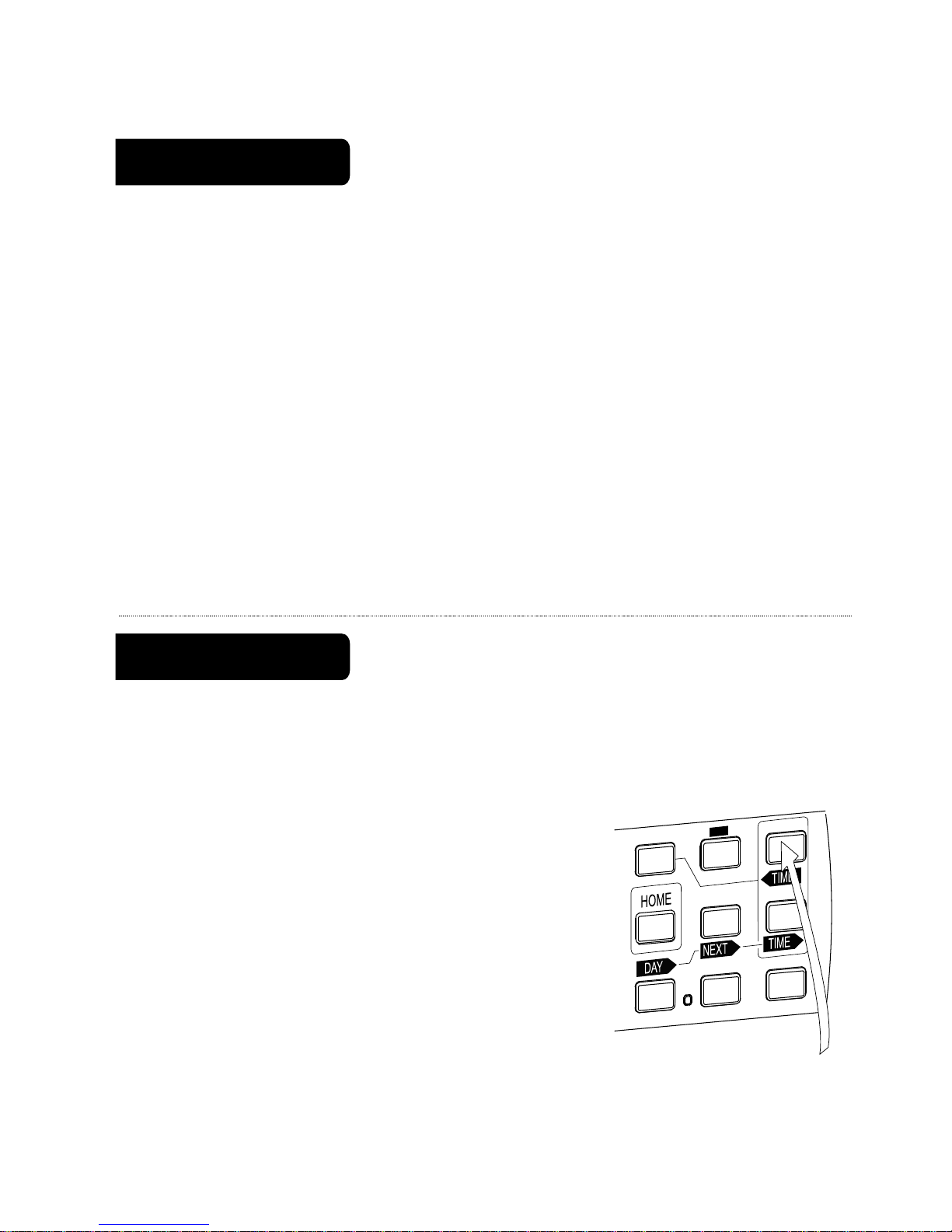

To change the calibration:

Open Key pad door.

Locate the TIME SET button and press it. The

current calibration factor (+/-) of the 6022 will appear

in the LCD display as well as the modified temp.

Push the UP or DOWN arrows until the desired

calibration factor is reached.

Press HOME to save. The new calibrated temperature

will be displayed on the LCD.

Calibration

PROGRAM

HOLD

COPY REVIEW

FILTER

TIME SLOT

TIME SET

SET CLOCK

EPA

PROG2

Calibrate button

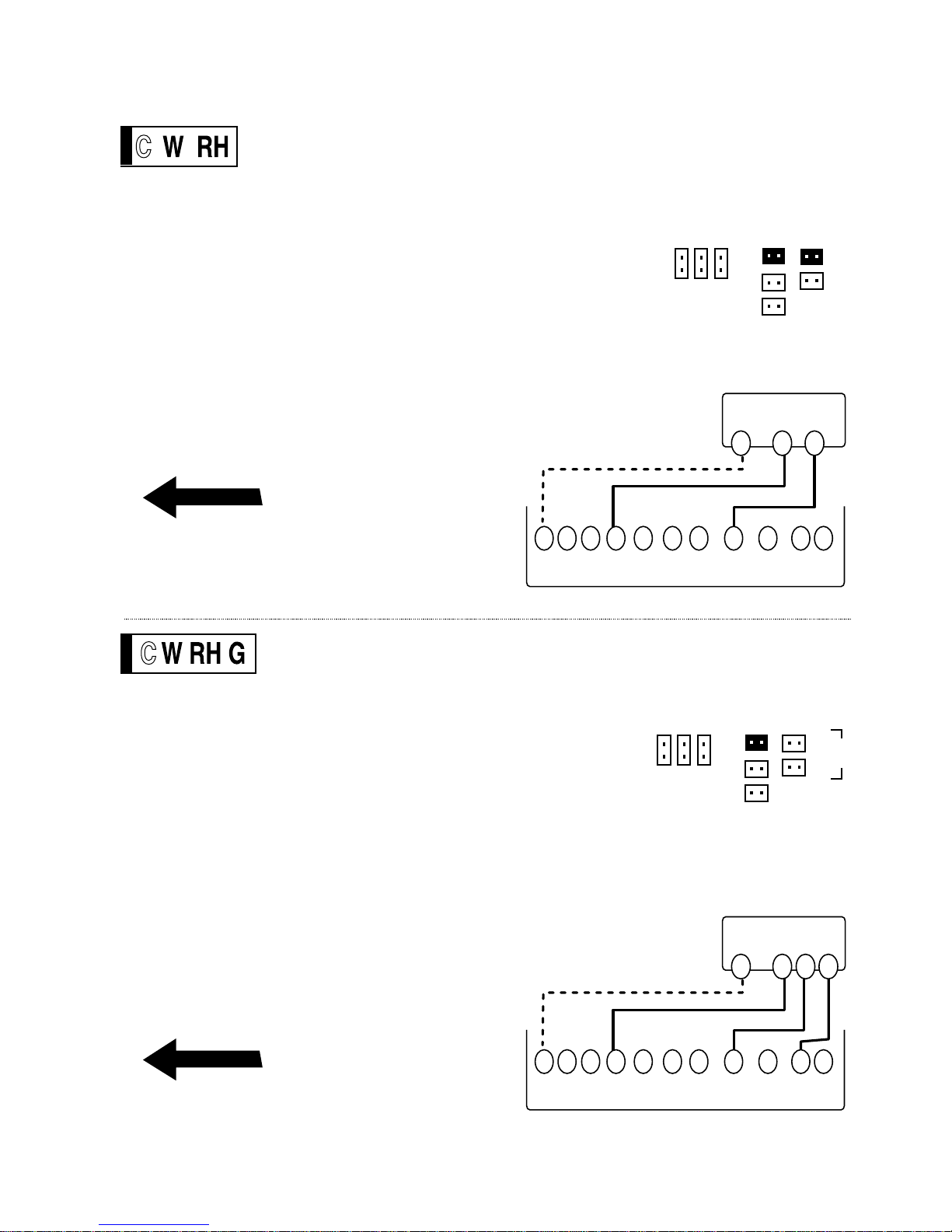

2 WIRE HEAT Heating GAS MILLIVOLT or 24vac

NOTE: Wires marked with

dotted line are optional.

PG 16

3 Wire Heat

6022

GAS Milivolt Heat

C B O W W2 Y Y2RH RC G A

6022

R G

HVAC SYSTEM

C B O W W2 Y Y2RH RC G A

STEP 1 - Connect the R(or RH) wire to the RH terminal on

the 6022. This connects the Heater Power to the thermostat.

STEP 2 - Connect the Wwire to the Won the 6022.

This connects the heater control line to the 6022.

STEP 3 - Set Config jumpers per this diagram.

Your Heater is now connected to the 6022.

Please Return To Page 9

STEP 1 - Connect the R(or RH) wire to the RH terminal

on the 6022. This connects to the Heater Power .

STEP 2 - Connect the Wwire to the Wterminal on the

6022. This connects the heater control line to the 6022.

STEP 3 - Connect the Gwire to the Gterminal on the

thermostat. This connects the Fan to the 6022

STEP 4 - Set Config jumpers per this diagram. If you

have Electric heat set 7, if you have Gas or Oil set 5.

Your system is now connected to the 6022.

Please Return To Page 9

OPTIONAL POWER

WIRES WIRES

SET JUMPERS

1 2 3

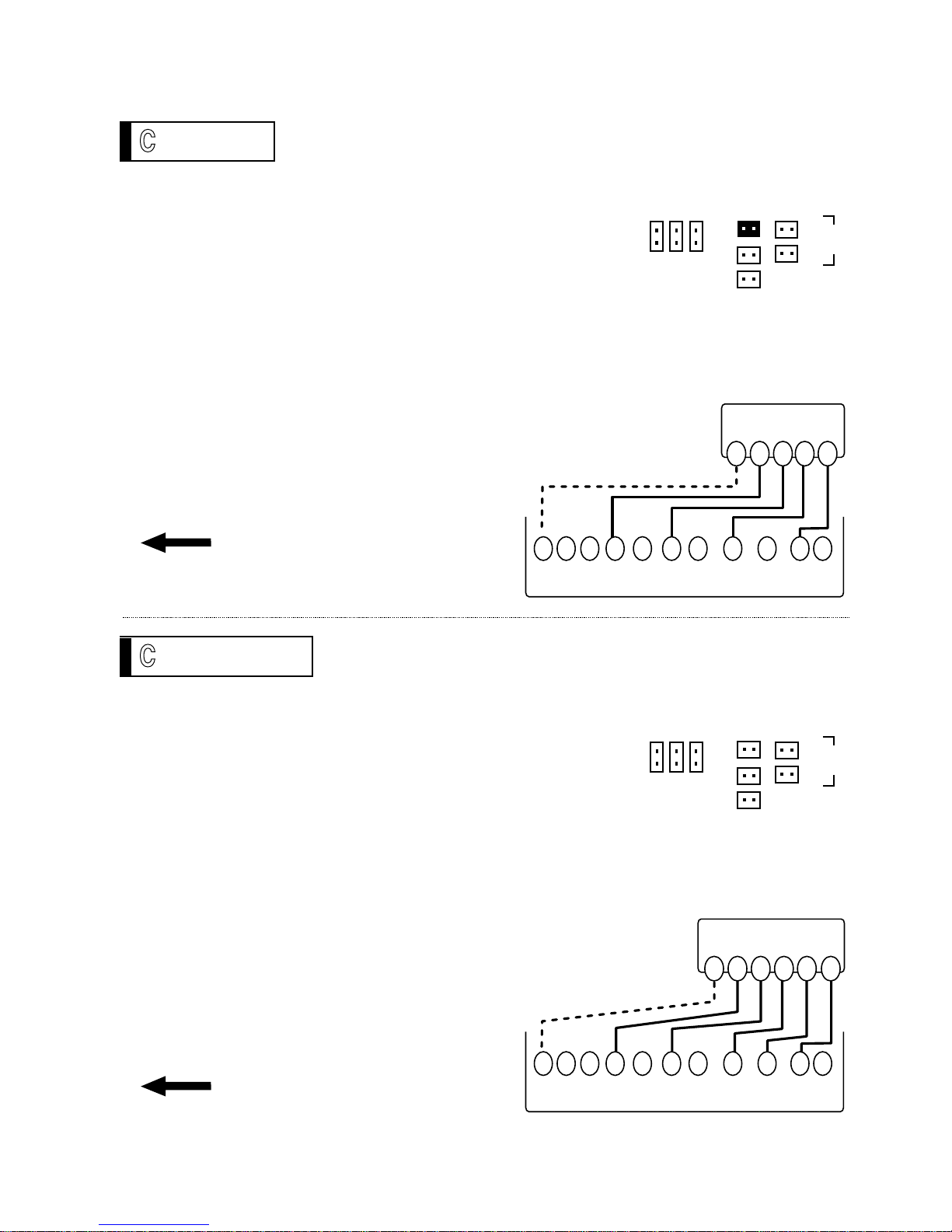

STEP 1 - Connect the Wwire to the Wterminal on the

thermostat. This connects to the heater control line.

STEP 2 - Connect the Y wire to the Yterminal on the

6022. This connects to the Cooler compressor.

STEP 3 - Connect the RH wire to the RH terminal and the

RC wire to the RC terminal on the 6022. This connects

the Heater and Cooler Power.

STEP 4 - Connect the G wire to the Gterminal on the

Thermostat. This connects to the Fan.

STEP 5 - Set Config jumpers per this diagram. If you

have Electric heat set 7, if you have Gas or Oil set 5.

Your HVAC system is now connected

to the 6022.

Please Return To Page 9

STEP 1 - Connect the Wwire to the Wterminal on the

thermostat. This connects to the heater control line.

STEP 2 - Connect the Y wire to the Yterminal on the

6022. This connects to the Cooler compressor.

STEP 3 - Connect the RH or Rwire to the RH terminal on

the thermostat. This connects the Heater/Cooler Power.

STEP 4 - Connect the G wire to the Gterminal on the

Thermostat. This connects to the Fan.

STEP 5 - Set Config jumpers per this diagram. If you

have Electric heat set 7, if you have Gas or Oil set 5.

Your HVAC system is now connected

to the 6022.

Please Return To Page 9

W Y RH G

PG 17

4 Wire Heat/Cool

6022

Terminals

R G

HVAC SYSTEM

C B O W W2 Y Y2RH RC G A

OPTIONAL POWER

WIRES

W Y RH RC G

PG 18

5 Wire Heat/Cool

6022

Terminals

RH RC G

HVAC SYSTEM

C B O W W2 Y Y2RH RC G A

OPTIONAL

WIRES

1 2 3

SET JUMPERS

1 2 3

Altri manuali per 6022

Indice

Altri manuali ritetemp Termostato

ritetemp

ritetemp 8029 Manuale utente

ritetemp

ritetemp 8085c Manuale utente

ritetemp

ritetemp 6036 Manuale utente

ritetemp

ritetemp 8046 Manuale utente

ritetemp

ritetemp 8029B Manuale utente

ritetemp

ritetemp 6036 Manuale utente

ritetemp

ritetemp 8046 Manuale utente

ritetemp

ritetemp 6020 Manuale utente

ritetemp

ritetemp 6008 Manuale utente

ritetemp

ritetemp 8029 Manuale utente

ritetemp

ritetemp 8022 Manuale di istruzioni

ritetemp

ritetemp 8099 Manuale utente

ritetemp

ritetemp 6004 Manuale utente

ritetemp

ritetemp 8030C Manuale utente

ritetemp

ritetemp 8050 Manuale utente

ritetemp

ritetemp 6022 Manuale utente

ritetemp

ritetemp 8030C Manuale utente

ritetemp

ritetemp 6008 Manuale utente

ritetemp

ritetemp 8085 Manuale utente

ritetemp

ritetemp 8025 Manuale utente

ritetemp

ritetemp 8099 Manuale utente

ritetemp

ritetemp 8025 Manuale utente

ritetemp

ritetemp 6020 Manuale utente

ritetemp

ritetemp 8082 Manuale utente

Manuali Termostato popolari di altre marche

EWELLY

EWELLY EW-181 Manuale utente

Prolon

Prolon T1100 Istruzioni per l'installazione

Computherm

Computherm Q20 Manuale utente

Heatmiser

Heatmiser neoStat Manuale utente

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manuale utente

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manuale utente

Saswell

Saswell SAS920XWHB-7-S-RF Guida

Aircalo

Aircalo TFP1-ET85P2 Manuale utente

Honeywell

Honeywell CM721 Manuale utente

Carrier

Carrier DEBONAIR 33CS Manuale utente

Lennox

Lennox iHarmony Zone Thermostat Istruzioni per il montaggio

Gemtech

Gemtech GT7000 Manuale di istruzioni

Rollei

Rollei Smartes 45000 Manuale utente

Sinope

Sinope TH1300RF Manuale utente

Honeywell

Honeywell RLV4305 Manuale utente

Honeywell

Honeywell Prestige 2.0 THX9421 Manuale utente

NuTone

NuTone NTBZ48 Istruzioni operative originali

Stelpro

Stelpro MAESTRO ASMT402AD Manuale utente
