Ritetemp 6025 Manuale utente

PROGRAM

HOLD

COPY REVIEW

FILTER

TIME SLOT

TIME SET

SET CLOCK

EPA

PROG2

TARGET TEMP

HEAT

Statement of use: The

6025 can be used with -

millivolt, 24V single and

2-stage conventional

systems, gas/oil/electric

heat, 1-stage heat

pumps, 2 -stage heat

pumps, zoned hot water

(2 or 3 wire), zoned

forced air, single and 2-

stage cooling, and

hybrid systems.

TEMP

Up/Down

Dial

Target

Temp

Time Battery

Compartment

Control Panel

Reset

button Heat/Cool

Mode Switch

Fan

Switch

Operation Guide 6025

ENGLISH

TARGET TEMP

HEAT

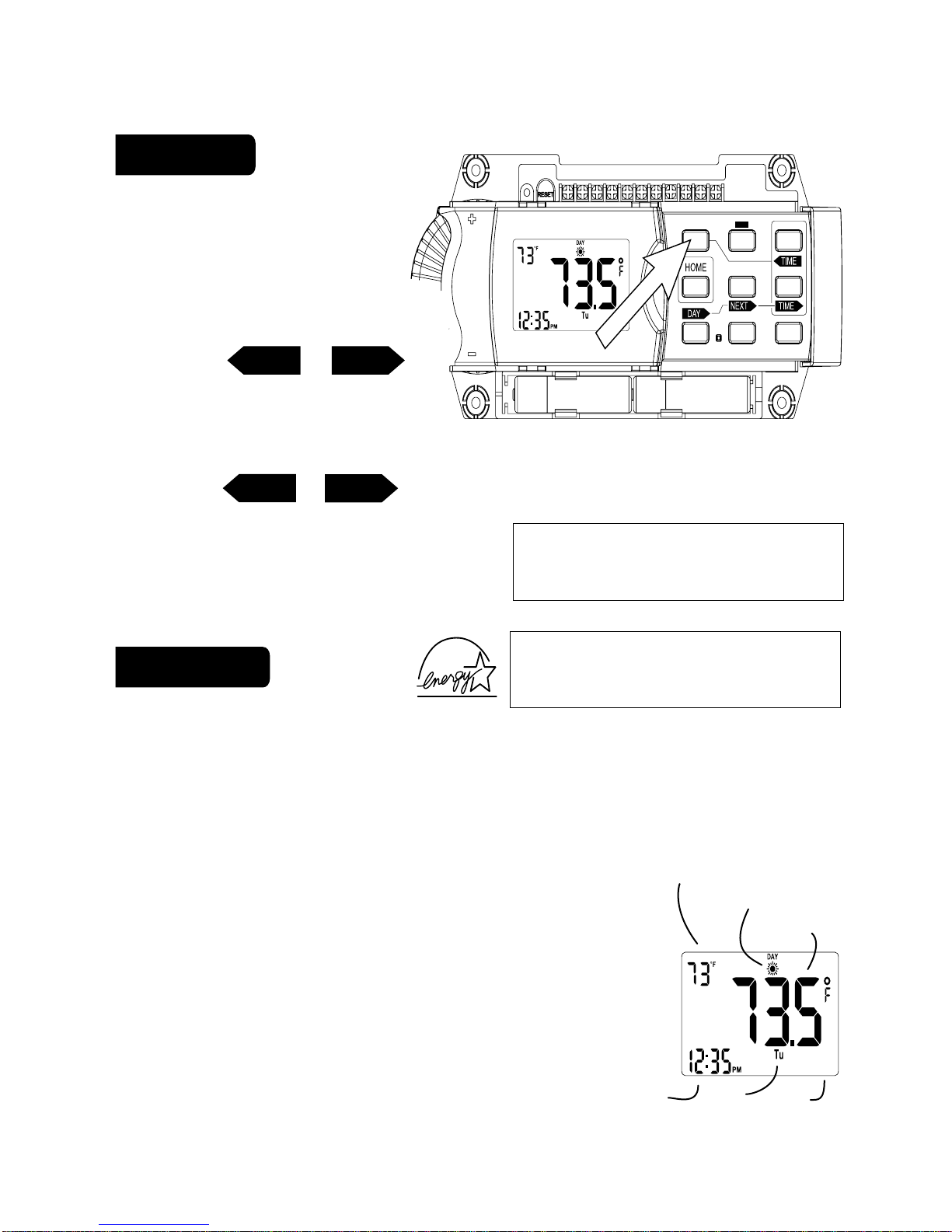

Set Clock

EPA Program

Set day of the week -

• Press SET CLOCK once

to set the day of the week.

The day of the week display

flashes. (Initially SU for Sunday)

• Press <TIME or TIME>

to select the day.

Set time of day -

• Press SET CLOCK again to set the time. The time display will flash.

• Press <TIME or TIME> to set the time. Press and hold to set the time

in the fast mode.

• Press HOME to store your settings.

This Thermostat comes preprogrammed

with an Energy-Star

approved program. This program is recommended by the

EPA for energy efficiency. We strongly recommend that you use this program

for one week, and see if it works for you. If it does not fit your needs you can

always input a custom program.

• To Run the Energy-Star

program, select HEAT or COOL

with the mode switch. The unit is now running the Energy-

Star

program. To return to the E-star program press EPA.

• One of the TIME SLOT icons

MORN, DAY, EVEN, NITE

comes

on, this indicates the TIME SLOT active in the Energy-Star

program. For program details refer to the Energy-Star

program chart above.

TIMETIME

All Days 70

F 62

F 70

F   62

MORN

6:00am

HEAT DAY

8:00am EVEN

6:00pm NIGHT

10:00pm

All Days 78

F 85

F 78

F   82

MORN

6:00am

COOL DAY

8:00am EVEN

6:00pm NIGHT

10:00pm

mode

day

time

target

temp time

slot temp

AAA

PROGRAM HOLDCOPY REVIEW FILTER

TIME SLOT

TIME SET

SET CLOCK

EPA

PROG2

TARGET TEMP

HEAT

Program

•

Select HEAT with the HEAT/Cool MODE switch.

•

To select the

DAY

you want to program: Press PROGRAM to enter

programming mode. The PROGRAM icon will come on. The day icon will show

SU (Sunday). Press

day

again to advance the day selection.

•

Select the TIME SLOT you want to program: To change the TIME SLOT

(MORN, DAY, EVEN, NITE) press the NEXT button. The display will cycle

through the time periods in sequence. Select MORN.

•

Select the desired temperature for that TIME SLOT : To change the

temperature for that TIME SLOT turn the TEMP +/- dial.

•

Select the time of day you want that TIME SLOT to represent:

To set the time when

MORN

will begin , press the <TIME or TIME> buttons

to move the set point forward or backward in time.

•

Select the next TIME SLOT and program temp and time:

Press

NEXT>

the display will show

DAY

. Repeat setting temp and time.

Select the remaining TIME SLOT's,

EVEN

and

NITE.

Program their temp and

time info. Repeat the above procedures for each day of the week. 

Push DAY> button to cycle through the days.

To COPY the program of the current day to another day, press COPY

program once. COPY will display on the LCD. The day icon for the source

day will go solid and the day icon for the destination day will flash. Use day

button to select the destination day. Press COPY again to confirm the copy.

If you decide you don't want to copy, press HOME to exit.

NOTE: 60 Second Rule-During programming, if a button is not

pushed within 60 seconds, the unit will go out of the set mode.

Everything you have input in this programming will automatically be saved.

DAY

PG 4

PG 5

TIME TIME

PROG 2: An alternative program can be used for holidays, shift work, etc.

Access by pushing the PROG 2 button. PROG 2 will then be active until you

shut it off by touching the PROG 2 button again. The main program will then

again be active. To change PROG 2 press DAY until PROG 2 is displayed

and repeat the programming procedure.

•

When finished with your custom program, either wait 60 sec or press HOME

to save and run your program.

To program for COOL,select COOL with the Heat/Cool MODE switch and

repeat the above procedure.

To REVIEW the program you have entered:Press PROGRAM once to enter

programming mode.Then press FILTER/REVIEW once.

The display will cycle through the programmed times and temps, showing

each program for 12 seconds. Starting from Sunday; MORN and ending on

Saturday; NITE. The programmed temperature is shown on the left of the

LCD, the programmed time, day and time slot are shown on the right and the

right top of the LCD respectfully.

•

Press HOME to leave program REVIEW mode and run the program.

Program cont.

DAY

TIME TIME

SWING setting determines the temperature difference from ON to OFF that the

6025 will command the HVAC system to run.

• With the MODE switch in HEAT or COOL, press the

button.

•

The

SWING

icon is displayed. The current setting of temp swing is shown on the

display (default at .5oF).

To change the swing, press the

buttons. The furnace will

cycle more at the lower numbers as it tries to keep your set point constant.

To complete the swing setting, push the

HOME

button.

TIME

Special Features - Swing

PG 6

PG 7

TARGET TEMP

Lock

Allows you to lock the 6025 (to prevent any changes in custom settings)

•

To enable or disable the program lock, press the following buttons one at

a time,in this sequence.

<tim then

FILTER

, then

SET CLOCK

, and last

HOME

The LOCK icon (a key) appears when the system is locked. 

•

Repeat to unlock

TIME

Spec. Featr. cont.

Temp HOLD

To change and hold the temperature until you return.

•

Open the door and push the

HOLD

button. The HOLD icon comes on.

Turn the temp control dial to set the hold temperature.

•

HOLD is canceled if the MODE switch is moved, or press

HOLD

again.

PG 9

Manual

• With the MODE switch in HEAT or COOL,

turn

temp control dial

to temporarily change the control

temperature by 1 degree per step.

NOTE: to avoid accidental setting changes intial

touch is dely .5sec. After that all functions are instant.

• The OVERRIDE icon flashes to shows the displayed temperature may be

different from the programmed setting.

• The OVERRIDE is canceled at the start of the next time period,

or when the MODE switch is moved, or if

TEMP

HOLD

is pressed twice.

PG 8

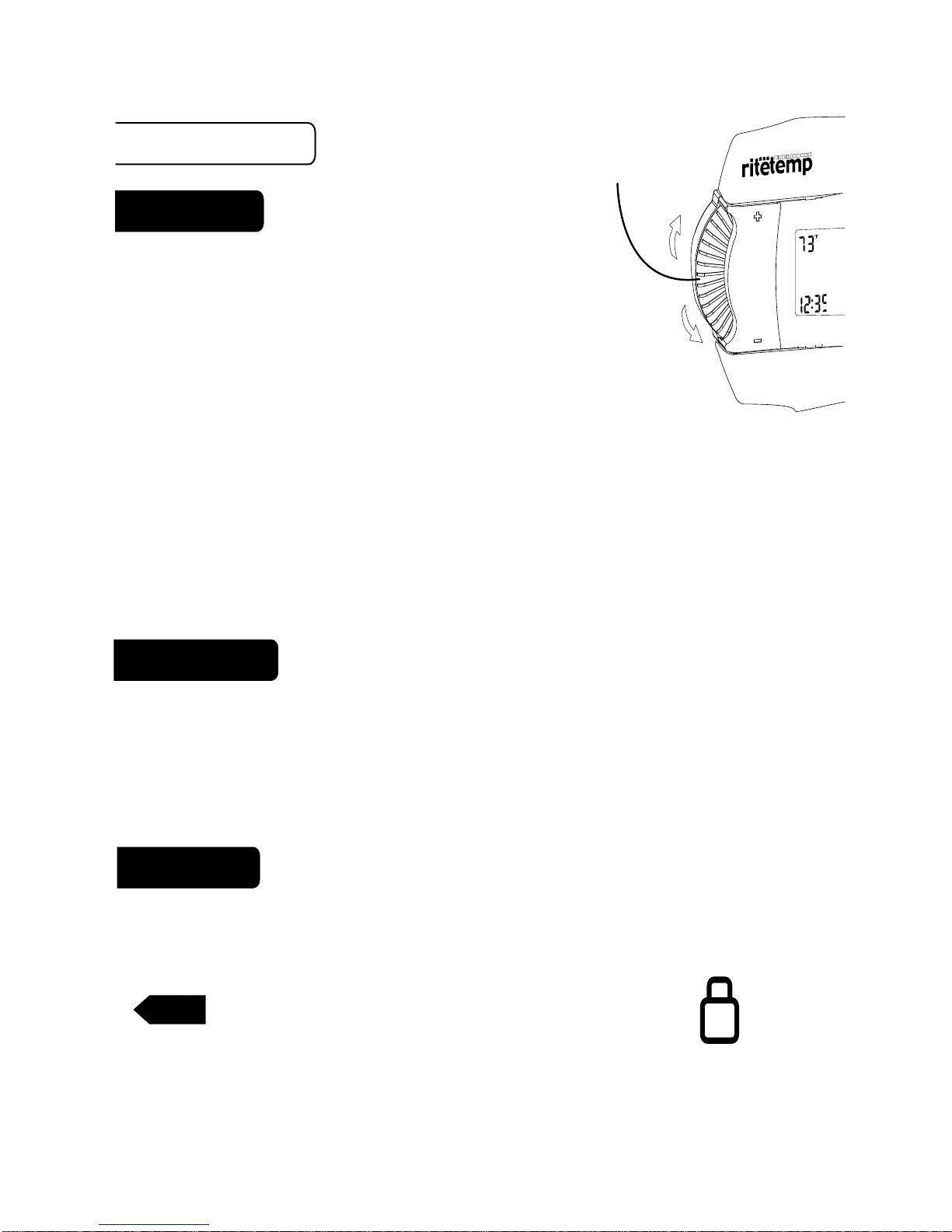

TEMP control

dial warmer

cooler

Low Battery

•

When the batteries are low, the battery icon will come on and flash.

The two AAA Batteries in the unit need to be replaced. In some

installations your heater system will stop functioning when the thermosat

loses power. Replace batteries as soon as you see this warning. The

thermostat programs will remain for 30 seconds while the batteries are

removed and replaced.

•

Do not take longer than 30 sec to change the batteries in your unit

or you will lose all custom settings and all programming. Only the Energy-

StarTM program will remain. Once the batteries are replaced, the system will

return to normal in 2 seconds.

PG 11

PG 10

Filter

The life of a HVAC filter varies depending on many factors, furnace run time,

and this will vary from the filter life noted on the filter media. The 6025 has a

feature that keeps track of actual furnace run time and reminds you to

periodically replace your system's air filter.

•

Press the FILTER button once to review the current filter record.

The

FILTER

and

WKS

icons come on with filter run-weeks being displayed.

•

Press

to clear the record. Press again to recover old run-time.

• To SET or see the LIMIT FILTER setting, press and hold the FILTER button

for two seconds. The default filter limit is set to 0 weeks and the max setting is

99 weeks. Use the buttons to set the filter limit. The LIMIT

FILTER must be set to get a FILTER warning on the HOME screen when the

filter needs service.

To leave the filter display, press

HOME

or wait 60 seconds.

TIME

NOTE: Your thermostat comes from the factory calibrated to + or - 1

F actual

temperature. It is an accurate instrument. If you want your thermostat to

display the same temperature as another thermometer in your home, you can

adjust its calibration.

To change the calibration:

Mode switch of the unit must be in the HEAT or COOL position.

Press the <Time button.

Turn the Temp +/- dial to adjust the offset temperature reading.

Press HOME to save the new setting.

TIME

Calibration

C or F display

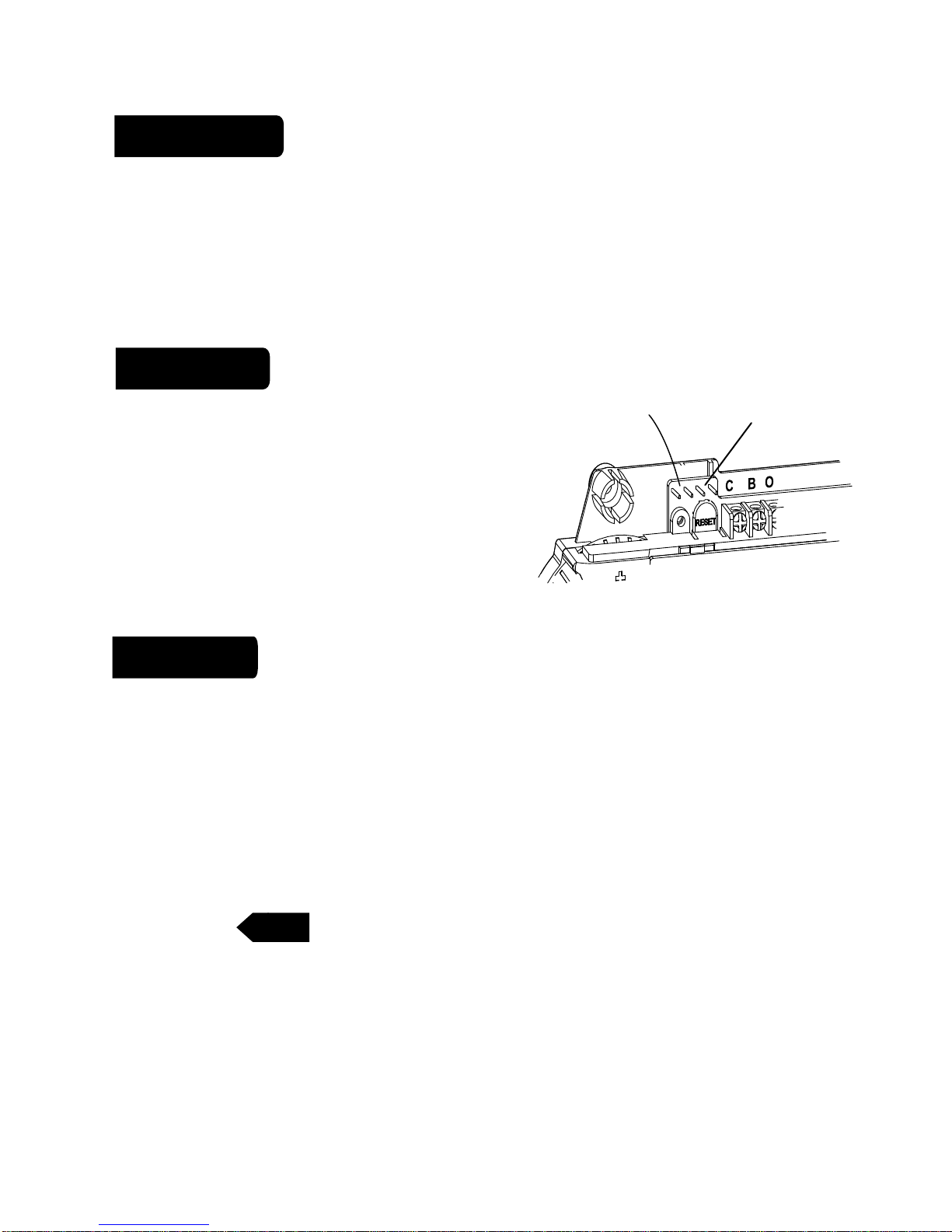

Celsius / Fahrenheit selection. The C/F jumper is on the top left of the 6025:

With the jumper OFF 6025 displays Fahrenheit.

When changed, the thermostat must be reset to activate the change. When

resetting, all custom settings and programming will be erased and only the

Energy-Star

program will remain.

12/24 hour

C -

F jumper

12/24hr

jumper

The thermostat can display time in 12 or 24 hour

formats. The 12/24 jumper is on the top of the

6025. With the jumper OFF the 6025 displays 12

hour time, 24 hour time with the jumper ON.



When changed, the thermostat must be

RESET to activate the change.

PG 14

PG 15

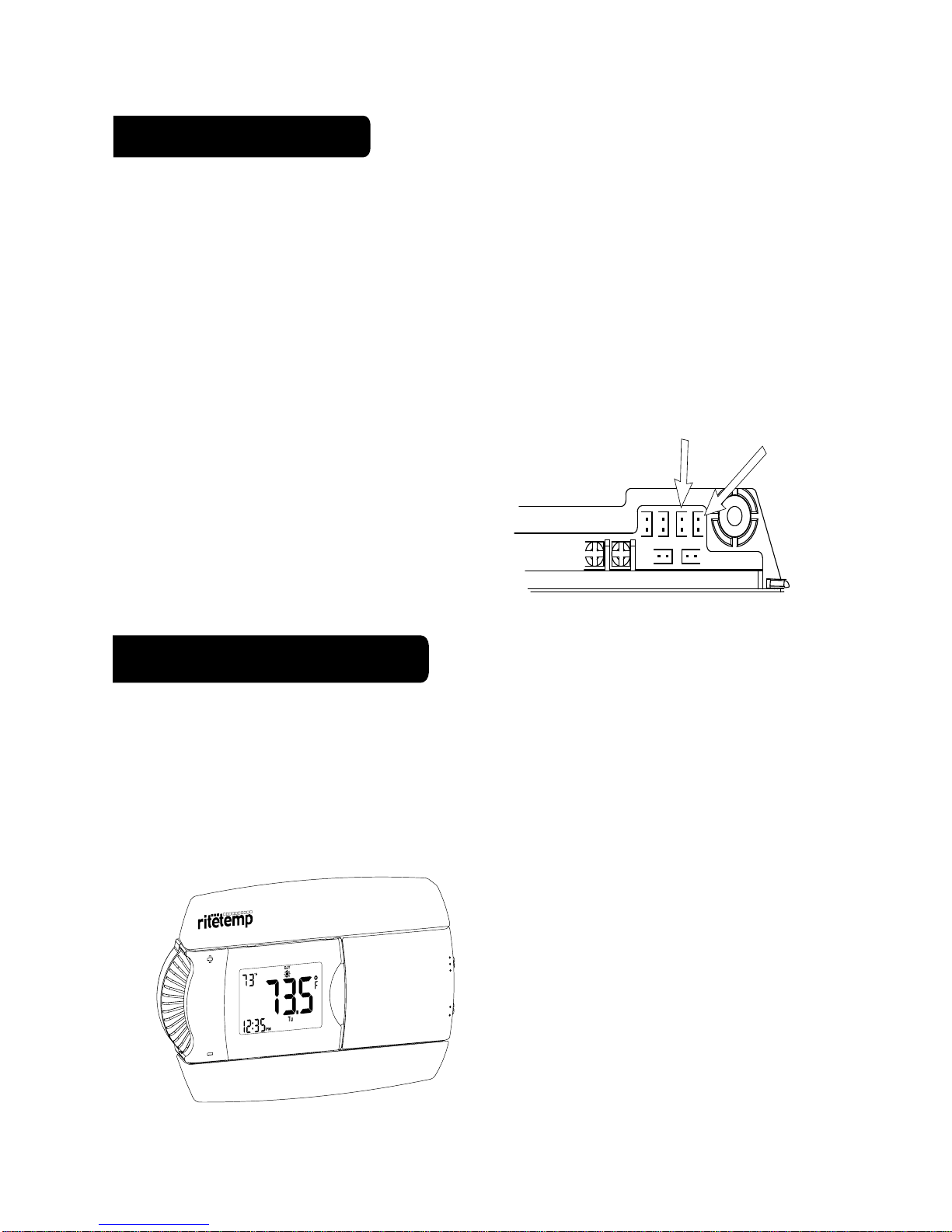

HEAT PUMP AUX only

This thermostat can be used with all millivolt and 24VAC heating and cooling

systems. It cannot be used with line voltage systems. This thermostat is digital

and your desired heat or cool temperatures can easily be set on the large

screen with the +/- dial. A minimum 4 minute off time protects heating and

cooling systems from damage.  This thermostat uses a new technique

called sequential staging for more

comfort with faster reaction to requested

temperature changes when controlling 2

stage systems.

6025 Features

If you have a heat pump with auxiliary heat, and the heat pump is not

working properly, your thermostat will still keep your room temperature

within about 2F of the target temperature.

• To select Auxiliary ONLY heat by temporally moving the HEAT PUMP

[Jumper 5] jumper to the AUX ONLY position [Jumper 6]. This will keep your

room temperature within the swing setting of the target temperature. 

•Be sure to restore it to PUMP when the pump

is again operational as aux heat is more

expensive than pump heat.

HEAT PUMP AUX only

3 4 5 6

G A

TARGET TEMP

HEAT

COOL

OFF

FAN

AUTO

1611-023

Covers removed

Customer Support: 877-505-2353 or

Visit our website www.ritetemp-thermostats.com

3 4 5 6

C B O W2W Y Y2

G A

AAA

PROGRAM HOLDCOPY REVIEW FILTER

TIME SLOT

TIME SET

SET CLOCK

EPA

PROG2

TARGET TEMP

HEAT

Altri manuali per 6025

Indice

Altri manuali ritetemp Termostato

ritetemp

ritetemp 8045 Manuale utente

ritetemp

ritetemp 8050C Manuale utente

ritetemp

ritetemp 6010 Manuale utente

ritetemp

ritetemp 8082 Manuale utente

ritetemp

ritetemp 6036 Manuale utente

ritetemp

ritetemp 6004 Manuale utente

ritetemp

ritetemp 8030 Manuale utente

ritetemp

ritetemp 8085c Manuale utente

ritetemp

ritetemp 8022C Manuale di istruzioni

ritetemp

ritetemp 8022 Manuale di istruzioni

ritetemp

ritetemp 8022C Manuale utente

ritetemp

ritetemp 6010 Manuale utente

ritetemp

ritetemp 8050C Manuale utente

ritetemp

ritetemp 6025 Manuale utente

ritetemp

ritetemp 6020 Manuale utente

ritetemp

ritetemp 8046 Manuale utente

ritetemp

ritetemp 8099 Manuale utente

ritetemp

ritetemp 6008 Manuale utente

ritetemp

ritetemp 6008 Manuale utente

ritetemp

ritetemp 8022 Manuale utente

ritetemp

ritetemp 8035C Manuale utente

ritetemp

ritetemp 8082C Manuale utente

ritetemp

ritetemp 8099 Manuale utente

ritetemp

ritetemp 8029 Manuale utente

Manuali Termostato popolari di altre marche

EWELLY

EWELLY EW-181 Manuale utente

Prolon

Prolon T1100 Istruzioni per l'installazione

Computherm

Computherm Q20 Manuale utente

Heatmiser

Heatmiser neoStat Manuale utente

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manuale utente

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manuale utente

Saswell

Saswell SAS920XWHB-7-S-RF Guida

Aircalo

Aircalo TFP1-ET85P2 Manuale utente

Honeywell

Honeywell CM721 Manuale utente

Carrier

Carrier DEBONAIR 33CS Manuale utente

Lennox

Lennox iHarmony Zone Thermostat Istruzioni per il montaggio

Gemtech

Gemtech GT7000 Manuale di istruzioni

Rollei

Rollei Smartes 45000 Manuale utente

Sinope

Sinope TH1300RF Manuale utente

Honeywell

Honeywell RLV4305 Manuale utente

Honeywell

Honeywell Prestige 2.0 THX9421 Manuale utente

NuTone

NuTone NTBZ48 Istruzioni operative originali

Stelpro

Stelpro MAESTRO ASMT402AD Manuale utente
