Hydrogen Sulfide Transmitter

Operator’s Manual

Part Number: 71-0425

Revision: 0

Released: 6/11/20

2 • 65-2330RKSS H2S Transmitter

WARNING

Read and understand this instruction manual before operating

transmitter. Improper use of the transmitter could result in bodily

harm or death.

Periodic calibration and maintenance of the transmitter is essential for

proper operation and correct readings. Please calibrate and maintain

this transmitter regularly! Frequency of calibration depends upon the

type of use you have and the sensor types. Typical calibration

frequencies for most applications are between 3 and 6 months, but can

be required more often or less often based on your usage.

65-2330RKSS H2S Transmitter • 3

Product Warranty

RKI Instruments, Inc. warrants gas alarm equipment sold by us to be free from defects in

materials, workmanship, and performance for a period of one year from date of shipment from

RKI Instruments, Inc. Any parts found defective within that period will be repaired or

replaced, at our option, free of charge. This warranty does not apply to those items which by

their nature are subject to deterioration or consumption in normal service, and which must be

cleaned, repaired, or replaced on a routine basis. Examples of such items are:

Warranty is voided by abuse including mechanical damage, alteration, rough handling, or

repair procedures not in accordance with the operator’s manual. This warranty indicates the

full extent of our liability, and we are not responsible for removal or replacement costs, local

repair costs, transportation costs, or contingent expenses incurred without our prior approval.

THIS WARRANTY IS EXPRESSLY IN LIEU OF ANY AND ALL OTHER WARRANTIES

AND REPRESENTATIONS, EXPRESSED OR IMPLIED, AND ALL OTHER

OBLIGATIONS OR LIABILITIES ON THE PART OF RKI INSTRUMENTS, INC.

INCLUDING BUT NOT LIMITED TO, THE WARRANTY OF MERCHANTABILITY OR

FITNESS FOR APARTICULAR PURPOSE. IN NO EVENT SHALL RKI INSTRUMENTS,

INC. BE LIABLE FOR INDIRECT, INCIDENTAL, OR CONSEQUENTIAL LOSS OR

DAMAGE OF ANY KIND CONNECTED WITH THE USE OF ITS PRODUCTS OR

FAILURE OF ITS PRODUCTS TO FUNCTION OR OPERATE PROPERLY.

This warranty covers instruments and parts sold to users by authorized distributors, dealers,

and representatives as appointed by RKI Instruments, Inc.

We do not assume indemnification for any accident or damage caused by the operation of this

gas monitor, and our warranty is limited to the replacement of parts or our complete goods.

a) Absorbent cartridges d) Batteries

b) Pump diaphragms and valves e) Filter elements

c) Fuses

4 • 65-2330RKSS H2S Transmitter

Table of Contents

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

H2S Detector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Amplifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Junction Box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Mounting the H2S Transmitter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Wiring the H2S Transmitter to a Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Introducing Incoming Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Setting the Zero Signal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Preventive Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Replacing Components of the H2S Transmitter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Calibration Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Calibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Preparing for Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Setting the Zero Reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Setting the Response Reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Returning to Normal Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

65-2330RKSS H2S Transmitter • 5

Overview

This manual describes the 65-2330RKSS hydrogen sulfide (H2S) transmitter. This manual

also describes how to install, start up, maintain, and calibrate the transmitter when using it

with a gas monitoring controller. A parts list at the end of this manual lists replacement parts

and accessories for the H2S transmitter. See the controller operator’s manual for information

specific to the controller.

Specifications

WARNING: Do not use this product in a manner not specified in this instruction manual.

Table 1 lists specifications for the H2S transmitter.

WARNING: When using the 65-2330RKSS, you must follow the instructions and warnings

in this manual to assure proper and safe operation of the 65-2330RKSS and to

minimize the risk of personal injury. Be sure to maintain and periodically

calibrate the 65-2330RKSS as described in this manual.

Table 1: Specifications

Target Gas Hydrogen sulfide (H2S)

Sampling Method Diffusion

Signal Output 4 to 20 mA

Detection Range 0 to 100 PPM (parts per million)

Accuracy ± 5% of reading or ± 2 ppm H2S (whichever is greater)

Response Time 90% in 30 seconds

Operating Temperature -40°F to 104°F (-40°C to 40°C)

6 • 65-2330RKSS H2S Transmitter

Description

This section describes the components of the H2S transmitter. The H2S transmitter is a 4-20

mA type detector head. It consists of the H2S detector, amplifier, and junction box.

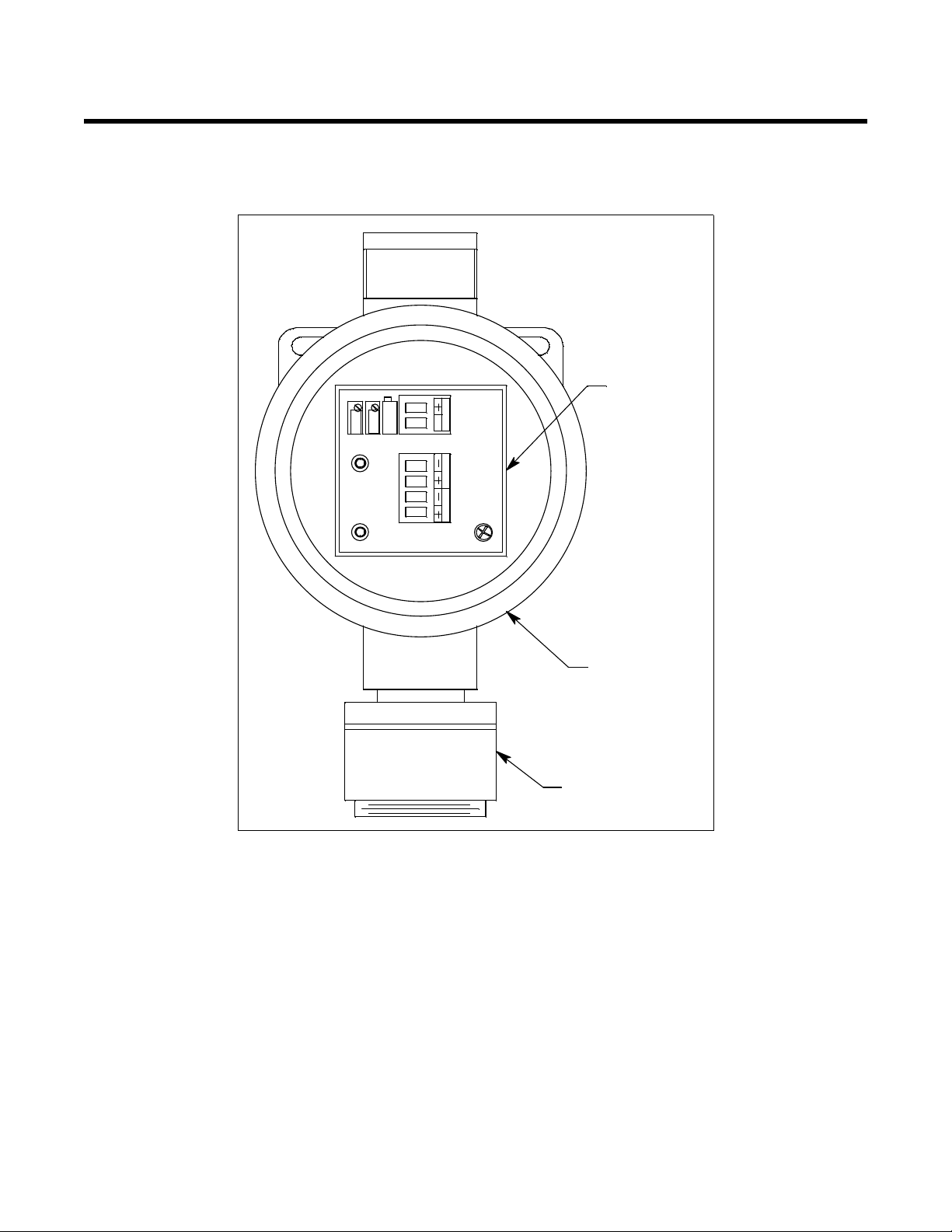

Figure 1: H2S Transmitter Component Location

ZERO

SIG/PWR

Amplifier

TOXIC OXY

SPAN

Junction Box

H2S Detector

65-2330RKSS H2S Transmitter • 7

H2S Detector

The H2S detector consists of the detector housing body, detector housing cap, cap gasket, and

the plug-in sensor.

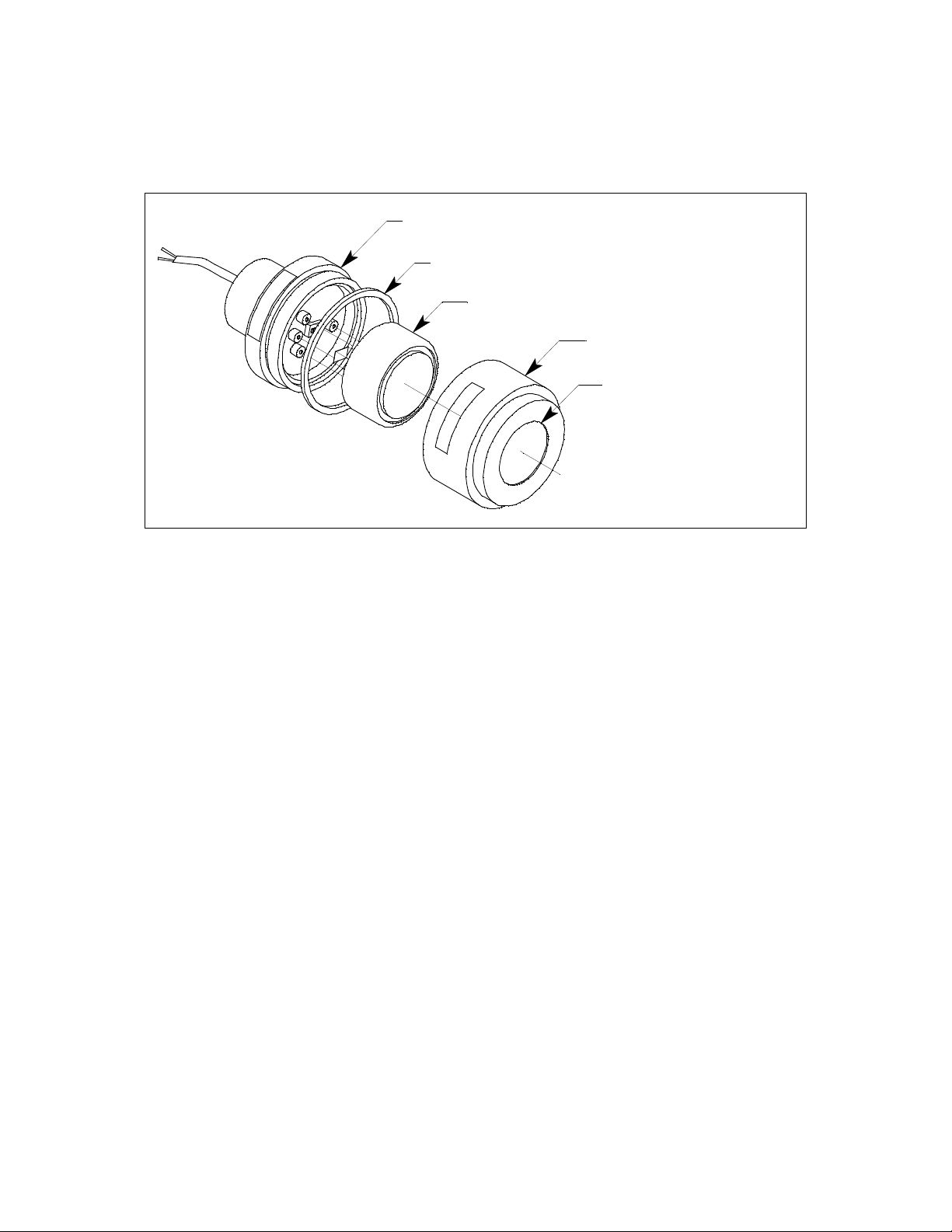

Figure 2: H2S Detector Component Location

Detector Housing Body

The detector housing body protects the electronic components within the housing. Use the

mounting threads at the top of the housing to screw the H2S detector into the 3/4 NPT hub on

the bottom of the junction box. Two wires extend from the top of the detector housing body.

Use these wires to connect the H2S detector to the amplifier. One of the wires is red and one of

the wires is black.

The housing includes a four-socket pattern. This socket pattern accepts the sensor’s four pins

to secure the sensor within the detector housing. A pre-amplifier, located between the sockets

and two interconnect wires, conditions the sensor’s signal before the signal reaches the

controller.

Housing Cap & Cap Gasket

The housing cap screws onto the detector housing. It retains the plug-in sensor and protects it

from damage. A foam gasket inside the housing cap seals against the face of the sensor when

the cap is screwed onto the housing body. A hydrophobic membrane on the outside of the cap

face keeps water and particulates away from the sensor face behind the cap. Unscrew the

detector cap to access the plug-in sensor for maintenance or replacement. A cap gasket seals

the interface between the housing and cap.

Plug-In H2S Sensor

The sensor is secured within the detector assembly by the housing cap. Through a series of

chemical and electrical reactions, the sensor produces an electrical output that corresponds to

the detection range of the transmitter.

Detector Housing Cap

Hydrophobic Membrane

Plug-In H2S Sensor

Detector Housing Body

Cap Gasket

8 • 65-2330RKSS H2S Transmitter

Amplifier

The amplifier converts the electrical output from the sensor to a 4 to 20 mA signal that

corresponds to the detection range and transmits the signal to a gas monitoring controller. A

foam gasket that orients the amplifier and keeps it from rotating is installed on the bottom of

the amplifier. The amplifier includes the controller terminal strip, detector terminal strip, zero

pot, span pot, and test points.

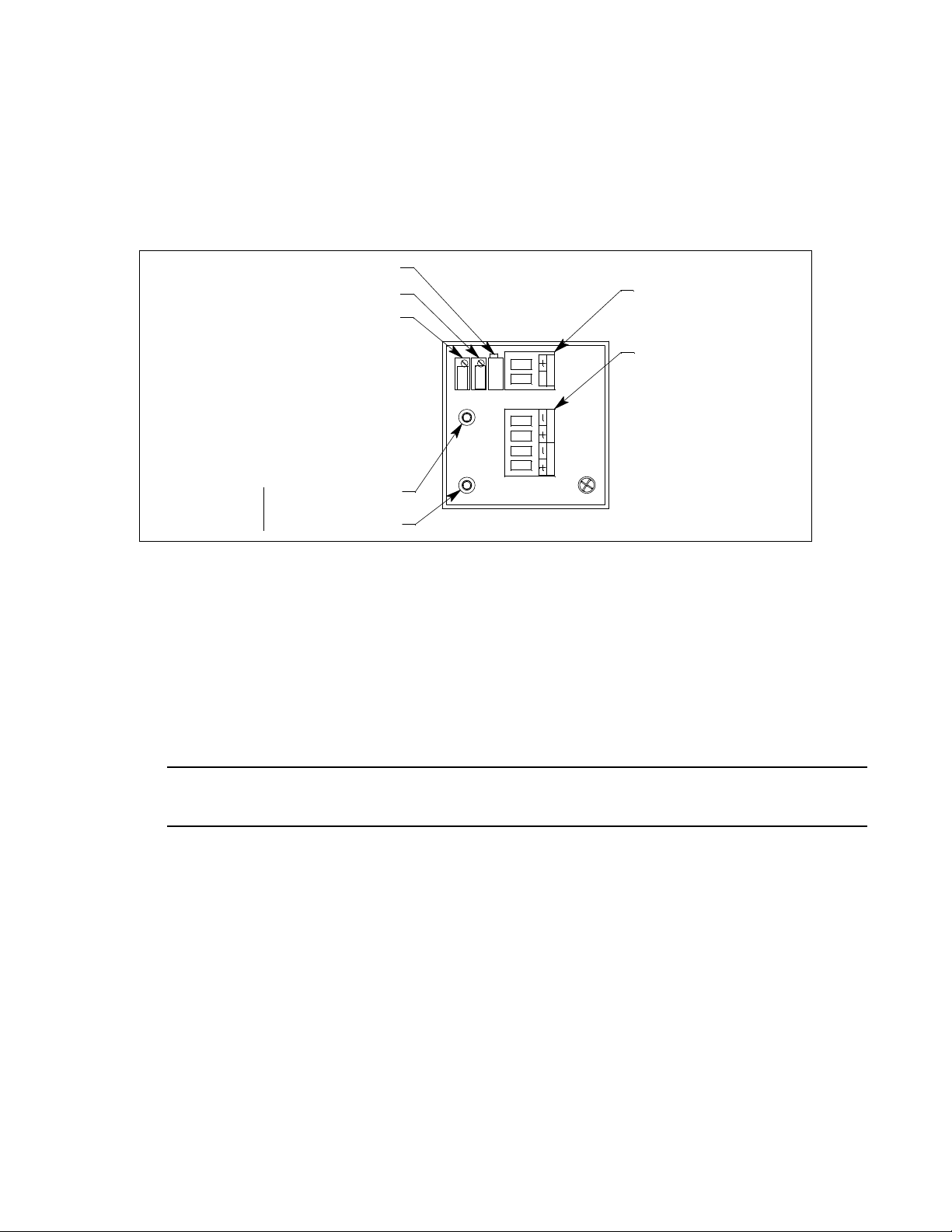

Figure 3: Amplifier Component Location

Controller Terminal Strip

The interconnect terminal strip is a two position plug-in style terminal strip located at the top

edge of the amplifier. Use the controller terminal strip to connect the amplifier to a controller.

Detector Terminal Strip

The detector terminal strip is a four-point plug-in style terminal strip near the bottom of the

amplifier. Use the detector terminal strip to connect the H2S detector to the amplifier.

NOTE: The H2S detector is factory-wired to the detector terminal strip. See the Installation

section of this manual for all wiring procedures related to the transmitter.

Zero Pot

The zero pot is located in the upper left corner of the amplifier (see Figure 3). Use a small flat

blade screwdriver to turn the zero pot’s adjustment screw and adjust the amplifier’s zero (H2S

free) output during the start-up and calibration procedures. Turn the adjustment screw

clockwise to increase the zero output and counterclockwise to decrease the zero output.

Span Pot

The span pot is located to the right of the zero pot (see Figure 3). Use a small flat blade

screwdriver to turn the span pot’s adjustment screw and adjust the amplifier’s response output

during the calibration procedure. Turn the adjustment screw clockwise to increase the output

and counterclockwise to decrease the output.

SPAN

TOXIC OXY SIG/PWR

ZERO

+ Test Point (Red)

100mV - 500mV

Range - Test Point (Black)

Zero Pot

Factory Adjust Pot

Span Pot Controller Terminal Strip

Detector Terminal Strip

65-2330RKSS H2S Transmitter • 9

CAUTION:The third potentiometer is factory-set. Do not adjust it.

Test Points

The test points (red and black) are on the left side of the amplifier (see Figure 3). The test

points produce a 100 mV to 500 mV output that corresponds to the transmitter’s 4 to 20 mA

output. Use the test points and a voltmeter to measure the transmitter’s output during the start-

up and calibration procedures. The black test point in the lower left corner is the negative (-)

test point and the red test point below the zero pot is the positive (+) test point.

Junction Box

The stainless steel, corrosion resistant junction box allows you to install the detector at a

mounting site that is remote from a controller, and it protects the amplifier and wiring

connections made to the amplifier. Two conduit hubs allow you to mount the detector to the

junction box and connect the wiring from the detector to a controller. An O-ring seals the

interface between the junction box cover and the junction box base.

The amplifier is factory installed in the junction box. A cover on the front of the junction box

allows access to the interior of the junction box. A locking set screw on the junction box cover

allows you to secure the junction box cover and prevent it from being removed.

10 • 65-2330RKSS H2S Transmitter

Installation

This section describes procedures to mount the H2S transmitter in the monitoring environment

and wire the transmitter to a controller.

Mounting the H2S Transmitter

1. Select a mounting site that is representative of the monitoring environment. Consider the

following when you select the mounting site.

• Select a site where the transmitter is not likely to be bumped or disturbed. Make sure

there is sufficient room to perform start-up, maintenance, and calibration procedures.

• Select a site that is at normal breathing level.

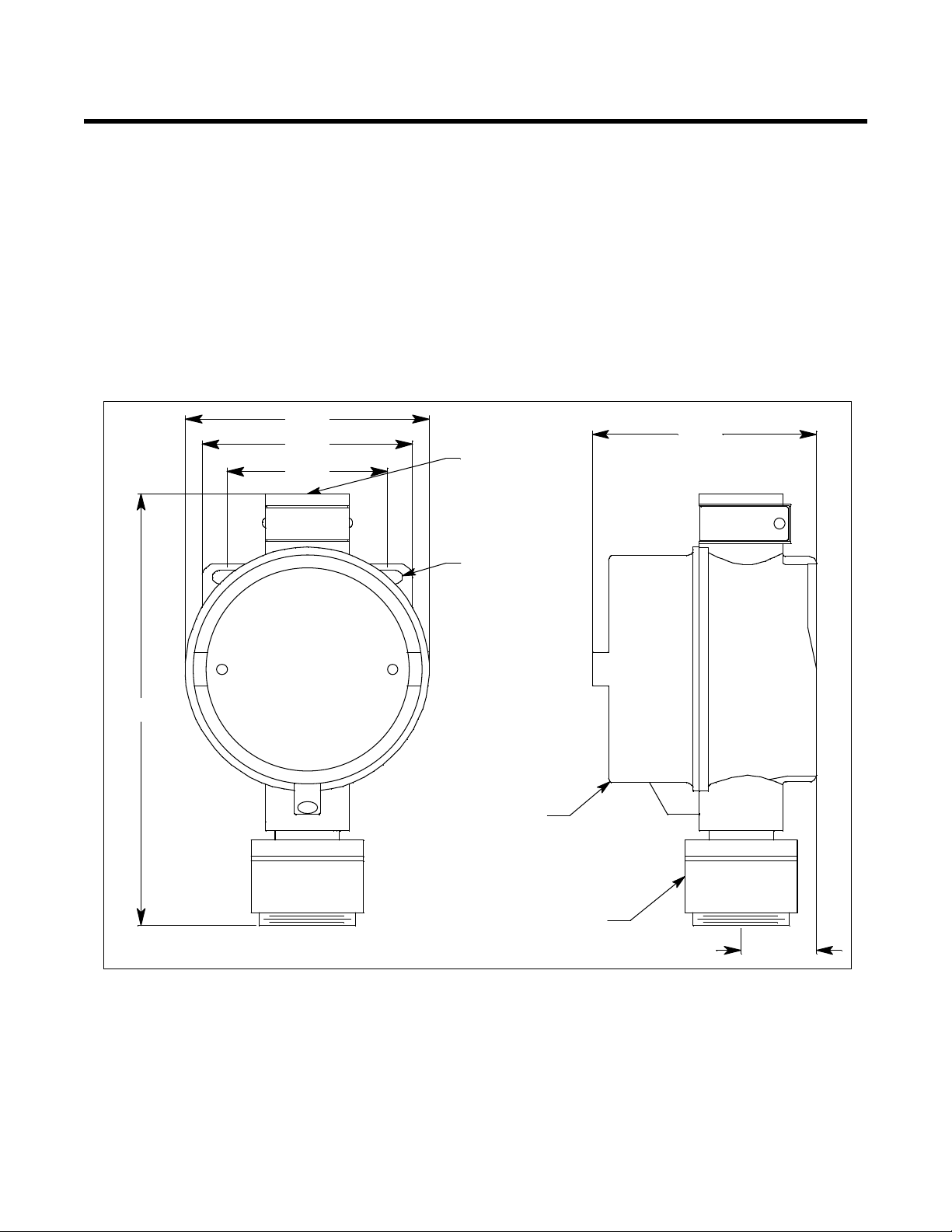

Figure 4: Mounting the H2S Transmitter

2. At the monitoring site you select, hang or mount the junction box with the detector facing

down (see Figure 4).

.20 Dia. x .45

Slot, 2X

3/4 NPT

Female, 2X

2.40

3.15

3.66

H2S Detector

J-Box

3.34

1.10

6.63 max

Indice

Altri manuali RKI Instruments Trasmettitore

RKI Instruments

RKI Instruments 65-2331RK Manuale utente

RKI Instruments

RKI Instruments 65-2336RK Manuale utente

RKI Instruments

RKI Instruments 65-2507RK Manuale utente

RKI Instruments

RKI Instruments 65-2658XL-CH4-4 Manuale utente

RKI Instruments

RKI Instruments 65-2646XL-05-04 Manuale utente

RKI Instruments

RKI Instruments 65-2330RK Manuale utente

RKI Instruments

RKI Instruments 65-2443-100 Manuale utente

RKI Instruments

RKI Instruments 65-2649XL-HC-04 Manuale utente

RKI Instruments

RKI Instruments 65-2400RK Manuale utente

RKI Instruments

RKI Instruments 65-2646XLS-SW Manuale utente

RKI Instruments

RKI Instruments 65-2645RK-05-04 Manuale utente

RKI Instruments

RKI Instruments M2A 65-2643RK-05-04 Manuale utente

RKI Instruments

RKI Instruments 65-2340RKSS Manuale utente

RKI Instruments

RKI Instruments 65-2661RK-03-04 Manuale utente

RKI Instruments

RKI Instruments 65-2649RK-HC-04 Manuale utente

RKI Instruments

RKI Instruments 65-2405RK-05-04 Manuale utente

RKI Instruments

RKI Instruments 65-2394RK-CH4-4 Manuale utente

RKI Instruments

RKI Instruments 65-2645XL-05-04 Manuale utente

RKI Instruments

RKI Instruments 65-2397-04 Series Manuale utente

RKI Instruments

RKI Instruments 65-2335RK Manuale utente

RKI Instruments

RKI Instruments M2A Manuale utente

RKI Instruments

RKI Instruments 65-2335RK Manuale utente

RKI Instruments

RKI Instruments 65-2661RK-XX-04 Manuale utente

RKI Instruments

RKI Instruments 65-2643RK-05-04 Manuale utente

Manuali Trasmettitore popolari di altre marche

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manuale del proprietario

Honeywell

Honeywell 5816WMBR Manuale utente

Kamstrup

Kamstrup READy MTU Istruzioni operative

Omega

Omega ZW Series Manuale utente

ABB

ABB Field 264H Guida

Alinco

Alinco DJ-V17T Manuale utente

Dejero

Dejero EnGo 3x Manuale utente

Rosemount

Rosemount 4600 Manuale utente

Speaka Professional

Speaka Professional 2342740 Manuale utente

trubomat

trubomat GAB 1000 Manuale utente

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manuale utente

Rondish

Rondish UT-11 Manuale utente

MG 10JRE Manuale utente

Burkert

Burkert 8177 Manuale utente

Firetide

Firetide HotPort 3203 Manuale

Tele Radio

Tele Radio T9-02 Manuale utente

Rotronic

Rotronic HygroFlex HF3 Series Manuale utente

Jamara

Jamara FCX6 Pro Tel Manuale utente
