RKI Instruments 65-2396RK Manuale utente

RKI Instruments, Inc.

www.rkiinstruments.com

65-2396RK

CO2 Transmitter

Operator’s Manual

Part Number: 71-0184RK

Revision: C

Released: 9/1/20

2 • 65-2396RK CO2 Transmitter

WARNING

Read and understand this instruction manual before operating

transmitter. Improper use of the transmitter could result in bodily

harm or death.

Periodic calibration and maintenance of the transmitter is essential for

proper operation and correct readings. Please calibrate and maintain

this transmitter regularly! Frequency of calibration depends upon the

type of use you have and the sensor types. Typical calibration

frequencies for most applications are between 6 and 12 months, but

can be required more often or less often based on your usage.

65-2396RK CO2 Transmitter • 3

Product Warranty

RKI Instruments, Inc. warrants gas alarm equipment sold by us to be free from defects in materials,

workmanship, and performance for a period of one year from date of shipment from RKI Instruments,

Inc. Any parts found defective within that period will be repaired or replaced, at our option, free of

charge. This warranty does not apply to those items which by their nature are subject to deterioration

or consumption in normal service, and which must be cleaned, repaired, or replaced on a routine basis.

Examples of such items are:

Warranty is voided by abuse including mechanical damage, alteration, rough handling, or repair

procedures not in accordance with the operator’s manual. This warranty indicates the full extent of our

liability, and we are not responsible for removal or replacement costs, local repair costs, transportation

costs, or contingent expenses incurred without our prior approval.

THIS WARRANTY IS EXPRESSLY IN LIEU OF ANY AND ALL OTHER

WARRANTIES AND REPRESENTATIONS, EXPRESSED OR IMPLIED, AND

ALL OTHER OBLIGATIONS OR LIABILITIES ON THE PART OF RKI

INSTRUMENTS, INC. INCLUDING BUT NOT LIMITED TO, THE WARRANTY

OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO

EVENT SHALL RKI INSTRUMENTS, INC. BE LIABLE FOR INDIRECT,

INCIDENTAL, OR CONSEQUENTIAL LOSS OR DAMAGE OF ANY KIND

CONNECTED WITH THE USE OF ITS PRODUCTS OR FAILURE OF ITS

PRODUCTS TO FUNCTION OR OPERATE PROPERLY.

This warranty covers instruments and parts sold to users by authorized distributors, dealers, and

representatives as appointed by RKI Instruments, Inc.

We do not assume indemnification for any accident or damage caused by the operation of this gas

monitor, and our warranty is limited to the replacement of parts or our complete goods.

a) Absorbent cartridges d) Batteries

b) Pump diaphragms and valves e) Filter elements

c) Fuses

4 • 65-2396RK CO2 Transmitter

Table of Contents

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

CO2 Detector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Amplifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Junction Box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Mounting the CO2 Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Wiring the CO2 Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Introducing Incoming Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Setting the Zero Signal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Preventive Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Replacing Components of the CO2 Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Calibration Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Calibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Preparing for Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Setting the Zero Reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Setting the Response Reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Returning to Normal Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

65-2396RK CO2 Transmitter • 5

Overview

This manual describes the 65-2396RK CO2 transmitter. This manual also describes how to install, start

up, configure, maintain, and calibrate the transmitter when it is used with a gas monitoring controller.

A parts list at the end of this manual lists replacement parts and accessories for the CO2 transmitter.

Specifications

Table 1 lists specifications for the CO2 transmitter.

WARNING: When using the 65-2396RK, you must follow the instructions and warnings in this

manual to assure proper and safe operation of the 65-2396RK and to minimize the

risk of personal injury. Be sure to maintain and periodically calibrate the 65-2396RK

as described in this manual.

Table 1:Specifications

Targ et Gas Carbon Dioxide (CO2)

Area Classification Explosionproof for Class I, Groups B, C, and D

Sampling Method Diffusion

Signal Output 4 to 20 mA

Detection Range 65-2396RK-01: 0-9,000 ppm

65-2396RK-02: 0-5,000 ppm

65-2396RK-03: 0-5% Volume

65-2396RK-04: 0-20% Volume

65-2396RK-05: 0-50% Volume

65-2396RK-10: 0-100% Volume

Response Time 90% in 45 seconds

Operating Temperature -4°F to 122°F (-20°C to 50°C)

Accuracy ± 5% of reading or ± 2% of full scale (whichever is greater)

6 • 65-2396RK CO2 Transmitter

Description

This section describes the components of the CO2 transmitter. The transmitter is a 4 - 20 mA type

detector head. It consists of the CO2 detector, amplifier, and junction box.

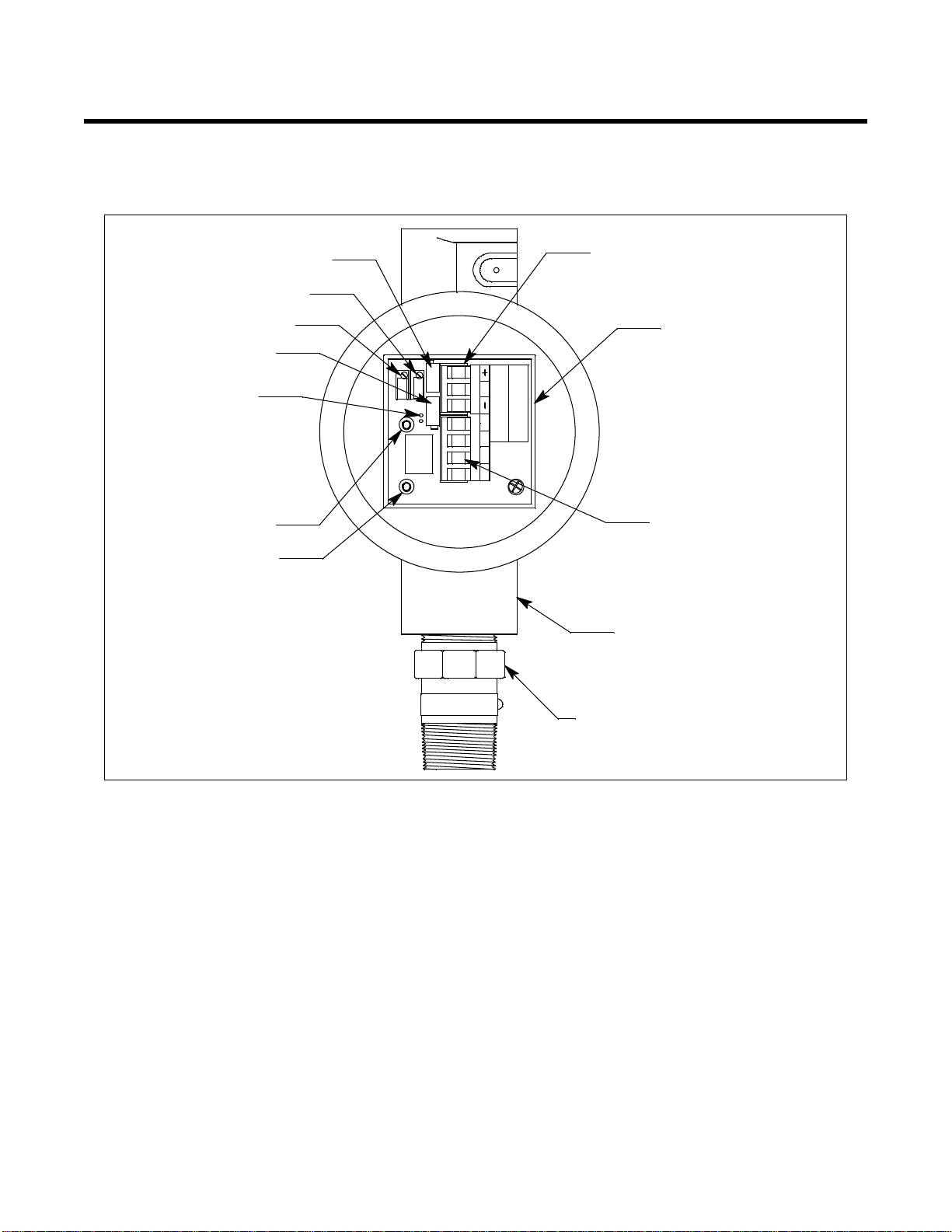

Figure 1: CO2 Transmitter Component Location

Infrared CO2 Detector

The CO2 detector is made up of a miniature infrared CO2 detector housed and encapsulated in a pipe

nipple. The pipe nipple has 3/4 NPT threads on each end and a 1 1/4” hex that allows removal or

installation of the detector with a wrench. A porous flame arrestor that is coated with a hydrophobic

film that repels liquids is on one end of the detector and allows sample gas to enter the detector. Four

color coded leads, red, white, green, and black, extend from the other end of the detector. The leads

allow you to connect the detector to the amplifier.

To distinguish the different ranges of CO2 detectors from one another, a short length of shrink tubing is

applied to the wiring where it comes out of the nipple. The following table indicates the color of the

shrink tubing and the color of the wire to which it is applied.

Amplifier

Controller Terminal

Strip

WRB

57-1053RK

S2 001

Detector Terminal Strip

J-Box

IR CO2 Detector

Sensor

Current

Factory Adjust Pot

Zero Pot

Span Pot

Factory Adjust Pot

Jumper Pins,

Factory Use Only

SPAN

ZERO

- Test Point

+ Test Point

LEL PWR/ SIG

65-2396RK CO2 Transmitter • 7

Amplifier

The amplifier converts the electrical output from the detector to a 4 to 20 mA signal that corresponds

to the detection range and transmits the signal to a gas monitoring controller. A foam gasket that

orients the amplifier and keeps it from rotating is installed on the bottom of the amplifier. The

amplifier includes the detector terminal strip, controller terminal strip, span pot, zero pot, and test

points (see Figure 1).

Controller Terminal Strip

The controller terminal strip is a three position plug-in style terminal strip located near the top of the

amplifier. Use the controller terminal strip to wire the CO2 transmitter to a controller.

Detector Terminal Strip

The detector terminal strip is a four position plug-in style terminal strip located below the controller

terminal strip. Use the detector terminal strip to connect the CO2 detector to the amplifier.

NOTE: The IR CO2 detector is factory-wired to the detector terminal strip. See “Wiring the CO2

Transmitter to a Controller” on page 9 for all wiring procedures related to the transmitter.

Zero Pot

The zero pot is located in the upper left corner of the amplifier (see Figure 1). Use a small flat blade

screwdriver to turn the zero pot’s adjustment screw and adjust the amplifier’s target gas-free output

during the start-up and calibration procedures. Turn the adjustment screw clockwise to increase the

zero output and counterclockwise to decrease the zero output.

Span Pot

The span pot is located to the right of the zero pot (see Figure 1). Use a small flat blade screwdriver to

turn the span pot’s adjustment screw and adjust the amplifier’s gas response output during the

calibration procedure. Turn the adjustment screw clockwise to increase the gas response and

counterclockwise to decrease the gas response.

Tabl e 2:CO2 Detector Color Designations

Detector Color Designations

0 - 5,000 ppm black shrink tubing on white wire

0 - 9,000 ppm black shrink tubing on green wire

0 - 5% volume green shrink tubing on white wire

0 - 20% volume black shrink tubing on red wire

0 - 50% volume green shrink tubing on red wire

0 - 100% volume red shrink tubing on green wire

8 • 65-2396RK CO2 Transmitter

CAUTION: The amplifier includes two additional potentiometers. They are factory-set. Do not adjust

them.

Test Points

The test points are on the left side of the amplifier (see Figure 1). The test points produce a 100 mV to

500 mV output that corresponds to the transmitter’s 4 to 20 mA output. Use the test points and a

voltmeter to measure the amplifier’s output during the start-up and calibration procedures. The black

test point in the lower left corner is the negative (-) test point and the red test point below the zero pot

is the positive (+) test point.

Junction Box

Use the junction box to install the transmitter at a mounting site that is remote from the controller. The

junction box protects the amplifier and wiring connections made to the amplifier. Use the top 3/4 NPT

conduit hub to connect wiring from the amplifier to the controller. Use the cover on the front of the

junction box to access the interior of the junction box. The detector and amplifier are factory installed

in the junction box. Three spacers installed on the back of the junction box control the distance of the

junction box from a mounting surface and ensure that there is enough room to install a calibration cup

on the detector during calibration.

Installation

This section describes procedures to mount the CO2 transmitter in the monitoring environment and

wire the transmitter to a controller.

Mounting the CO2 Transmitter

1. Select a mounting site that is representative of the monitoring environment. Consider the

following when you select the mounting site.

• Select a site where the transmitter is not likely to be bumped or disturbed. Make sure there is

sufficient room to perform start-up, maintenance, and calibration procedures.

• Mount the transmitter at least six feet from the floor to minimize the possibility of someone

breathing on the unit. The exhaled CO2 may cause an alarm.

65-2396RK CO2 Transmitter • 9

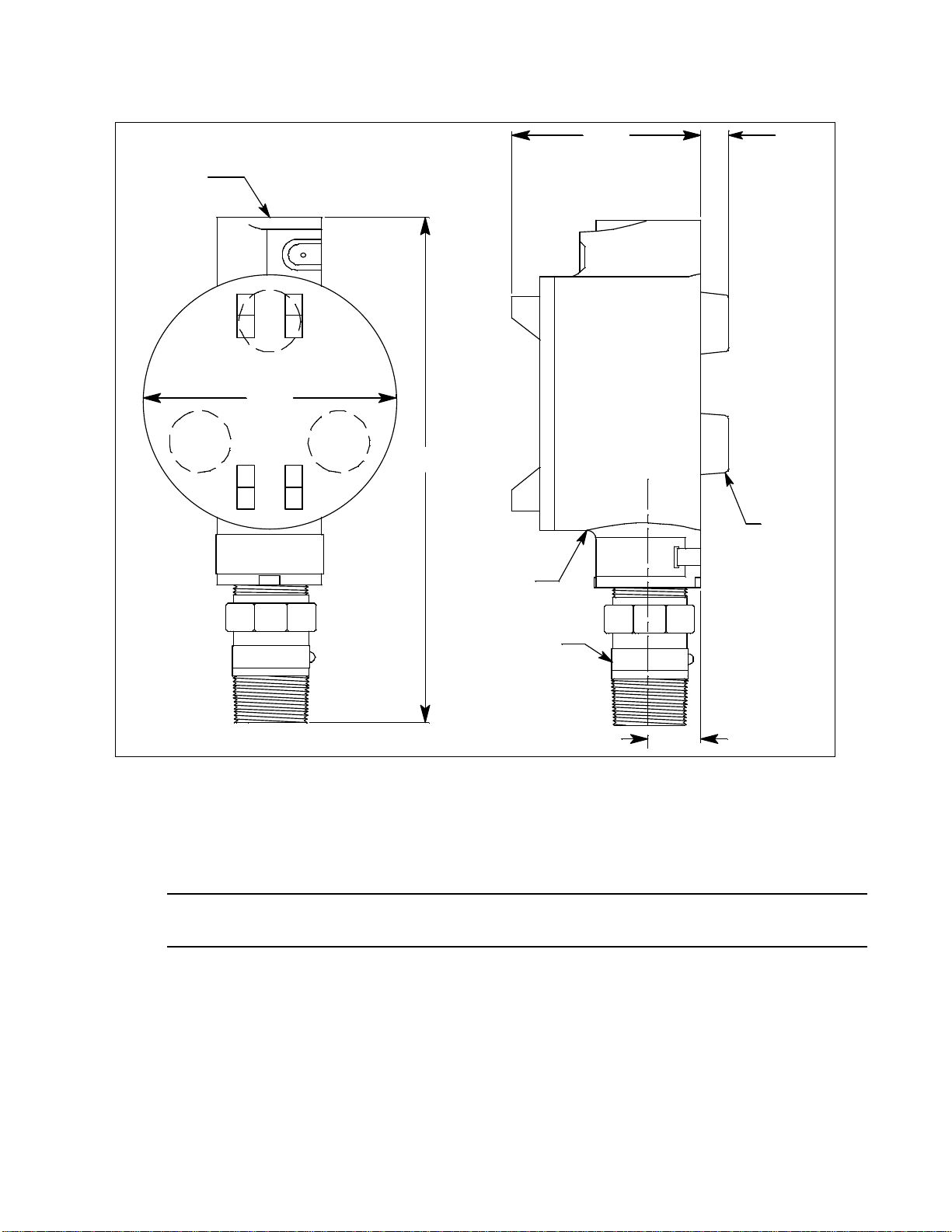

Figure 2: Mounting the CO2 Transmitter

2. At the monitoring site you select, hang or mount the junction box with the detector facing down

(see Figure 2).

Wiring the CO2 Transmitter to a Controller

WARNING: Always verify that the power to the controller is off before you make wiring

connections.

1. Turn off the controller.

2. Turn off or unplug power to the controller.

3. Remove the junction box cover.

2.70 .38

.75

J-Box

Rubber

Spacers,

3.65

3/4 NPT

Female

7.10 MAX

IR CO2 Detector

10 • 65-2396RK CO2 Transmitter

WARNING: To maintain the explosion proof classification of the CO2detector/junction box

combination, a conduit seal must be used within 18 inches of the junction box conduit

hub used for wiring to the controller. Adhere to your local electrical code when

installing the conduit seal.

4. The detector leads are factory wired. Verify that the detector leads are wired to the amplifier’s

detector terminal strip as shown in Figure 3.

5. To gain access to a plug-in terminal strip for wiring, pull it out of its socket by grasping the

terminal strip and pulling. The detector strip is keyed so that the controller and detector terminal

strips cannot be reversed inadvertently.

6. Guide a three-conductor, shielded cable, or three wires in conduit through the top conduit hub of

the junction box.

7. Pull out the controller terminal strip, and connect the three wires to the terminal strip as follows

(see Figure 3).

• Connect the positive wire to the PWR/SIG “+” terminal.

• Connect the signal wire to the PWR/SIG “S” terminal.

• Connect the negative wire to the PWR/SIG “-” terminal.

CAUTION: If shielded cable is used, leave the cable shield’s drain wire disconnected and insulated at

the transmitter. You will connect the opposite end of the cable’s drain wire to the

controller’s chassis (earth) ground.

8. Reinstall the controller terminal strip into its socket.

9. Secure the junction box cover to the junction box.

10. Route the cable or wires leading from the CO2 transmitter through one of the conduit hubs at the

controller housing. Use appropriate conduit fittings and construction technique for the

environmental rating of the controller. RKI controllers are typically rated NEMA 4X, are not

explosion-proof, and must be installed in a non-hazardous location.

CAUTION: Do not route power and transmitter wiring through the same controller conduit hub. The

power cable may disrupt the transmission of the transmitter signal to the controller.

11. Connect the wires to the applicable detector/transmitter terminal strip at the controller as shown in

Figure 3.

Indice

Altri manuali RKI Instruments Trasmettitore

RKI Instruments

RKI Instruments 65-2643RK0504SS Manuale utente

RKI Instruments

RKI Instruments 65-2335RK Manuale utente

RKI Instruments

RKI Instruments 65-2462RK Manuale utente

RKI Instruments

RKI Instruments 65-2646XL-05-04 Manuale utente

RKI Instruments

RKI Instruments 65-2394RK-CH4-4 Manuale utente

RKI Instruments

RKI Instruments 65-2649XLCH44SS Manuale utente

RKI Instruments

RKI Instruments 65-2396RKSS Series Manuale utente

RKI Instruments

RKI Instruments 65-2649XL-HC-04 Manuale utente

RKI Instruments

RKI Instruments 65-2435RK Manuale utente

RKI Instruments

RKI Instruments 65-2643XL0504SS Manuale utente

RKI Instruments

RKI Instruments 65-2340RK Manuale utente

RKI Instruments

RKI Instruments 65-2400RK Manuale utente

RKI Instruments

RKI Instruments 65-2645XL-05-04 Manuale utente

RKI Instruments

RKI Instruments 65-2619RK-CH4-4 Manuale utente

RKI Instruments

RKI Instruments 65-2646RK-05-04 Manuale utente

RKI Instruments

RKI Instruments 65-2445 05 Series Manuale utente

RKI Instruments

RKI Instruments 65-2443 Manuale utente

RKI Instruments

RKI Instruments 65-2658RK-CH4-4 Manuale utente

RKI Instruments

RKI Instruments 65-2641RK-04 Manuale utente

RKI Instruments

RKI Instruments 65-2335RK Manuale utente

RKI Instruments

RKI Instruments 65-2320RK Manuale utente

RKI Instruments

RKI Instruments 65-2330RK Manuale utente

RKI Instruments

RKI Instruments 65-2397-04 Series Manuale utente

RKI Instruments

RKI Instruments 65-2405RK-04 Manuale utente

Manuali Trasmettitore popolari di altre marche

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manuale del proprietario

Honeywell

Honeywell 5816WMBR Manuale utente

Kamstrup

Kamstrup READy MTU Istruzioni operative

Omega

Omega ZW Series Manuale utente

ABB

ABB Field 264H Guida

Alinco

Alinco DJ-V17T Manuale utente

Dejero

Dejero EnGo 3x Manuale utente

Rosemount

Rosemount 4600 Manuale utente

Speaka Professional

Speaka Professional 2342740 Manuale utente

trubomat

trubomat GAB 1000 Manuale utente

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manuale utente

Rondish

Rondish UT-11 Manuale utente

MG 10JRE Manuale utente

Burkert

Burkert 8177 Manuale utente

Firetide

Firetide HotPort 3203 Manuale

Tele Radio

Tele Radio T9-02 Manuale utente

Rotronic

Rotronic HygroFlex HF3 Series Manuale utente

Jamara

Jamara FCX6 Pro Tel Manuale utente
