M2A-XL Transmitter

Operator’s Manual

Part Number: 71-0652

Revision: P1

Released: 1/24/24

2• 65-2646XLS-SW M2A-XL Transmitter Operator’s Manual

WARNING

Read and understand this instruction manual before operating

instrument. Improper use of the gas monitor could result in bodily

harm or death.

Periodic calibration and maintenance of the gas monitor is essential

for proper operation and correct readings. Please calibrate and

maintain this instrument regularly! Frequency of calibration depends

upon the type of use you have and the sensor types. For most

applications, typical calibration frequencies are between 3 and 6

months but can be more often or less often based on your usage.

65-2646XLS-SW M2A-XL Transmitter Operator’s Manual • 3

Product Warranty

RKI Instruments, Inc. warrants gas alarm equipment sold by us to be free from defects in

materials, workmanship, and performance for a period of one year from the date of shipment from

RKI Instruments, Inc. Any parts found defective within that period will be repaired or replaced, at

our option, free of charge. Parts must be returned to RKI Instruments, Inc. for repair or

replacement. This warranty does not apply to those items which by their nature are subject to

deterioration or consumption in normal service, and which must be cleaned, repaired or replaced

on a routine basis. Examples of such items are:

• Absorbent cartridges

•Fuses

• Pump diaphragms and valves

•Batteries

• Filter elements

Warranty is voided by abuse including mechanical damage, alteration, rough handling, or repair

procedures not in accordance with instruction manual. This warranty indicates the full extend of

our liability, and we are not responsible for removal or replacement costs, local repair costs,

transportation costs, or contingent expenses incurred without our prior approval.

THIS WARRANTY IS EXPRESSLY IN LIEU OF ANY AND ALL OTHER WARRANTIES AND

REPRESENTATIONS, EXPRESSED OR IMPLIED, AND ALL OTHER OBLIGATIONS OR

LIABILITIES ON THE PART OF RKI INSTRUMENTS, INC. INCLUDING BUT NOT LIMITED TO,

THE WARRANTY OF MERCHANTABILITY OR FITNESS FOR APARTICULAR PURPOSE. INNO

EVENT SHALL RKI INSTRUMENTS, INC. BE LIABLE FOR INDIRECT, INCIDENTAL, OR

CONSEQUENTIAL LOSS OR DAMAGE OF ANY KIND CONNECTED WITH THE USE OF ITS

PRODUCTS OR FAILURE OF ITS PRODUCTS TO FUNCTION OR OPERATE PROPERLY.

This warranty covers instruments and parts sold to users only by authorized distributors, dealers

and representatives as appointed by RKI Instruments, Inc.

We do not assume indemnification for any accident or damage caused by the operation of this gas

monitor and our warranty is limited to the replacement of parts or our complete goods. Warranty

covers parts and labor performed at RKI Instruments, Inc. only, and does not cover field labor or

shipment of parts back to RKI.

4• 65-2646XLS-SW M2A-XL Transmitter Operator’s Manual

Table of Contents

Chapter 1: Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

About the M2A Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

About this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Chapter 2: Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

External Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Internal Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Chapter 3: Installation & Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Mounting the M2A Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Wiring the M2A Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Start Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Chapter 4: Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Normal Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Information Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

4 - 20 mA Signal Output Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Alarm Indications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Chapter 5: Configuration Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Viewing & Changing M2A Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Chapter 6: Gas Type Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Selecting the Gas Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

65-2646XLS-SW M2A-XL Transmitter Operator’s Manual • 5

Chapter 7: Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Preventive Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Calibration Frequency. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Replacing Components of the CO Detector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Chapter 8: RS-485 Modbus Output. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Wiring the M2A in a Modbus System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Using the M2A in a 4-wire Modbus System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Modbus Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Supported Modbus Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Chapter 9: Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

Appendix A: Control Button Quick Reference Guide . . . . . . . . . . . . . . . . . . . .56

Appendix B: PLC and DCS Device Wiring. . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Appendix C: Function Code 16 Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

6• Chapter 1: Introduction 65-2646XLS-SW M2A-XL Transmitter

Chapter 1: Introduction

Overview

This chapter briefly describes the 65-2646XLS-SW M2A-XL Transmitter. This chapter also

describes the 65-2646XLS-SW M2A-XL Transmitter Operator’s Manual (this document). Table 1

at the end of this chapter lists the specifications for the M2A.

About the M2A Transmitter

The M2A transmitter is a fixed mount, continuous-monitoring detector head. All user adjustable

parameters may be accessed using push button switches. In addition, calibration may be

performed non-intrusively by use of a magnetic wand accessory which activates magnetic

switches through a window at the front face of the detector head.

The M2A displays the current gas reading on an OLED display which is visible through the

window in the cover (front face) and provides a 4 - 20 mA signal which indicates the target gas

reading for use by a gas monitoring controller, recording device, or programmable controller. The

M2A also provides an RS-485 Modbus output. Three sets of relay contacts, two controlled by the

gas alarms and one by the fail alarm, rated at 115 VAC 5 amps are available for controlling

devices such as lights or horns or for controlling higher rated relays.

Four operating modes allow you to display and change setup and calibration settings and change

the gas type. They are Calibration Mode, Configuration Mode, Gas Type Mode, and Modbus

Mode.

About this Manual

The M2A Transmitter Operator’s Manual uses the following conventions for notes, cautions, and

warnings.

NOTE: Describes additional or critical information.

CAUTION: Describes potential damage to equipment.

WARNING: Describes potential danger that can result in injury or death.

65-2646XLS-SW M2A-XL Transmitter Chapter 1: Introduction • 7

Specifications

Table 1 lists specifications for the M2A.

WARNING: When using the M2A, you must follow the instructions and warnings in this

manual to assure proper and safe operation of the M2A and to minimize the risk

of personal injury. Be sure to maintain and periodically calibrate the M2A as

described in this manual.

Table 1: M2A Specifications

Target Gas/Detection Range Carbon monoxide: 0 - 300 ppm, 1 ppm increments

Alarm Settings (Alarm 1/Alarm 2)* 25 ppm/50 ppm

Construction (housing) Explosion-proof junction box, NEMA 4X

Area Classification Explosion-proof for Class I, Groups B, C, and D

Sampling Method Diffusion

Input Power 10 - 30 VDC

Controls • Three push button switches

• Three magnetic switches for non-intrusive calibration

Weight 5.5 lbs.

Signal Output

4 to 20 mA with impedance maximums listed below:

• -12 VDC input: 500 ohms impedance max

• -24 VDC input: 1000 ohms impedance max

RS-485 Modbus

Operating Temperature -40°C to +50°C

Accuracy ± 5% of reading or ± 5 ppm CO (whichever is greater)

* These are the RKI factory settings. You can change the alarm settings in Configuration Mode. See

“Viewing & Changing M2A Parameters” on page 27.

8• Chapter 2: Description 65-2646XLS-SW M2A-XL Transmitter

Chapter 2: Description

Overview

This chapter describes the components of the M2A transmitter. The transmitter is a 4 - 20 mA

type detector head. It consists of the CO detector, terminal PCB, and the junction box.

External Description

This section describes the junction box and all external components of the M2A transmitter.

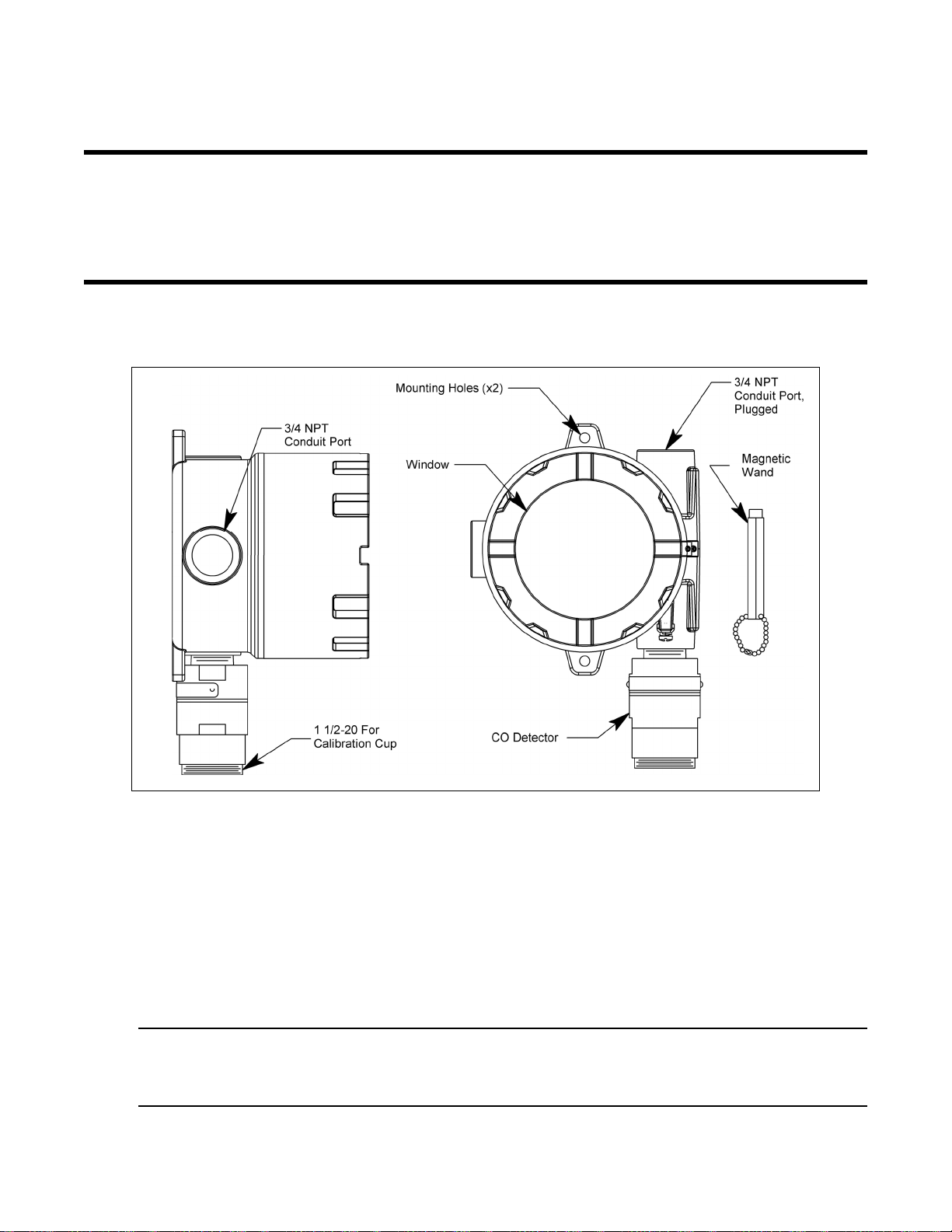

Figure 1: M2A External Components

Junction Box

The M2A’s cast aluminum junction box is dust and weather resistant. The junction box also

protects the M2A and all connections made to it. Use the three 3/4 NPT conduit hubs to mount the

detector to the junction box (factory installed in the bottom port) and connect wiring from an

external device, typically an RKI controller. The top hub is shipped with a factory installed and

sealed conduit plug to avoid leaks into the junction box. If necessary, the conduit plug can be

removed and the top hub can be used for wiring.

WARNING: If the top conduit hub is used for wiring, be sure to seal the threads to ensure

water does not enter the junction box. See “Wiring the M2A Transmitter” on

page 17 for complete wiring instructions.

4NP

Conduit Port

lugged

2-20 Fo

alibration

4NP

onduit Port

indo

ounting Holes

(

)

Detector

agneti

65-2646XLS-SW M2A-XL Transmitter Chapter 2: Description • 9

Use the junction box’s two mounting holes to mount the M2A to a vertical surface at the

monitoring site. The window in the cover on the front of the junction box allows you to view the

OLED display and use the magnetic wand to actuate the magnetic control switches so you can

perform non-intrusive calibration. Removing the cover allows you to access the interior of the

junction box.

CO Detector

The CO detector consists of the detector housing body, detector housing cap, cap gasket, charcoal

filter with rubber boot, and the plug-in sensor.

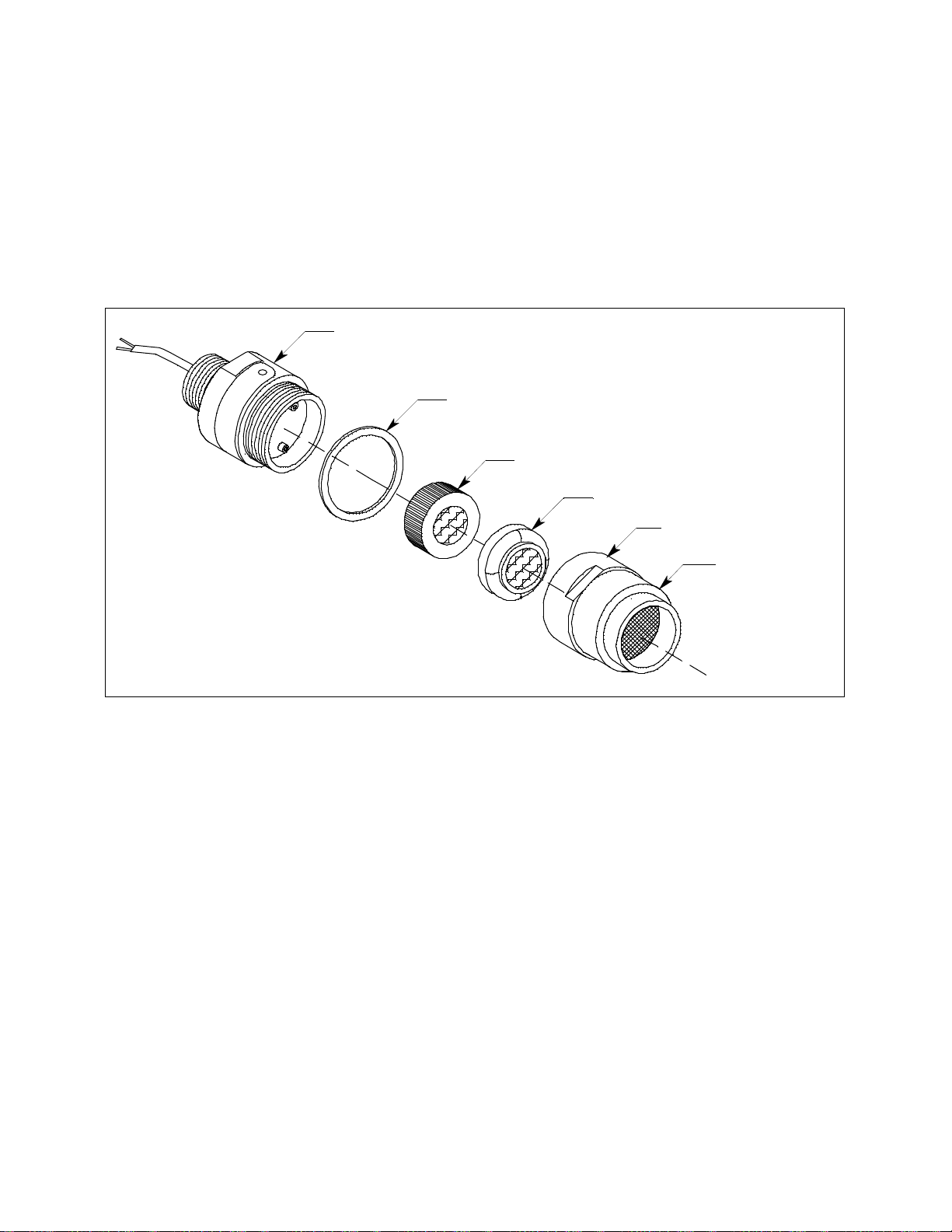

Figure 2: CO Detector Component Location

Detector Housing Body

The detector housing body protects the electronic components within the housing. Use the

mounting threads at the top of the housing to screw the CO detector into the 3/4 NPT hub on the

bottom of the detector junction box. Two wires extend from the top of the detector housing body.

Use these wires to connect the CO detector to the terminal strip. One of the wires is red and one of

the wires is black.

The housing includes a four-socket pattern. This socket pattern accepts the sensor’s four pins to

secure the sensor within the detector housing. A pre-amplifier, located between the sockets and

two interconnect wires, conditions the sensor’s signal before the signal reaches the controller.

Plug-In CO Sensor

Rubber Boot With

Charcoal Filter

Detector Housing Cap

Detector Housing Body

Cap Gasket

Flame Arrestor

Guard

10 • Chapter 2: Description 65-2646XLS-SW M2A-XL Transmitter

Housing Cap & Cap Gasket

The housing cap screws onto the detector housing. It retains the plug-in sensor and protects it

from damage. The housing cap also includes a flame arrestor which contains any sparks that may

occur within the detector and a flame arrestor guard which protects the flame arrestor from

damage. Unscrew the detector cap to access the plug-in sensor for maintenance or replacement. A

cap gasket seals the interface between the housing and cap. A flame arrestor guard is permanently

bonded to the cap.

Charcoal Filter and Rubber Boot

The disc-shaped charcoal filter is secured to the face of the CO sensor with a rubber boot. The

charcoal filter prevents interference gases (hydrogen sulfide [H2S] and certain hydrocarbons)

from producing false CO readings.

Plug-In CO Sensor

The sensor is secured within the detector assembly by the housing cap. Through a series of

chemical and electrical reactions, the sensor produces an electrical output that corresponds to the

detection range of the transmitter.

Magnetic Wand

The magnetic wand is a short plastic rod with a magnet in one end. It is used to actuate the

magnetic control switches on the control PCB while the junction box cover is still installed so that

non-intrusive calibration can be performed.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali RKI Instruments Trasmettitore

RKI Instruments

RKI Instruments 65-2641RK-04 Manuale utente

RKI Instruments

RKI Instruments 65-2660RK-XX-04 Manuale utente

RKI Instruments

RKI Instruments 65-2395RK-CH4-4 Manuale utente

RKI Instruments

RKI Instruments M2A Manuale utente

RKI Instruments

RKI Instruments 65-2646RK-05-04 Manuale utente

RKI Instruments

RKI Instruments 65-2646RK0504SS Manuale utente

RKI Instruments

RKI Instruments 65-2451RK Manuale utente

RKI Instruments

RKI Instruments 65-2330RK Manuale utente

RKI Instruments

RKI Instruments 65-2641RK0504SS Manuale utente

RKI Instruments

RKI Instruments 65-2645XL0504SS Manuale utente

RKI Instruments

RKI Instruments 65-2641RK-05-04 Manuale utente

RKI Instruments

RKI Instruments 65-2330RK Manuale utente

RKI Instruments

RKI Instruments 65-2444-500 Manuale utente

RKI Instruments

RKI Instruments 65-2400RK Manuale utente

RKI Instruments

RKI Instruments 65-2445 05 Series Manuale utente

RKI Instruments

RKI Instruments 65-2320RK Manuale utente

RKI Instruments

RKI Instruments M2 Manuale utente

RKI Instruments

RKI Instruments 65-2646XL0504SS Manuale utente

RKI Instruments

RKI Instruments 65-2660RK-01-04 Manuale utente

RKI Instruments

RKI Instruments 65-2445 Series Manuale utente

RKI Instruments

RKI Instruments 65-2340RKSS Manuale utente

RKI Instruments

RKI Instruments 65-2661RK-03-04 Manuale utente

RKI Instruments

RKI Instruments 65-2340RK Manuale utente

RKI Instruments

RKI Instruments 65-2649RK-HC-04 Manuale utente

Manuali Trasmettitore popolari di altre marche

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manuale del proprietario

Honeywell

Honeywell 5816WMBR Manuale utente

Kamstrup

Kamstrup READy MTU Istruzioni operative

Omega

Omega ZW Series Manuale utente

ABB

ABB Field 264H Guida

Alinco

Alinco DJ-V17T Manuale utente

Dejero

Dejero EnGo 3x Manuale utente

Rosemount

Rosemount 4600 Manuale utente

Speaka Professional

Speaka Professional 2342740 Manuale utente

trubomat

trubomat GAB 1000 Manuale utente

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manuale utente

Rondish

Rondish UT-11 Manuale utente

MG 10JRE Manuale utente

Burkert

Burkert 8177 Manuale utente

Firetide

Firetide HotPort 3203 Manuale

Tele Radio

Tele Radio T9-02 Manuale utente

Rotronic

Rotronic HygroFlex HF3 Series Manuale utente

Jamara

Jamara FCX6 Pro Tel Manuale utente
