Road Angel HALO VISION Manuale utente
QUICK START GUIDE
RoadAngelGroup.com
0330 320 3030
+44 (0)330 320 3030
Need Help?
For a better in-app experience please disconnect
your mobile data while using the app.
HALO
VISION
HALO
VISION
Halo Vision
Instructions
Trim Tool
Mounting Bands
What’s In The Box
USB Power Adapter
Front to Rear CablePower Cable
Rear View Camera
Buckle TF Card Slot Power Port
Rear Camera Port
MicrophonePower Button
At a glance
Lens
Reset
1. Attach the Dash Cam onto the original rearview mirror
using the rubber buckles provided.
2. Once the Dash Cam is firmly fitted, adjust the camera
angle to the required position.
3. Connect the Dash Cam to the vehicles 12V power socket
and feed the cable as shown using the Trim Tool provided.
Getting Started 1
Buckles
4. Connect the rear camera link cable to the Dash Cam as
shown using the Trim Tool provided.
5. Turn on the engine after installation to ensure the Dash
Cam powers up and starts recording.
After power up, tap the screen to access the main menu.
Getting Started 2
Album Page
Preview Area
Settings
Microphone
Brightness
Preview
Swipe right to access playback video,
emergency files & screenshots.
Tap to move the current preview area.
Camera settings area.
Open or close the microphone recordings.
Slide up/down to adjust the screen
brightness.
Swipe left to preview the front camera.
Wire the red wire to a reverse light as a trigger feed for a
reverse gear parking aid activation.
When you put your car into Reverse gear the rear of your
vehicle will appear on the Anti-glare LCD Display.
Optional Reverse
Parking Aid
This should be used as a parking aid only, you should
not rely upon video, pictures or guidelines for parking.
Scan the QR Code to download
the Road Angel App.
Download the Road Angel App from the Google Playstore
or Apple Appstore using the above QR code. Alternatively
navigate to your preferred Appstore and search for Road
Angel Halo.
App Install

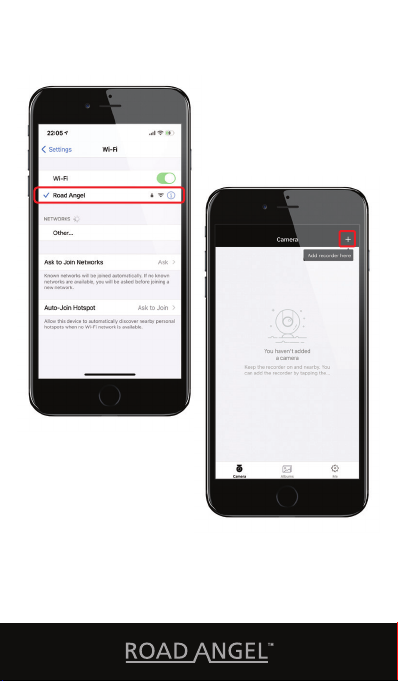

Launch the App. Press the ‘+’ icon in the top right corner.
Then follow the instructions that will be shown in the App
on how to connect the device via Wi-Fi. Once connected
successfully you may return to the Halo App.
• The default Wi-Fi password is set to ‘1234567890’.
Wi-Fi Setup
Live Preview
To preview the Dash Cam’s
currently recording footage,
select the Camera tab at
the bottom of the app and
press the Play icon on the
screen. This will display a
real time view of the live
Dash Cam footage.
Here you will see 3 icons
that allow you to download,
take a picture or enter full
screen mode. The download
tab lets you download an
image taken or download
footage, this will take you to
the download window ready
to create a clip.

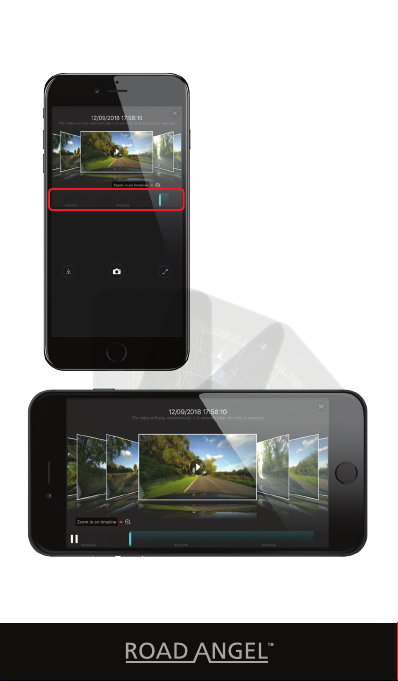

To playback footage, slide
the scroll bar which will
show you a thumbnail of
the moment about to be
viewed along with the date
and time.
You can rotate your phone to the side to enhance the
experience. This also works for Live Preview, Photo Viewing,
Video Viewing and Downloading Footage.
Video Playback
