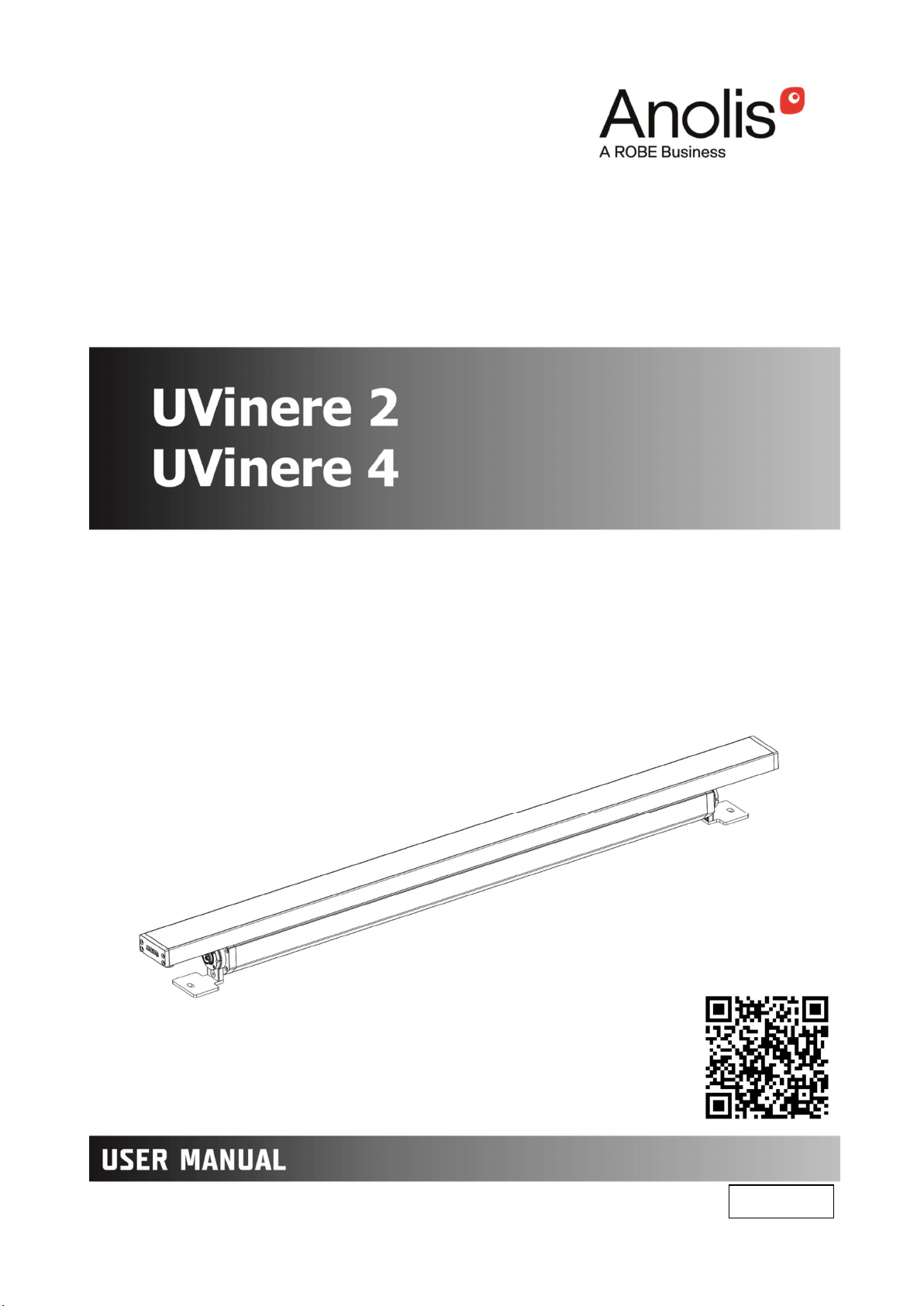

Robe Anolis UVinere 2 Manuale utente

Version 1.

QR code for user manual

UVinere

Table of contents

1. Safety instructions ...................................................................................................................................................... 3

2. Fixture exterior view ................................................................................................................................................... 5

3. Installation .................................................................................................................................................................. 5

3.1 Mounting the fixture ............................................................................................................................................ 5

3.2 Connection to mains ............................................................................................................................................. 6

3.3 The Booster box .................................................................................................................................................... 9

3.4 The Booster box installation ............................................................................................................................... 10

3.5 Jumper cable assembling .................................................................................................................................... 12

4. Software update ....................................................................................................................................................... 15

5. Technical specifications ............................................................................................................................................ 16

6. Cleaning and maintenance ....................................................................................................................................... 20

6.1 Disposing of the product .................................................................................................................................... 20

7. ChangeLog ................................................................................................................................................................ 21

UVinere

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE POWERING OR INSTALLING YOUR UVinere !

Save it for future reference.

This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure

safe operation, it is absolutely necessary for the user to follow the safety instructions and warnings written in this

manual.

The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual

or any unauthorized modification to the device.

Unauthorized modification will void warranty.

1. Safety instructions

THIS LUMINAIRE IS DESIGNED WITH UV LEDS AND MUST BE INSTALLED IN COMPLIANCE WITH

COMPETENT TECHNICAL DIRECTIONS TO PREVENT THE USER’S EYE AND BARE SKIN FROM EXPOSURE

TO HARMFUL UV RADIATION.

CE LUMINAIRE EST CONCU POUR ETRE UTILISE AVEC DES LED UV ET DOIT ETRE INSTALLE EN STRICTE

CONFORMITE AVEC LES INSTRUCTIONS AFIN D’EVITER QUE LES YEUX OU LA PEAU L’UTILISATEUR NE

SOIENT EXPOSES AUX EFFETS NEFASTES DES RAYONS UV.

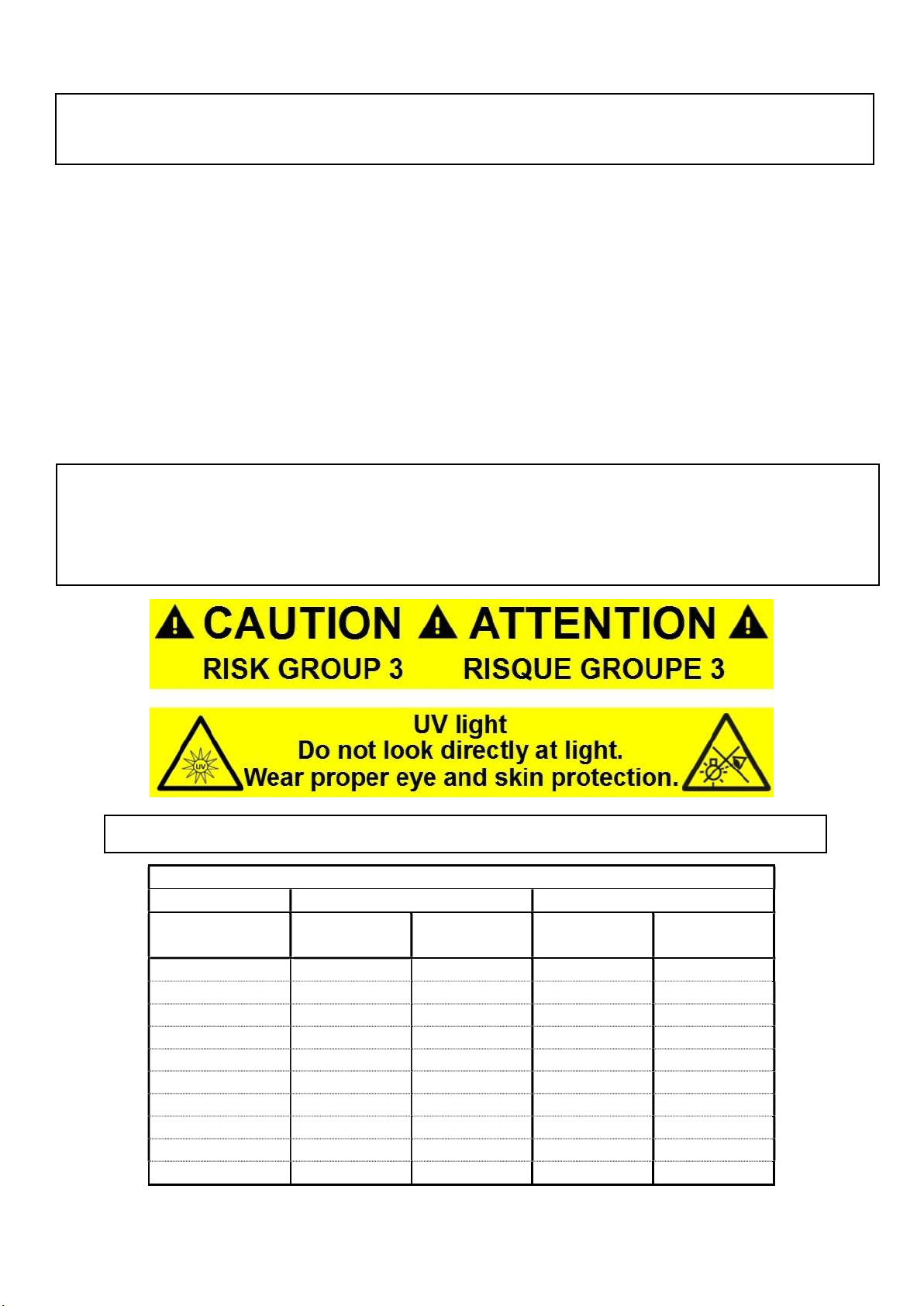

CAUTION:

Radiation exposure may cause blindness and cancer of skin!

Maximum exposure time (minutes)

Non optic

al version

24°

Distance from

UV source

UVinere 2 UVinere 4 UVinere 2 UVinere 4

1.5m (4.9ft) 37.0 18.5 - -

2m (6.6ft) 65.7 32.9 - -

3m (9.8ft) 147.9 74.0 27.5 -

4m (13ft) 263.0 131.5 48.9 24.5

5m (16.4ft) 410.9 205.5 76.5 38.2

6m (19.7ft) 591.7 295.9 110.1 55.0

7m (23ft) 805.4 402.7 149.8 74.9

8m (26ft) 1051.9 526.0 195.7 97.9

9m (29.5ft) 1331.4 665.7 247.7 123.9

10m (32.8ft) 1643.7 821.8 305.8 152.9

UVinere

DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT!

This fixture should be operated only from the type of power source indicated on the marking label. If you are not

sure of the type of power supplied, consult your authorized distributor or local power company.

Always disconnect the fixture from AC power before cleaning, servicing or installing.

Make sure the data/power cable is not damaged by sharp edges. Check the fixture and the power cord from time

to time.

Do not install the unit near an open flame.

During operation the housing becomes hot.

Refer servicing to qualified service personnel.

This fixture falls under protection class I. Therefore this fixture has to be connected to a mains socket outlet with

a protective earthing connection.

The fixture was designed for outdoor use. This fixture must not be used for underwater installation.

When choosing the installation spot, please make sure that the fixture is not exposed to extreme heat or dust.

Avoid using the unit in locations subject to possible impacts.

The fixture body never must be covered with cloth or other materials when the fixture is under operation.

Only operate the fixture after having checked that the housing is firmly closed and all screws are tightly fastened.

The fixture becomes hot during operation. Allow the fixture to cool approximately 30 minutes prior to servicing or

maintenance.

Operate the fixture only after having familiarized yourself with its functions. Do not permit operation by persons

not qualified to operate the fixture. Most damages are the result of unprofessional operation!

Immunity of the equipment is designed for electromagnetic environments E1, E2, E3 according to the standard

EN55103-2 ed.2 Electromagnetic compatibility. Product family standard for audio, video, audiovisual and

entertainment lighting control apparatus for professional use. Part 2: Immunity.

The product (covers and cables) must not be exposed to a high frequency electromagnetic field higher than 3V/m.

The installation company should check levels of possible interferences above the tested levels E1,E2,E3 given by

this standard (e.g. transmitters in surrounding area) before installing the equipment.

Emission of the equipment complies with the standard EN55032 Electromagnetic compatibility of multimedia

equipment – Emission Requirements according to class B.

Please consider that unauthorized modifications on the fixture are forbidden due to safety reasons!

Please use the original packaging if the fixture is to be transported.

If this device will be operated in any way different to the one described in this manual, the product may suffer

damages and the warranty becomes void. Furthermore, any other operation may lead to dangers like short-circuit,

burns, electric shock etc.

UVinere

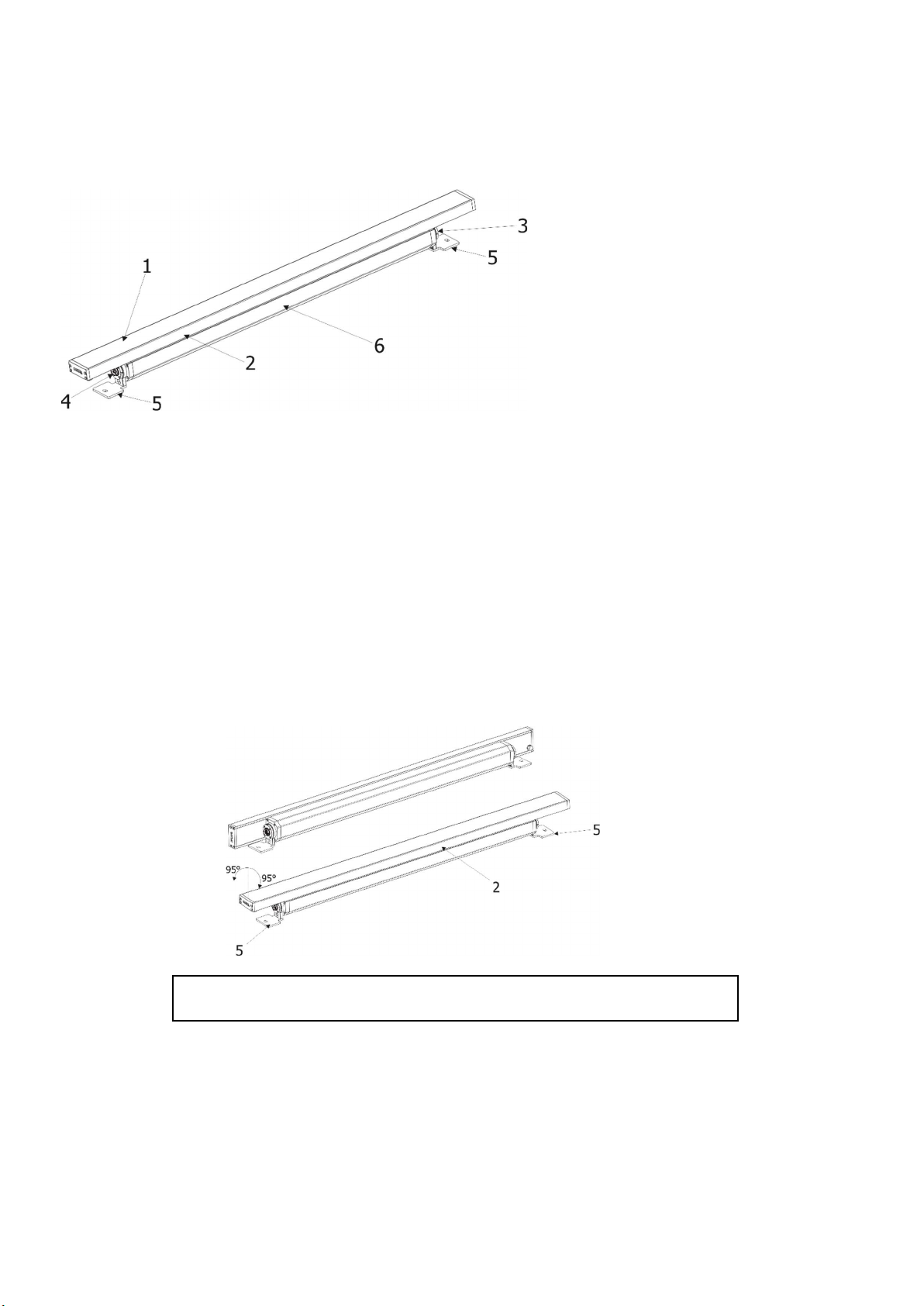

2. Fixture exterior view

3. Installation

3.1 Mounting the fixture

The UVinere can be arranged in any orientation on a flat, non-flammable surface by means of two mounting

brackets (5), the LED module (2) can be tilted (+95°/-95°) to get access to mounting brackets (5).

Ensure that the structure to which you are attaching

the unit is secure.

1. Transparent glass cover

2. LED module

3. Output connector

4. Input connector

5. Mounting brackets

6. Aluminium base

UVinere

3.2 Connection to mains

The unit must be installed by a qualified electrician in accordance with all national

and local electrical and construction codes and regulations.

This device falls under class one and must be grounded!

The UVinere is equipped with auto-switching power supply that automatically adjusts to any 50/60Hz AC power

source from 120-277 Volts.

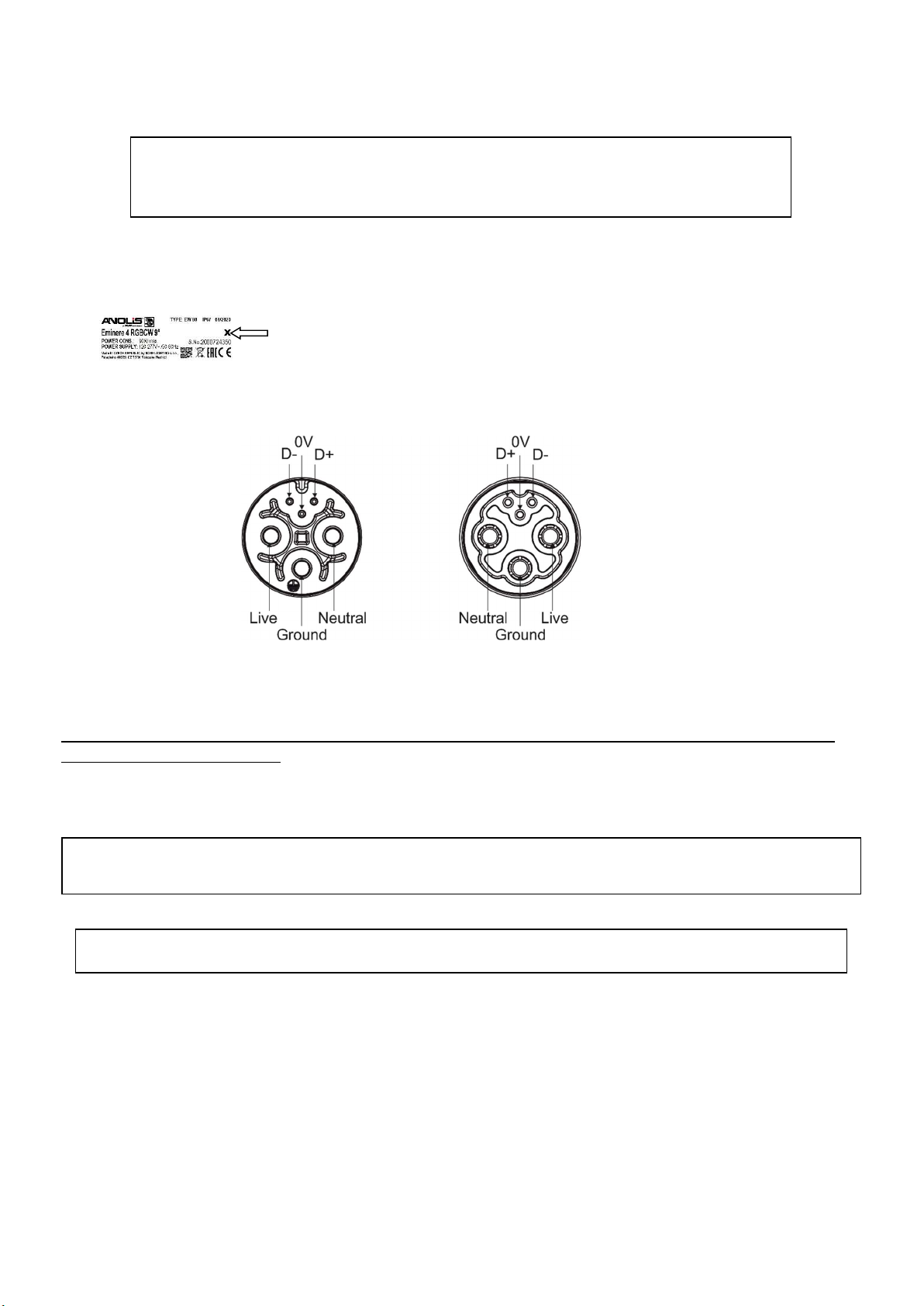

The following wiring of the input/output connectors applies to the fixtures marked X on their labels only. Older

versions of the UVineres have swapped D- and D+ and do not have mark X on their labels.

E.g.

Input - panel connector Output - panel connector

(front view) (front view)

Fixture´s Amphenol connectors are dust and water protected according to IP 67 by mating with related Amphenol

connectors.

They cannot stay disconnected outdoor.

The output panel connector at last fixture in the UVinere chain has to always be covered with the water-tight

cap to keep declared IP rating.

The UVinere modules should be connected to the E-box which allows power supply of the UVinere modules and

their control.

Do not connect (disconnect) Emineres UV to the E-box or Booster box and each other when they are under

voltage!

When you change any setting of the E-box, disconnect the E-box from power and connect it to power again

to activate changes which you have made.

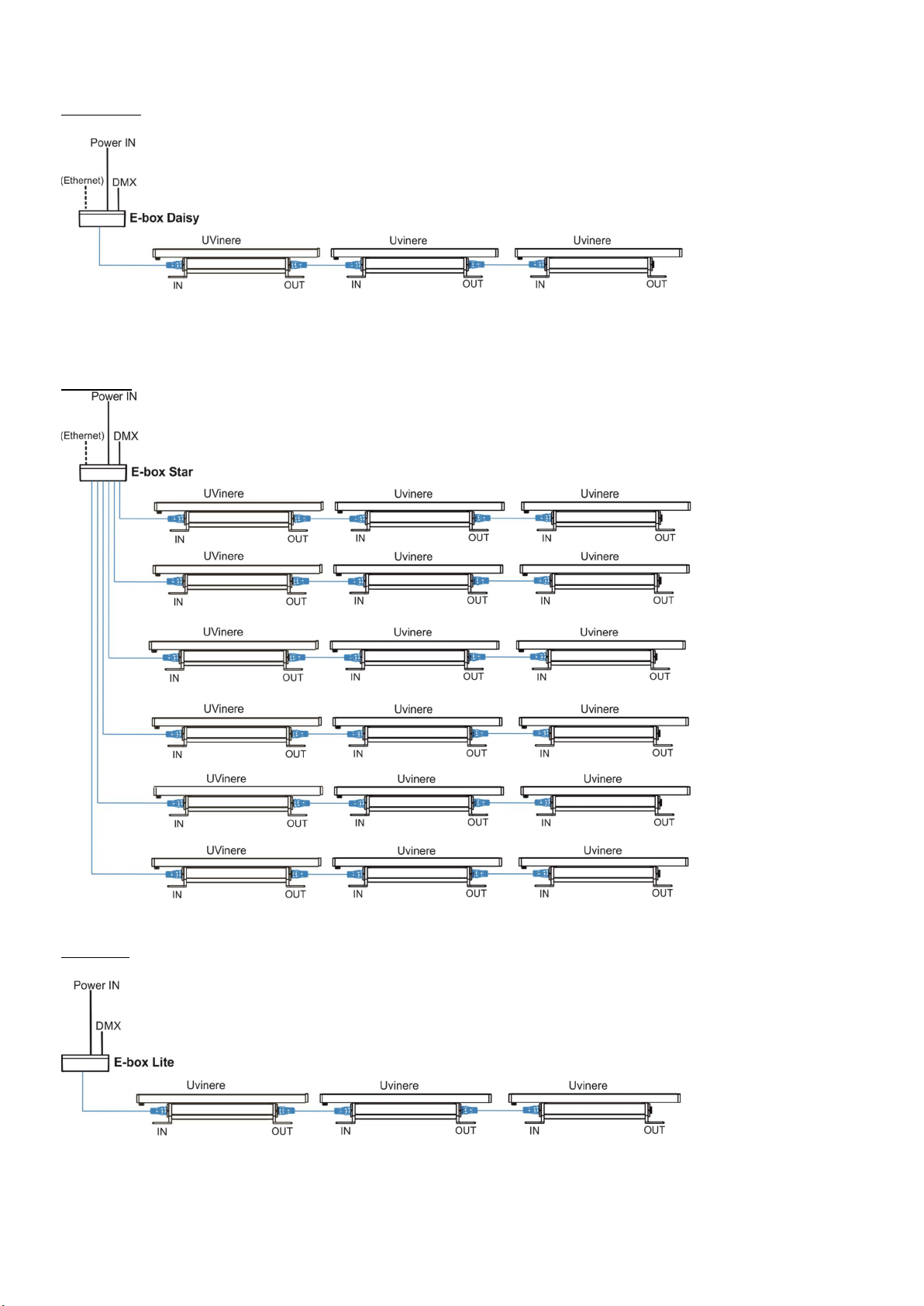

Examples of connection for various versions of the E-box.

Please read the E-box user manual for more information about its setting and connection to UVinere modules.

Needed cables are stated in the chapter “Technical information“.

UVinere

E-box Daisy

E-box Star

E-box Lite

Number of connected Emineres UV to one E-box output depends on a cable length, power voltage,

type of UVinere and E-box and operation mode.

UVinere

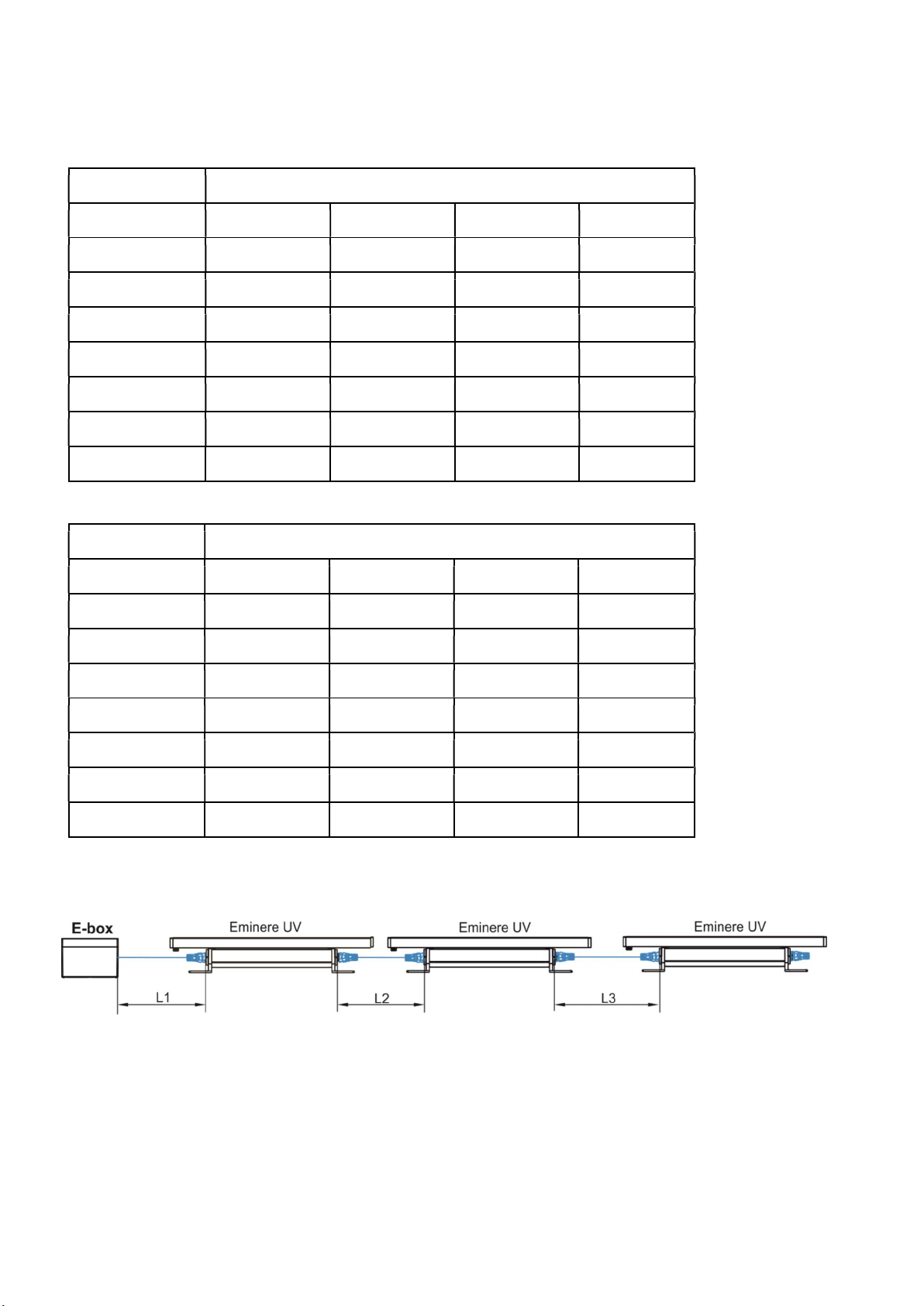

The tables below state max. theoretical number of Emineres UV connected to the one LED output of the E-box

without Booster boxes. The following tables apply for the Standard mode of E-boxes.

UVINERE

Voltage

Cable length *

120V

190V

230V

277V

10 m

20 m

30 m

50 m

70 m

100 m

200 m

UVINERE

Voltage

Cable length *

120V

190V

230V

277V

10 m

20 m

30 m

50 m

70 m

100 m

200 m

* Cable length is a total cable length between E-box and last connected UVinere.

Example: Total cable length=L1+L2+L3

Notice for the E-box Star: The tables above state max. total number of Emineres UV connected to 6 LED outputs

of the E-box Star (or max. number of Emineres UV connected to one output if the rest of outputs is not

connected).The E-box Star has only one power input!

UVinere

3.3 The Booster box

To compensate a voltage drop in large installation, the Booster boxes have to be connected in the chain of

Emineres UV at every LED output of the E-box.

The following tables give numbers of Emineres UV after which the Booster box has to be installed in the chain of

Emineres UV (at one LED output of the E-box). The following tables apply for the Standard mode of E-boxes.

UVINERE 2 Max. number of Emineres UV 2= 94

Voltage

Cable

length

120V 190V 230V 277V

10 m 41,82 64 78 -

20 m 41,82 64 78 -

30 m 28,56,84 64 78 -

50 m 17,34,51,68,85 43,86 63 91

70 m 12,24,36,48,60,72,84 31,62,93 45,90 65

100 m 9,18,27,36,45,54,60,72,81,

21,42,63,84 31,62,93 46,92

200 m 4,8,12,16,20,24,28,32,36

40,44,48,52,56,60,64,68,72

76,80,84,88,92

11,22,33,44,55,

66,77,88

16,32,48,64,80 23,46,69,92

UVINERE 4 Max. number of Emineres UV 4= 48

Voltage

Cable

length

120V 190V 230V 277V

10 m 21,42 33 40 -

20 m 21,42 33 40 -

30 m 15,30,45 33 40 -

50 m 9,18,27,36,45 22,44 32 47

70 m 6,12,18,24,30,36,42 16,32 23,46 38

100 m 4,8,12,16,20,24,28,32,36,

40,44

11,22,33,44 16,32 23,46

200 m 2,4,6,8,10,12,14,16,18,20,

22.24.26,28,30,32,34,36,38

40,42,44,46

5,10,15,20,25,30

35,40,45

8,16,24,32,40 12,24,36

UVinere

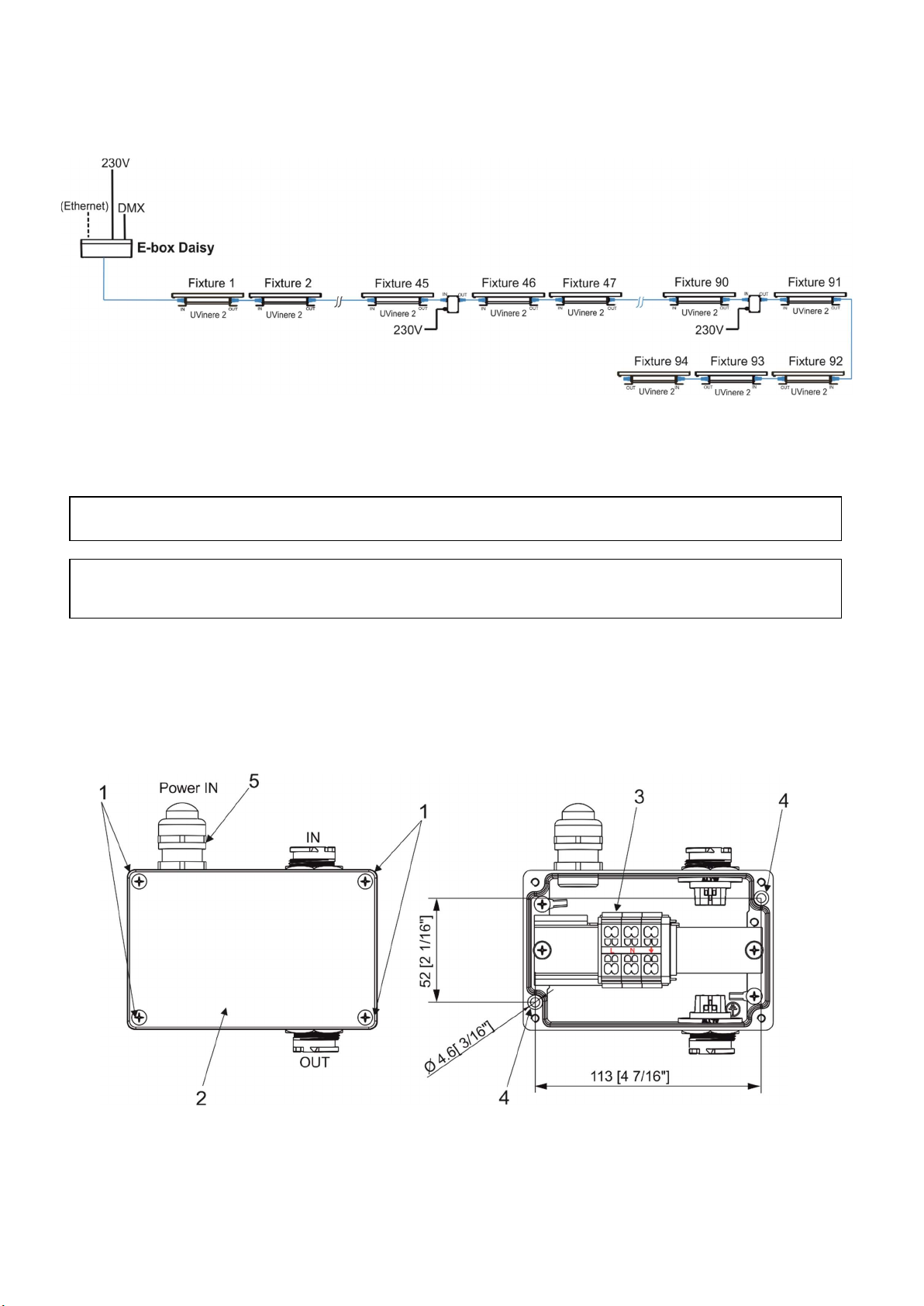

Example: E-box Daisy, Power supply= 230V, Cable length=70m, fixture=UVinere 2

The Booster box has to be connected after every 45th UVinere 2 (fixture 45 and fixture 90) from 94 fixtures.

3.4 The Booster box installation

ALWAYS DISCONNECT THE UVINERES FROM MAINS BEFORE

CONNECTING/DISCONNECTING THE BOOSTER BOX.

The Booster box falls under protection class I. Therefore, every Booster box

has to be connected to a mains socket outlet with a protective earthing connection.

1.Unscrew the four screws (1) from the cover (2) on the Booster box to get access to the terminal block (3) and

two mounting holes of diameter of 4.6 mm (4).

2. Screw the Booster box on a non-flammable flat surface and connect cables.

The Cable gland M20x1.5 for Power IN (5) is intended for a cable of a diameter of 7-13mm.

Remove the end cap from the cable gland before passing the cable.
