Roca DAMA SENSO COMPACT Manuale utente

ROCA

SPECIFICATIONS

Recommended Use Domestic, hotel and commercial

Rim Configuration Box Rim

Bowl Configuration P Trap (Converts to S using plastic S-bend

provided)

Set Out P Trap: 180mm, S Trap: 95mm-165mm

Pan Fixing Screwed to the floor using brackets (supplied)

and bedded with sealant

Cistern Fixing Top-fix cistern bolted directly to the bowl

Seat Matching top-fix, soft-close seat supplied with

suite

Water Inlet Bottom Inlet, right hand side (reversible)

Inlet Valve Recommended max. working pressure 1000kPa

Weight Pan: 26.7kg, Cistern: 14.4kg

To see the complete ROCA range go to

www.reece.com.au/bathrooms

385

Min 95-Max 165

180

355

385

Min 95-Max 165

355

600

140

405

760

165

180

385

Min 95-Max 165

180

355

385

Min 95-Max 165

355

600

140

405

760

CLEANING RECOMMENDATIONS

We recommend the use of soapy water or approved cleaners.

This product should not be cleaned with abrasive materials.

Damage caused by any improper treatment is not covered by the product warranty. Refer to Warranty Conditions.

DAMA SENSO COMPACT

BACK TO WALL TOILET SUITE BOTTOM INLET

Dimensions are nominal measurements only

page 1 of 5

Disclaimer: Products in this specification manual must by regulation be installed by licensed and registered

trade people. The manufacturer/distributor reserves the right to vary specifications or delete models from

their range without prior notification.Dimensions are nominal measurements only. Dimensions and set-outs

listed are correct at time of publication however the manufacturer/distributor takes no responsibility for

printing errors.

Tech Page Version 3

WMKA 02321

AS 1172.1

The more

stars the more

water efficient

WATER R ATING

www.waterrating.gov.au

In accordance with AS/NZS 6400

Licence No. 0137

Bathroom Products Australia

4.5 L per full flush / 3 L per half flush

3.5litres

average flush

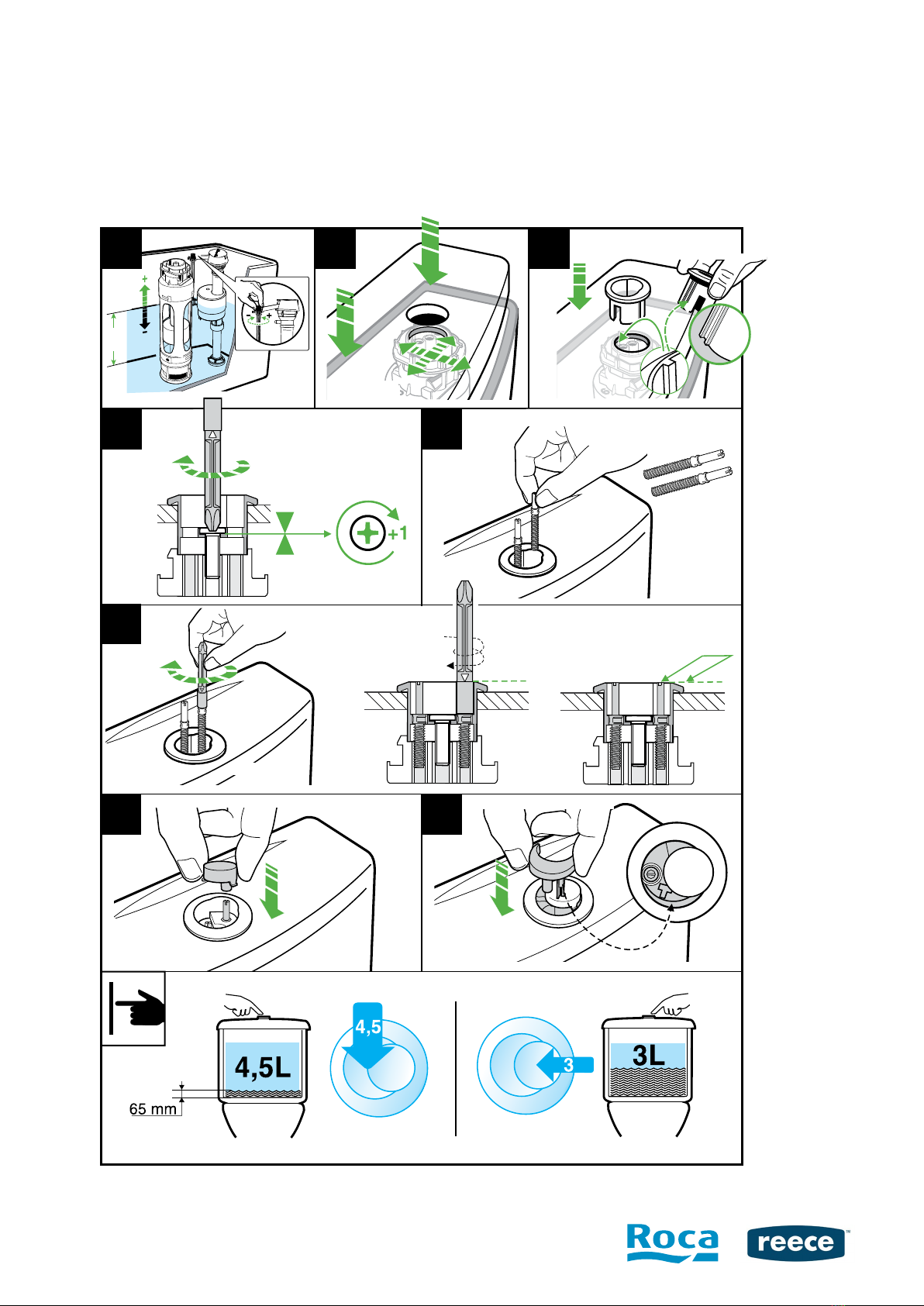

INSTAllATION

10 11

170

200

ROCA

dAmA SENSO COmPACT BACk TO WAll TOIlET SUITE

BOTTOm INlET

page 2 of 5

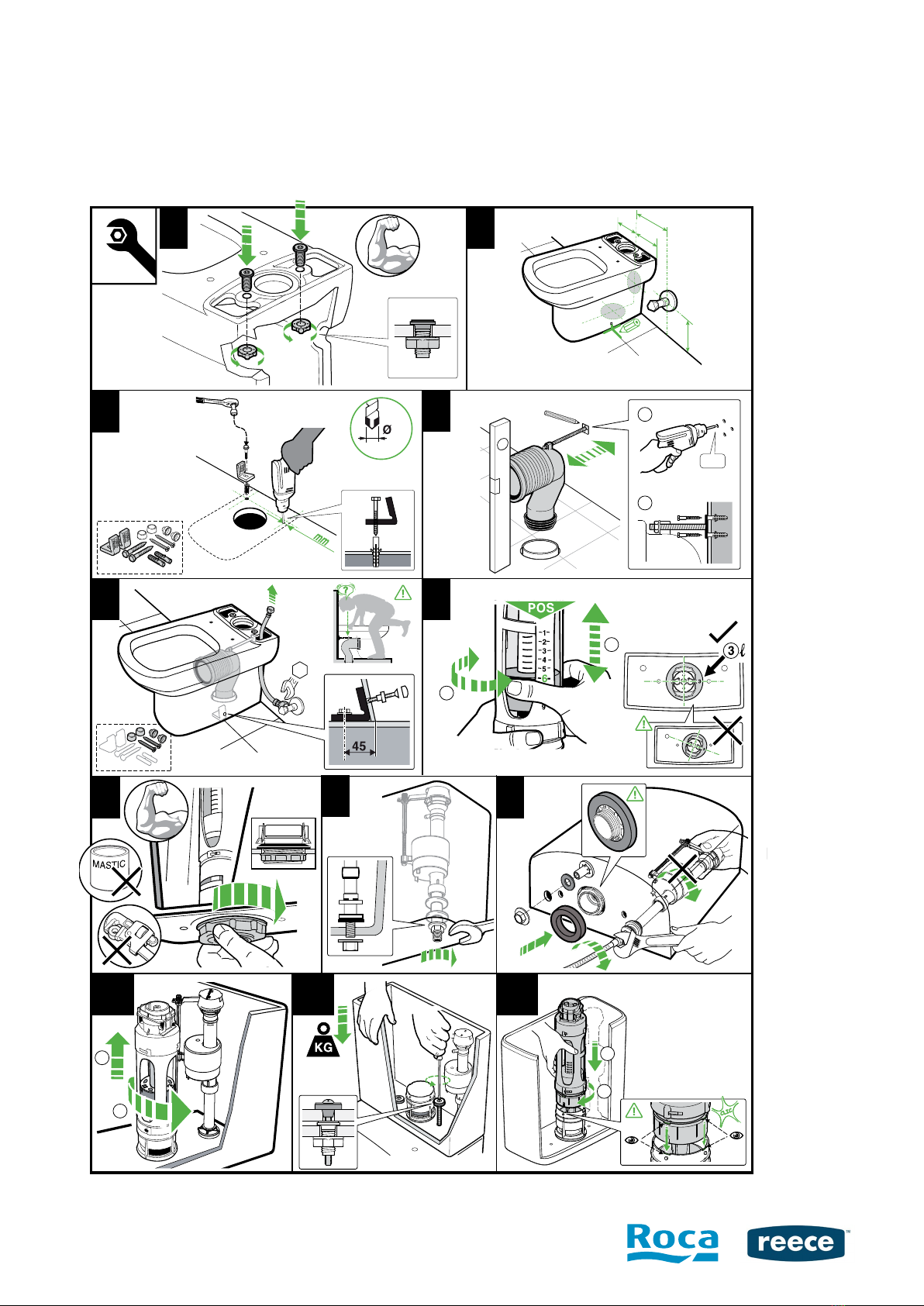

INSTAllATION

195

13 14

16 17

19 20

ROCA

dAmA SENSO COmPACT BACk TO WAll TOIlET SUITE

BOTTOm INlET

page 3 of 5

A82274350Re

AH0007100R

productsupport@roca.net

soporteproducto@roca.net

Roca Sanitario, S.A.

Avda. Diagonal, 513

08029 Barcelona

SPAIN

www.roca.com

ROCA

dAmA SENSO COmPACT BACk TO WAll TOIlET SUITE

BOTTOm INlET

page 4 of 5

Plumbers, please ensure a copy of the installation

instructions is left with the end user for future reference

mAINTENANCE

PARTS

ROCA

dAmA SENSO COmPACT BACk TO WAll TOIlET SUITE

BOTTOm INlET

page 5 of 5

170

200

AV0007000R

Min: 95

Max: 165

165

1 - AH0001800R

2 - A822062000

3 - AH0000100R

4 - AV0028800R

5 - AV0009400R

A34251W..R

180

dAmA SENSO COmPACT

A34151W..R

1 - AH0001800R

2 - A822096400

3 - AH0000100R

4 - AV0028800R

5 - AV0009400R

Push Button Assembly

Inlet Valve

Outlet Valve

Cistern Top Fixing Kit

Pan Fixing KIt

1 - AH0001800R

2 - A822062000

3 - AH0000100R

4 - AV0028800R

5 - AV0009400R

Push Button Assembly

Inlet Valve

Outlet Valve

Cistern Top Fixing Kit

Pan Fixing KIt

Back Inlet Parts

Bottom Inlet Parts
