Rocket Fish RF-700WPS2 Manuale utente

Rocketfish 700 Watt Power Supply

Bloc d’alimentation de 700 W

Rocketfish

Fuente de alimentación Rocketfish

de 700 W

RF-700WPS2

User Guide Guide de l’utilisateur Guía del Usuario

Rocketfish RF-700WPS2

Rocketfish 700 Watt Power

Supply

Contents

Introduction ...................................................................... 2

Safety information .......................................................... 3

Features............................................................................... 3

Installing the power supply ......................................... 4

Troubleshooting .............................................................. 6

Specifications.................................................................... 7

Legal notices ...................................................................13

One-year limited warranty.........................................15

Français.................................................. 17

Español .................................................. 33

Introduction

Congratulations on your purchase of the RF-700WPS2 Rocketfish PC

power supply. This power supply has an efficiency rating of over 80%

and is a low-noise power supply with Green Model Power.

3RF-700WPS2

Safety information

The power supply meets safety UL EN60950 and FCC.

Do not open the cover on the power supply case. Dangerous

voltages are present inside the cover. Your warranty is void if the

cover is removed.

Features

• 700W peak 60S (550W continuous)

• Intel ATX12V 2.2 / EPS12V2.91

• Seven (7) output voltages

• Silent fan speed control

• Built in DC remote ON/OFF, PG/PF TTL signal

•NVIDIASLI™-readycertified

• Total protection: Over Voltage/Low Voltage/Short Circuit/Over

Load/Over Current Protection

•Cablemanagement

• Power efficiency 80% (minimum) at full load

Package contents

• RF-700W PS2 power supply with connector cables

• UL AC power cable

•4screws

•UserGuide

Installing the power supply

To install the power supply:

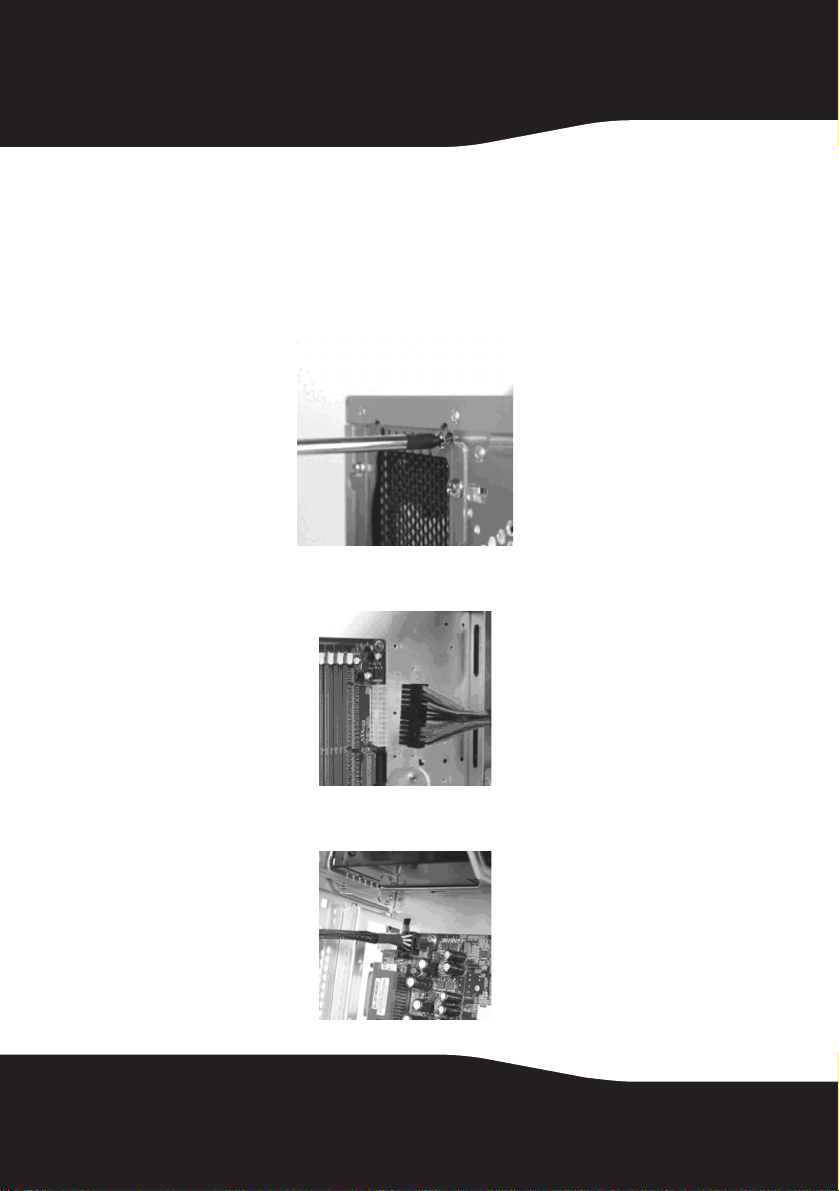

1Open your computer case.

2Position the power supply into your case, then secure it with the screws

provided.

3Connect the 20/24-pin main power connector to the 24-pin connector

on your motherboard.

4Connect the 4/8-pin +12V power connector to the 4/8-pin connector on

your motherboard.

5RF-700WPS2

5Connect all of the following that apply to your computer:

• The 4-pin peripheral device power connector to any peripheral

device.

• The floppy drive power connector to the floppy drive.

• The Serial ATA connector to any hard drives that have a Serial ATA

interface.

• The 6-pin +12V power connector(s) to the PCI-E graphic card(s).

6Close your computer case.

7Connect the power cord to the power supply.

8Switch the I/O switch to I.

9Turn on your computer.

Troubleshooting

If the power supply fails to function correctly, check the following:

• Make sure that the power cord is plugged into a powered electrical

outlet.

• Make sure that the power cord is plugged into the power supply.

• Make sure that the I/O switch is in the Iposition.

• Make sure that all power connectors are connected to the motherboard

and devices correctly.

7RF-700WPS2

Specifications

Input Voltage: 100V-240V

Active PFC: Power Factor: >0.9

Efficiency: 80%(min.) at full load (typical)

Input Current: 115Vac / 8.0A; 230Vac / 4.0A max.

Inrush Current: 110A max. When AC input 230Vac at 77°F (25°C) cold

start

Input Frequency: 47Hz~63 Hz.

Leakage Current: 3.5mA max.

Operating temperature range: 32°F to 122°F (0°C to 50°C)

Shipping/storage temperature: -4°F to 158°F (- 20°Cto 70°C)

Relative humidity: 5% to 95%

Harmonic: IEC-1000-3-2 CLASS D

MTBF 100Khrs minimum at 77°F (25°C)

AC input & DC output voltages

AC input: 100V /240Vac 47~63HZ

DC output:

DC Spec +12V1 +12V2 +12V3 +5V +3.3V -12V +5VSB

AMP 18.0A 18.0A 16.0A 28.0A 30.0A 0.8A 3.0A

Max Power 492W 140W 9.6W 15W

Cable management

Wire configuration

20+4PIN Main

Power

EPS12V

8(4+4)PIN

5.25” HDD Serial ATA 3.25” FDD PCI-E 6P

117612

For Serial ATA Connector For PCI-E

Connector

For CPU Connector

9RF-700WPS2

Main power connector

Signal Color Pin Pin Color Signal

+3.3 V Orange 1 13 Orange +3.3 V

+3.3 V Orange 2 14 Blue -12 V

COM Black 3 15 Black COM

+5 V Red 4 16 Green PS_ON#

COM Black 5 17 Black COM

+5 V Red 6 18 Black COM

COM Black 7 19 Black COM

PWR ON Gray 8 20 N/C N/C

+5 Vsb Purple 9 21 Red +5 V

+12 DC Yellow 10 22 Red +5 V

+12 DC Yellow 11 23 Red +5 V

+3.3 V Orange 12 24 Black COM

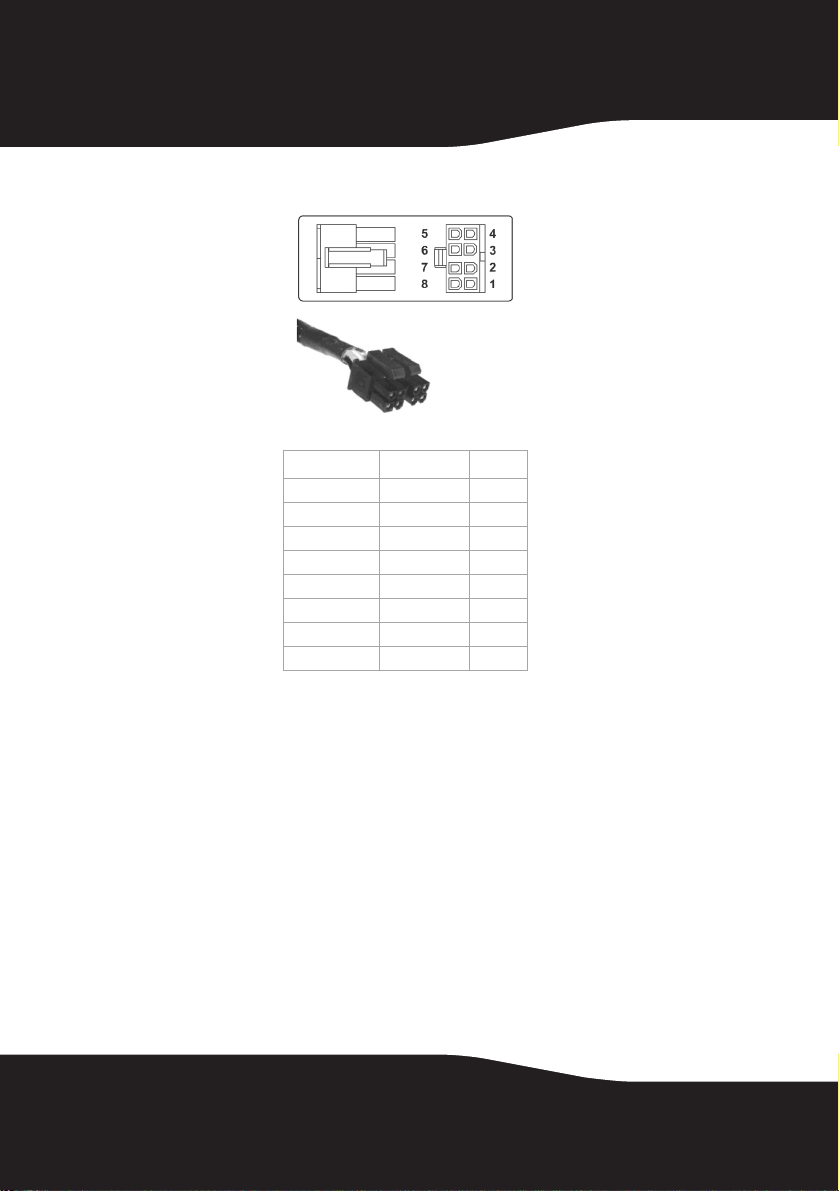

12V connector (8 pin (4+4) pin)

Color Signal Pin

Black COM 1

Black COM 2

Black COM 3

Black COM 4

Yellow/Black +12 VDC 5

Yellow/Black +12 VDC 6

Yellow +12 VDC 7

Yellow +12 VDC 8
