Rocket Fish RF-WHTIB-A Manuale utente

UNIVERSAL WIRELESS REAR

SPEAKER KIT

USER GUIDE

Before using your new product, please read these instructions to prevent any damage.

RF-WHTIB-A

RF-WHTIB_16-0683_MAN_V4_ENG.fm Page 1 Tuesday, September 6, 2016 8:50 AM

Rocketfish RF-WHTIB-A

Universal Wireless Rear Speaker

Kit

Contents

Introduction............................................................................................. 2

Features..................................................................................................... 5

Setting up your wireless rear speaker kit ...................................... 8

Using your wireless rear speaker kit..............................................14

Troubleshooting...................................................................................16

Specifications ........................................................................................17

Legal notices..........................................................................................18

One-Year Limited Warranty..............................................................21

Introduction

Congratulations on your purchase of a Rocketfish RF-WHTIB-A

Universal Wireless Rear Speaker Kit. Your Wireless Rear Speaker

Kit represents the state of the art in wireless speaker kit design,

and is designed for reliable and trouble-free performance.

This manual explains how to correctly install, operate, and get

the best performance from your wireless rear speaker kit. Read

this user guide carefully before installing your system, then

keep it near your system for quick reference.

Your Universal Wireless Rear Speaker Kit uses a proprietary 2.4

GHz wireless communication system to transmit low-latency,

high fidelity audio to a stereo amplifier, providing a superior

level of audio quality and resistance to interference.

RF-WHTIB_16-0683_MAN_V4_ENG.fm Page 2 Tuesday, September 6, 2016 8:50 AM

RF-WHTIB-A

The system accepts speaker-level inputs, and is compatible

with a complete range of multichannel home theater receiver

systems or home theater receivers.

Safety information

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,

DO NOT EXPOSE THIS APPLIANCE TO RAIN OR

MOISTURE.

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

CAUTION:

TO REDUCE THE RISK OF

ELECTRIC

SHOCK, DO NOT REMOVE

COVER

(OR BACK). NO USER-SERVICEABLE

PARTS INSIDE. REFER SERVICING

QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an

equilateral triangle is intended to alert the user to the

presence of uninsulated dangerous voltage within the

product’s enclosure that may be of sufficient magnitude

to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in the

literature accompanying the appliance.

RF-WHTIB_16-0683_MAN_V4_ENG.fm Page 3 Tuesday, September 6, 2016 8:50 AM

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance

with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat

registers, stoves, or other apparatus (including amplifiers) that

produce heat.

9) Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades with one

wider than the other. A grounding type plug has two blades

and a third grounding prong. The wide blade or the third prong

are provided for your safety. If the provided plug does not fit

into your outlet, consult an electrician for replacement of the

obsolete outlet.

10) Protect the power cord from being walked on or pinched

particularly at plugs, convenience receptacles, and the point

where they exit from the apparatus.

11) Only use attachments/accessories specified by the

manufacturer.

12) Unplug this apparatus during lightning storms or when

unused for long periods of time.

13) Refer all servicing to qualified service personnel. Servicing is

required when the apparatus has been damaged in any way,

such as power-supply cord or plug is damaged, liquid has been

spilled or objects have fallen into the apparatus, the apparatus

has been exposed to rain or moisture, does not operate

normally, or has been dropped.

RF-WHTIB_16-0683_MAN_V4_ENG.fm Page 4 Tuesday, September 6, 2016 8:50 AM

RF-WHTIB-A

Additional safety information

• The apparatus shall not be exposed to dripping or splashing

and no objects filled with liquids, such as vases, shall be

placed on the apparatus.

• The AC power plug or an appliance coupler is used as the

disconnect device. This disconnect device shall remain

readily operable.

• Read the Rating Labels on the bottom of the sender and

receiver for power input and other safety information.

Features

• 2.4 GHz wireless sender and wireless receiver

• Transmits high quality audio over a radio frequency

communication link

• Compact size

•Hiddenantennas

• Low power consumption

Package contents

Examine the contents of the box for your Universal Wireless

Rear Speaker Kit. The box should contain:

• Wireless sender

• Wireless receiver

• Power adapter (for the wireless sender)

• Power cord (for the wireless receiver)

• 2-foot speaker wires (2)

•User Guide

•QuickSetupGuide

RF-WHTIB_16-0683_MAN_V4_ENG.fm Page 5 Tuesday, September 6, 2016 8:50 AM

Wireless sender

#Feature

1 Power indicator LED

2Left speaker input terminals

3 Right speaker input terminals

4DC IN jack

5Powerswitch

6CONNECT button

7 Hanging holes for wall mounting the wireless sender.

142 35

Front view Back view

Bottom view

RF-WHTIB_16-0683_MAN_V4_ENG.fm Page 6 Tuesday, September 6, 2016 8:50 AM

RF-WHTIB-A

Wireless receiver

#Feature

1 Power indicator LED

2Volume control knob

3 Left speaker output terminals

4Right speaker output terminals

5ACINjack

6Power switch

7 CONNECT button

8Hanging holes for wall mounting the wireless receiver.

53 46

100-240V~50/60Hz

Front view Back view

Bottom view

RF-WHTIB_16-0683_MAN_V4_ENG.fm Page 7 Tuesday, September 6, 2016 8:50 AM

Setting up your wireless rear speaker kit

The following diagram shows a typical home theater setup

using the Wireless Rear Speaker Kit. The following sections

provide further details on how to setup and operate this

product.

Left speaker Right speaker

Center speaker

Home theater receiver

Wireless

Sender

Wireless

Receiver

Right rear

Left rear

RF-WHTIB_16-0683_MAN_V4_ENG.fm Page 8 Tuesday, September 6, 2016 8:50 AM

RF-WHTIB-A

Connecting the wireless sender

Connecting the sender to the home theater

receiver

Caution: Turn off your home theater receiver while connecting

the units.

To connect the home theater receiver to the wireless

sender:

1Using the included 2-foot speaker cords, connect the right

rear speaker terminals of your home theater receiver to the

right speaker terminals of the wireless sender by connecting

the red wire to the red (+) terminals, and the black wire to

the black (-) terminals.

Wireless sender back panel

Home theater receiver back panel

Press and hold Release

RF-WHTIB_16-0683_MAN_V4_ENG.fm Page 9 Tuesday, September 6, 2016 8:50 AM

2Connect the left rear speaker terminals of the home theater

receiver the same way.

Notes:

Make sure that the exposed tips of the speaker wire do not

touch each other, and that they are fully inserted into the

terminals.

Speaker wire colors may vary with different speaker systems.

Make sure you connect your home theater receiver using the

rear speaker terminals only.

Connecting the wireless sender to the power

adapter

The power adapter can be connected to a power outlet or the

SWITCHED AC outlet of your home theater receiver. If you

connect it to the SWITCHED AC outlet of your home theater

receiver, each time you turn your home theater receiver on or

off, the wireless sender is also turned on or off.

Caution: To avoid risk of fire, and to prevent damage, only use

the power adapter supplied with your wireless rear speaker kit.

Wireless sender

back panel

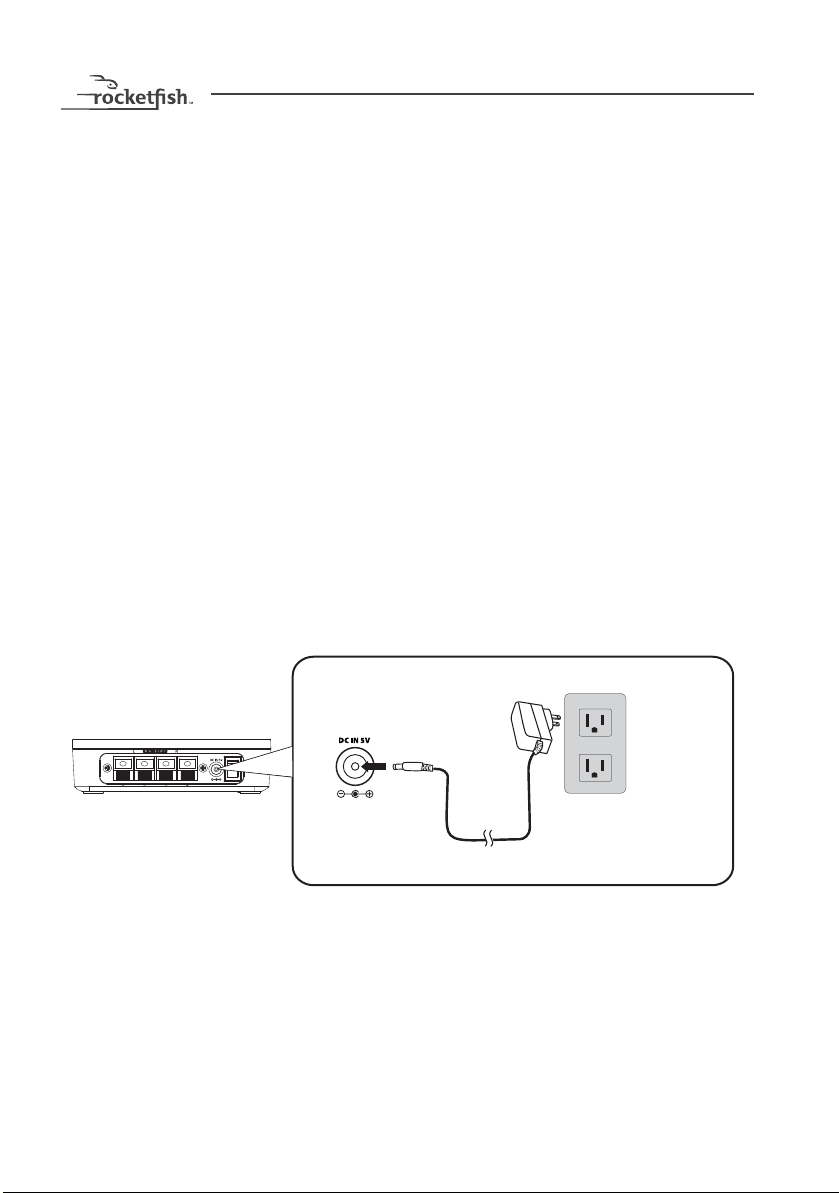

Connecting the power adapter

RF-WHTIB_16-0683_MAN_V4_ENG.fm Page 10 Tuesday, September 6, 2016 8:50 AM
