INSTRUCTION MANUAL
STAND FAN R-854 40CM
READ AND SAVE THESE INSTRUCTIONS
Attention: Pictures in the IM are for reference only.
CAUTION
Read Rules for Safe Operation and Instructions Carefully.
WARNING
1.
If the supply cord is damaged, it must be replaced by manufacturer or its service
agent or a similarly qualified person in order to avoid a hazard.
2.
To protect against the risk of electrical shock, do not immerse the unit, cord or
plug in water or other liquid.
3.
This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not be made by
children without supervision.
4.
When the appliance is not in use and before cleaning, unplug the appliance from
the outlet.
5.
Keep electrical appliances out of reach from Children or infirm persons. Do not let
them use the appliances without supervision.
6.
When the fan was assembled, the rotor blade guard shall not be taken off
anymore
-
Prior cleaning unplug the fan.
-
The rotor guard shall not be dissembled/opened to clean the rotor blades.
-
Wipe the fan enclosure and rotor blade guard with a slightly damp cloth.
RULES FOR SAFE OPERATION
1. Never insert fingers, pencils, or any other object through the grille when fan is
running.
2. Disconnect fan when moving from one location to another.
3. Be sure fan is on a stable surface when operating to avoid overturning.
4. DO NOT use fan in window, rain may create electrical hazard.
5. Household use only.

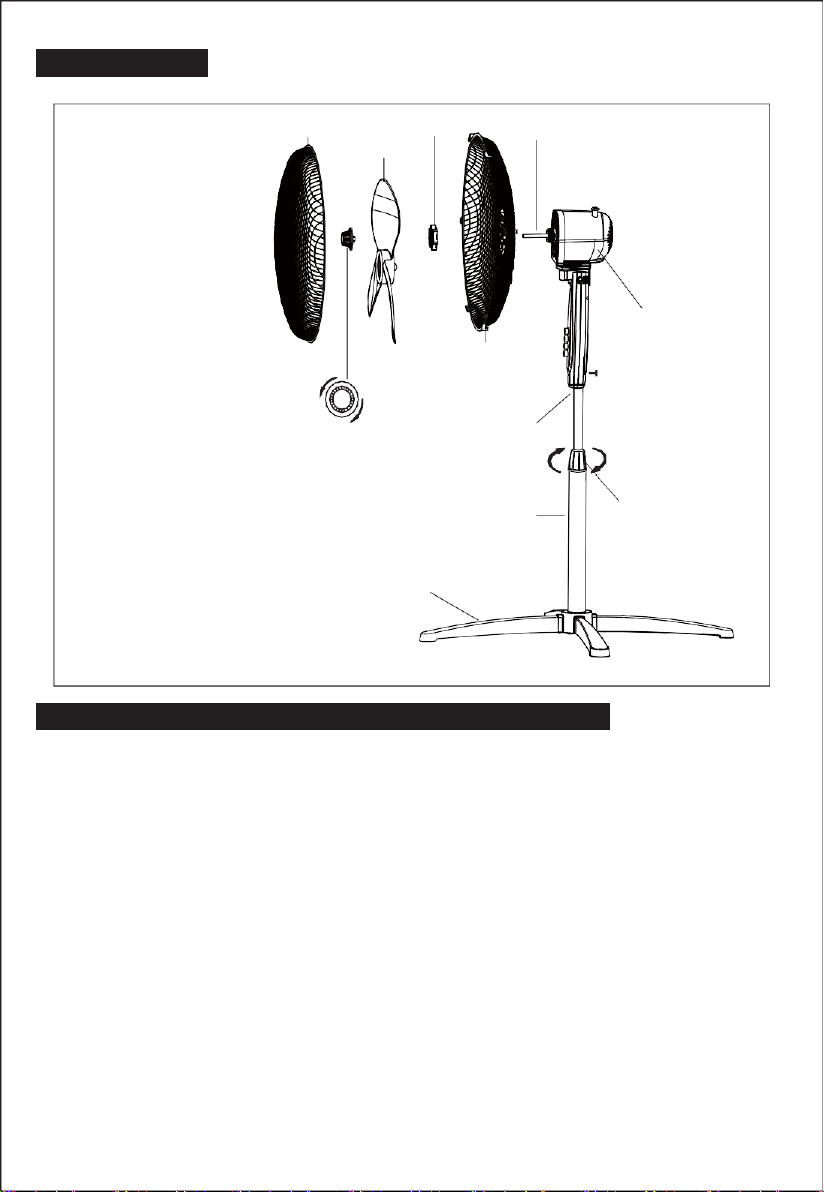

Front grill
Plastic nut
Fan blade
Motor shaft
Motor housing
Rear grill
Tighten
Loosen
Spinner
Internal Pole
Extension Pole
Height
adjustment
ring
Stand
PARTS NAME

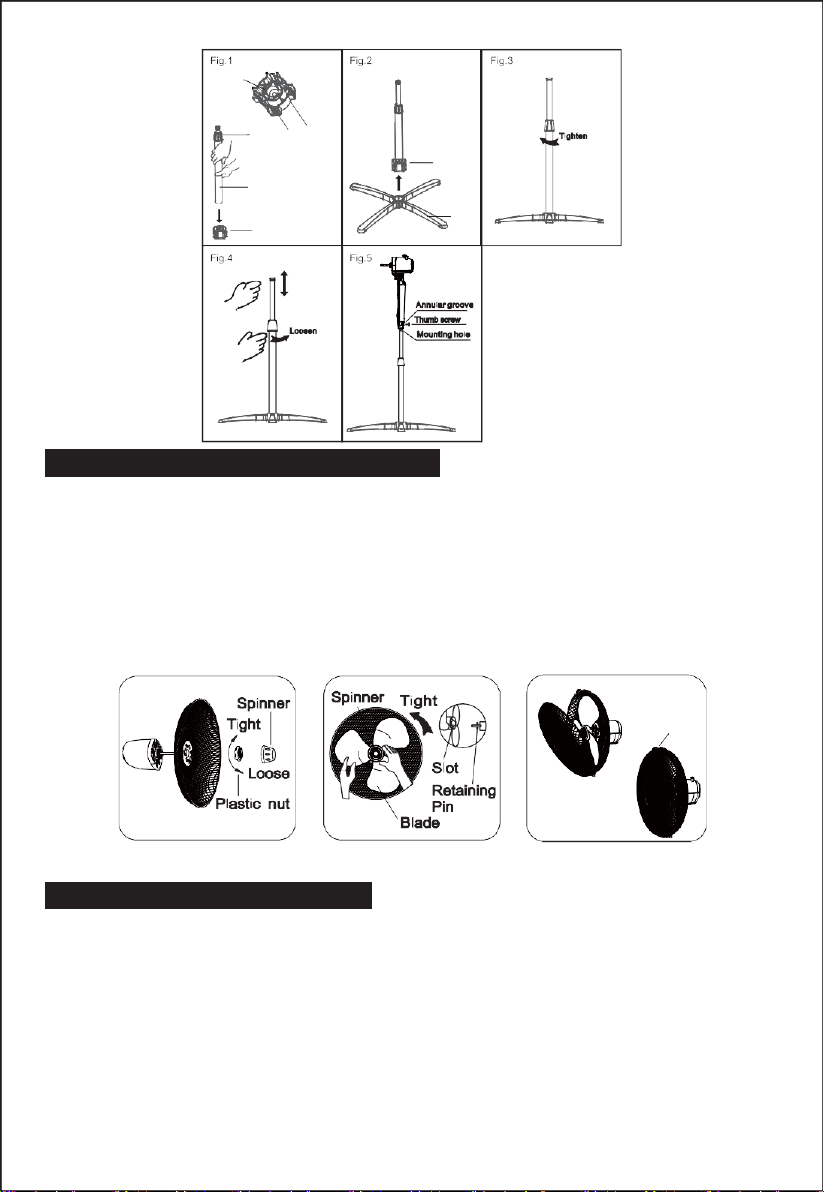

ASSEMBLY OF CROSS STAND & COLUMN UNIT
1. Insert the pole assembly into the connector from top to bottom, ensure it is
installed in place (Through the through hole at the bottom of the
connector, it can be judged whether the pole is installed in place) .(Fig.1)
2. Insert 4 stands into the crossbase connector. Ensure the stands are well fixed
into the connector. (Fig.2)
3. From the extension pole loosen the height adjustment ring and adjust theinternal
pole to the desired height. (Note: If you can’t find the internal pole, it slides inside
the extension pole. You can pull it out from the extension pole.) Fasten the height
adjustment ring. (Fig.3,4)
4. To attach the head unit to the internal pole, loosen the thumb screw on thebottom
of the head unit. Place the head unit on the internal pole and tighten the thumb
screw in alignment with the groove on the internal pole. (Fig.5)
Fasten
Note: All the pictures in this manual are for
explanation purpose only. Any discrepancy
between the real object and the illustration
in the drawing shall be subject to the real
subject.
Thumb screw
GRILL & FAN BLADE ASSEMBLY
1. Unscrew the spinner clockwise (or take the spinner out from the bag) and the
plastic nut counterclockwise to remove both of them. Fix the rear grill to the
motor then tighten the plastic nut again. (Fig. 6)
2. Insert the blade into shaft, and make sure the rotor shaft pin is fitted into groove
of the blade. Turn the spinner counterclockwise to tighten the blade. (Fig. 7)
3. Fasten the front grill and the rear grill by the grill clip and then tighten the fan
grill locking screw and nut. (Fig. 8)
Screw
Fig.6 Fig.7 Fig.8
OPERATING INSTRUCTION
1. Speed is controlled by the Piano switch:
0---Off 1---Low 2---Medium 3---High
2. To make/stop the fan head oscillate. Push down/pull up the clutch knob.
3. To adjust the air flow upward or downward, push the grilles lightly to the desired
direction.
4. The height of the fan can be adjusted by loosening the height adjustment ring,
carefully raising or lowering the fan and firmly re-tightening the height
adjustment ring.
throughhole
Height
adjustment
ring
Pole assembly
Crossbase connector
Crossbase
connector
Stand
MAINTENANCE INSTRUCTION
The fan requires little maintenance. Do not try to fix it by yourself. Refer it to
qualified service personnel if service is needed.
1. Before cleaning and assembling, fan must be unplugged.
2. To ensure adequate air circulation to the motor, keep vents at the rear of the
motor free of dust. Do not disassemble the fan to remove dust.
3. Please wipe the exterior parts with a soft cloth soaking a mild detergent.
4. Do not use any abrasive detergent or solvents to avoid scratching the surface.
Do not use any of the following as a cleaner: gasoline, thinner.
5. Do not allow water or any other liquid into the motor housing or interiorparts.
CLEANING
1. Be sure to unplug from the electrical supply source before cleaning.
2. Plastic parts should be cleaned with a soft cloth moisten with mild soap.
Thoroughly remove soap film with dry cloth.
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN
ACCORDANCE WITH EC DIRECTIVE 2002/96/EC.
At the end of its working life, the product must not be disposed of as urban waste. It must
be taken to a special local authority differentiated waste collection center or to a dealer
providing this service. Disposing of a household appliance separately avoids possible
negative consequences for the environment and health, deriving form inappropriate
disposal and enables the constituent materials to be recovered to obtain significant
savings in energy and resources. As a reminder of the need to dispose of household
appliances separately, the product is marked with a crossed-out wheeled dustbin.
