Rointe D SERIES Manuale utente

MANUAL DE INSTALACIÓN Y USO

Página 26

MANUAL DE INSTALAÇÃO E DE UTILIZAÇÃO

Página 52

INSTALLATION AND USER MANUAL

Page 02

INSTALLATIE- EN GEBRUIKERSHANDLEIDING

Page 77

D SERIES Digital radiator with Wi-Fi / Radiador digital con Wi-Fi /

Radiador digital com Wi-Fi / Digitale radiator met Wi-Fi

GUARANTEE / GARANTÍA

/ GARANTIA / GARANTIE

ON THE BODY

EN EL CUERPO

NO CORPO

IN HET LICHAAM

YEARS / AÑOS

/ ANOS / JAAR

YEARS / AÑOS

/ ANOS / JAAR

ON ELECTRONICS

EN ELECTRÓNICA

NA ELECTRÓNICA

IN ELEKTRONICA

SYMBOLS

DANGER. This symbol indicates a medium-high risk hazard which can result in

serious injury or even death.

DO NOT COVER. Do not dry or leave clothes or towels on the radiator. Do not

leave or place magazines, spray cans, volatile substances, or similar objects

within 250 mm of the radiator.

HOT SURFACE. This symbol indicates that your surfaces are hot during and

immediately after use. These must not be touched: danger of burns.

OBSERVE THE INSTRUCTIONS IN THE MANUAL. Please read this manual

carefully before installing and using the product. Keep it for later use. Read all

instructions and safety warnings. Failure to follow these can result in electric

shock, re or serious injuries.

D SERIES DIGITAL RADIATOR WITH WI-FI

INDEX

1. General Warnings ............................................................................................................ 4

2. Technical information ....................................................................................................7

3. Installation........................................................................................................................ 8

4. Screen & Keypad ............................................................................................................ 11

5. Functionality and programming ................................................................................. 12

5.1. ON / OFF (stand-by) ...............................................................................................12

5.2. Adjust the day and time......................................................................................... 12

5.3. Adjust the temperature ........................................................................................ 13

5.4. Lock the control panel........................................................................................... 13

5.5. Main menu ............................................................................................................. 14

5.6. Main menu: Submenu settings ............................................................................ 14

5.7. Main Menu: Energy sub-menu .............................................................................. 15

5.8. Main menu: Equilibrium / Balance sub-menu .................................................... 17

5.9. Main menu: Program sub-menu .......................................................................... 17

5.9.1. Manual/Automatic functions.......................................................................... 18

5.9.2. Programming options..................................................................................... 18

5.9.3. User mode........................................................................................................20

5.9.4. Pilot wire function ...........................................................................................22

5.9.5. Fuzzy Logic Control technology.....................................................................22

6. Wi-Fi Pairing ...................................................................................................................22

7. Maintenance and cleaning ...........................................................................................23

8. European Regulation (WEEE) 2012/19/EU ................................................................23

9. Guarantee ......................................................................................................................23

10. How to register your product guarantee ..................................................................26

Directive ERP Commission Regulation ....................................................................... .102

EU Declaration of Conformity ........................................................................................103

1. GENERAL WARNINGS

WARNINGS

This product may be used by children over 8 years of age

and by persons with reduced physical, sensory, or mental

capabilities, or lack of experience and knowledge under strict

supervision or instruction in the safe use of the product and

if they understand the hazards involved. Children should not

plug, adjust, clean, play with, or perform maintenance on this

product. Children under 3 years of age should be kept away

from this product unless supervised.

DO NOT use the product in enclosed spaces if the persons

present cannot leave the room independently and are not

under constant supervision.

DO NOT COVER. To avoid overheating, do not cover the

radiator.

DO NOT place spray cans, volatile substances, or similar

objects within 250mm of the product.

DO NOT use insecticides, paints, or chemicals on or near the

product.

Some parts of this product could reach high temperatures

and cause burns. DO NOT touch the external parts of the

product when in operation.

DO NOT install near curtains or other ammable materials.

Particular attention should be paid when children and

vulnerable people are present.

D SERIES DIGITAL RADIATOR WITH WI-FI

When using electrical appliances, precautions should be

taken to reduce the risk of re, electric shock and injury.

Never insert ngers, body parts or objects inside the product.

Make sure that the voltage indicated on the product’s

technical information corresponds to the voltage output you

have at your socket.

Any repair or maintenance that requires the product to

be opened the product must be carried out by personnel

authorised by ROINTE, who must also be notied if a leak

is observed. Only ocial spare parts approved by ROINTE

should be used. Please observe the current and relevant

regulations when disposing of this product and its thermal

uid.

If the power cable is damaged, it must be replaced by

personnel authorised by ROINTE to prevent any damage.

To avoid the risk of suffocation, do not leave the packaging

including bags and other items within reach of babies or

children.

The product has an IP24 degree of protection and can be

used in bathrooms, but not in the vicinity of bathtubs, taps,

showers, water connections, toilets, swimming pools or other

masses of water. The product must never be installed where

it, the switches or the control panel are within the reach of

people in the water. Never use the product with wet hands.

Do not place any water containers (glasses, vases, etc.) on or

near the product.

IMPORTANT

Disconnect the product from the power supply and make

sure the product is at room temperature before any cleaning

or maintenance. Do not use any abrasive substances on

the product, such as (but not limited to) chemicals, coarse

cloths, brushes, hard bristle, or wire/steel wool.

To disconnect the product from the power source, remove

the mains plug from the socket. Do not pull on the cable.

ROINTE cannot be held responsible for incorrect sizing of

the product unless it has been followed by an ocial ROINTE

technical study.

Before the rst start-up, or before the start of winter, or when

the product has not been used for many days, the appliance

should be cleaned (follow the steps in the “maintenance”

section of this manual).

Do not sit or lean on the product.

Temperature contrasts can generate “clicks” or noises in

the device. This is not a fault of the product, but due to the

expansion/contraction of the materials.

When disposing of the product, the requirements set out in

the legislation for the waste treatment and recycling must be

followed. See WEEE in section 8.

D SERIES DIGITAL RADIATOR WITH WI-FI

2. TECHNICAL INFORMATION

MODELS 0330RAD 0550RAD 0770RAD 0990RAD 1210RAD 1430RAD 1600RAD

Number of elements 3 5 7 9 11 13 15

DIMENSIONS, WEIGHTS & FINISHES

Width (mm) 350 510 670 830 990 1,150 1,310

Height (mm) 585 585 585 585 585 585 585

Depth (mm) 97 97 97 97 97 97 97

Installed depth (mm) 120 120 120 120 120 120 120

Weight (kg) 7,7 12,2 16.4 20.4 24.1 25.9 32.1

Finish White RAL 9016 / Graphite / RAL color

ELECTRICAL CHARACTERISTICS

Nominal power (W) 330 550 770 990 1,210 1,430 1,600

Effective power (W) 125 209 293 376 460 543 608

Voltage (V) 230 ~V 230 ~V 230 ~V 230 ~V 230 ~V 230 ~V 230 ~V

Current (A) 1.5 2.4 3.4 4.3 5.3 6.2 7.0

SAFETY & INSTALLATION

Safety thermostat ✓ ✓ ✓ ✓ ✓ ✓ ✓

Protection Grade IP 24 IP 24 IP 24 IP 24 IP 24 IP 24 IP 24

Template & Installation Kit ✓ ✓ ✓ ✓ ✓ ✓

EAN

CODE

WHITE 8436045913708 8436045913715 8436045913722 8436045913739 8436045913746 8436045913753 8436045913760

GRAPHITE 8436045913777 8436045913784 8436045913791 8436045913807 8436045913814 8436045913821 8436045913838

3. INSTALLATION

We recommend using a trusted Rointe supplier for installation of the product. Find the

nearest one by calling us on 0203 321 5929 or using the locator on www.rointe.co.uk.

IMPORTANT: Prior to installation, please locate the metal tag located at the back of the

product and note the product reference and serial number. You will need this information

to register your guarantee. See section 10 for help on how to register the guarantee.

WARNING: Do not install the product directly over an electrical outlet or junction box.

Do not install the product or use it outdoors. Do not install directly under a shelf. This

product is designed to be installed on an interior wall using the ROINTE template, the

installation kit and the xings supplied. Do not install the product in such a way that it

encounters the power cable.

The product must be mounted on the wall in the position

shown in the accompanying image using the brackets

and with the xings supplied.

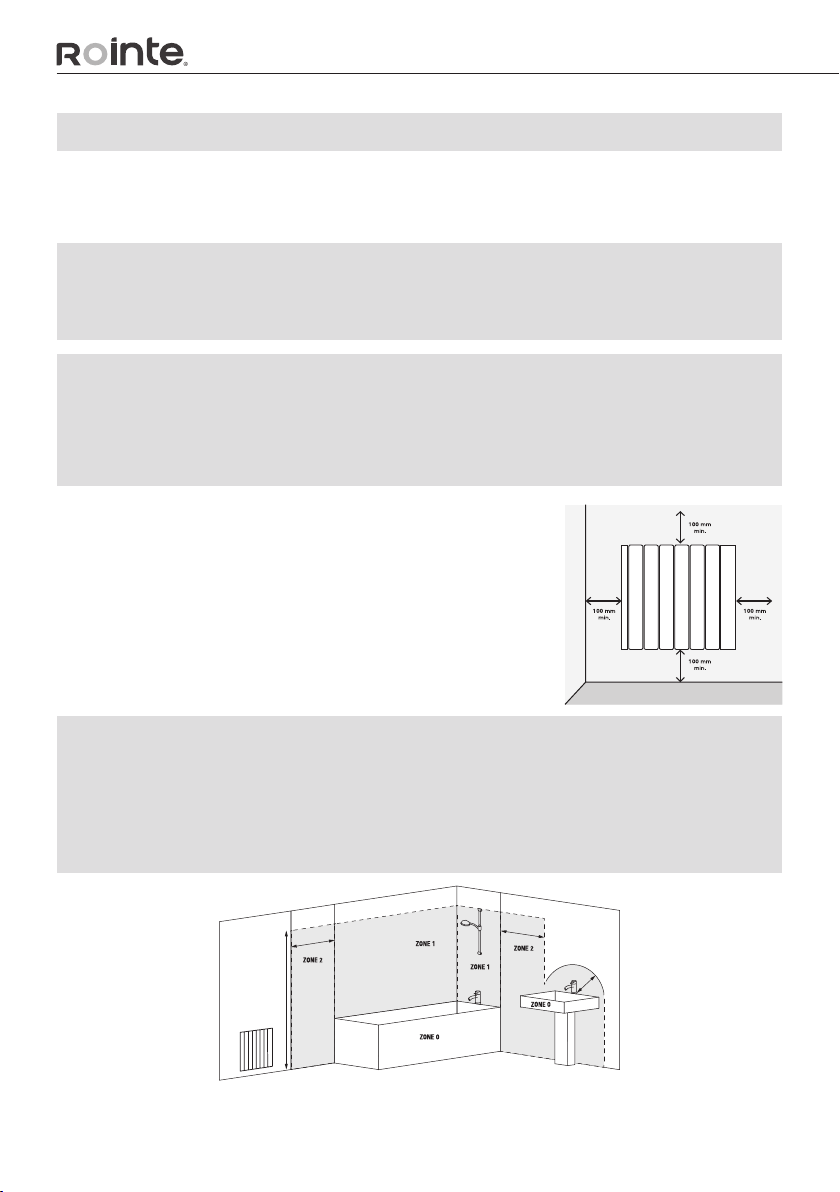

Our products transfer heat through the natural air

convection. If the product is covered, this will disrupt

the airow and could cause overheating. It must be

positioned in accordance with the minimum distances

shown in the accompanying picture.

WARNING: The product has an IP24 degree of protection and can be used in bathrooms,

but not in the vicinity of bathtubs, taps, showers, water connections, toilets, swimming

pools or other masses of water. The product can only be installed in zone 3 of the

accompanying picture. The product must never be installed where it, the switches or the

control panel are within the reach of people in the water. Never use the product with wet

hands. Do not place any water containers (glasses, vases, etc.) on or near the product.

ZONA EXTERIOR ZONA EXTERIOR

2.25 m

0.6 m 0.6 m

0.6 m

An installation kit is included in the product packaging. You will need a drill, a rubber mallet,

a spirit level and a pencil to complete the installation.

D SERIES DIGITAL RADIATOR WITH WI-FI

WARNING: The weight of some of the products may be heavy. The installation

may require two people.

IMPORTANT: Please follow these instructions carefully.

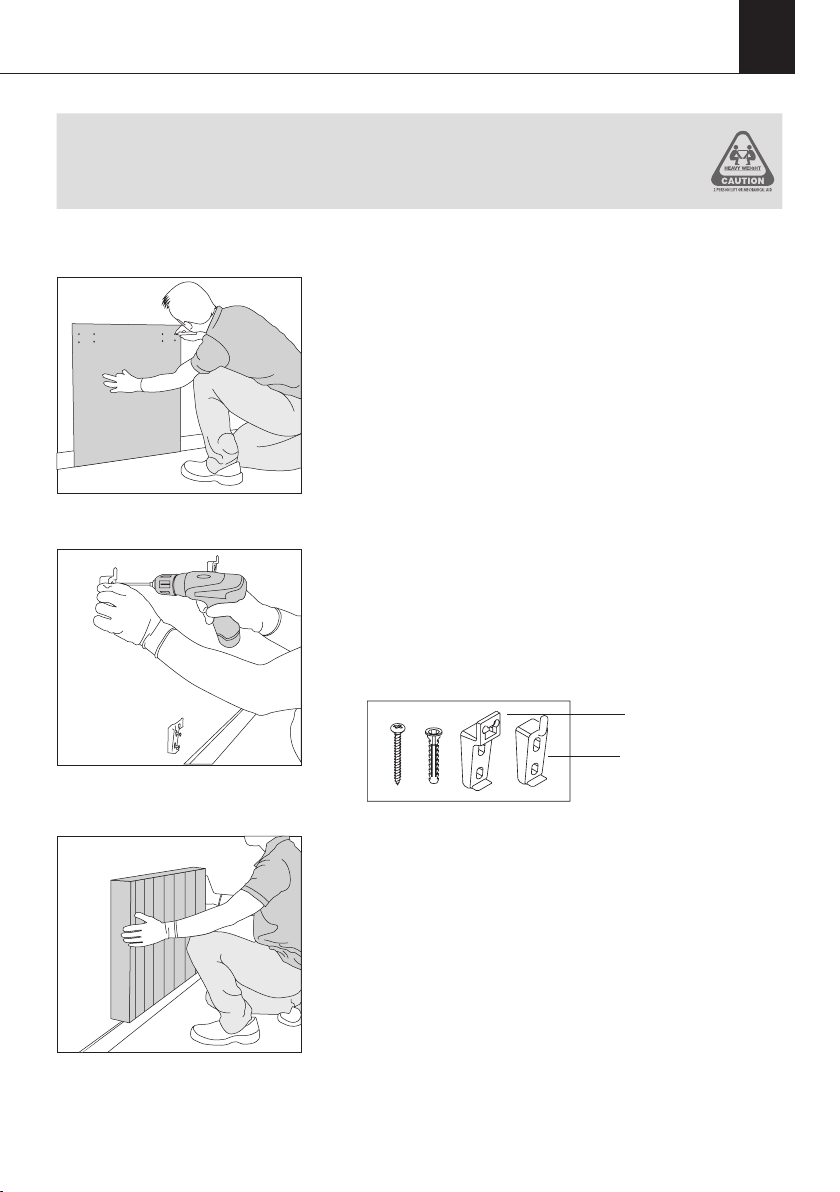

1. Remove the packaging and check that the installation

contains brackets, screws, rawl plugs and a cardboard

template.

2. Select a suitable location on the wall. Place the

template on the wall and mark the holes for the

brackets and screws. Observe the minimum distance

requirements from the previous page.

Use the oor as a base for the template, not the

skirting board.

3. Remove the template and carefully drill out the

marked holes.

4. Secure the upper brackets with the rawl plugs

and screws provided. Then x the lower bracket. To

distinguish it, the lower bracket has a different design

from the top ones.

Top bracket

5. Slide the product up and down over the xed

brackets.

6. Check the straightness with a spirit level and adjust

the supports accordingly if necessary.

Bottom bracket

7. Connect your product to the power supply and

switch it on.

8. See section 5 for operating instructions.

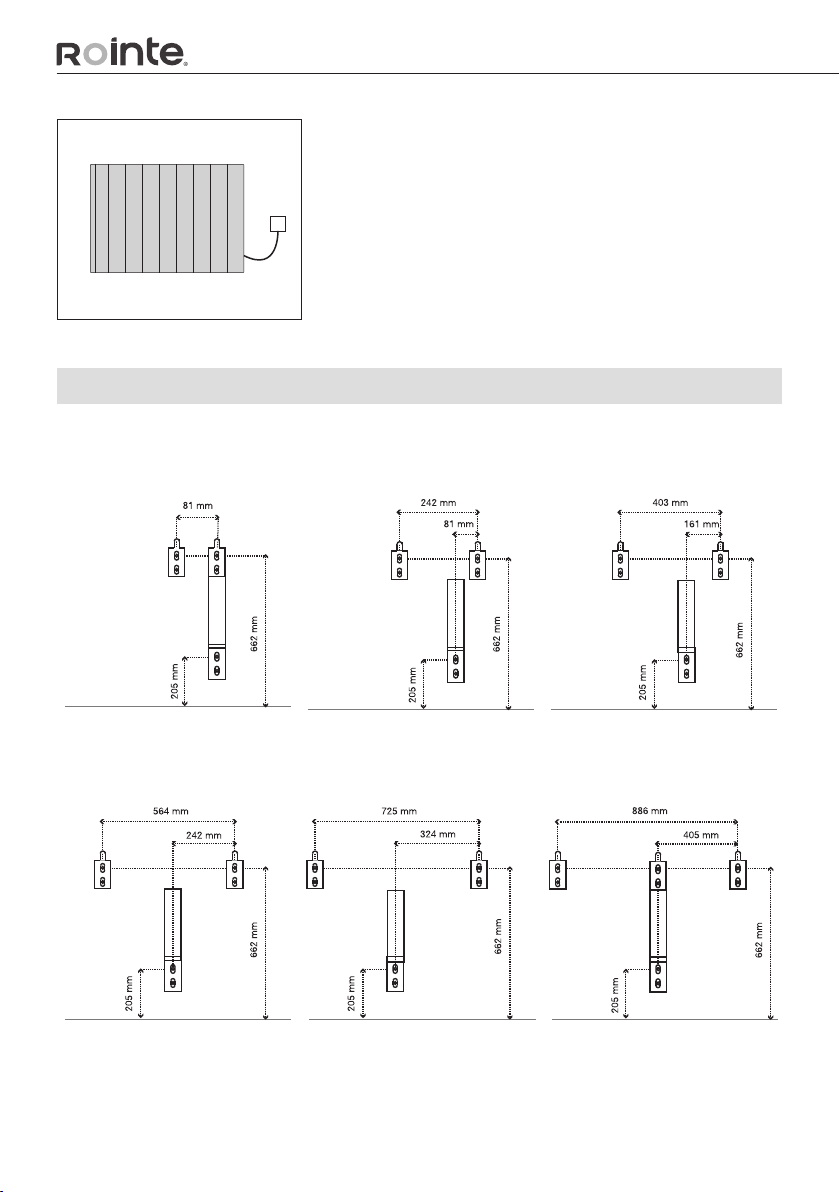

IMPORTANT: Measurement template per model.

0330RAD 0550RAD 0770RAD

0990RAD 1210RAD 1430RAD /

1600RAD

Floor

Altri manuali per D SERIES

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Rointe Stufa

Rointe

Rointe Loira electric OVAL 432 Manuale utente

Rointe

Rointe KYROS KTI030SE 3 Series Manuale utente

Rointe

Rointe Kyros Manuale

Rointe

Rointe KYROS SHORT Manuale utente

Rointe

Rointe ecodesign BELIZE Manuale utente

Rointe

Rointe Giza PRO 400 Manuale utente

Rointe

Rointe OLYMPIA ORI0500RAD Manuale utente

Rointe

Rointe Tovare aqua Manuale utente

Rointe

Rointe Impero electric OVAL 500 Manuale utente

Rointe

Rointe D SERIES Manuale per l'uso e la cura

Rointe

Rointe Palaos 1000RAD Scheda tecnica

Rointe

Rointe Elba PRO 400 Manuale utente

Rointe

Rointe TN030SEB Manuale utente

Rointe

Rointe Napoli aqua Manuale utente

Rointe

Rointe Kyros Istruzioni operative

Rointe

Rointe D SERIES Manuale utente

Rointe

Rointe ecodesign BELIZE BAS Manuale utente

Rointe

Rointe D SERIES Istruzioni operative

Rointe

Rointe K series Manuale utente

Rointe

Rointe Series C 603 Manuale utente

Rointe

Rointe Kyros Manuale utente

Rointe

Rointe Torino AQUA Manuale utente

Rointe

Rointe SYGMA BAS SRF1100RADC2 Manuale utente

Rointe

Rointe Tovare electric OVAL 500 Manuale utente

Manuali Stufa popolari di altre marche

oventrop

oventrop Regucor Series Manuale utente

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manuale utente

ELMEKO

ELMEKO ML 150 Manuale utente

BN Thermic

BN Thermic 830T Manuale utente

KING

KING K Series Guida

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guida rapida

Well Straler

Well Straler RC-16B Manuale utente

EUROM

EUROM 333299 Manuale utente

Heylo

Heylo K 170 Manuale utente

Eterna

Eterna TR70W Manuale utente

Clarke

Clarke GRH15 Manuale di istruzioni

IRSAP

IRSAP The Radiator Company Ovali Manuale utente

Empire Heating Systems

Empire Heating Systems WCC65 Manuale utente

Wetekom

Wetekom 92 86 43 Manuale utente

Desa

Desa SPC170-F Manuale utente

Watlow

Watlow Watrod Electric Tubular Heaters Manuale utente

Haverland

Haverland ECO-DRY GPS Series Manuale elenco delle parti

Stelpro

Stelpro ASILVC2060 Series Manuale utente
